ABB 3AUA0000058712/ZDPI-01 Retrofit-Compatible Adapter Board

ABB 3AUA0000058712/ZDPI-01 Retrofit-Compatible Adapter Board for Legacy Drive Systems

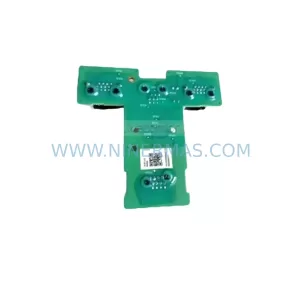

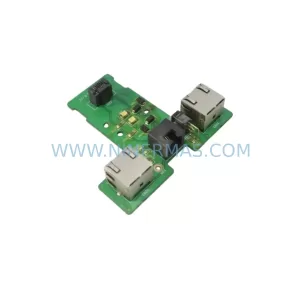

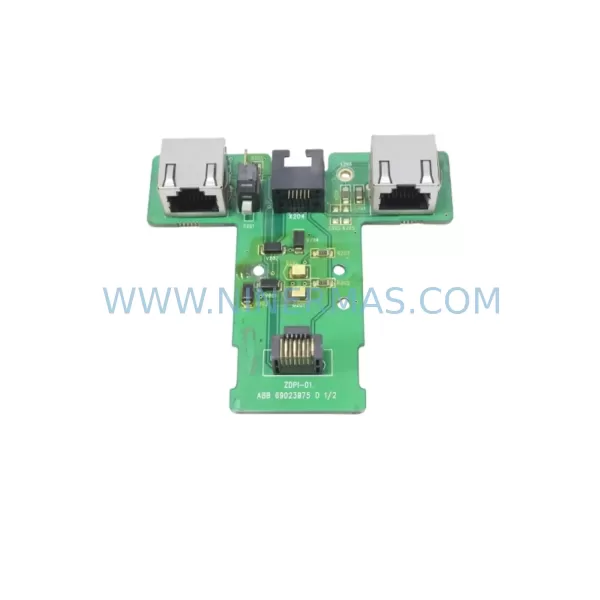

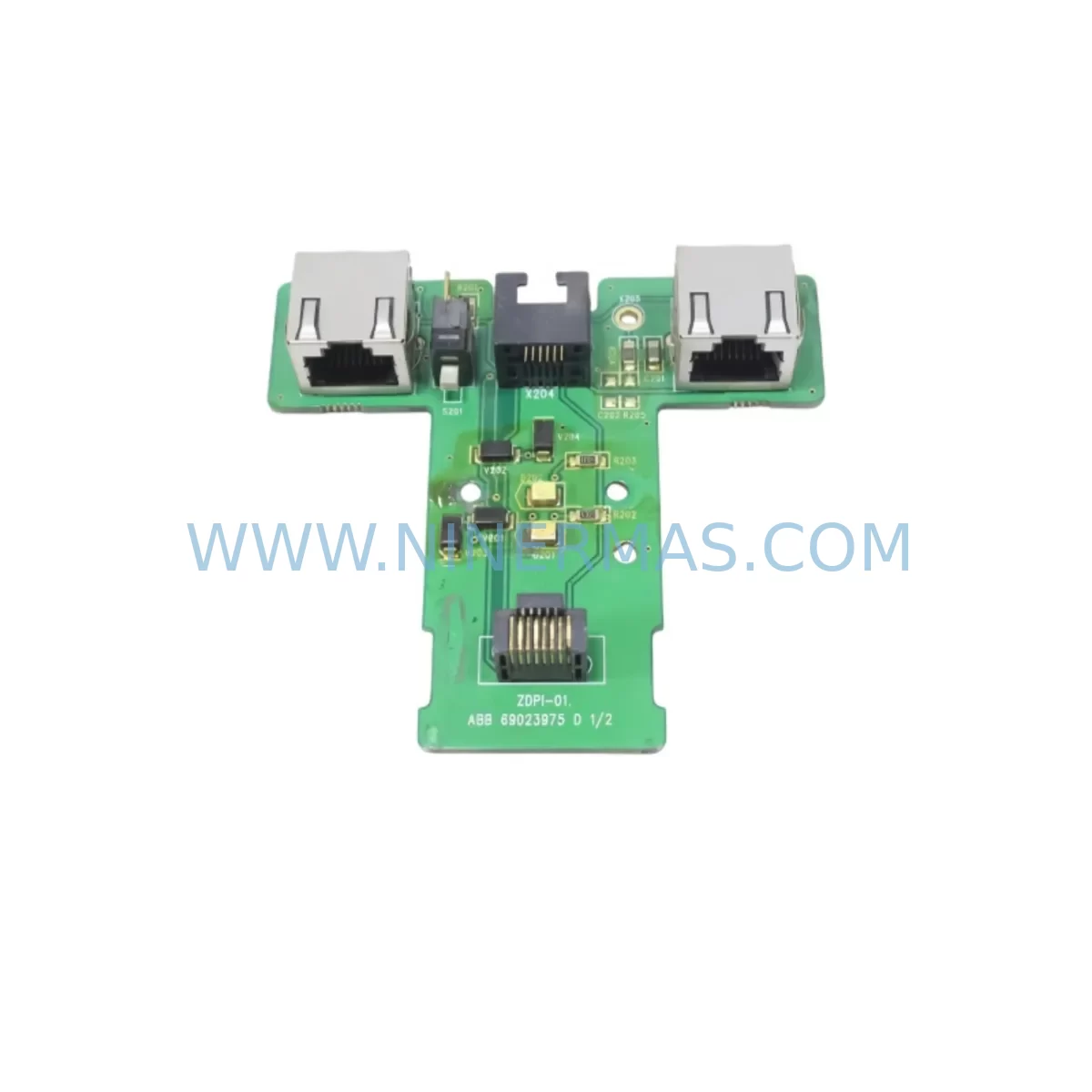

The ABB 3AUA0000058712/ZDPI-01 (ZDPI-01) is a ruggedized adapter board engineered for demanding industrial environments and designed to serve as a direct retrofit solution for aging ABB drive platforms. As legacy ACS800, ACS600, and earlier ACS550 series drives approach end-of-life, the ZDPI-01 adapter board provides a reliable, drop-in compatible interface that bridges older backplane architectures with modern fieldbus and I/O expansion requirements. Whether you are managing a planned control cabinet upgrade, responding to an unplanned drive failure, or executing a phased plant-wide modernization, the 3AUA0000058712/ZDPI-01 is a proven component in the retrofit toolkit.

For engineers and procurement teams sourcing discontinued ABB spare parts, this board addresses one of the most common pain points in legacy drive maintenance: maintaining signal integrity and communication continuity when the original hardware is no longer available through standard distribution channels. NINERMAS maintains verified inventory of the ZDPI-01 with full functional testing prior to shipment and a 12-month warranty covering manufacturing defects and operational failure under normal industrial use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3AUA0000058712/ZDPI-01 into an existing control system requires careful pre-installation planning. The following considerations apply to most retrofit scenarios involving legacy ABB drive cabinets and associated control infrastructure.

Power Capacity Verification: Before installing the ZDPI-01, confirm that the host drive’s internal power supply — typically the APOW-01 or equivalent ABB power supply module — has sufficient headroom to support the adapter board alongside any co-installed option modules such as the RDCO-03 DDCS communication module or RETA-01 Ethernet adapter. Overloading the internal PSU is a common cause of intermittent faults in retrofitted drives.

Terminal Wiring and Backplane Interface: The ZDPI-01 connects via a dedicated slot on the ACS800 option board rack. Verify that the backplane connector on the host drive matches the ZDPI-01 pinout. In older ACS600 installations, a mechanical adapter bracket may be required to align the board correctly within the control section. Document all existing terminal wiring on the RMIO-11 or RMIO-02 main I/O board before beginning any disassembly.

Module Address and Program Compatibility: After physical installation, the ZDPI-01 module address must be re-assigned through the drive’s parameter set — typically via the CDP control panel or DriveWindow Light software. If the drive is integrated into a PROFIBUS DP or Modbus RTU network via an RPBA-01 or RMBA-01 fieldbus adapter, confirm that the GSD file and master PLC configuration reflect the updated module mapping. Failure to update the master PLC — whether a Siemens S7-300, Allen-Bradley ControlLogix, or ABB AC500 — will result in communication faults at startup.

HMI Screen and Parameter Migration: Plants using ABB Panel Builder or third-party SCADA systems connected to the drive via RDNA-01 DeviceNet or RETA-02 EtherNet/IP adapters should audit all HMI screens referencing drive parameters before commissioning the replacement board. Parameter group structures may differ slightly between drive firmware versions, and any hardcoded parameter addresses in the HMI project will need to be verified against the post-retrofit drive configuration.

I/O Expansion and Signal Isolation: In applications where the legacy drive interfaces with external I/O — such as analog signal conditioners, signal isolators, or remote I/O racks connected via RRIO-01 — confirm that the ZDPI-01 does not alter the signal routing path. Where analog input scaling or 4–20 mA loop integrity is critical, use a dedicated signal isolator between the field device and the drive terminal block to prevent ground loop interference during the transition period.

Installation Space and Cabinet Layout: The ZDPI-01 occupies a standard ABB option slot. In densely populated control cabinets — particularly those housing multiple ACS800 drives alongside NETA-21 remote monitoring units and SREA-01 Ethernet adapters — verify that adequate clearance exists for the board and that airflow paths are not obstructed. Thermal management is especially important in retrofit scenarios where the cabinet was originally designed for a different option board configuration.

Downtime Control During System Migration

Minimizing production downtime is the primary operational concern in any legacy drive retrofit. For the ABB 3AUA0000058712/ZDPI-01, the following approach is recommended to protect existing program logic, maintain field control continuity, and reduce commissioning risk.

Pre-Swap Parameter Backup: Use DriveWindow Light or the CDP panel to perform a full parameter backup of the existing drive before removing the failed or obsolete ZDPI-01. Store the backup on a PC and, where possible, on the CDP panel’s internal memory. This ensures that all motor control parameters, speed references, PID tuning values, and fieldbus configuration can be restored immediately after the new board is seated.

Staged Commissioning: Where process conditions allow, commission the retrofitted drive in local control mode first — bypassing the PLC and SCADA system — to verify basic motor operation, direction of rotation, and acceleration/deceleration ramp behavior. Only after confirming stable local operation should the drive be handed back to remote control via the fieldbus link. This staged approach isolates electrical and mechanical issues from communication and software issues, significantly reducing diagnostic time.

Spare Board Pre-Testing: NINERMAS performs functional verification on all ZDPI-01 units prior to shipment. Each board is tested for backplane communication integrity, signal path continuity, and compatibility with the target drive firmware version where test equipment permits. A test report is available upon request for critical infrastructure applications.

On-Site Commissioning Support: For complex retrofit projects involving multiple drives, protocol migration from DDCS to EtherNet/IP, or integration with new PLC platforms, NINERMAS can provide technical documentation packages including wiring diagrams, parameter checklists, and commissioning sequence guides to support your engineering team’s on-site work.

Inventory and Lead Time: Maintaining a buffer stock of the ZDPI-01 is strongly recommended for plants operating multiple ACS800 drives. As this component is discontinued by ABB, availability on the open market is limited and lead times from alternative sources can extend to 8–16 weeks. NINERMAS maintains in-stock inventory with same-week dispatch capability for verified orders.

Retrofit Support FAQ

Q: Is the ABB 3AUA0000058712/ZDPI-01 a direct replacement for the original ZDPI-01 installed in my ACS800 drive?
A: Yes. The 3AUA0000058712 is the ABB part number for the ZDPI-01 adapter board. It is designed as a direct slot-compatible replacement for the original board in ACS800 and compatible legacy drive platforms. Confirm your drive’s option slot configuration and firmware version before installation to ensure full compatibility.

Q: What commissioning steps are required after installing the ZDPI-01?
A: After physical installation, restore the parameter backup via CDP panel or DriveWindow Light, re-assign the module address in the drive parameter set, verify fieldbus node ID and GSD/EDS file alignment in the master PLC, and confirm HMI parameter mapping. Run the drive in local mode before enabling remote fieldbus control.

Q: Does NINERMAS test the ZDPI-01 before shipment?
A: Yes. All units undergo functional verification prior to dispatch, including backplane communication and signal path testing. A 12-month warranty is provided covering manufacturing defects and operational failure under normal industrial use. Test reports are available upon request.

Q: What is the typical lead time and what if I need the board urgently?
A: NINERMAS maintains in-stock inventory of the ABB 3AUA0000058712/ZDPI-01 with same-week dispatch for verified orders. For urgent requirements, contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange expedited shipment.
