ABB DSQC431 3HAC036260-001 Retrofit-Compatible LVMC MDU for Legacy IRC5 Systems

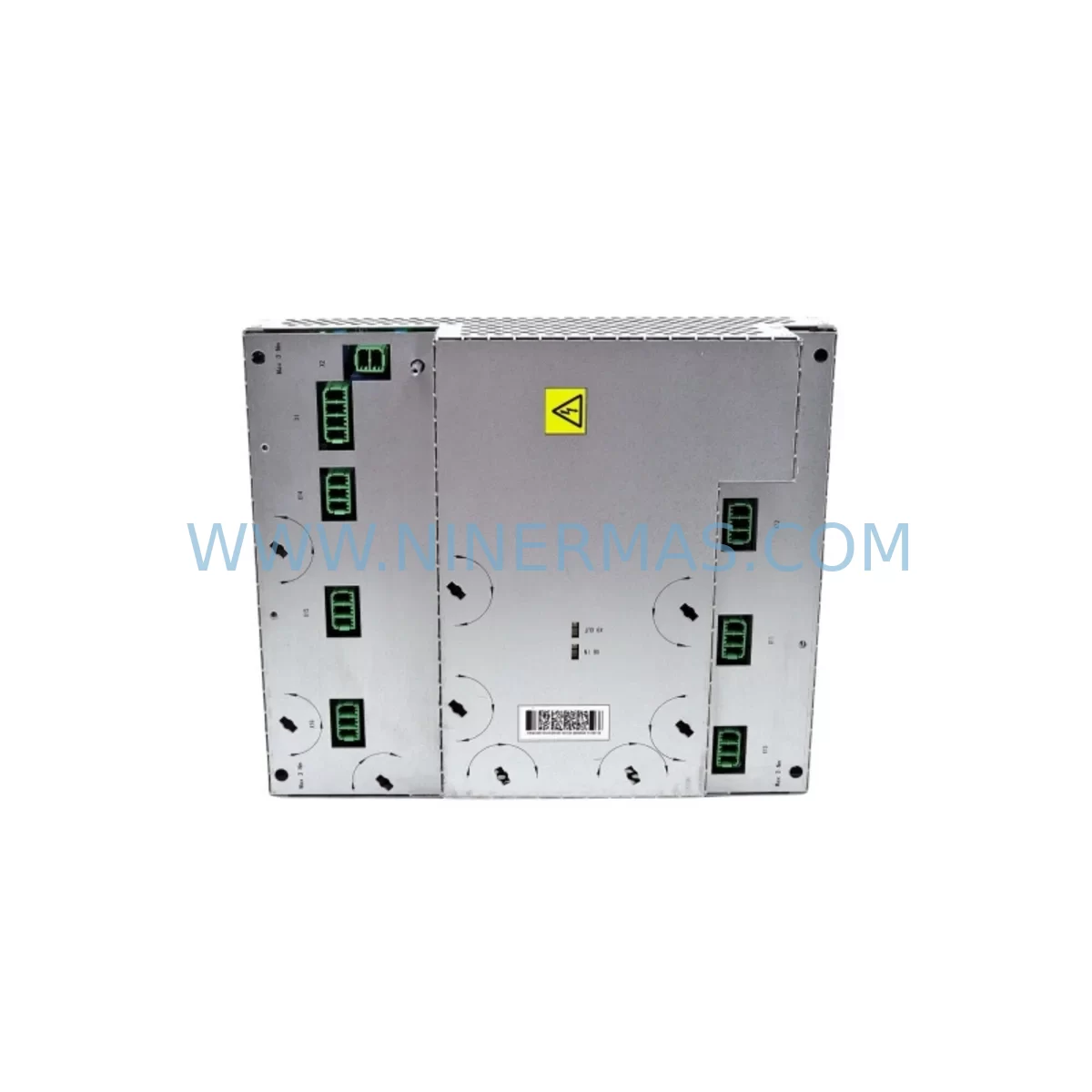

The ABB DSQC431 (part number 3HAC036260-001) is a ruggedized Low Voltage Motor Control and Motion Drive Unit (LVMC MDU) engineered for ABB IRC5 robot controller cabinets. As ABB progressively phases out legacy IRC5 hardware, the DSQC431 has become one of the most sought-after spare parts for maintenance engineers managing aging robotic production lines. NINERMAS maintains verified stock of the DSQC431 to support retrofit projects, emergency replacements, and planned system upgrades across automotive, electronics, food processing, and heavy manufacturing sectors.

Whether you are managing a single-robot cell or a multi-axis coordinated motion system, the DSQC431 plays a critical role in sustaining drive performance, axis synchronization, and low-voltage power distribution within the IRC5 cabinet architecture. Its ruggedized design makes it particularly suitable for harsh industrial environments where vibration, thermal cycling, and electromagnetic interference are constant operational challenges.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DSQC431 in an active production environment requires careful pre-planning to avoid extended downtime and configuration loss. Before initiating the swap, maintenance engineers should perform a full backup of the IRC5 system parameters using the FlexPendant or RobotStudio, capturing all axis calibration data, tool center point (TCP) offsets, and work object definitions. This backup is essential because the DSQC431 interfaces directly with the drive bus that coordinates motion across all robot axes.

Power supply verification is the first hardware checkpoint. The IRC5 cabinet typically relies on the DSQC662 or DSQC663 power supply unit to deliver regulated low-voltage DC to the LVMC MDU. Engineers should confirm that the PSU output rails are within specification before installing the replacement DSQC431, as an under-voltage condition can cause the new module to fault immediately on startup. If the PSU shows signs of aging — such as output ripple or thermal discoloration — it is advisable to replace it concurrently with the DSQC431 to avoid a secondary failure shortly after the retrofit.

Backplane slot assignment must be verified against the original cabinet wiring diagram. The DSQC431 connects to the IRC5 backplane via a keyed multi-pin connector, and incorrect slot placement will prevent the controller from recognizing the module during the boot sequence. Cross-reference the slot address with the system configuration in RobotStudio before powering up. If the cabinet also houses a DSQC668 axis computer or a DSQC679 main computer board, confirm that the inter-module communication links remain intact after the DSQC431 is seated.

For systems that include I/O expansion via DSQC652 digital I/O modules or DSQC651 analog I/O boards, verify that the I/O bus addressing has not been disrupted by the drive module replacement. In multi-robot cells coordinated through a DSQC609 fieldbus adapter or a DSQC688 EtherNet/IP module, the communication link between the IRC5 controller and the plant-level PLC or SCADA system should be tested independently after the DSQC431 swap to confirm that upstream signal integrity is maintained.

HMI screen validation is another critical step. If the production cell uses a dedicated operator panel or a third-party HMI connected to the IRC5 via the DSQC639 teach pendant interface or a serial communication board, verify that all HMI screens correctly reflect the robot’s operational status after the module replacement. Any axis fault codes or drive status indicators that were previously mapped to HMI tags should be re-confirmed against the live system.

Terminal wiring inspection should cover all low-voltage signal cables routed to and from the DSQC431 bay. Pay particular attention to the motor feedback cables, resolver connections, and brake control wiring. Loose or corroded terminals are a common root cause of intermittent drive faults in aging IRC5 cabinets, and the replacement process provides an ideal opportunity to re-terminate any suspect connections using appropriate ferrules and torque specifications.

For installations where the IRC5 cabinet is mounted in a confined control room or integrated into a compact manufacturing cell, confirm that the physical installation space allows for proper module seating and that the cabinet door can be closed without cable pinching. The DSQC431’s ruggedized form factor is designed to fit standard IRC5 drive bays, but cable management should be reviewed if the cabinet has been modified from its original configuration.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSQC431 replacement is achievable with a structured migration plan. The most effective approach is to schedule the replacement during a planned maintenance window, ideally during a shift changeover or scheduled production break, rather than responding reactively to a module failure. Pre-staging the replacement DSQC431 on-site — verified and tested before the maintenance window — eliminates the lead time risk that is common with end-of-life spare parts.

Before powering down the IRC5 cabinet, execute a complete system parameter backup and verify that the backup file is accessible from an external storage device or a network share. This ensures that the robot program, axis calibration, and safety configuration can be restored immediately after the new DSQC431 is installed, without requiring a full re-commissioning cycle. In multi-robot cells, coordinate the shutdown sequence to avoid disrupting upstream or downstream automation equipment that depends on the robot’s cycle completion signals.

After installing the replacement DSQC431, perform a controlled power-up sequence: apply cabinet power, allow the IRC5 to complete its boot cycle, and verify that all drive axes are recognized in the system status display. Run a slow-speed jog test on each axis before returning the robot to automatic mode, confirming that position feedback, brake release, and motor current limits are all within expected ranges. Document the replacement date, module serial number, and post-installation test results for maintenance records and warranty tracking.

NINERMAS ships the DSQC431 with pre-shipment functional testing completed, reducing the risk of receiving a non-functional unit. All units are covered by a 12-month warranty, providing assurance for both emergency replacements and planned retrofit projects. In-stock availability means that most orders can be dispatched within 24–48 hours, supporting tight maintenance schedules and minimizing production impact.

Retrofit Support FAQ

Q1: Is the DSQC431 (3HAC036260-001) a direct drop-in replacement for a failed unit in my IRC5 cabinet?
A: Yes, the DSQC431 is designed as a direct replacement for the same part number in IRC5 single and dual cabinet configurations. However, always back up your system parameters before replacement and verify the backplane slot assignment to ensure the controller recognizes the new module correctly on startup.

Q2: What pre-shipment testing does NINERMAS perform on the DSQC431?
A: Each DSQC431 unit undergoes functional verification before dispatch, including power-on testing and interface checks. Units are shipped with a 12-month warranty. If you require a specific test report or certificate of conformance, contact our sales team at sale@ninermas.com prior to ordering.

Q3: Can the DSQC431 be used in IRC5 cabinets running RobotWare 6.x, or is it limited to RobotWare 5.x?
A: The DSQC431 is compatible with both RobotWare 5.x and RobotWare 6.x environments within the IRC5 platform. Confirm your specific RobotWare version and cabinet revision with our technical team if you have any compatibility concerns before installation.

Q4: What is the typical lead time and stock availability for the DSQC431?
A: NINERMAS maintains in-stock inventory of the DSQC431 to support urgent replacement needs. Standard orders are dispatched within 24–48 business hours. For large-quantity orders or long-term supply agreements, contact sale@ninermas.com or call +0086 187 5021 5667 to discuss availability and pricing.
