ABB JCU-11 3AUA0000047068 Safety-Reliable Drive Control Unit

ABB JCU-11 3AUA0000047068 Safety-Reliable Drive Control Unit for Critical Control Sites

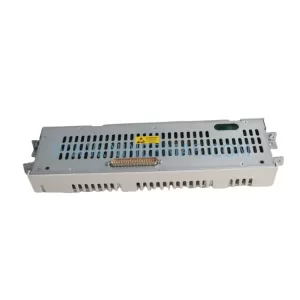

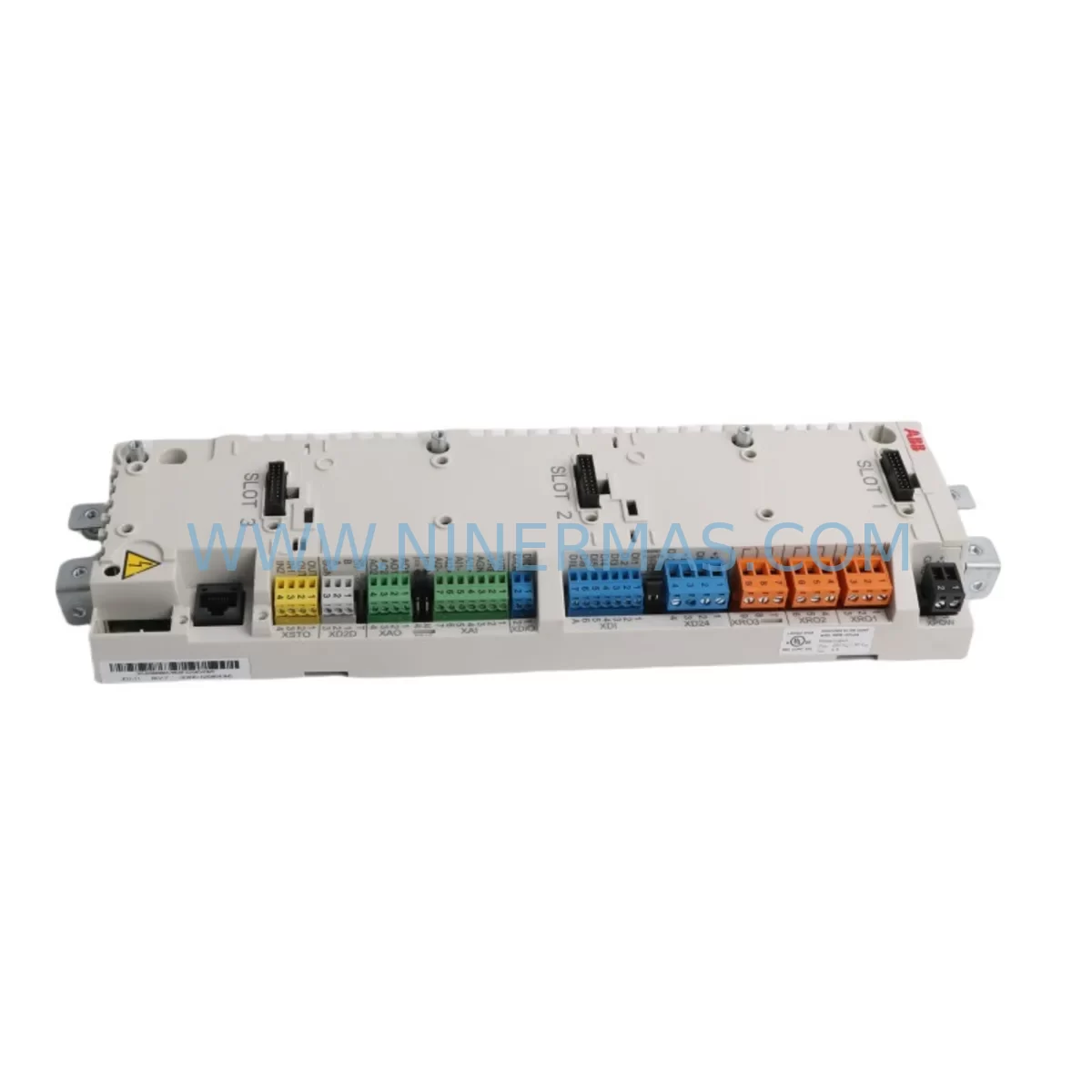

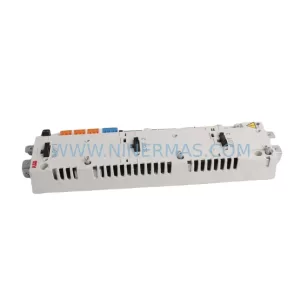

The ABB JCU-11 (Part No. 3AUA0000047068) is a dedicated control unit designed for ABB’s ACS series variable frequency drives, widely deployed across critical industrial environments where control continuity, signal integrity, and operational safety are non-negotiable. As a direct replacement and upgrade-compatible component, the JCU-11 serves as the intelligence core of the drive system — managing motor speed references, I/O signal processing, fieldbus communication, and safety interlock logic in a single compact module.

In continuous production facilities such as petrochemical plants, power generation stations, mining operations, water treatment systems, and metallurgical processing lines, unplanned drive failures carry severe consequences. The JCU-11 is engineered to maintain stable control loop performance even under high electromagnetic interference (EMI), voltage fluctuations, ambient temperature extremes, and mechanical vibration — conditions routinely encountered in heavy industrial control cabinets. Its robust design minimizes the risk of signal drift, communication faults, and spurious trips that can interrupt critical processes.

When integrated into an ACS800 or ACS550 drive platform, the JCU-11 interfaces directly with the drive’s AINT or AINT-02 inverter control board, coordinating real-time feedback from encoder modules, I/O extension boards, and fieldbus adapter modules such as the FPBA-01 PROFIBUS adapter or FCAN-01 CANopen adapter. This tight integration ensures that safety-critical signals — including emergency stop commands, motor thermal protection inputs, and process interlock feedback — are processed with minimal latency and maximum reliability.

For facilities operating under surge-prone grid conditions or in environments with significant electrical noise from large motors, welding equipment, or variable loads, the JCU-11’s isolated signal architecture provides a critical layer of protection. When paired with a properly specified APBU-44C branching unit or RDCU-12C drive control unit in multi-drive configurations, the system maintains coordinated control across multiple motor axes without cross-interference — a key requirement in port crane systems, ship propulsion controls, and rolling mill automation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the JCU-11 as a replacement or upgrade component within an existing ACS-series control cabinet requires a structured approach to risk reduction. The first priority is power supply stability: the JCU-11 draws its logic supply from the drive’s internal SMPS (switched-mode power supply), and any instability in the incoming AC supply — particularly voltage sags below the drive’s rated input tolerance — can cause the control unit to reset unexpectedly. In high-risk applications, supplementing the cabinet with a dedicated UPS module or line reactor upstream of the drive significantly reduces this exposure.

Terminal wiring verification is the second critical step. The JCU-11’s X1 and X2 connector blocks carry analog reference signals, digital interlock inputs, and relay output wiring. When replacing a failed JCU-11, technicians must document and verify each terminal assignment against the original drive parameter backup before reconnecting field wiring. Incorrect wiring of the safe torque off (STO) input — a safety-critical function on ACS800 drives — can result in either a non-functional safety circuit or an unintended drive enable condition.

Fieldbus communication continuity is equally important. If the drive is connected to a PROFIBUS DP network via an FPBA-01 adapter module, the JCU-11 replacement must be followed by a node address verification and a communication cycle test before returning the drive to automatic mode. Similarly, if the system uses a FENA-11 Ethernet adapter for EtherNet/IP or PROFINET communication, the IP address and protocol settings stored in the adapter must be confirmed against the plant’s network documentation.

For multi-drive systems using an APBU-44C branching unit, the JCU-11 replacement in one drive must not disrupt the fiber optic communication links to adjacent inverter units. Technicians should isolate the affected drive from the DDCS fiber ring before removal and restore the link only after the replacement unit has been powered and initialized. This procedure protects the remaining drives from communication timeout faults that could trigger emergency stops across the entire drive line.

Additional components commonly involved in a JCU-11 replacement or cabinet upgrade include the AINT-02 inverter control board, RDCU-12C remote drive control unit, AIMA-01 analog I/O extension module, NDIO-01 digital I/O extension module, and MFDT-01 FlashDrop parameter transfer tool. Having these components pre-staged and tested before the maintenance window begins is essential for minimizing cabinet downtime.

Critical Industrial Safety Applications

The JCU-11 is deployed across a broad range of safety-critical industrial sectors. In petrochemical and refinery operations, it controls compressor drives and pump motor systems where a control unit failure can trigger process shutdowns with significant safety and financial consequences. The JCU-11’s support for hardwired emergency stop and STO functions makes it compatible with IEC 62061 and ISO 13849 safety architectures commonly required in these environments.

In power generation and grid support applications, JCU-11-equipped drives manage induced draft fans, boiler feed pumps, and cooling water systems. These loads demand continuous, fault-tolerant control — any unexpected drive trip can cascade into turbine protection system activations. The JCU-11’s stable fieldbus communication and reliable I/O processing support the high-availability requirements of power plant auxiliary systems.

In mining and mineral processing, the JCU-11 operates in environments with extreme dust, humidity, and vibration. Conveyor drives, crusher motors, and slurry pump systems rely on the control unit’s robust design to maintain consistent speed regulation and process feedback under these demanding conditions. When combined with an appropriately rated IP54 or IP55 drive enclosure and a properly specified EMC filter, the JCU-11 delivers reliable performance even in underground or open-pit mining environments.

Water and wastewater treatment facilities use JCU-11-equipped ACS drives to control submersible pump motors, aeration blowers, and sludge handling equipment. The control unit’s analog input processing supports 4–20 mA pressure and flow sensor signals, enabling precise process control and energy optimization. In these applications, the 12-month warranty and pre-tested stock availability offered by NINERMAS ensures that replacement units can be sourced and deployed quickly when a control unit failure occurs.

In port and maritime applications, including ship propulsion systems and harbor crane drives, the JCU-11 supports multi-drive coordination through DDCS fiber optic communication. Its ability to maintain synchronized control across multiple inverter units is critical for safe load handling and vessel maneuvering operations.

Safety and Quality FAQ

Q1: Does the JCU-11 (3AUA0000047068) come with a warranty?
Yes. Every JCU-11 unit supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our team provides full after-sales technical support throughout the warranty period.

Q2: Is the JCU-11 tested before shipment?
Yes. All units undergo a full functional pre-shipment test before dispatch. This includes power-on verification, I/O signal testing, and communication interface checks. A test report is available upon request. We do not ship untested stock for safety-critical applications.

Q3: Is the JCU-11 compatible with both ACS800 and ACS550 drives?
The JCU-11 is primarily designed for the ACS800 platform. Compatibility with ACS550 or other ACS series drives depends on the specific drive variant and firmware version. We recommend confirming the drive model and existing control unit part number before ordering. Our technical team can assist with compatibility verification at no charge.

Q4: Can NINERMAS support long-term supply of the JCU-11 for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the JCU-11 and related ACS series components to support planned maintenance, emergency replacement, and multi-site procurement programs. We can provide volume pricing, reserved stock agreements, and scheduled delivery arrangements for customers with ongoing spare parts requirements. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply needs.
