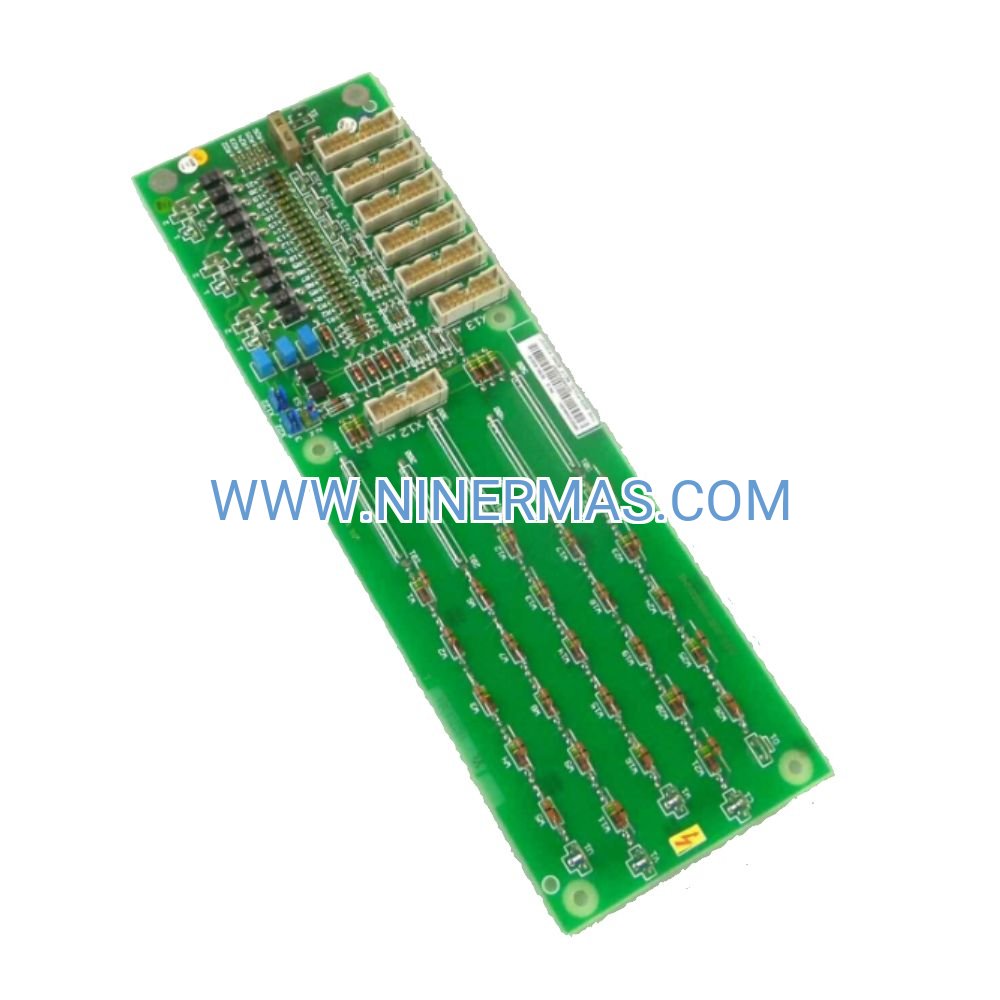

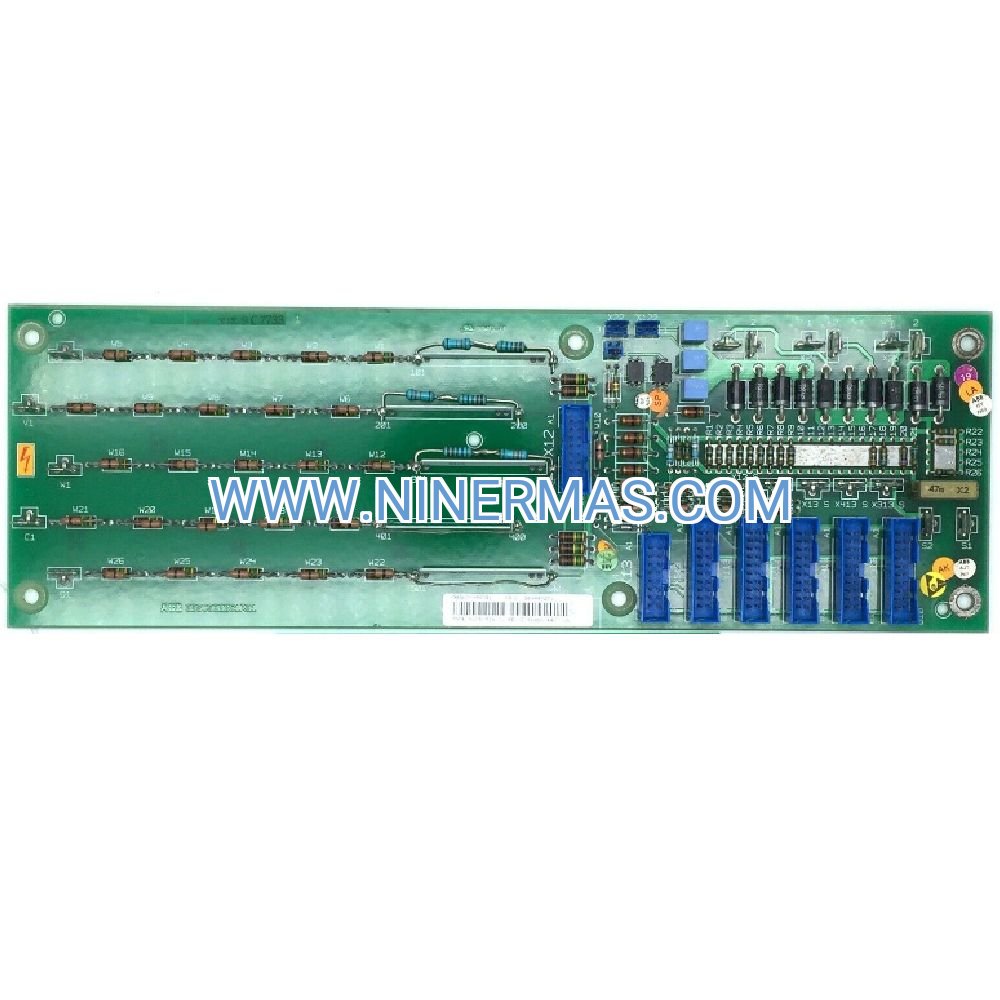

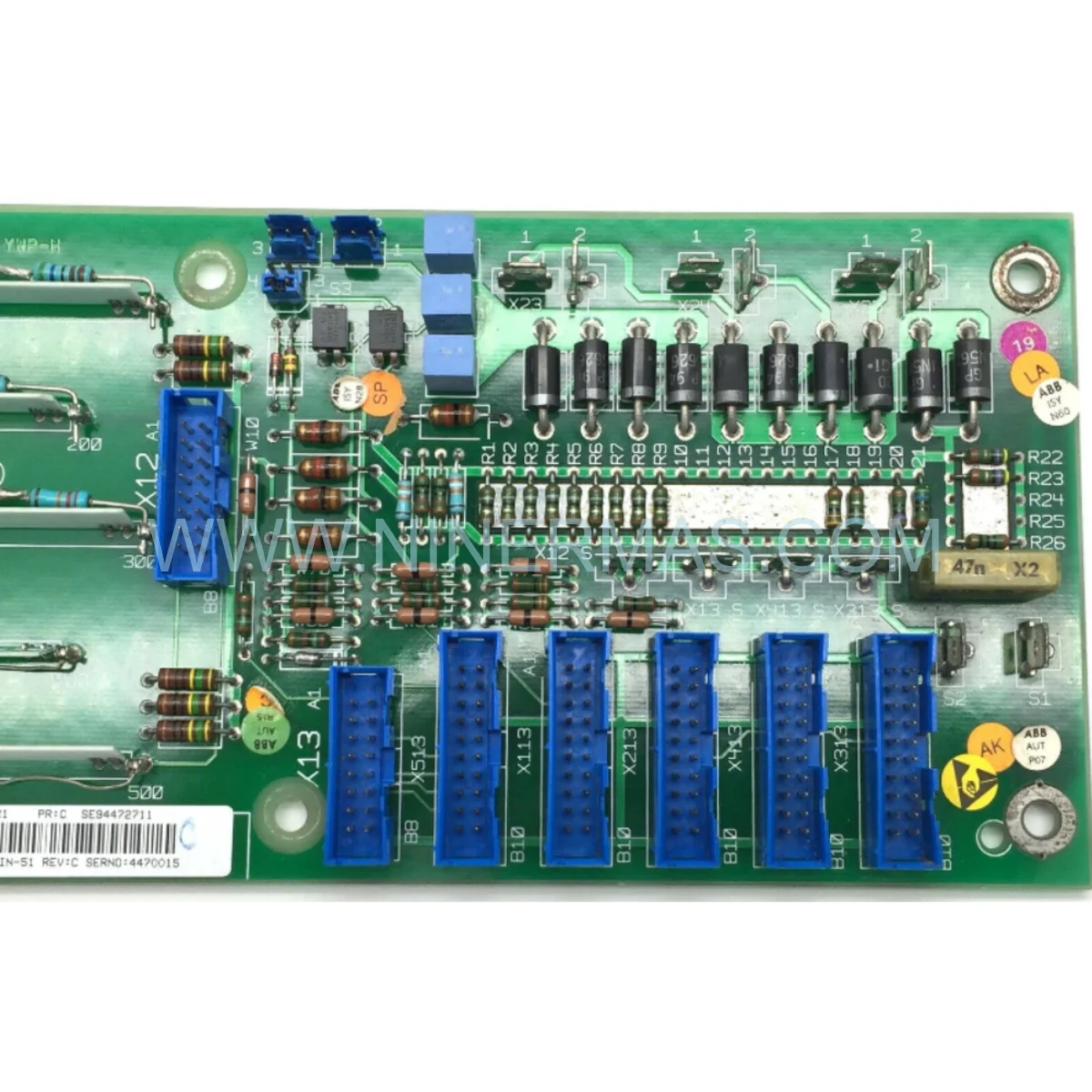

ABB SDCS-PIN-51 Measurement Card (Industrial-Grade Power Interface)

The ABB SDCS-PIN-51 (P/N: 3BSE004940R0001) represents a critical component in modern drive control architecture, delivering precision measurement and signal conditioning for ABB DCS systems. Engineered in Sweden with industrial-grade specifications, this power interface module ensures reliable data acquisition in demanding automation environments where accuracy directly impacts operational efficiency and product quality.

Designed for integration engineers and maintenance teams managing complex drive systems, the SDCS-PIN-51 addresses the challenge of maintaining consistent performance monitoring across distributed control networks. Its robust construction and proven compatibility with legacy systems make it an essential upgrade path for facilities seeking to extend equipment lifecycles while meeting contemporary performance standards.

Key advantages include drop-in replacement capability for SDCS-PIN-52 modules, comprehensive diagnostic support for predictive maintenance programs, and compact form factor enabling retrofits without cabinet modifications. The module's advanced signal processing delivers the measurement precision required for compliance-driven industries while reducing troubleshooting time through integrated fault detection.

Core Capabilities & Technical Value

→ High-Precision Signal Acquisition
Captures critical drive parameters with industrial-grade accuracy, enabling real-time performance optimization and early fault detection that prevents costly unplanned downtime in production environments.

→ Seamless Legacy System Integration
Direct replacement for SDCS-PIN-52 with maintained backward compatibility across ABB DCS platforms, eliminating expensive system redesigns and minimizing installation labor during modernization projects.

→ Robust Environmental Tolerance
Engineered for harsh industrial conditions with thermal management suitable for manufacturing floors, chemical processing areas, and material handling facilities operating 24/7 production schedules.

→ Advanced Diagnostic Framework
Built-in signal integrity monitoring and fault logging support condition-based maintenance strategies, reducing mean time to repair (MTTR) and extending overall system availability.

→ Compact Installation Profile
0.164 kg lightweight design facilitates easy mounting in space-constrained control cabinets, supporting high-density automation architectures without structural modifications.

→ Comprehensive System Visibility
Enables continuous monitoring of speed, torque, and power parameters essential for process optimization, energy management initiatives, and regulatory compliance documentation.

Industrial Application Scenarios

✓ Precision Manufacturing Operations
In CNC machining centers and automated assembly lines, the SDCS-PIN-51 provides the measurement accuracy required for maintaining tight tolerances. Real-time drive performance data enables adaptive control strategies that compensate for tool wear and material variations, directly improving first-pass yield rates and reducing scrap costs.

✓ Material Handling & Logistics Systems
Distribution centers and warehouse automation rely on this module for conveyor synchronization and load monitoring. Precise speed control prevents product damage during high-throughput operations, while diagnostic capabilities identify bearing wear and belt tension issues before catastrophic failures disrupt order fulfillment schedules.

✓ Process Industry Compliance
Pharmaceutical, food processing, and chemical manufacturing facilities utilize the SDCS-PIN-51 to maintain documented evidence of process control for FDA, GMP, and ISO audit requirements. Continuous data logging supports batch traceability and validates that critical process parameters remained within specification throughout production runs.

✓ Energy-Intensive Applications
Paper mills, steel processing, and mining operations leverage the module's measurement capabilities to optimize motor efficiency and reduce energy consumption. Integration with plant-wide energy management systems enables demand response participation and identifies opportunities for variable frequency drive (VFD) optimization.

✓ Retrofit & Modernization Projects
Facilities extending the service life of existing ABB DCS installations use the SDCS-PIN-51 as a cost-effective upgrade path. Compatibility with older control platforms preserves capital investment while adding modern diagnostic features that support Industry 4.0 connectivity initiatives.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the SDCS-PIN-51 when upgrading existing ABB DCS drive installations requiring enhanced measurement capabilities, replacing failed SDCS-PIN-52 modules, or implementing new drive control systems where precision signal conditioning is critical for process control. Verify compatibility with your specific DCS platform revision and confirm cabinet space availability for module installation.

Extended Integration & Connectivity Options

System Architecture Expansion
The SDCS-PIN-51 integrates seamlessly with ABB's broader automation ecosystem, supporting distributed control strategies and enabling centralized monitoring through SCADA interfaces. Advanced users can leverage the module's diagnostic data streams for integration with predictive analytics platforms and cloud-based condition monitoring services.

Customization & Configuration Services
Our technical team provides application-specific parameter configuration, ensuring optimal signal scaling and alarm threshold settings for your unique process requirements. Custom cable assemblies and mounting brackets are available to accelerate installation in non-standard cabinet configurations.

IoT & Industry 4.0 Readiness
When paired with appropriate communication gateways, measurement data from the SDCS-PIN-51 can feed enterprise asset management (EAM) systems, enabling data-driven maintenance scheduling and contributing to overall equipment effectiveness (OEE) improvement initiatives.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 1-2 business days via express courier services, with typical transit times of 3-7 days to major industrial centers worldwide. Expedited shipping options available for critical downtime situations.

Warranty Coverage: Each SDCS-PIN-51 module includes a comprehensive 12-month manufacturer warranty protecting against defects in materials and workmanship. Warranty service includes advance replacement options to minimize production interruptions.

Technical Support: Our applications engineering team provides pre-sales consultation for system compatibility verification, installation guidance including wiring diagrams and configuration procedures, and post-installation troubleshooting support via phone and email.

Documentation Package: All shipments include product datasheet, installation quick-start guide, and links to comprehensive technical manuals. CAD drawings and 3D models available upon request for cabinet design integration.

Frequently Asked Questions

Q: What are the key differences between SDCS-PIN-51 and the older SDCS-PIN-52 model?
A: The SDCS-PIN-51 maintains full functional compatibility with SDCS-PIN-52 while incorporating improved signal processing algorithms and enhanced diagnostic capabilities. Installation is identical, requiring no wiring changes or software updates, making it a true drop-in replacement that extends system capabilities without migration risk.

Q: Can this measurement card operate reliably in high-vibration environments?
A: Yes, the SDCS-PIN-51 is designed to industrial specifications including vibration resistance suitable for motor control cabinets mounted near rotating equipment. Conformal coating protects circuitry from dust and moisture in typical manufacturing environments, though extreme conditions may require additional cabinet environmental controls.

Q: How does this module support predictive maintenance programs?
A: The integrated diagnostic framework continuously monitors signal quality and operational parameters, logging anomalies that indicate developing issues such as sensor degradation, wiring problems, or drive component wear. This data enables condition-based maintenance scheduling that prevents unexpected failures while avoiding unnecessary preventive interventions.

Q: What technical information is needed to verify compatibility with my existing DCS system?
A: Please provide your current ABB DCS drive model number, control system software revision, and the part number of any existing measurement cards. Our technical team will confirm compatibility and identify any firmware updates or configuration changes required for optimal integration.

Q: Are quantity discounts available for multi-unit installations or spare parts inventory?
A: Yes, we offer volume pricing for orders of 5+ units and can structure consignment inventory programs for facilities maintaining critical spare parts. Contact our sales team with your specific requirements for a customized quotation including stocking and logistics options.

Q: What return policy applies if the module is incompatible with my system?
A: Unused modules in original packaging may be returned within 30 days of delivery for full refund, provided compatibility was verified with our technical team prior to purchase. We recommend pre-installation verification to ensure proper fit and function before removing existing components.

Ready to Upgrade Your Drive Control System?

Contact our industrial automation specialists today to discuss your specific application requirements, verify system compatibility, and receive a detailed quotation including shipping timeline to your facility. Our team is ready to support your project from initial specification through installation and commissioning.
