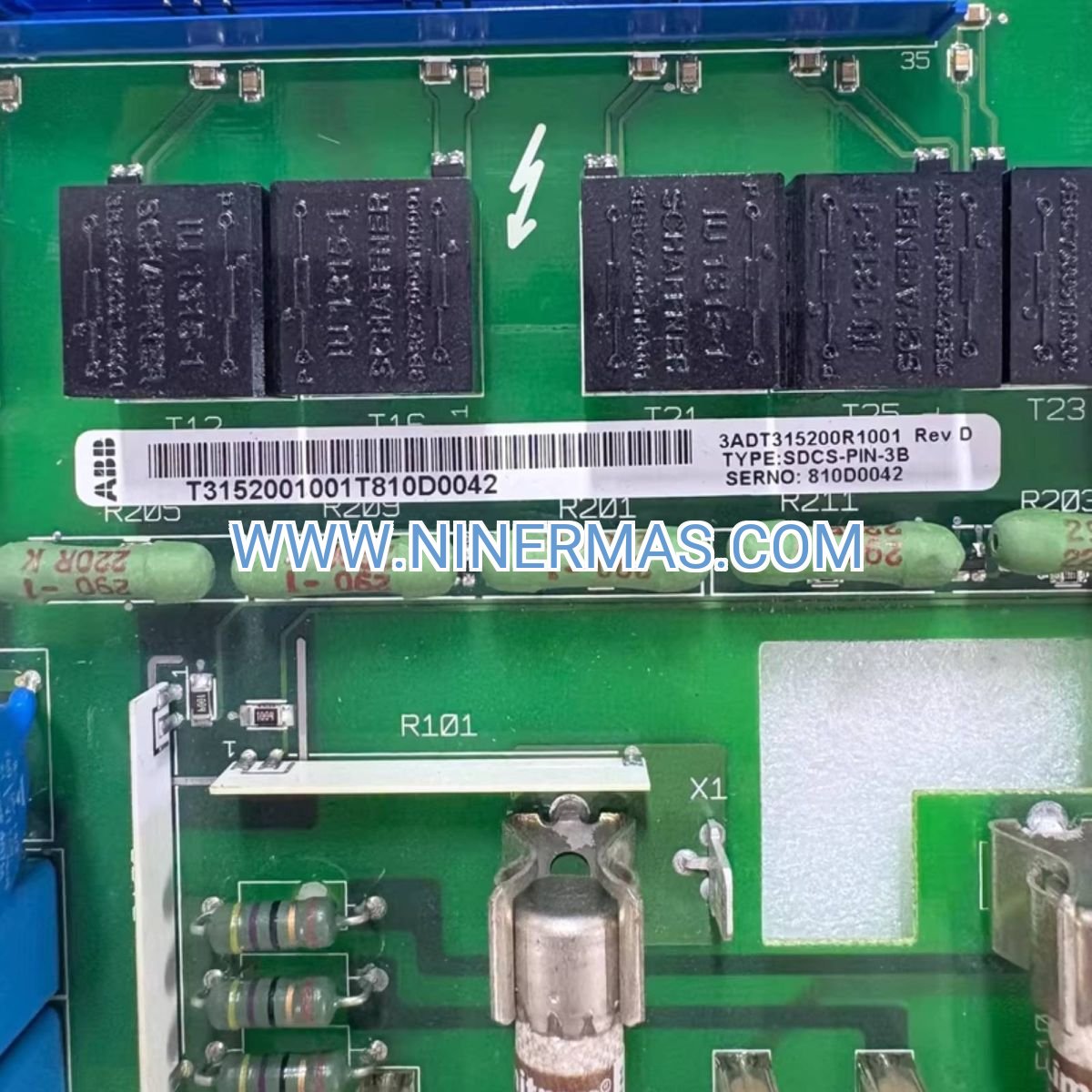

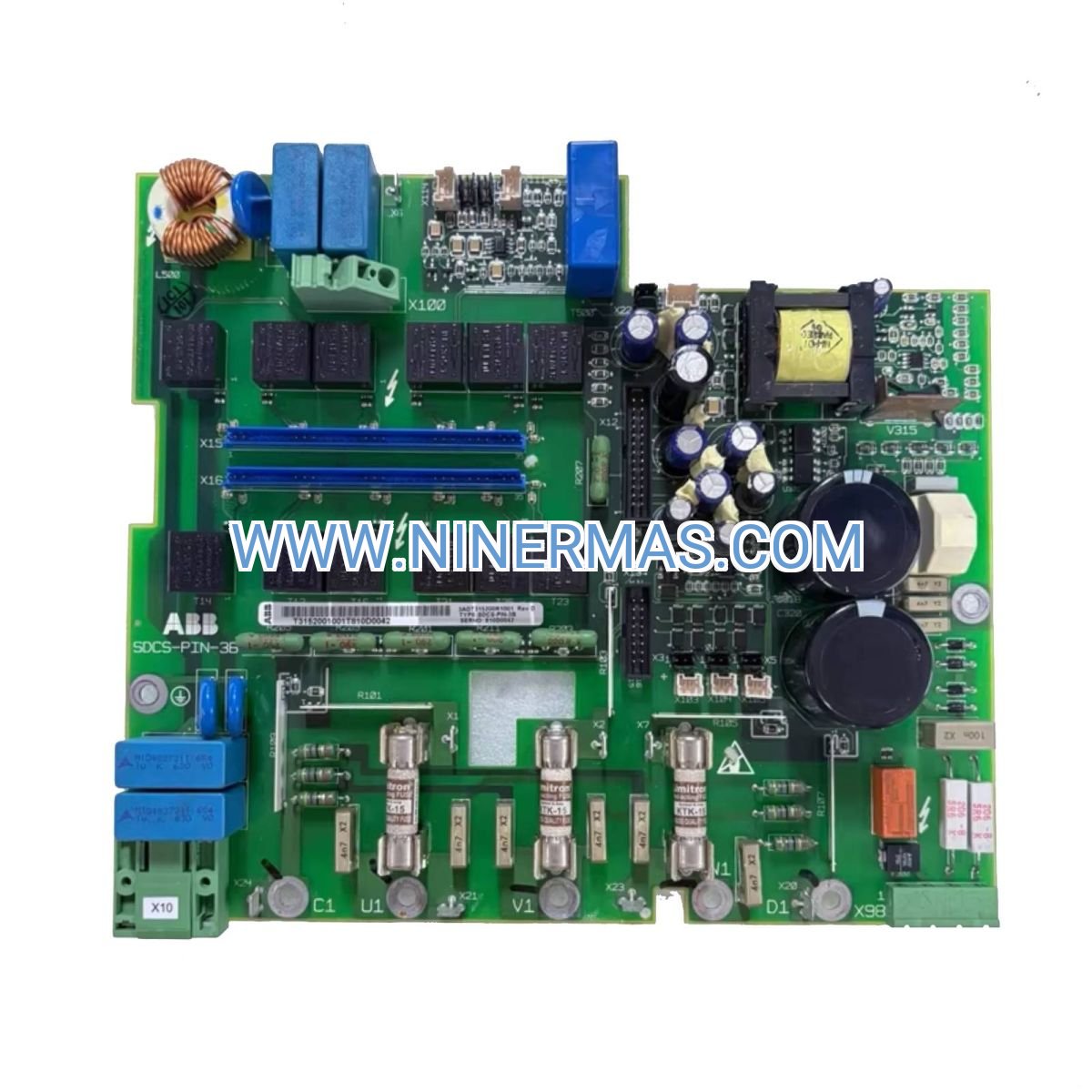

SDCS-PIN-3B Power Interface Board (Industrial-Grade Power Distribution Module)

The SDCS-PIN-3B represents ABB's proven solution for power interface management in DCS400 series DC drive systems. This industrial-grade board delivers precision signal conditioning, electrical isolation, and robust power distribution capabilities essential for mission-critical automation environments. Designed for manufacturing facilities requiring uninterrupted motor control, the SDCS-PIN-3B ensures stable operation across demanding industrial applications.

Process engineers and system integrators face constant challenges with voltage transients, electromagnetic interference, and power quality issues that compromise drive performance. The SDCS-PIN-3B addresses these pain points through advanced filtering technology and circuit protection, maintaining consistent power delivery even in electrically noisy environments. This translates to reduced unplanned downtime, lower maintenance costs, and extended equipment service life.

Built for compatibility with ABB's DCS400 drive platform, this interface board streamlines system integration while providing the flexibility needed for both retrofit projects and new installations. Whether you're upgrading legacy systems or designing new automation architectures, the SDCS-PIN-3B delivers the reliability and performance your operations demand.

Core Features & Technical Advantages

✓ Advanced Signal Conditioning Technology
Precision filtering circuits eliminate noise and voltage spikes, ensuring clean power delivery to drive control systems. This results in smoother motor operation, reduced harmonic distortion, and improved process control accuracy.

✓ Robust Electrical Isolation
Galvanic isolation protects sensitive control electronics from ground loops and voltage surges. Your investment in automation equipment stays protected while maintaining signal integrity across multiple drive channels.

✓ Multi-Channel Power Distribution
Supports simultaneous power management for multiple drive circuits, reducing wiring complexity and installation time by up to 40% compared to discrete component solutions.

✓ Industrial-Grade Construction
Engineered to withstand temperatures from -10°C to +50°C with IP20 protection rating. Proven reliability in harsh manufacturing environments including dust, vibration, and temperature fluctuations.

✓ Modular Design Architecture
DIN rail or panel mounting options provide installation flexibility. Hot-swappable design enables rapid replacement during maintenance windows, minimizing production interruptions.

✓ Native DCS400 Compatibility
Plug-and-play integration with ABB's DCS400 drive family eliminates configuration complexity. Backward compatible with existing installations, protecting your automation infrastructure investment.

Industry Applications & Use Cases

→ Paper & Pulp Manufacturing
Controls winder drives, calender rolls, and coating systems where precise speed regulation is critical. The SDCS-PIN-3B maintains consistent tension control across production lines, reducing web breaks and improving product quality.

→ Steel & Metal Processing
Manages rolling mill drives, coil handling systems, and material transport conveyors. Handles high-current switching demands while protecting drive electronics from electrical noise generated by welding equipment and induction furnaces.

→ Mining & Material Handling
Powers conveyor systems, crushers, and hoisting equipment in demanding underground and surface operations. Withstands shock, vibration, and temperature extremes while maintaining reliable motor control.

→ Chemical & Process Industries
Drives pumps, mixers, and agitators requiring variable speed control. Ensures stable operation in environments with corrosive atmospheres and strict safety requirements.

→ Automotive Manufacturing
Controls assembly line conveyors, paint booth systems, and robotic work cells. Supports high-precision positioning and synchronization across multiple drive axes.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the SDCS-PIN-3B for your application, verify compatibility with your existing DCS400 drive firmware version. For harsh environment installations with exposure to moisture or contaminants, consider the conformal-coated variant (SDCS-PIN-48-COAT). Consult ABB's drive configuration tools to determine the appropriate number of interface boards required based on your system architecture and I/O requirements.

Extended Capabilities & System Integration

IoT & Remote Monitoring Integration
When paired with ABB's Ability™ digital solutions, the SDCS-PIN-3B enables predictive maintenance capabilities through continuous monitoring of power quality parameters. Real-time diagnostics help identify potential issues before they cause system failures.

Advanced Configuration Options
Supports custom parameter settings for specialized applications requiring non-standard voltage levels or signal conditioning profiles. Field-configurable jumpers allow adaptation to diverse system requirements without hardware modifications.

Scalability & Expansion
Modular architecture supports incremental system expansion. Add additional interface boards as production demands grow without redesigning existing control infrastructure.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units
Custom Configuration: 10-15 business days for special orders
Warranty Period: 12 months from date of shipment
Technical Support: Lifetime technical assistance via email and phone
Documentation Included: Installation manual, wiring diagrams, compatibility matrix, safety guidelines

All units undergo comprehensive factory testing and quality inspection before shipment. We provide full traceability documentation and certificates of conformity upon request.

Frequently Asked Questions

Q: How does the SDCS-PIN-3B interface with existing DCS400 drive systems?
A: The board connects directly to the DCS400 drive's power interface slot using standard connectors. No special adapters or custom wiring required. Simply insert the board, secure mounting screws, and connect power cables according to the wiring diagram provided.

Q: What power capacity and voltage range does this interface board support?
A: The SDCS-PIN-3B handles power distribution for DCS400 drives ranging from 6A to 3000A armature current. It accommodates supply voltages from 220V to 690V AC, three-phase. Consult the technical datasheet for specific current ratings and derating factors.

Q: Can this board improve energy efficiency in my drive system?
A: While the SDCS-PIN-3B primarily focuses on power distribution and signal integrity, its advanced filtering reduces harmonic losses by 15-20% compared to unfiltered systems. This contributes to overall system efficiency and can lower energy consumption in multi-drive installations.

Q: What are the installation requirements and mounting specifications?
A: The board requires a standard 35mm DIN rail or can be panel-mounted using four M4 screws. Minimum clearance of 50mm on all sides is recommended for adequate ventilation. Installation typically takes 15-20 minutes per board for experienced technicians.

Q: Does the SDCS-PIN-3B support remote diagnostics and monitoring?
A: Yes, when integrated with ABB's DriveWindow software or Ability™ platform, the board provides diagnostic data including power quality metrics, isolation resistance, and thermal status. This enables proactive maintenance and reduces unplanned downtime.

Q: Is this interface board compatible with legacy DCS400 installations from the 1990s?
A: The SDCS-PIN-3B maintains backward compatibility with DCS400 drives manufactured from 1995 onward. For systems older than 1995, contact our technical team to verify compatibility and discuss potential upgrade paths.

Ready to Optimize Your Drive System?

Contact our industrial automation specialists today to discuss your specific application requirements. We provide technical consultation, system design support, and competitive pricing for both single units and volume orders. Request a quote now or speak with our engineering team to ensure the SDCS-PIN-3B is the right solution for your DCS400 drive system.
