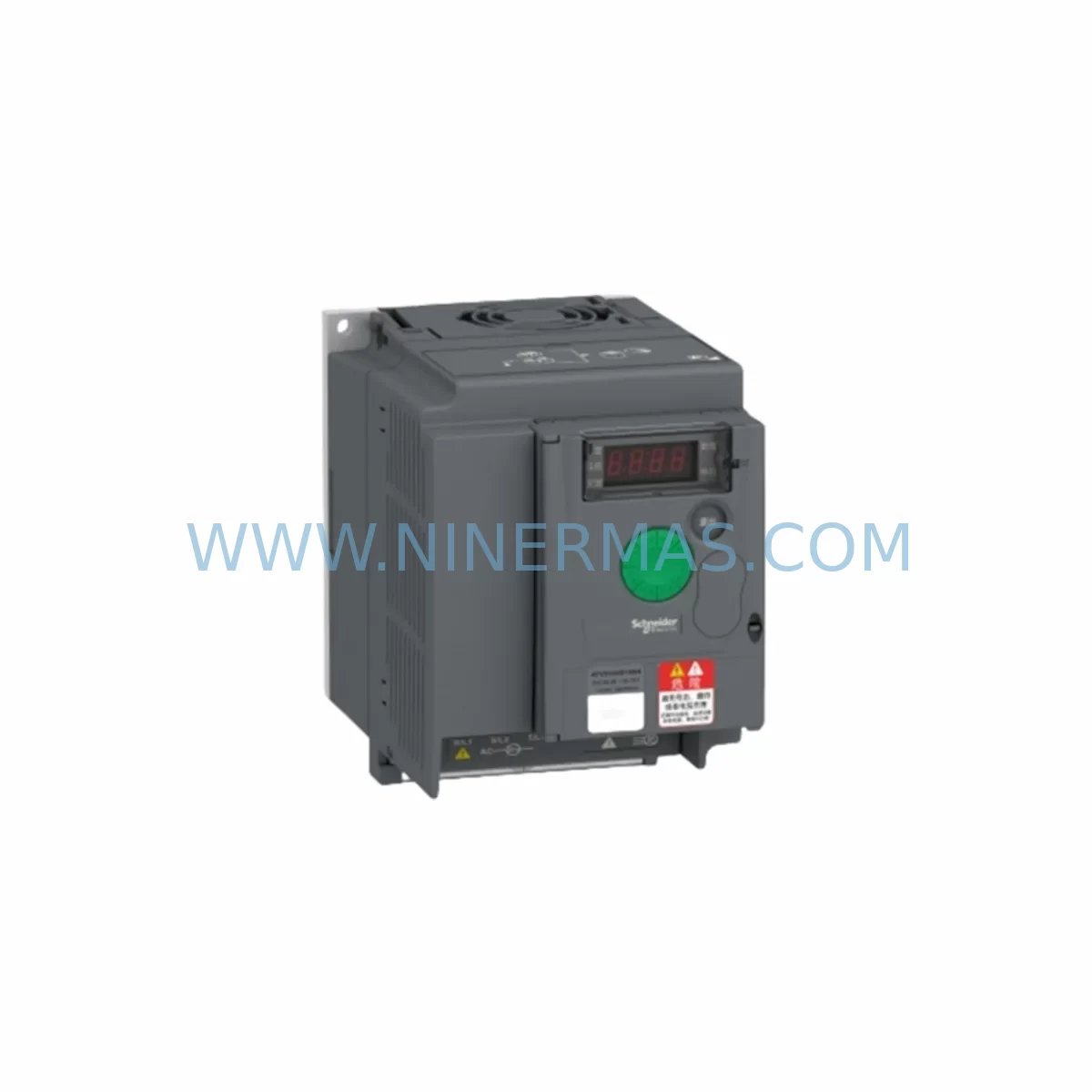

The Schneider Electric ATV310HU75N4 is a 7.5 kW (10 HP) three-phase 380–460 V variable frequency drive from the Altivar 310 series, purpose-built for pump and fan applications in industrial environments. As legacy automation systems age and original equipment reaches end-of-life, the ATV310HU75N4 has become one of the most sought-after retrofit and replacement solutions for facilities operating older Altivar ATV31, ATV312, or early ATV310 installations. Whether you are managing a planned upgrade or responding to an unplanned failure, this drive delivers a reliable, cost-effective path to restoring and modernizing your control system without a full panel redesign.

Sourced from verified inventory with pre-shipment functional testing, each unit is supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained to support urgent replacement requirements, with same-day or next-business-day dispatch available for confirmed orders.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ATV310HU75N4 in an operational facility requires careful pre-planning to avoid extended downtime and ensure seamless integration with the surrounding control architecture. Before removing the failed or obsolete drive, engineers should document the existing terminal wiring, including analog reference inputs (AI1, AI2), digital inputs (DI1–DI6), relay outputs (R1, R2), and the 24 V logic supply connections. The Altivar 310 series uses a consistent terminal layout across its power range, which simplifies like-for-like replacement, but differences in macro configuration — particularly between HVAC macro and general-purpose macro — can affect default behavior on first power-up.

In systems where the ATV310HU75N4 communicates with a Schneider Electric Modicon M340 or M580 PLC over Modbus RTU, the drive’s slave address and baud rate must be reconfigured to match the existing network settings. If the legacy installation used a VW3A3608 CANopen communication card or a VW3A3609 DeviceNet card, these optional modules are compatible with the ATV310 housing and should be transferred or replaced as part of the retrofit. Verify that the PLC program’s function blocks reference the correct drive register map, as minor differences exist between ATV31 and ATV310 Modbus register assignments.

For control cabinets that also house a Schneider Electric TeSys D contactor (LC1D series) on the motor output side, confirm that the contactor is not switching under load during normal VFD operation, as output contactor switching can damage drive output stages. If a Zelio Logic smart relay or a Magelis HMIGTO HMI panel is used for local speed reference or fault display, verify that the communication link to the drive is re-established after parameter restore and that HMI screen variable addresses remain valid.

Where the existing installation includes a Schneider Electric Acti9 iC60 circuit breaker or a GV2 motor circuit breaker on the drive input, inspect these protective devices for wear and replace if necessary — a drive replacement is an ideal opportunity to refresh upstream protection components. If the system uses a Lexium 32 servo drive or additional ATV320 drives on the same DC bus or shared power supply, confirm that the total power budget remains within the supply transformer’s capacity after the ATV310HU75N4 is reinstated.

For installations requiring I/O expansion, the ATV310 series supports the VW3A3202 I/O extension card, which adds additional analog and digital I/O without requiring a separate PLC module. This is particularly useful in retrofit scenarios where the original control design relied on external relay logic that can now be internalized within the drive’s built-in PLC function (available via SoMove configuration).

Signal isolation should be verified when the drive shares a control cabinet with sensitive instrumentation. A signal isolator or filter on the analog reference input can prevent interference from the drive’s switching frequency from corrupting 4–20 mA process signals. Shielded cable grounding at the drive end (single-point grounding) is recommended per Schneider Electric EMC installation guidelines.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement begins with advance preparation. Before the maintenance window opens, the replacement ATV310HU75N4 should be pre-configured offline using SoMove software with the parameter file exported from the original drive (or reconstructed from commissioning records if the original drive has failed completely). Pre-loading parameters, motor data, and communication settings reduces on-site commissioning time to a final verification and auto-tune sequence, typically achievable within 30–60 minutes for a straightforward replacement.

Where the original drive parameters cannot be recovered, a parameter reconstruction checklist should be prepared based on the motor nameplate data, process requirements (speed range, acceleration/deceleration times, PID setpoints if applicable), and the control wiring diagram. The Altivar 310 keypad allows manual parameter entry without a PC, which is valuable in field environments without laptop access.

To protect the original PLC program logic during the migration, ensure that the PLC is placed in STOP mode before disconnecting the drive’s communication cable. This prevents the PLC from generating fault states or executing emergency stop sequences triggered by a loss of drive communication. For systems using Modbus RTU, the PLC’s communication timeout settings should be noted so that the drive can be brought back online within the expected response window.

If the process cannot tolerate a full shutdown, a bypass contactor arrangement — where the motor can be switched directly to line power during the drive swap — can maintain basic process continuity. This approach requires careful coordination with the site’s electrical safety procedures and is only appropriate for applications where across-the-line starting is mechanically acceptable.

After installation, a controlled ramp-up sequence should be performed with the process load connected, verifying output current, motor temperature, and drive fault log before returning the system to automatic control. All changes should be documented in the site’s maintenance records, and the replaced drive’s serial number and fault history should be logged for warranty and reliability tracking purposes.

Retrofit Support FAQ

Q: Is the ATV310HU75N4 a direct replacement for the ATV31HU75N4 or ATV312HU75N4?
A: In most applications, yes. The ATV310HU75N4 shares the same power rating and a compatible terminal layout with the ATV31HU75N4 and ATV312HU75N4. However, parameter settings, macro configurations, and Modbus register assignments differ between series. A parameter review and recommissioning are required. Our technical team can provide a cross-reference checklist upon request.

Q: What pre-shipment testing is performed on each unit?
A: Each ATV310HU75N4 is functionally tested under load prior to dispatch, verifying power-up, output voltage symmetry, control terminal response, and communication port operation. A test report is available upon request. All units are supplied with a 12-month warranty from the date of shipment.

Q: Can the drive be configured before shipment to match our existing installation?
A: Yes. If you provide your existing parameter file (exported via SoMove) or a completed parameter specification sheet, we can pre-load the configuration before dispatch, reducing on-site commissioning time. Contact our sales team at sale@ninermas.com to arrange pre-configuration.

Q: What is the typical lead time and do you maintain stock?
