Schneider ATV310HU55N4 Safety-Reliable Variable Speed Drive

Schneider ATV310HU55N4 Safety-Reliable Variable Speed Drive for Critical Control Sites

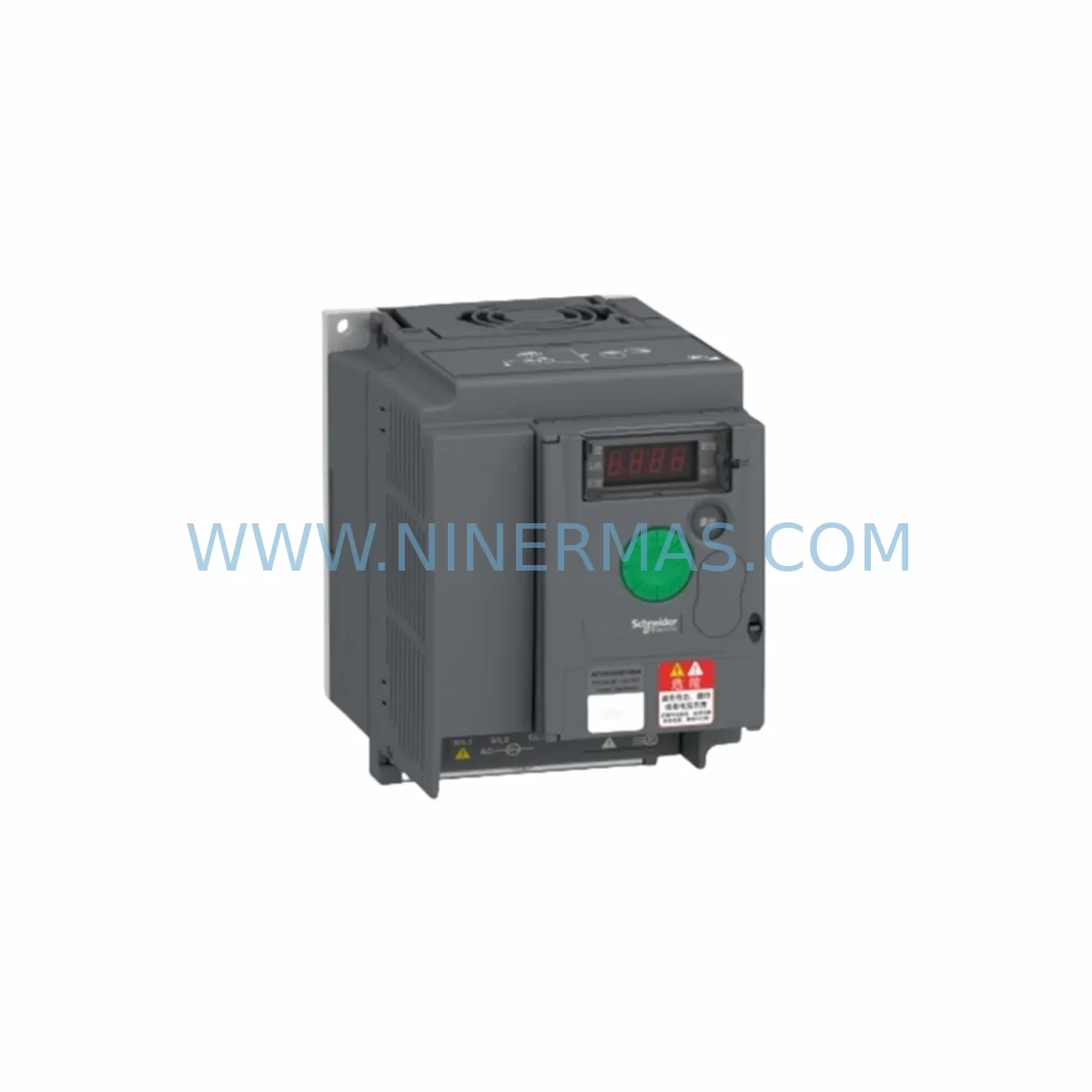

The Schneider Electric ATV310HU55N4 is a 5.5 kW (7.5 HP) three-phase variable speed drive from the Altivar 310 series, engineered for demanding industrial environments where control continuity, personnel safety, and process reliability are non-negotiable. Designed to operate across a wide input voltage range of 380–460 V AC at 50/60 Hz, this drive delivers precise motor speed regulation, smooth acceleration/deceleration profiles, and robust protection functions that collectively reduce the risk of unplanned shutdowns, motor damage, and process upsets in critical production facilities.

In continuous manufacturing, petrochemical processing, power generation auxiliaries, mining conveyors, water treatment pump stations, metallurgical rolling lines, port crane drives, and marine propulsion auxiliaries, the ATV310HU55N4 serves as a cornerstone of the motor control strategy. Its integrated EMC filter (Class C2 compliant) suppresses conducted and radiated interference, protecting adjacent PLCs, safety relays, and field instruments from signal corruption caused by high-frequency switching noise — a persistent threat in high-density control cabinets.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the ATV310HU55N4 within a well-engineered control cabinet architecture significantly reduces the probability of cascading failures. In a typical motor control center (MCC) or standalone drive panel, the ATV310HU55N4 works in concert with a range of protective and conditioning components to maintain safe, uninterrupted operation.

On the power input side, a Schneider Electric GV2ME manual motor starter or a properly rated circuit breaker provides upstream short-circuit protection and manual isolation capability, ensuring the drive can be safely de-energized for maintenance without disturbing adjacent circuits. A Schneider Electric VW3A4601 line reactor or equivalent 3% AC input choke reduces harmonic distortion and protects the drive’s rectifier bridge from voltage notching caused by other large loads on the same bus — a common source of premature IGBT failure in industrial facilities with weak grid infrastructure.

For power quality conditioning, a Schneider Electric Phaseo ABL8 series 24 V DC SMPS supplies the control logic, HMI panels, and safety relay coils within the same cabinet. Stable 24 V DC power is critical: voltage sags or ripple on the control rail can cause spurious fault trips on the ATV310HU55N4’s digital inputs, leading to nuisance stops that interrupt production. Pairing the drive with a Schneider Electric BMXP342020 Modicon M340 PLC or a Schneider Electric TM221CE24R Modicon M221 controller via Modbus RTU enables closed-loop speed regulation, real-time fault logging, and remote diagnostics — reducing mean time to repair (MTTR) when drive faults occur.

Safety circuit integrity is maintained by integrating a Schneider Electric XPSAF safety relay module or equivalent SIL 2-rated safety relay into the drive’s STO (Safe Torque Off) input circuit. This ensures that in an emergency stop event, motor torque is removed without requiring the main contactor to interrupt full load current — extending contactor service life and eliminating the arc erosion risk associated with frequent emergency switching. A Schneider Electric LC1D series TeSys contactor on the output side provides additional isolation for maintenance scenarios where the drive must remain energized while the motor is disconnected.

For surge and transient protection, a Schneider Electric PRD series Type 2 surge protective device (SPD) installed at the cabinet’s incoming supply bus clamps lightning-induced and switching transients before they reach the drive’s sensitive power electronics. In environments with high electromagnetic interference — such as arc furnace facilities, variable-load crane systems, or large compressor rooms — supplementing the drive’s built-in Class C2 EMC filter with an external Schneider Electric VW3A4702 EMC filter kit further attenuates common-mode noise, protecting the Modbus RTU communication link and preventing signal drift on analog speed reference inputs (0–10 V or 4–20 mA).

Critical Industrial Safety Applications

The ATV310HU55N4 is deployed across a broad spectrum of safety-critical and process-critical industrial applications where motor speed control directly affects operational safety, product quality, and regulatory compliance.

In petrochemical and refinery facilities, the drive controls cooling water pumps, boiler feed pumps, and compressor auxiliaries where sudden speed changes or uncontrolled stops can trigger pressure surges, thermal runaway, or process upsets with serious safety consequences. The drive’s configurable ramp profiles and catch-on-the-fly restart capability allow smooth re-engagement after a momentary power interruption without manual intervention.

In electric power generation and substation auxiliary systems, the ATV310HU55N4 manages forced-draft fans, induced-draft fans, and cooling tower pumps. Precise speed control reduces mechanical stress on fan blades and bearings, extending equipment life and reducing the frequency of maintenance outages that require hot-work permits and confined-space entry.

In underground mining and tunneling, the drive operates ventilation fans, dewatering pumps, and conveyor belt drives in environments characterized by coal dust, high humidity, and vibration. The drive’s robust thermal management, wide operating temperature range, and configurable motor thermal protection prevent overheating failures that could disable critical life-safety ventilation systems.

In municipal and industrial water treatment, the ATV310HU55N4 controls raw water intake pumps, chemical dosing pumps, and aeration blowers. Variable speed operation reduces water hammer risk during pump start/stop cycles and enables precise flow control that maintains disinfection efficacy and regulatory compliance with effluent discharge standards.

In metallurgical and steel rolling mills, the drive is applied to roller table drives, cooling bed conveyors, and hydraulic pump motors where precise speed synchronization across multiple drives is essential to prevent material jams, cobbles, and equipment damage. The drive’s Modbus RTU interface enables tight integration with the mill’s Level 2 automation system for coordinated speed control.

In port and terminal crane systems, the ATV310HU55N4 manages hoist auxiliary drives, trolley travel drives, and HVAC systems within crane operator cabins. The drive’s built-in braking transistor (for connection of an external braking resistor) enables controlled deceleration of hoisting loads, preventing overspeed conditions that could compromise load safety.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the ATV310HU55N4?
All ATV310HU55N4 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and component failures under normal operating conditions. Our technical team provides remote diagnostic support and, where required, advance replacement to minimize production downtime.

Q2: What pre-shipment testing is performed on each unit?
Every ATV310HU55N4 undergoes a multi-point outgoing quality inspection prior to dispatch, including power-on functional verification, input/output voltage checks, communication port integrity testing, and visual inspection for physical damage. Units are shipped in original or equivalent protective packaging with desiccant to prevent moisture ingress during transit.

Q3: Is the ATV310HU55N4 compatible with existing Altivar 310 installations and Schneider Electric PLCs?
Yes. The ATV310HU55N4 is fully compatible with the Altivar 310 product family and supports Modbus RTU communication natively, enabling direct integration with Schneider Electric Modicon M221, M241, M340, and Premium PLCs, as well as third-party controllers with standard Modbus RTU master capability. Parameter migration from other Altivar 310 variants is supported via the SoMove configuration software.

Q4: Can NINERMAS support long-term procurement and spare parts planning for the ATV310HU55N4?
Yes. NINERMAS maintains dedicated stock of the ATV310HU55N4 and related Altivar 310 series components to support long-term spare parts programs for customers with extended plant lifecycles. We offer blanket order arrangements, consignment stock agreements, and priority allocation for customers with critical production dependencies. Contact our team at sale@ninermas.com to discuss your procurement requirements.
