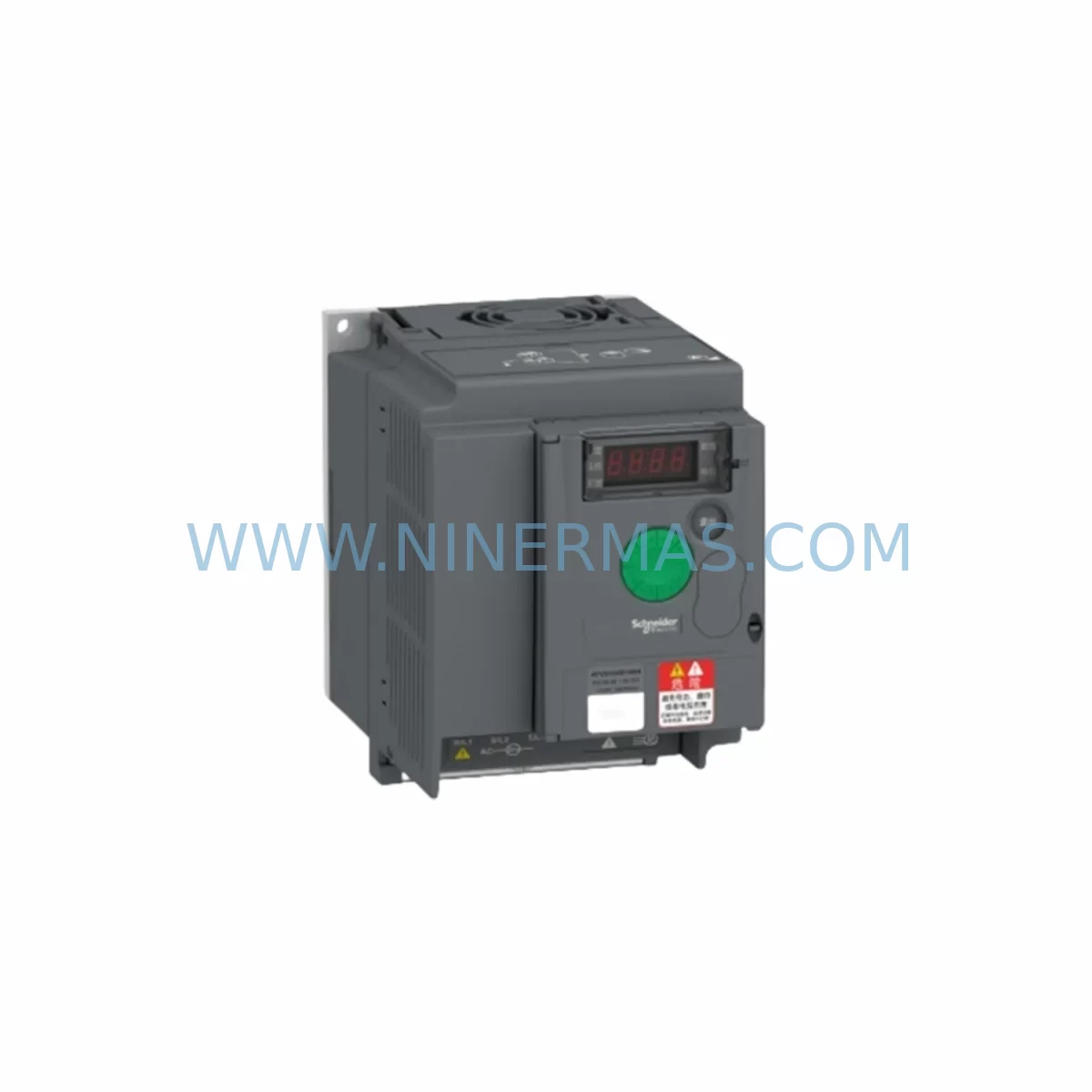

The Schneider Electric ATV310HU30N4 is a 3 kW / 400 V three-phase variable frequency drive from the proven Altivar 310 series, engineered to deliver uninterrupted motor control in the most demanding industrial environments. Designed for continuous production lines, critical interlock circuits, and heavy-duty control cabinet installations, the ATV310HU30N4 provides the safety-reliable performance that process engineers and maintenance teams depend on when unplanned downtime is simply not an option.

At NINERMAS, every ATV310HU30N4 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — giving procurement and reliability teams the confidence to specify this drive for both new installations and critical spare-parts programs.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinets — whether managing compressor trains in a petrochemical plant, pump stations in a water treatment facility, or conveyor drives in a continuous casting line — a single drive failure can cascade into a full process shutdown. The ATV310HU30N4 is built to minimize that risk across multiple failure modes.

Power quality and surge protection begin at the cabinet’s incoming supply. Pairing the ATV310HU30N4 with a Schneider Electric Acti9 iC60N circuit breaker and a dedicated surge protection device (SPD) such as the Schneider iPRD series ensures that voltage transients and lightning-induced surges are arrested before they reach the drive’s sensitive IGBT output stage. The drive’s integrated EMC filter further suppresses conducted emissions that could otherwise corrupt Modbus RTU communications running on the same cabinet backplane.

Motor-side protection is equally critical. Connecting the ATV310HU30N4 output through a Schneider TeSys D LC1D series contactor and a LRD thermal overload relay provides a hardwired safety layer independent of the drive’s internal fault logic — essential for SIL-rated interlock loops where a software fault must not prevent mechanical disconnection. For applications requiring safe torque-off (STO) functionality, the Altivar 310 series supports STO input wiring in compliance with IEC 62061 safety integrity requirements.

Signal integrity and communication reliability are protected by proper grounding of the drive’s PE terminal to the cabinet’s equipotential busbar, combined with shielded motor cables terminated at both ends. In high-EMI environments — such as those near large transformer banks, arc furnaces, or variable-speed pump rooms — the ATV310HU30N4’s built-in filter significantly reduces the risk of signal drift on analog speed references (0–10 V or 4–20 mA) connected from a Schneider Zelio Logic SR3 smart relay or a Modicon M221 PLC acting as the supervisory controller.

Redundant power supply architecture for the control circuit can be achieved by feeding the drive’s 24 V logic supply from a Schneider Phaseo ABL8 series regulated power supply, which provides stable DC output even under mains fluctuations of ±20%. This prevents nuisance trips and false fault registrations that would otherwise force operators to perform manual resets — a significant safety concern in unmanned remote pump stations or offshore installations.

Thermal management inside the control cabinet is addressed by the drive’s internal fan and thermal protection algorithms, which continuously monitor heatsink temperature and automatically reduce switching frequency before a thermal fault occurs. In dusty or humid environments — such as cement plants, grain handling facilities, or coastal pump stations — pairing the ATV310HU30N4 with a Schneider ClimaSys CV cabinet cooling unit or filtered ventilation panels maintains the ambient temperature within the drive’s rated operating window, extending MTBF and reducing unplanned maintenance interventions.

For applications requiring local operator control without a full SCADA connection, the Altivar 310 remote display terminal (VW3A1101) can be mounted on the cabinet door, providing parameter access, fault history review, and manual speed override — all without opening the cabinet and exposing live busbars.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The ATV310HU30N4 is well-suited for controlling cooling water pumps, air blowers, and agitator drives in Zone 2 classified areas when installed in an appropriate Ex-rated enclosure. Its precise speed control reduces mechanical stress on pump impellers and seals, lowering the risk of process fluid leaks — a primary safety concern in hydrocarbon handling facilities. The drive’s PID feedback loop maintains stable flow rates even as upstream pressure varies, preventing cavitation events that can damage pump internals and trigger emergency shutdowns.

Electric Power Generation and Substation Auxiliaries: In power plant auxiliary systems — boiler feed pumps, induced draft fans, and cooling tower fans — the ATV310HU30N4 provides soft-start capability that eliminates the high inrush currents associated with direct-on-line motor starting. This protects upstream switchgear, reduces busbar voltage dips, and extends the service life of motor windings, all of which contribute to higher plant availability and reduced risk of forced outages.

Mining and Mineral Processing: Belt conveyor drives, slurry pump stations, and crusher feed systems in underground and open-pit mining operations demand drives that can withstand high levels of vibration, dust ingress, and wide ambient temperature swings. The ATV310HU30N4’s robust construction and comprehensive fault diagnostics — including overcurrent, overvoltage, undervoltage, phase loss, and ground fault detection — allow maintenance teams to identify developing faults before they escalate into catastrophic failures that could endanger personnel.

Water and Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants rely on variable-speed drives to optimize energy consumption in aeration blowers, sludge transfer pumps, and dosing systems. The ATV310HU30N4’s energy-saving algorithms reduce motor power consumption during low-demand periods, while its process PID controller maintains dissolved oxygen or pressure setpoints without requiring a separate PLC loop — simplifying the control architecture and reducing potential points of failure in critical environmental compliance systems.

Metallurgy, Port Cranes, and Continuous Manufacturing: In steel rolling mills, port container cranes, and automotive assembly lines, the ATV310HU30N4 supports dynamic braking and fast deceleration ramps that are essential for precise load positioning and emergency stop compliance. Its compatibility with standard industrial communication protocols ensures seamless integration into existing Modicon Quantum or Premium PLC architectures without requiring gateway hardware, reducing integration risk during plant upgrades or drive replacement projects.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the ATV310HU30N4?
Every ATV310HU30N4 supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides remote diagnostic support to help determine whether a fault is drive-related or caused by external factors, minimizing unnecessary returns and downtime.

Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes a full functional test prior to shipment, including power-on verification, parameter initialization check, and output voltage symmetry measurement. Units that do not pass our inspection criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement programs.

Q3: Is the ATV310HU30N4 compatible with existing Altivar 310 installations and Schneider PLCs?
Yes. The ATV310HU30N4 is a direct form-fit-function replacement for any existing Altivar 310 3 kW / 400 V installation. Parameter sets saved from an existing drive can be restored via the Altivar 310 keypad or SoMove configuration software. The drive communicates natively over Modbus RTU and is fully compatible with Modicon M221, M241, and M340 PLCs without requiring additional configuration.

Q4: Can NINERMAS support long-term and repeat supply for maintenance and spare-parts programs?
Yes. NINERMAS maintains stock of the ATV310HU30N4 and other Altivar 310 series drives to support planned maintenance schedules, emergency replacements, and multi-site spare-parts programs. We provide consistent lead times and can arrange priority dispatch for critical plant shutdowns. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
