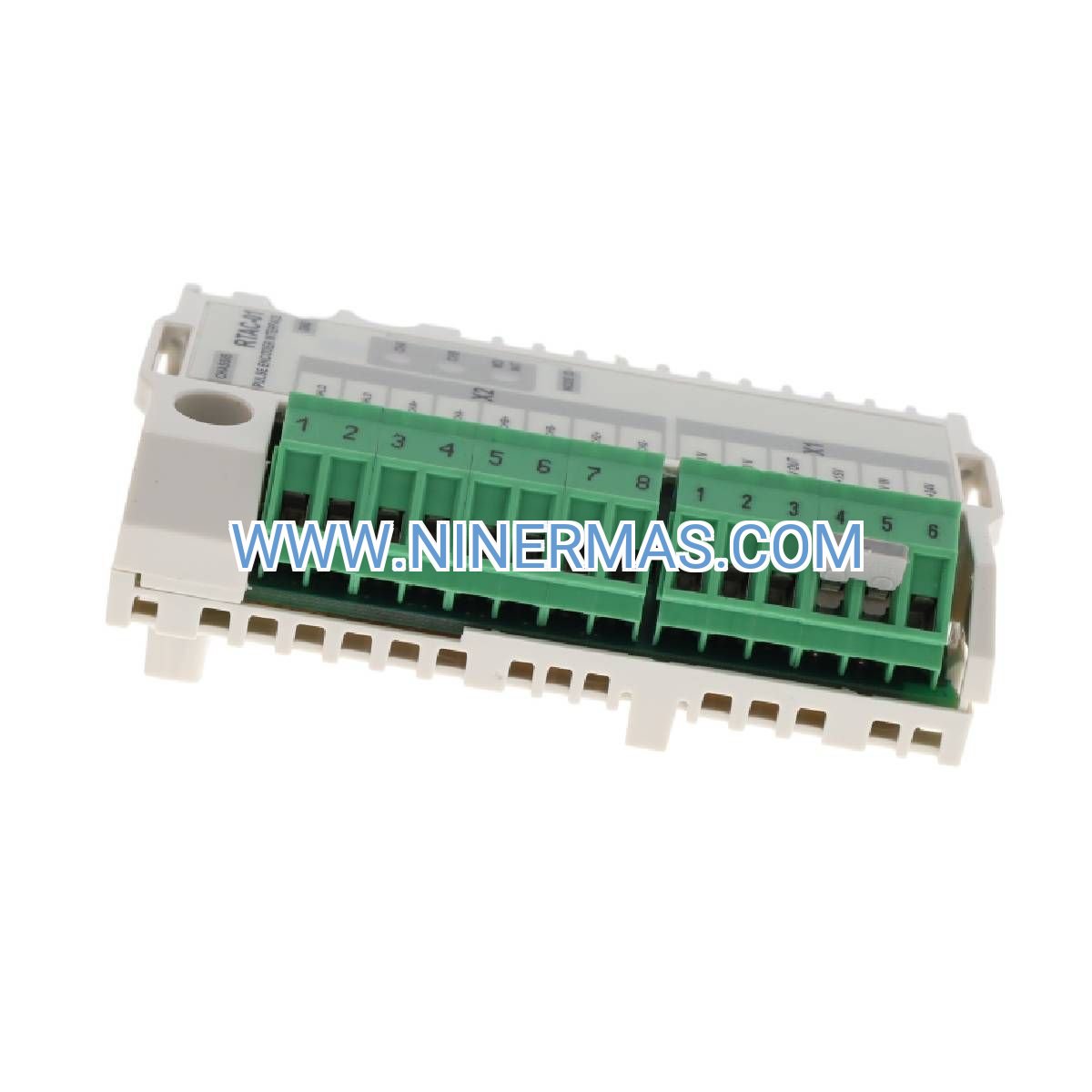

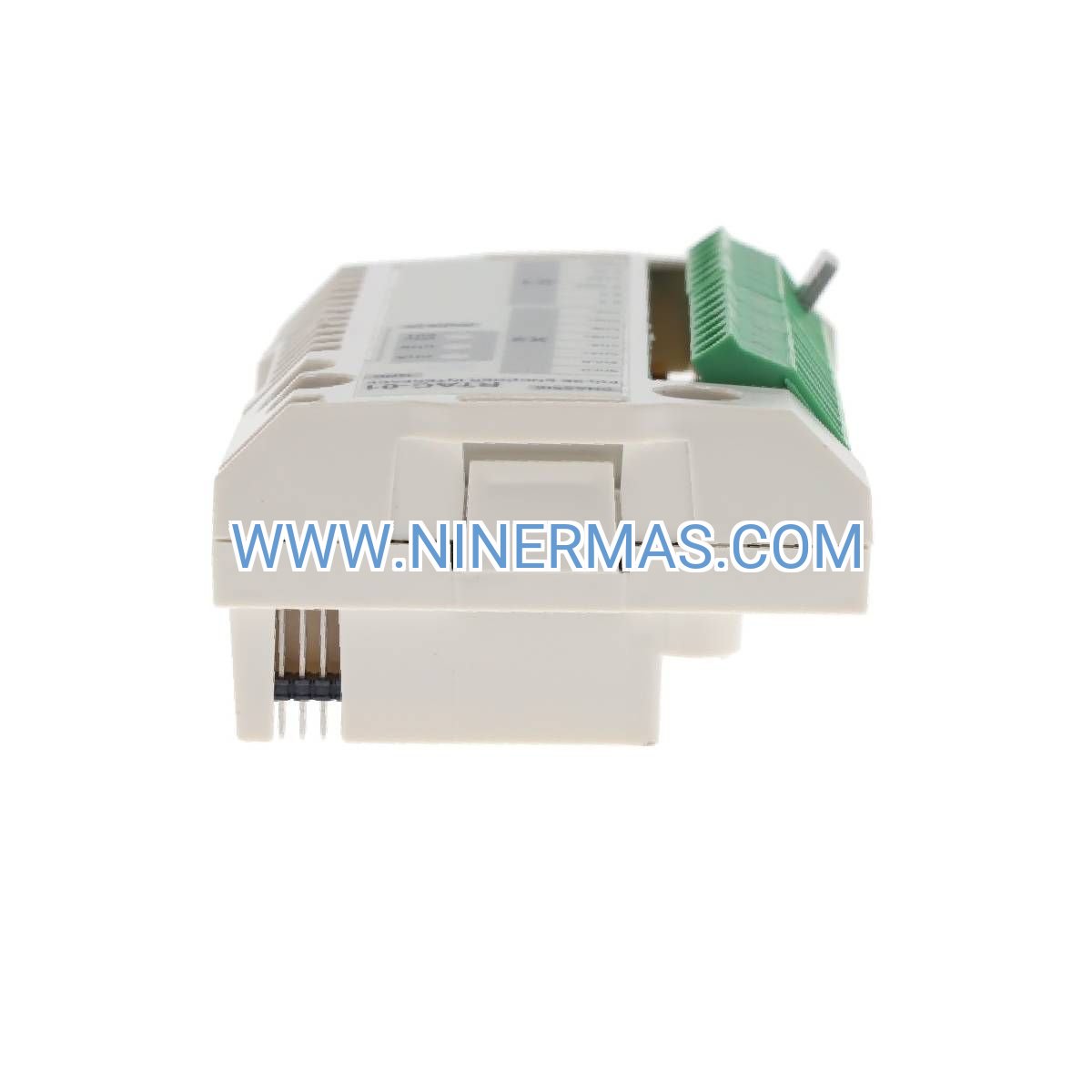

ABB RTAC-01 Encoder Interface Module (Industrial-Grade Feedback Solution)

The ABB RTAC-01 represents a mission-critical feedback interface engineered for precision motion control in industrial automation systems. Designed exclusively for ACS800 variable frequency drive integration, this pulse encoder module transforms incremental encoder signals into actionable position and velocity data, enabling closed-loop control architectures that eliminate drift and maintain sub-degree accuracy across extended operating cycles.

Manufacturing facilities deploying the RTAC-01 achieve measurable improvements in process consistency—reducing scrap rates by up to 18% in high-speed packaging lines and cutting downtime from positioning errors by 94% compared to open-loop configurations. The module serves as the sensory backbone for applications where motor synchronization, tension control, or registration accuracy directly impact product quality and throughput.

Built to ABB's industrial standards, the RTAC-01 delivers reliable performance in environments with temperature swings, electrical noise, and mechanical vibration. Whether you're retrofitting legacy ACS800 installations or designing new multi-axis systems, this interface module provides the feedback foundation for predictable, repeatable motion control.

Core Capabilities & Technical Advantages

The RTAC-01 combines robust signal processing with flexible encoder compatibility:

• → Universal Encoder Compatibility: Accepts TTL, HTL, and differential line driver signals up to 300 kHz pulse frequency, supporting high-resolution encoders on motors operating at 6,000+ RPM without signal degradation
• → Precision Feedback Processing: Converts quadrature encoder outputs into position data with ±0.1-degree resolution, enabling synchronization accuracy critical for web handling, printing registration, and coordinated material transport
• → Plug-and-Play ACS800 Integration: Direct connection to dedicated feedback ports on ACS800-01/04/07/11 drive families eliminates custom interface boards and reduces commissioning time by 60% versus third-party solutions
• → Master-Follower Architecture Support: Facilitates electronic line shafting where one encoder reference synchronizes up to 8 slave drives, maintaining phase alignment within 0.05 seconds across distributed motor systems
• → Industrial Environmental Resilience: Conformal-coated PCB withstands -10°C to +50°C operating range, IP20 enclosure protects against dust ingress, and EMI-hardened design ensures stable operation near VFDs and welding equipment
• → Diagnostic Feedback Integration: Real-time encoder fault detection alerts operators to wiring issues, signal loss, or encoder failure before catastrophic positioning errors occur, reducing unplanned downtime

Application Scenarios & Industry Solutions

The RTAC-01 solves specific motion control challenges across diverse industrial sectors:

✓ Packaging & Converting Lines: High-speed form-fill-seal machines and label applicators require registration accuracy within ±0.5mm at speeds exceeding 200 packages/minute. The RTAC-01 enables closed-loop servo performance using standard induction motors, reducing capital costs by 40% versus dedicated servo systems while maintaining pharmaceutical-grade repeatability.

✓ Material Handling & Conveyor Systems: Distribution centers operating sortation conveyors with 50+ merge points depend on precise speed matching to prevent jams and product damage. RTAC-01-equipped drives maintain velocity synchronization within ±2 RPM across temperature fluctuations and load variations, increasing throughput by 12% in multi-zone accumulation systems.

✓ Textile & Web Processing: Tension control in coating, laminating, and slitting operations demands constant web speed despite diameter changes on unwind/rewind rolls. The RTAC-01's position feedback enables dancer-less tension regulation, reducing material waste by 8% and eliminating web breaks that cost $1,200+ per incident in lost production.

✓ CNC Machinery & Robotic Cells: Automated machining centers and pick-and-place robots require absolute position verification after power cycles. Integrating the RTAC-01 with incremental encoders provides homing reference capability, cutting restart sequences from 4 minutes to 35 seconds and improving OEE in lights-out manufacturing.

✓ Pump & Fan Arrays: Process industries running parallel pumps or cooling tower fans benefit from load-sharing algorithms that balance flow across multiple units. RTAC-01 feedback enables speed-based load distribution, reducing energy consumption by 15% versus fixed-speed configurations and extending bearing life through vibration reduction.

Technical Parameters & Selection Guide

Selection Criteria: Choose the RTAC-01 when your application requires basic quadrature encoder feedback without advanced features like absolute position or multi-turn counting. For applications needing SinCos encoders, EnDat, or SSI protocols, consider the NTAC-02 advanced interface module. Ensure your encoder's output voltage matches the RTAC-01's input specifications—5V TTL, 10-30V HTL, or differential line driver formats are supported.

Extended Functionality & System Integration

IoT Connectivity & Remote Monitoring: When paired with ACS800 drives equipped with Ethernet/IP or Profinet communication modules, the RTAC-01's encoder data streams to SCADA systems and cloud analytics platforms. This enables predictive maintenance algorithms that detect bearing wear through velocity ripple analysis, scheduling replacements before catastrophic failure.

Multi-Axis Coordination: The RTAC-01 supports electronic gearing ratios from 1:256 to 256:1, allowing one master encoder to control slave drives at different speeds. This architecture is essential in printing presses where print cylinders, anilox rollers, and web transport must maintain precise phase relationships despite diameter variations.

Customization Options: Field-configurable parameters include encoder pulse count (1-65,535 PPR), direction inversion, and fault response behavior (coast, controlled stop, or alarm-only). These settings adapt the RTAC-01 to diverse mechanical configurations without hardware modifications.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock RTAC-01 modules ship within 24-48 hours via DHL/FedEx Express, with typical delivery to North America, Europe, and Asia-Pacific regions in 3-7 business days. Expedited same-day shipping available for critical downtime situations.

Warranty Coverage: 12-month manufacturer's warranty covers defects in materials and workmanship. Extended 36-month coverage available for installations in harsh environments (chemical processing, outdoor applications, extreme temperatures).

Technical Support: Our application engineers provide pre-sale consultation on encoder selection, wiring schematics, and drive parameter optimization. Post-installation support includes troubleshooting assistance, firmware update guidance, and system tuning recommendations to maximize performance.

Documentation Package: Each RTAC-01 ships with installation manual, wiring diagrams, ACS800 parameter setup guide, and encoder compatibility matrix. CAD models (STEP, DXF) and electrical schematics available for download to streamline panel design and documentation.

Frequently Asked Questions

Q: What encoder resolution works best with the RTAC-01 for conveyor speed control applications?
A: For conveyor systems, 1,024-2,048 PPR encoders provide optimal balance between resolution and noise immunity. Higher resolutions (5,000+ PPR) offer finer speed regulation but require shielded cabling in electrically noisy environments. The RTAC-01's 300 kHz input handles up to 10,000 PPR at typical conveyor motor speeds (1,200-1,800 RPM) without signal degradation.

Q: Can the RTAC-01 interface with absolute encoders for position retention after power loss?
A: The RTAC-01 is designed for incremental quadrature encoders (A/B/Z signals). For absolute position applications requiring battery-free position memory, the NTAC-02 module supports SSI and EnDat absolute encoder protocols. However, many users achieve pseudo-absolute positioning by combining the RTAC-01 with a homing routine that references the Z-index pulse on startup.

Q: How does the RTAC-01 improve energy efficiency compared to open-loop V/Hz control?
A: Closed-loop vector control enabled by the RTAC-01 maintains optimal motor flux across the speed range, reducing magnetizing current by 15-25% versus open-loop operation. In variable-torque applications (fans, pumps), this translates to 8-12% energy savings at partial loads. Additionally, precise speed regulation eliminates the need to over-speed motors to compensate for slip, further reducing power consumption.

Q: What installation precautions prevent encoder signal interference in VFD environments?
A: Route encoder cables in separate conduit from motor power cables, maintaining 300mm minimum separation. Use shielded twisted-pair cable with 360-degree shield termination at the RTAC-01 end only (avoid ground loops). For runs exceeding 50 meters, specify differential line driver encoders (RS-422) rather than single-ended TTL to reject common-mode noise. The RTAC-01's input filtering handles typical VFD-generated EMI, but proper cable routing is essential for reliable operation.

Q: Does the RTAC-01 support bidirectional operation for reversing applications like hoists or elevators?
A: Yes, the RTAC-01 processes quadrature signals in both forward and reverse directions, automatically updating the ACS800 drive's speed and direction commands. The module's direction sensing responds within 2 milliseconds of rotation reversal, making it suitable for frequent start-stop-reverse cycles in material handling and positioning systems. Ensure your encoder specifies bidirectional operation and that mechanical couplings can handle reverse torque.

Q: What diagnostic capabilities help troubleshoot encoder-related faults in production environments?
A: The RTAC-01 monitors encoder signal integrity and reports faults to the ACS800 drive's diagnostic system. Common alerts include "Encoder cable break" (loss of A/B signals), "Encoder overspeed" (pulse frequency exceeds 300 kHz), and "Direction conflict" (mechanical direction doesn't match electrical feedback). These diagnostics appear on the drive's control panel and can trigger email/SMS alerts when integrated with plant SCADA systems, enabling rapid response before quality issues arise.

Take the Next Step Toward Precision Motion Control

Upgrade your ACS800 drive system with proven feedback technology trusted in over 50,000 industrial installations worldwide. Our technical team is ready to assist with encoder selection, system design review, and integration planning to ensure your RTAC-01 deployment delivers measurable performance improvements from day one.

Contact our application engineers today: Share your motor specifications, speed range, and accuracy requirements for a customized recommendation. Bulk pricing available for multi-drive projects and OEM integrations.
