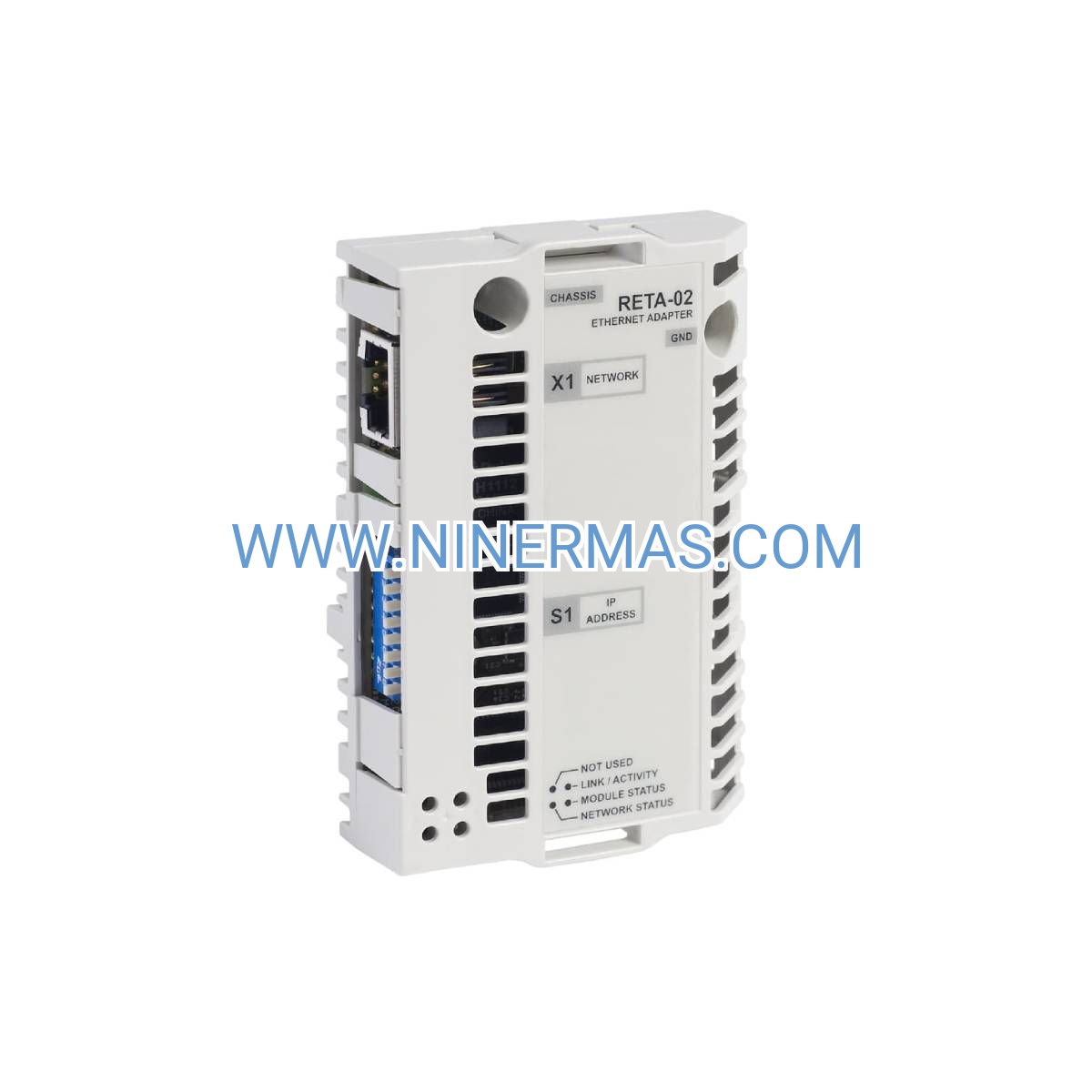

ABB RETA-02 Industrial Ethernet Communication Module

The ABB RETA-02 represents a professional-grade solution for integrating legacy automation equipment into modern Ethernet-based control architectures. This dual-protocol adapter enables seamless data exchange between PROFINET I/O networks and Modbus/TCP systems, eliminating communication barriers in complex industrial environments.

Designed for system integrators and plant engineers, the RETA-02 addresses the critical challenge of protocol incompatibility in multi-vendor automation landscapes. Whether upgrading existing installations or deploying new control systems, this adapter provides reliable, high-speed connectivity with minimal configuration overhead.

Built to ABB's industrial standards, the module delivers consistent performance across temperature extremes and electrically noisy environments, making it the preferred choice for mission-critical applications in manufacturing, process control, and infrastructure management.

Core Features & Technical Advantages

✓ Dual-Protocol Architecture
Native support for both PROFINET I/O and Modbus/TCP eliminates the need for multiple gateway devices. Seamlessly bridge Siemens, Rockwell, and ABB control systems within a single network infrastructure, reducing hardware costs and simplifying system architecture.

✓ Industrial-Grade Reliability
Extended operating temperature range (-25°C to +60°C) ensures stable operation in harsh environments. Enhanced EMC immunity protects against electrical interference common in industrial settings, maintaining data integrity even in high-noise conditions.

✓ Rapid Deployment Configuration
Web-based interface enables parameter setup without specialized programming tools. Pre-configured templates for common applications reduce commissioning time from hours to minutes, accelerating project timelines and lowering integration costs.

→ Diagnostic Intelligence

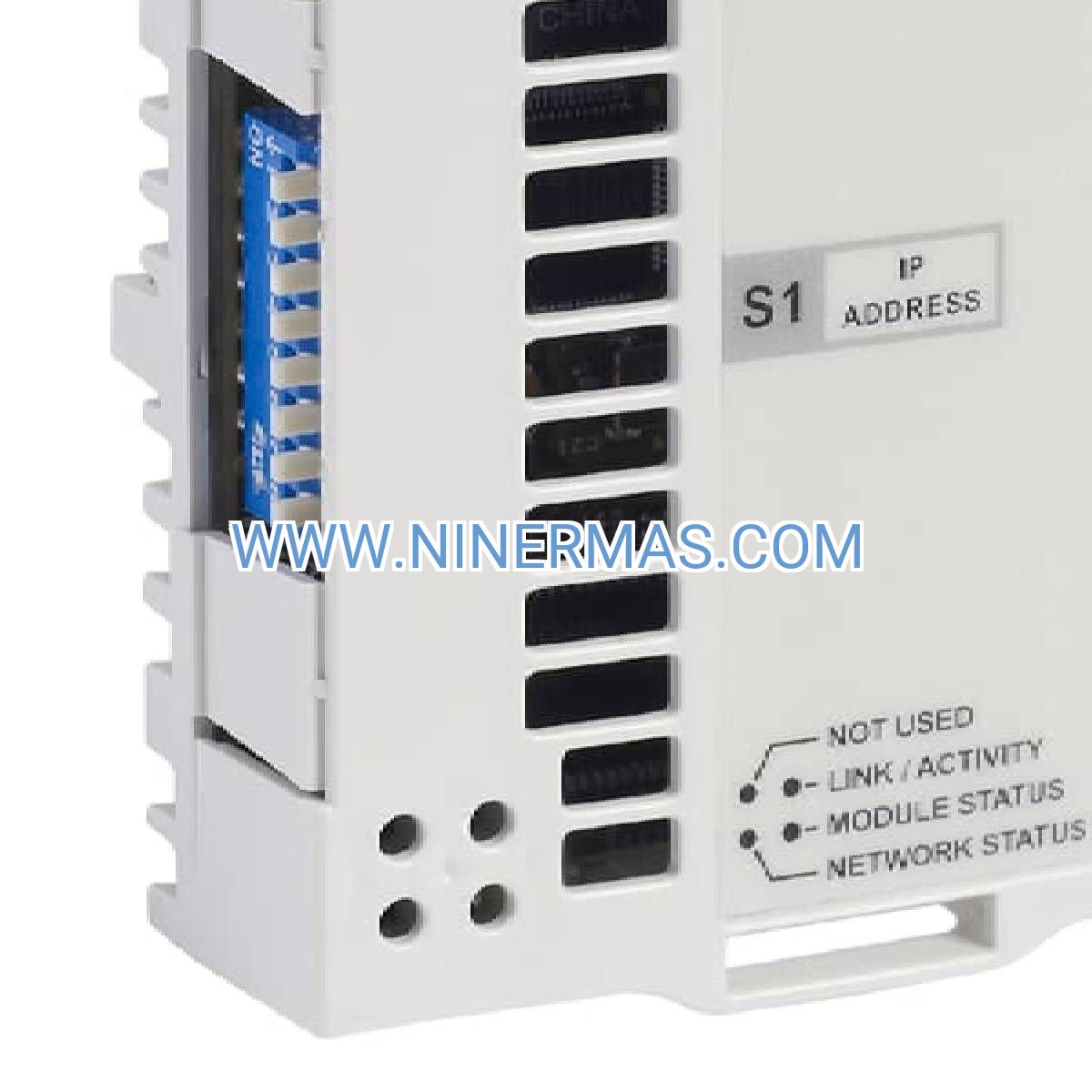

Integrated LED indicators provide real-time status feedback for power, network activity, and communication errors. Built-in diagnostics accelerate troubleshooting, minimizing downtime during maintenance operations.

→ Compact DIN Rail Design
Space-efficient footprint (45mm width) conserves valuable control panel real estate. Standard 35mm DIN rail mounting ensures compatibility with existing enclosures, simplifying retrofit installations.

→ Wide Input Voltage Tolerance
18-32V DC operating range accommodates voltage fluctuations typical in industrial power systems. Reverse polarity protection prevents damage from incorrect wiring during installation.

Industrial Application Scenarios

Automotive Manufacturing Lines
Connect distributed I/O modules controlling robotic welding stations, conveyor systems, and quality inspection equipment to centralized PROFINET controllers. The RETA-02 enables real-time coordination between assembly line segments, reducing cycle times and improving production throughput by up to 15%.

Water & Wastewater Treatment Facilities
Integrate Modbus/TCP field instruments (flow meters, level sensors, valve actuators) with SCADA visualization systems. Achieve centralized monitoring of multiple treatment stages while maintaining compatibility with existing sensor infrastructure, avoiding costly equipment replacement.

Food & Beverage Processing
Bridge packaging machinery, filling systems, and temperature control units using mixed communication protocols. The adapter's IP20 rating and stainless steel mounting options meet hygiene requirements for food-grade environments while ensuring reliable data exchange for recipe management and batch tracking.

Building Automation Retrofits
Modernize legacy HVAC control systems by connecting serial-based equipment to Ethernet building management networks. Enable remote monitoring and energy optimization without disrupting operational systems, delivering ROI through reduced energy consumption and maintenance costs.

Renewable Energy Installations
Facilitate communication between solar inverters, battery storage systems, and grid management controllers. Support distributed energy resource management with low-latency data exchange, critical for frequency regulation and demand response applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the RETA-02 when your application requires simultaneous PROFINET and Modbus/TCP connectivity in a single device. For applications needing only Modbus RTU to Modbus/TCP conversion, consider dedicated serial gateways. For fiber optic networks, evaluate ABB's fiber-enabled communication modules.

Extended Capabilities & Integration Options

SCADA System Integration: Compatible with leading SCADA platforms including Wonderware, Ignition, and WinCC. Standard OPC UA server functionality enables seamless data exchange with enterprise MES and ERP systems for production analytics and inventory management.

Cybersecurity Features: Supports network segmentation through VLAN tagging, isolating critical control traffic from IT networks. MAC address filtering and port security features protect against unauthorized device connections.

Redundancy Support: Deploy in redundant configurations for high-availability applications. Automatic failover ensures continuous operation during primary adapter maintenance or failure events.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: Pre-programmed units with customer-specific parameters available with 7-10 business day lead time. Firmware customization for specialized protocols quoted on request.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Access to ABB-certified application engineers for integration assistance. Comprehensive documentation package includes quick start guide, detailed user manual, and protocol implementation examples.

Included Documentation: Installation manual, configuration software (Windows/Linux compatible), sample ladder logic for common PLC platforms, and network topology diagrams.

Frequently Asked Questions

How does the RETA-02 interface with existing Siemens S7-1200 PLCs?
The adapter appears as a standard PROFINET I/O device in TIA Portal. Simply add the GSDML file to your hardware catalog, assign an IP address, and map I/O data to your PLC program. Configuration typically requires less than 15 minutes for experienced users.

What is the maximum data throughput capacity for Modbus/TCP communication?
The RETA-02 supports up to 250 Modbus registers per transaction with cycle times as low as 10ms, depending on network load and master device capabilities. This translates to approximately 25,000 data points per second under optimal conditions.

Can this adapter reduce energy consumption in motor control applications?
While the adapter itself consumes minimal power (≤3W), it enables energy optimization by facilitating real-time communication between variable frequency drives and energy management systems. Customers report 8-12% energy savings through improved load balancing and demand response integration.

What are the physical installation requirements for panel mounting?
Requires 35mm DIN rail with minimum 50mm clearance above and below for ventilation. Recommended panel ambient temperature should not exceed 50°C. For outdoor installations, use NEMA 4X or IP65-rated enclosures with adequate thermal management.

Does the RETA-02 support remote monitoring and diagnostics?
Yes, the integrated web server provides real-time access to communication statistics, error logs, and configuration parameters via standard web browser. SNMP support enables integration with network management systems for centralized monitoring across multiple sites.

How does this compare to generic Ethernet-to-serial converters?
Unlike basic converters, the RETA-02 performs full protocol translation with data buffering and error recovery. Industrial-grade components ensure reliable operation in temperature extremes and high-EMI environments where consumer-grade devices fail. ABB's global support network provides application assistance unavailable with generic products.

Take the Next Step

Ready to modernize your industrial network infrastructure? Contact our automation specialists for application-specific recommendations and volume pricing. Request a technical datasheet or schedule a virtual consultation to discuss your integration requirements.

Order now for same-day processing and expedited global shipping.
