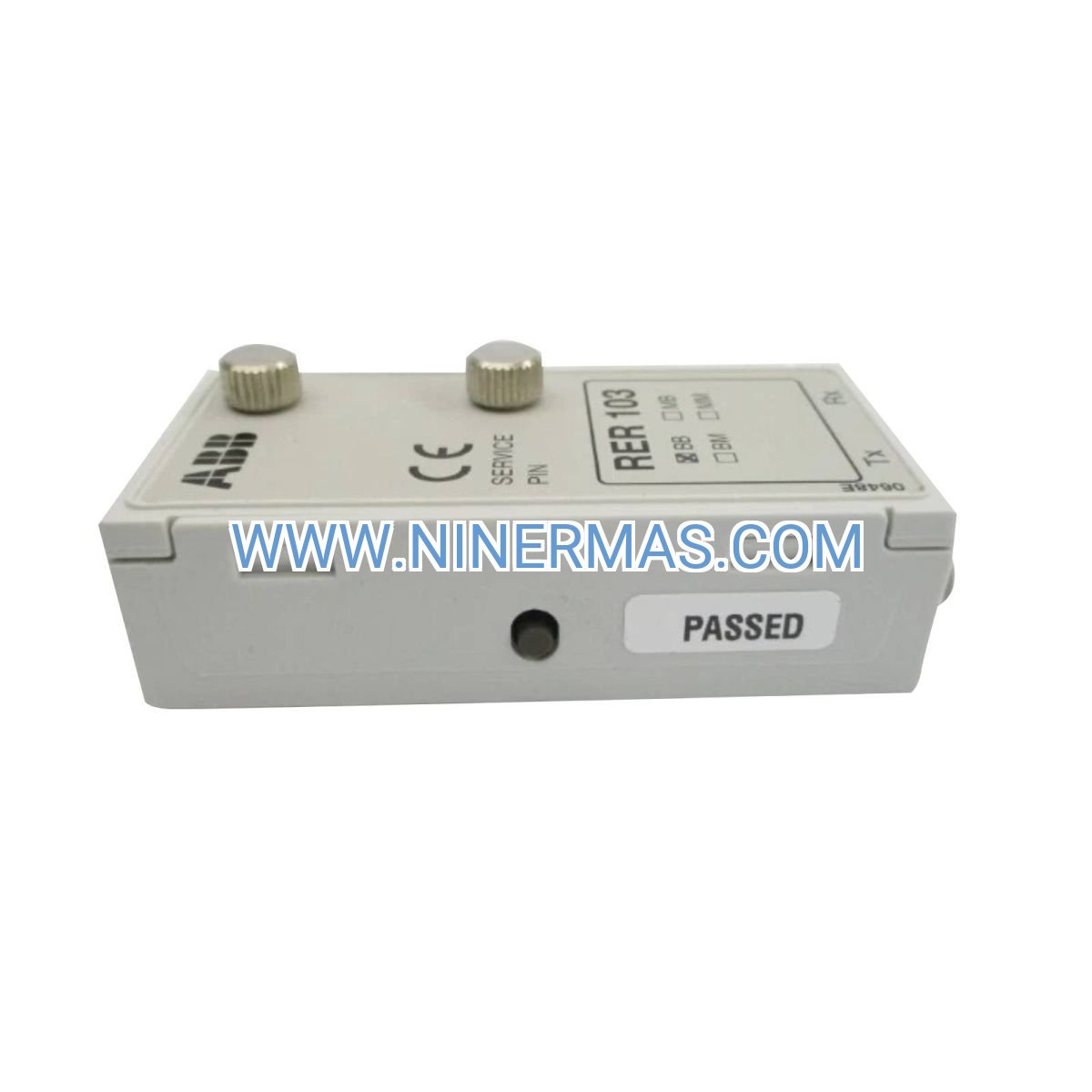

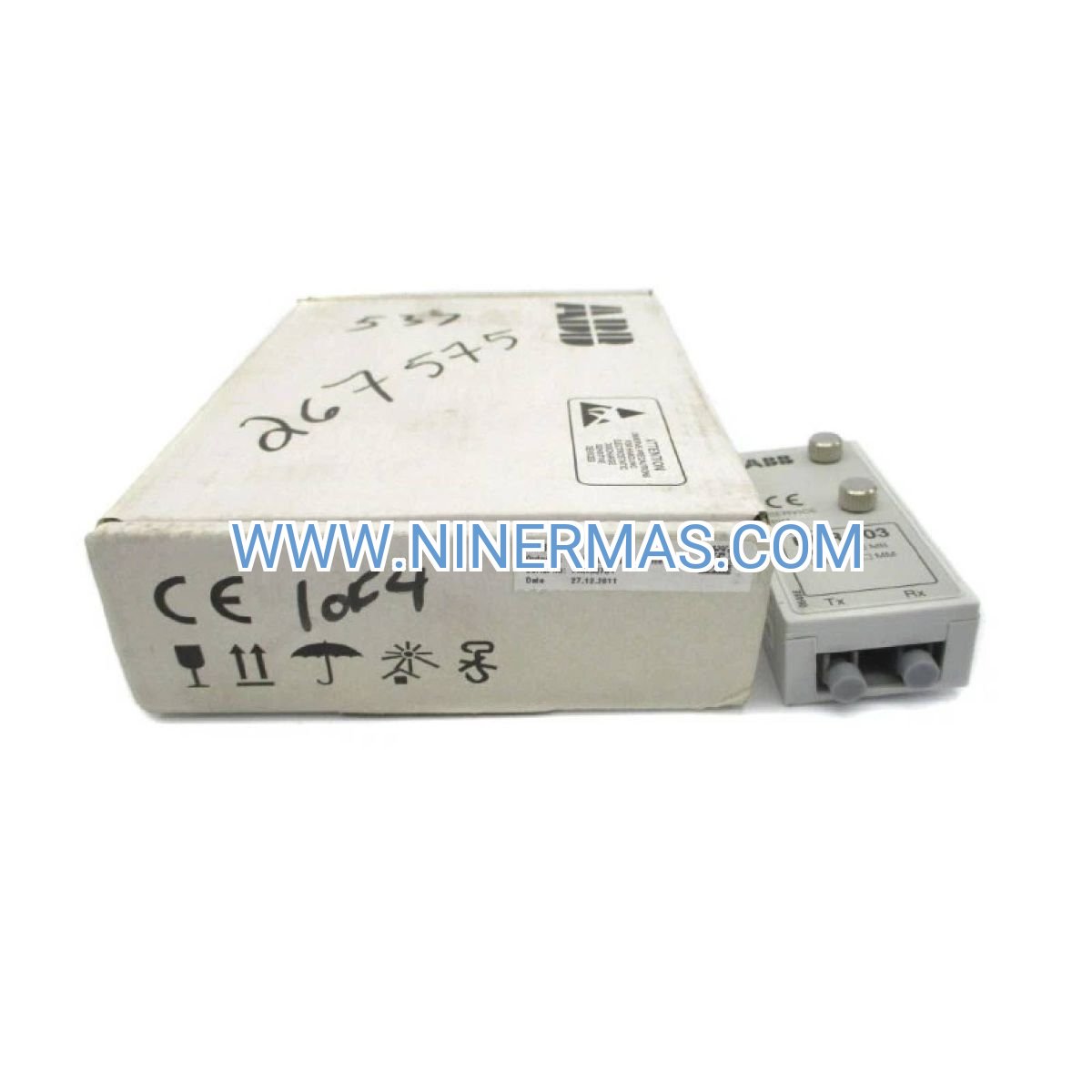

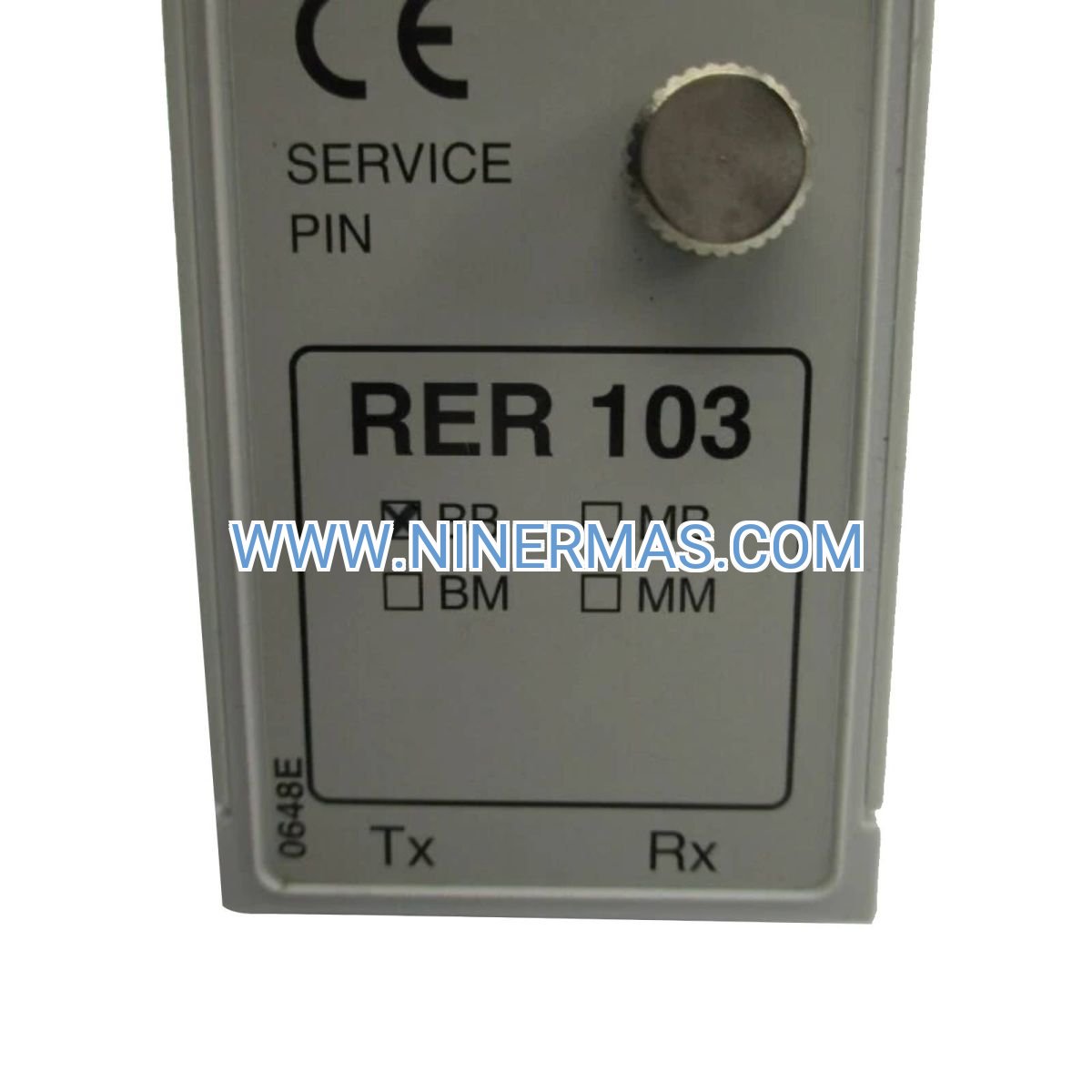

ABB RER103 Communication Interface Module – Industrial-Grade Optical-to-Electrical Signal Gateway

Engineered for mission-critical power distribution networks, the ABB RER103 delivers seamless optical-to-RS485 signal conversion for protection relay systems. This compact DIN-rail module bridges fiber-optic substation backbones with legacy electrical communication protocols, enabling utilities to modernize infrastructure while preserving existing relay investments. Certified for harsh industrial environments (-25°C to +55°C), the RER103 ensures reliable data exchange in outdoor switchyards, underground vaults, and high-EMI control rooms.

Designed specifically for ABB RE500 series protection devices, this interface module supports multi-protocol environments including SPA (Station Protection Automation), LON®, and IEC 60870-5-103 standards. Its hot-swappable architecture and diagnostic LED indicators reduce maintenance downtime by up to 40%, making it the preferred choice for 24/7 grid operations requiring maximum uptime.

Whether you're integrating new fiber-optic SCADA systems with existing copper-based relays or eliminating ground loop interference in high-voltage substations, the RER103 provides galvanically isolated, EMI-resistant communication that meets international safety and performance standards.

Core Capabilities & Technical Advantages

✓ Multi-Protocol Flexibility: Native support for SPA, LON, and IEC 60870-5-103 protocols eliminates the need for external converters, reducing system complexity and potential failure points in mixed-vendor automation environments.

✓ Extended Temperature Resilience: Operates reliably from -25°C to +55°C without auxiliary cooling, ideal for outdoor kiosks, desert installations, and arctic substations where climate control is impractical or cost-prohibitive.

✓ Galvanic Isolation Protection: Built-in optical isolation breaks ground loops between fiber and copper networks, preventing voltage transients from damaging sensitive relay electronics during lightning strikes or switching surges.

✓ Hot-Swap Maintenance: Field-replaceable design allows technicians to swap modules during live operations without de-energizing protection systems, maintaining grid reliability during scheduled maintenance windows.

✓ Compact DIN-Rail Form Factor: At just 35mm × 73mm × 20mm, the module fits standard control cabinet rails, maximizing panel space utilization in retrofit projects with limited real estate.

✓ Real-Time Diagnostics: Tri-color LED indicators provide instant visual confirmation of power status, communication activity, and fault conditions, accelerating troubleshooting from hours to minutes.

Industry Applications & Problem-Solving Scenarios

→ Utility Substation Modernization: Electric utilities upgrading from copper-based RTU networks to fiber-optic SCADA systems use the RER103 to maintain compatibility with installed RE500 overcurrent and distance relays, avoiding costly wholesale equipment replacement. Typical ROI: 18-24 months through deferred capital expenditure.

→ Industrial Power Distribution: Manufacturing facilities with on-site substations leverage the module's IEC 60870-5-103 support to integrate protection relays into plant-wide energy management systems, enabling real-time fault analysis and predictive maintenance scheduling.

→ Renewable Energy Installations: Solar farms and wind parks deploy the RER103 to connect distributed protection devices across kilometer-long fiber runs, where copper RS-485 would suffer unacceptable signal degradation and lightning-induced failures.

→ Transportation Infrastructure: Railway electrification systems and metro networks utilize the module's EMI resistance to maintain reliable protection relay communication in high-interference environments near traction power systems and AC catenary lines.

→ Data Center Critical Power: Mission-critical facilities requiring N+1 redundancy implement RER103 modules in dual-path configurations, ensuring protection relay visibility even during single-point fiber or module failures.

Technical Specifications & Selection Criteria

Selection Guidelines: When specifying the RER103, verify that your fiber-optic infrastructure uses multimode fiber with ST or SC terminations. For single-mode fiber networks, consult ABB for alternative interface modules. Ensure your 24 V DC auxiliary supply can provide at least 5 W of additional capacity per module to account for inrush current during power-up.

Advanced Integration Features

SCADA System Connectivity: The module's IEC 60870-5-103 implementation includes spontaneous event transmission and general interrogation commands, enabling seamless integration with Siemens SICAM, ABB MicroSCADA, and GE iFIX platforms without custom protocol translation.

Redundant Communication Paths: Deploy paired RER103 modules in A/B configurations for automatic failover protection. When combined with dual-port RE500 relays, this architecture achieves 99.99% communication availability in critical applications.

Cybersecurity Hardening: While the RER103 operates at the physical layer, its galvanic isolation provides inherent protection against network-based attacks attempting to inject malicious signals through fiber-optic infrastructure.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory-configured units with custom firmware

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended service contracts available for critical infrastructure deployments

Technical Support: Access to ABB-certified application engineers for pre-sales system design review, commissioning assistance, and lifetime troubleshooting support via phone, email, and remote diagnostics

Documentation Package: Includes installation manual, protocol configuration worksheets, AutoCAD panel layout drawings, and sample IEC 103 message traces for validation testing

Frequently Asked Questions

Q: Can the RER103 interface with non-ABB protection relays?
A: While optimized for RE500 series devices, the module supports any relay implementing standard IEC 60870-5-103 protocol. Verify compatibility through protocol conformance testing before deployment.

Q: What fiber-optic cable types are compatible with this module?
A: The RER103 accepts 62.5/125 μm or 50/125 μm multimode fiber with ST or SC connectors. Maximum transmission distance is 2 km; for longer runs, specify optical repeaters or switch to single-mode fiber modules.

Q: How does the module perform in high-vibration environments?
A: Tested to IEC 60255-21-1 seismic Class 2 standards, the RER103 withstands vibrations up to 2g acceleration, making it suitable for installations near rotating machinery or in seismically active regions.

Q: Is firmware upgradeable in the field?
A: Yes, firmware updates are performed via the RS-485 port using ABB's PCM600 configuration software. Updates typically take 5-10 minutes and do not require module removal from the panel.

Q: What diagnostic capabilities are available for remote monitoring?
A: The module reports communication errors, optical signal strength, and power supply status through IEC 103 diagnostic messages, which can be logged by SCADA systems for predictive maintenance analytics.

Q: Can multiple RER103 modules share a single fiber-optic ring?
A: Yes, when configured in a fiber-optic ring topology with appropriate network switches, multiple modules can operate on the same physical infrastructure. Consult ABB's substation automation design guides for ring architecture best practices.

Ready to Modernize Your Substation Communication?

Contact our industrial automation specialists for a free compatibility assessment and system integration proposal. We provide detailed BOMs, panel layout assistance, and commissioning support to ensure your RER103 deployment meets performance and timeline objectives.

Request a Quote: Email your relay model numbers and fiber infrastructure details to receive a customized solution within 24 hours.
