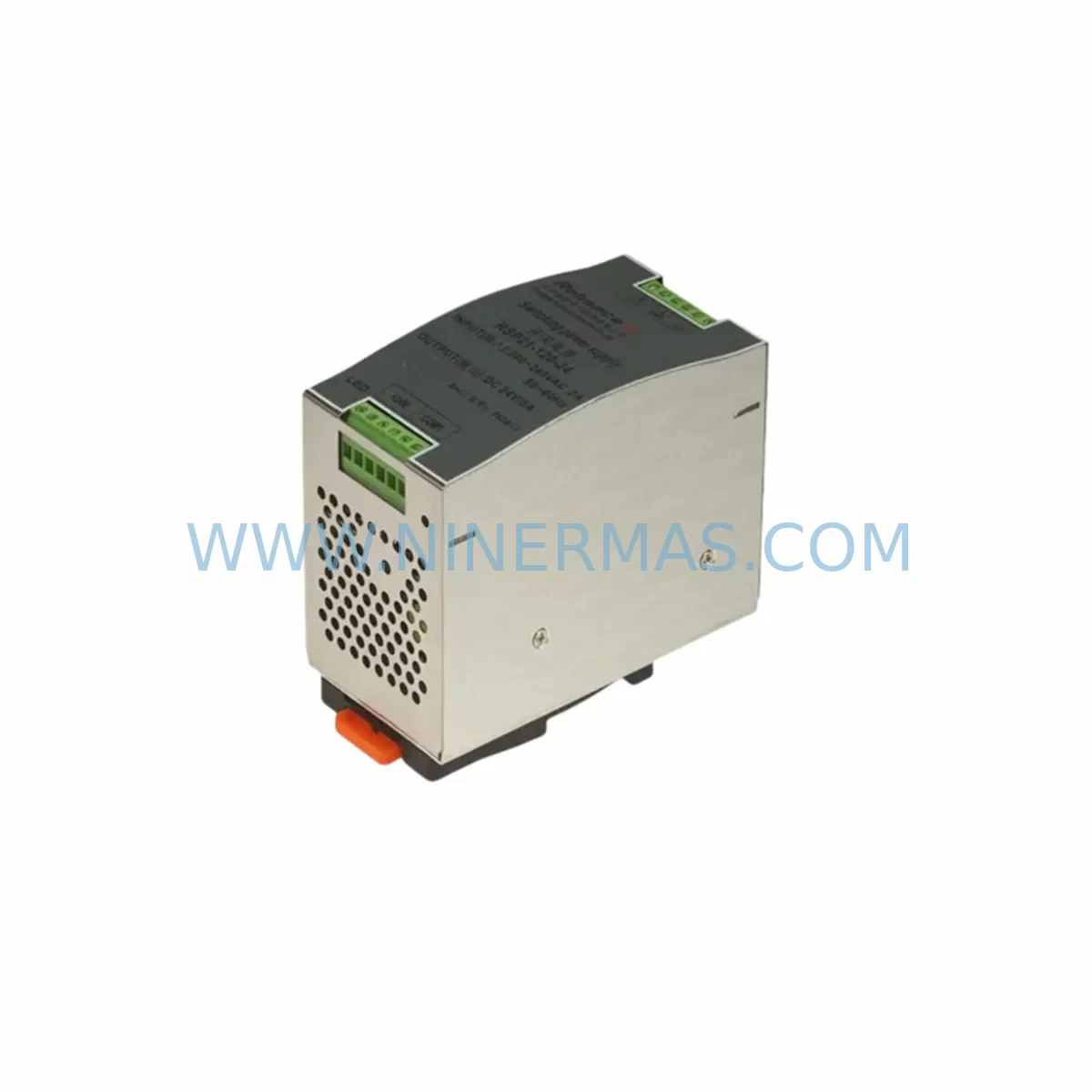

Reliance RSP21-120-24 Retrofit-Compatible Power Supply

Reliance RSP21-120-24 Retrofit-Compatible Power Supply for Legacy Automation Systems

The Reliance RSP21-120-24 is a ruggedized 120VAC input / 24VDC output power supply module engineered for sustained operation in harsh industrial environments. As a retrofit-compatible replacement for aging Reliance Electric AutoMax and FLEX Series control platforms, this module enables maintenance teams and system integrators to extend the operational life of existing control cabinets without committing to a full platform migration. With confirmed in-stock availability, pre-shipment functional testing, and a 12-month warranty, the RSP21-120-24 is a dependable solution for facilities managing legacy DCS, PLC, and motion control infrastructure across process, mining, pulp and paper, and heavy manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the RSP21-120-24 in an active production environment requires a structured pre-outage assessment to avoid cascading failures across the control cabinet. Begin by documenting the full rack configuration: identify every module occupying the AutoMax chassis, including analog input modules, digital output modules, and any motion control cards associated with the Reliance AutoMax drive network. The power supply feeds the entire backplane, so a failed or degraded RSP21-120-24 can manifest as intermittent I/O faults, erratic drive commands, or unexplained controller resets — symptoms that are frequently misdiagnosed as processor or network faults.

Before the scheduled outage, measure the actual 24VDC rail voltage under load using a calibrated multimeter at the backplane test points. A reading below 23.5VDC under normal operating load is a reliable indicator of power supply degradation. Record the current draw of all installed modules — including any Reliance FLEX I/O adapter modules, communication interface cards, and specialty function modules — and confirm the total does not exceed the RSP21-120-24’s rated output capacity. If the rack has been expanded since original commissioning, additional I/O modules or a Reliance network interface module may have pushed the load close to or beyond the original design margin.

Terminal wiring for the RSP21-120-24 follows the standard AutoMax power supply footprint. The 120VAC input terminals are located on the module’s front face; confirm that the incoming line, neutral, and earth ground conductors are correctly landed and torqued to specification. The 24VDC output is distributed through the backplane bus — no external wiring to field devices is required from the power supply itself, which simplifies the physical swap. However, if the cabinet also contains a separate 24VDC distribution rail feeding field instruments, signal isolators, or solenoid valve banks, verify that this rail is sourced from a dedicated external power supply and not from the AutoMax module’s auxiliary terminals.

For facilities running Reliance AutoMax controllers alongside legacy Reliance drives — such as the Reliance SP500 or GV3000 series — the 24VDC power supply integrity is critical to maintaining the drive enable and fault reset signal chains. A momentary power interruption during module swap can trigger drive fault states that require manual reset at each drive panel, adding significant time to the commissioning window. Coordinate with the drive maintenance team to pre-stage fault reset procedures before the outage begins.

If the retrofit scope extends beyond the power supply to include I/O expansion or communication upgrades, consider the sequencing carefully. Installing a new Reliance AutoMax network scanner module or upgrading from a legacy coax-based AutoMax network to a fiber-optic link should be planned as a separate phase, after the power supply replacement has been validated and the rack has been confirmed stable under load. Attempting simultaneous hardware changes increases diagnostic complexity if post-commissioning faults occur.

Downtime Control During System Migration

Minimizing unplanned downtime during an RSP21-120-24 replacement begins with a complete backup of the AutoMax controller program before any hardware is disturbed. Use the Reliance AutoMax programming software to upload and archive the current ladder logic, configuration parameters, and any motion profiles stored in the controller. Confirm the backup file integrity by comparing the checksum or performing a verify operation against the controller memory. This step is non-negotiable: a corrupted or incomplete program backup can extend a planned two-hour outage into a multi-day recovery event.

Schedule the physical swap during a planned maintenance window aligned with production shift changes to minimize operational impact. Isolate the cabinet by opening the main disconnect and locking out / tagging out (LOTO) per site safety procedures. Remove the RSP21-120-24 from its rack slot, noting the slot position and any adjacent module clearances. Install the replacement module, verify that the backplane connector is fully seated, and restore power in a controlled sequence: energize the cabinet, observe the power supply LED indicators for normal status, then allow the AutoMax controller to complete its self-diagnostic cycle before enabling field outputs.

After the controller has restarted, perform a structured I/O verification scan: confirm that all digital input and output modules are reporting correctly in the programming software, check analog input scaling on critical process signals, and verify that any Reliance drive references are being received correctly by the drive network. If the facility uses an HMI — whether a legacy Reliance operator panel or a modern SCADA workstation connected via an AutoMax network gateway — confirm that all dynamic data tags are updating correctly before releasing the system to production.

For sites where continuous process control is required and a cold-swap outage is not acceptable, consult with your controls engineer about temporary bypass strategies for non-critical I/O circuits. In some configurations, field devices can be maintained in a safe hold state while the power supply is exchanged, reducing the functional impact of the outage window. Document all steps taken during the migration for the site’s maintenance management system, including the replacement module serial number, installation date, and post-commissioning test results — this record supports future warranty claims and spare parts lifecycle planning.

Retrofit Support FAQ

Q1: Is the RSP21-120-24 a direct drop-in replacement for the original Reliance AutoMax power supply?
Yes. The RSP21-120-24 is designed to occupy the same rack slot and backplane connector position as the original Reliance AutoMax power supply module. No mechanical modification to the chassis is required. Confirm the slot position and input voltage rating (120VAC) match your existing installation before ordering.

Q2: What pre-shipment testing is performed on the RSP21-120-24?
Each unit undergoes functional power-on testing prior to shipment, verifying output voltage regulation, current capacity, and indicator LED operation. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q3: Can the RSP21-120-24 support an expanded rack with additional I/O modules added after original commissioning?
The RSP21-120-24 is rated for a specific maximum output current. If the rack load has increased due to the addition of analog input modules, digital output modules, or communication interface cards since original installation, perform a load audit before replacement to confirm the module’s rated capacity is not exceeded. If the total load exceeds the module’s rating, a higher-capacity power supply or a supplemental 24VDC rail may be required.

Q4: What is the typical lead time and stock availability?
The RSP21-120-24 is maintained in stock for immediate shipment. Standard lead time is 3–7 business days for international destinations. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange priority dispatch.
