Reliance Electric 57C420 Safety-Reliable Output Module

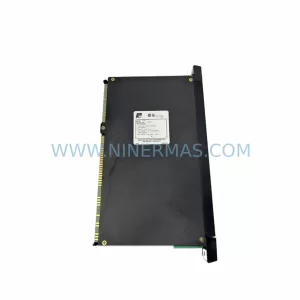

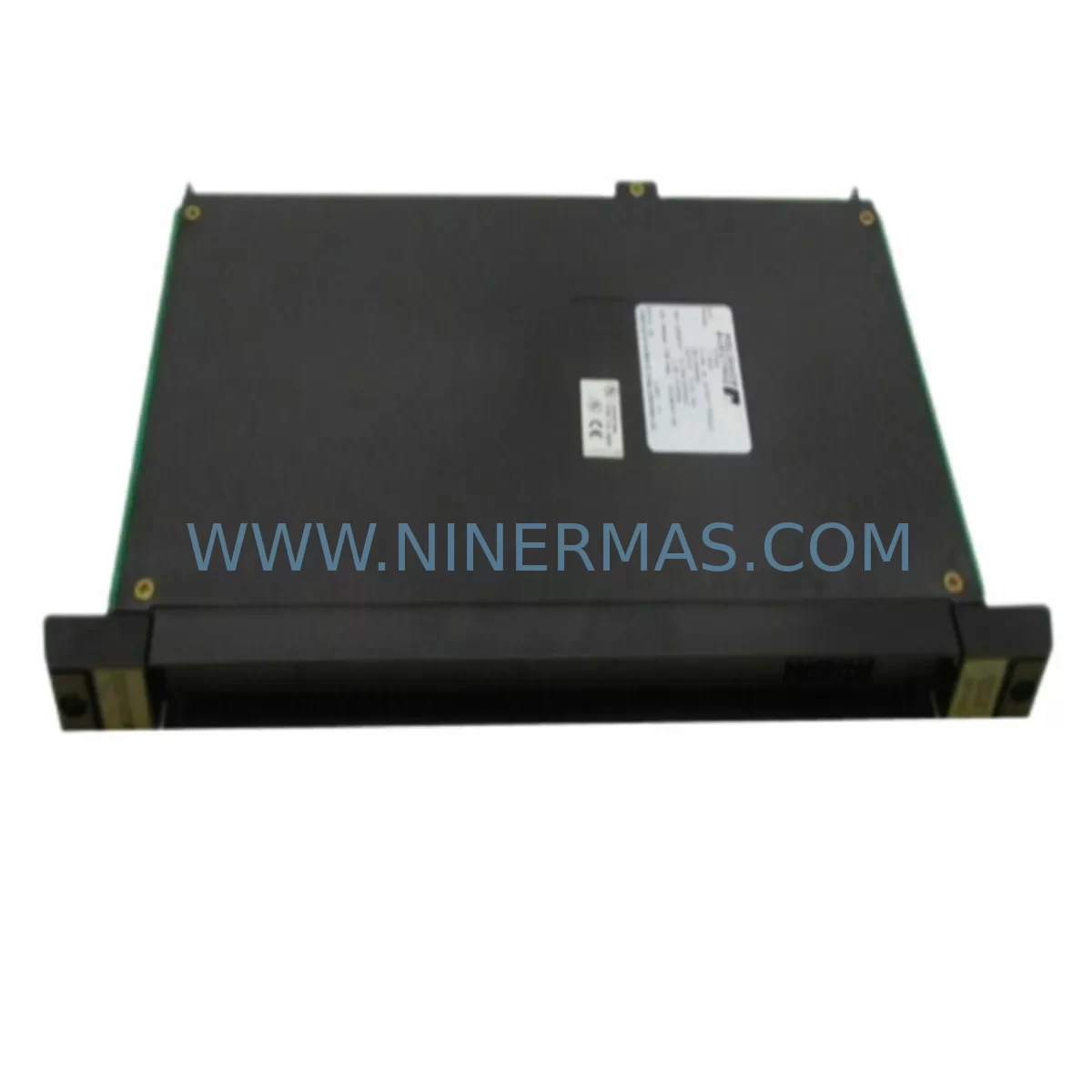

Reliance Electric 57C420 Safety-Reliable Output Module for Critical Control Sites

The Reliance Electric 57C420 Output Module is a discrete output control component engineered for the Reliance Electric AutoMate Series programmable control platform. Designed to meet the demanding requirements of continuous industrial production environments, the 57C420 delivers consistent, interference-resistant output switching performance across a wide range of critical control cabinet applications. Whether deployed in high-electromagnetic-interference (EMI) environments, dusty and humid process areas, or high-vibration machinery enclosures, this module maintains signal integrity and output reliability where unplanned downtime carries the highest operational and safety cost.

NINERMAS maintains verified in-stock inventory of the 57C420 to support urgent spare parts replacement programs, planned maintenance schedules, and long-term procurement commitments for facilities that depend on legacy Reliance Electric AutoMate control architectures. Every unit ships with a 12-month warranty and passes pre-shipment functional testing to confirm output channel integrity before delivery.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet architectures, a single failed output module can cascade into full process shutdown, safety interlock activation, or uncontrolled actuator states. The Reliance Electric 57C420 addresses this risk by providing stable, repeatable discrete output switching that integrates directly into the AutoMate backplane without requiring signal conditioning adapters or external relay buffers for standard load types.

For facilities running mixed-generation control systems, the 57C420 is commonly paired with Reliance Electric 57C410 Input Modules to complete the I/O subsystem within the same rack, ensuring matched signal timing and consistent scan-cycle performance. Power supply stability is equally critical: the Reliance Electric 57C100 Power Supply Module provides the regulated DC bus voltage that the 57C420 output channels depend on for accurate switching — any power supply ripple or voltage sag directly increases the risk of output state errors or nuisance trips in downstream actuators and solenoid valves.

In safety interlock loops, the 57C420 output channels are often used to drive safety relay modules and emergency stop (E-stop) contactor coils, making output channel integrity a direct safety-of-machinery concern under IEC 62061 and ISO 13849 risk reduction frameworks. Facilities should also evaluate the condition of Reliance Electric 57C300 Series Communication Modules within the same rack, as communication faults between the CPU and I/O modules can cause output channels to default to a de-energized safe state — a behavior that must be accounted for in the safety function design.

Surge and transient protection is another key consideration in heavy industrial environments. Installing DIN-rail surge protective devices (SPDs) on the 24VDC supply lines feeding the AutoMate I/O rack significantly reduces the risk of output module damage from switching transients generated by large motor starters, variable frequency drives (VFDs), and solenoid valve coils operating in the same panel. Complementing this, Reliance Electric 57C200 Series Analog Output Modules in adjacent slots benefit from the same surge protection infrastructure, making a panel-wide transient protection strategy both practical and cost-effective.

For facilities managing aging AutoMate installations, maintaining a critical spare parts kit that includes the 57C420 alongside the 57C410 input module, 57C100 power supply, and the relevant AutoMate CPU module reduces mean time to repair (MTTR) from days to hours — a measurable improvement in process availability for continuous production sites.

Critical Industrial Safety Applications

The Reliance Electric 57C420 Output Module has established a proven service record across a broad spectrum of heavy industrial and process-critical environments:

Petrochemical and Refinery Plants: In continuous hydrocarbon processing facilities, the 57C420 controls discrete outputs for pump motor starters, valve actuators, and flare system interlocks. Output channel reliability is non-negotiable in these environments, where a spurious output activation or failure-to-energize condition can trigger emergency shutdown systems (ESD) or create hazardous process states.

Electric Power Generation and Substation Control: The module is deployed in auxiliary control panels for turbine governor systems, excitation control, and switchgear interlocking. High ambient EMI from power transformers and bus bars makes the 57C420’s shielded output design particularly valuable in maintaining clean switching signals.

Mining and Mineral Processing: Conveyor drive control, crusher interlock systems, and ventilation fan sequencing in underground and surface mining operations rely on discrete output modules that can withstand heavy vibration, coal dust ingress, and wide temperature swings. The 57C420’s robust construction supports these demanding duty cycles.

Water and Wastewater Treatment: Pump station automation, chemical dosing control, and UV disinfection system sequencing in municipal water infrastructure depend on reliable discrete output switching. The 57C420 supports 24/7 unattended operation in remote pump stations where maintenance access is limited and spare parts availability is critical.

Metallurgy and Steel Production: Rolling mill drive sequencing, furnace atmosphere control, and ladle transfer car interlocking in steel plants expose control hardware to extreme thermal cycling and electromagnetic interference. The 57C420 maintains output integrity in these high-stress environments.

Port and Marine Terminal Automation: Ship-to-shore crane control systems, bulk material handling conveyors, and mooring winch interlocks in port environments require output modules that perform reliably in high-humidity, salt-air conditions with frequent load switching cycles.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the Reliance Electric 57C420?
All 57C420 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. NINERMAS provides replacement or repair support within the warranty period to minimize control system downtime.

Q2: What pre-shipment testing is performed on the 57C420 before delivery?
Every 57C420 unit undergoes output channel functional verification prior to dispatch. This testing confirms that all output channels switch correctly, that the module communicates properly on the AutoMate backplane, and that there are no latent physical defects. Test records are available upon request for quality-critical procurement programs.

Q3: Is the 57C420 compatible with all Reliance Electric AutoMate Series control racks?
The 57C420 is designed for the Reliance Electric AutoMate Series I/O platform and is compatible with standard AutoMate rack configurations. For specific rack revision or firmware compatibility questions, NINERMAS technical support can assist with cross-referencing your existing system configuration before order placement.

Q4: Can NINERMAS support long-term supply commitments for the 57C420 as a critical spare part?
Yes. NINERMAS specializes in long-lifecycle spare parts programs for legacy industrial control systems. We support scheduled procurement agreements, safety stock reservations, and multi-year supply commitments for facilities that require guaranteed availability of the 57C420 and related AutoMate Series components. Contact our team to discuss a tailored spare parts program for your site.
