Reliance S-D4008-A Spare Part for Industrial Maintenance: Minimizing Downtime with Service-Ready Drive Replacement

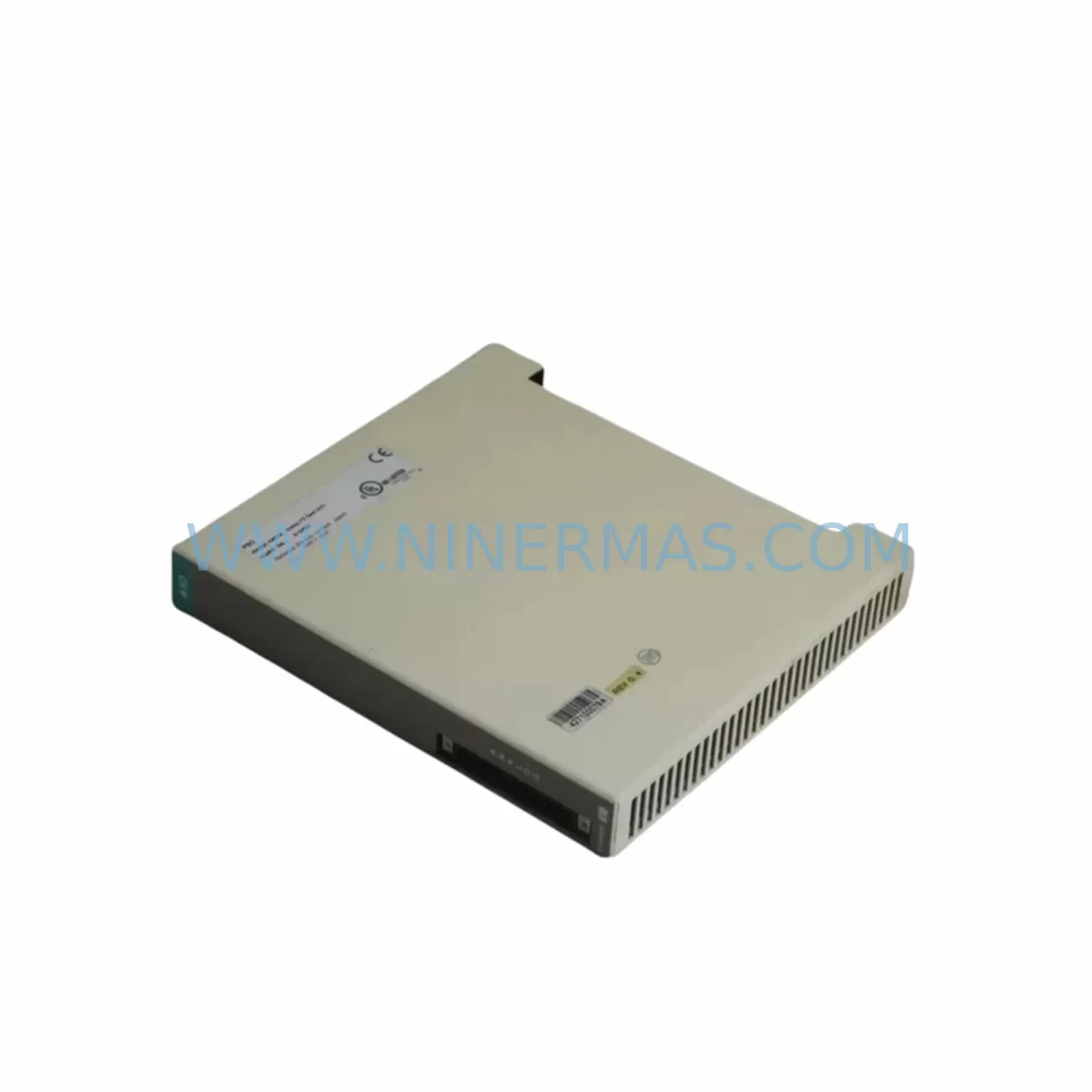

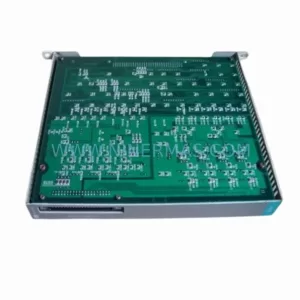

The Reliance Electric S-D4008-A (also referenced as S-D4008) is a rack-mounted variable speed drive module from the Reliance Electric D4000 Series — a platform widely deployed across continuous process industries including oil & gas, pulp & paper, metals, mining, and chemical processing. As legacy Reliance Electric drive systems age beyond their original design life, sourcing a verified, service-ready S-D4008-A spare part becomes a critical element of any plant’s maintenance strategy. NINERMAS supplies this unit as a tested, original-specification spare with a 12-month warranty, ready for immediate deployment in emergency replacement or planned overhaul scenarios.

Whether your maintenance team is responding to an unplanned drive fault, executing a scheduled annual shutdown, or building a strategic spare parts inventory for aging Reliance Electric control cabinets, the S-D4008-A represents a high-priority line item. Drive failures in rack-mount configurations can cascade rapidly — affecting upstream power distribution, downstream process control, and operator HMI visibility simultaneously. Having a pre-tested replacement unit on the shelf is the single most effective way to compress mean time to repair (MTTR) and protect production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Reliance Electric S-D4008-A in a live production environment is rarely an isolated task. Maintenance engineers and procurement teams working with D4000 Series drive racks understand that a single module fault often signals broader stress across the control cabinet. A disciplined replacement workflow should include inspection and, where appropriate, concurrent replacement of adjacent components to prevent repeat failures within the same maintenance window.

Begin with the drive rack backplane — the S-D4008-A interfaces directly with the rack’s power and signal bus, and worn or oxidized backplane connectors are a common root cause of intermittent drive faults that are misdiagnosed as module failures. Simultaneously, verify the condition of the DC bus capacitor bank and pre-charge resistor assembly within the drive rack; these components degrade in parallel with the drive module and should be treated as a matched spare set in any long-term maintenance program.

On the power supply side, inspect the Reliance Electric D4000 Series power supply module feeding the rack. Undervoltage or ripple on the DC bus is a leading cause of premature drive module failure, and replacing the S-D4008-A into a rack with a marginal power supply will shorten the replacement unit’s service life. Check input fusing — Class J or Class CC fuses rated to the drive’s input specification — and replace any fuses showing signs of thermal stress or discoloration.

For I/O integrity, audit the analog and digital I/O wiring connected to the drive’s speed reference and enable inputs. Shielding continuity on speed reference cables is frequently compromised during previous maintenance interventions, leading to noise-induced faults after the new module is installed. If the drive communicates with a supervisory PLC or DCS via a Reliance AutoMax network card or similar serial communications module, verify the network termination resistors and cable integrity before commissioning the replacement unit.

Relay output circuits — particularly drive-ready, fault, and run-permissive relay contacts — should be tested for contact resistance and proper operation. These outputs feed interlock logic in the broader control system, and a failed relay contact can prevent the replacement drive from being released to run even after a successful module swap. Similarly, inspect any signal isolators or signal conditioners on the speed reference or process feedback loops; these components are often overlooked during drive replacements but are critical to stable closed-loop control after the new module is commissioned.

For facilities running Reliance Electric drives alongside operator interface terminals (OITs) or HMI panels, confirm that the drive’s parameter set is backed up before removal. Many D4000 Series installations store drive parameters locally in the module’s non-volatile memory, and a replacement unit will require parameter re-entry or upload from a maintenance laptop running the appropriate Reliance drive configuration software. Coordinate with your control system engineer to ensure the parameter file is current and validated against the process requirements before the replacement unit is released to automatic control.

Finally, review the terminal block and wiring loom condition within the drive cabinet. Insulation degradation on power wiring, loose terminal screws, and corroded ground connections are common findings in aging Reliance Electric installations and should be addressed during the same maintenance window to maximize the service life of the replacement S-D4008-A module.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive rack following your site’s LOTO procedure. Verify zero energy state on the DC bus using a calibrated meter before opening the rack enclosure. Allow adequate time for DC bus capacitors to discharge to a safe level.

Step 2 — Parameter Backup: Before removing the S-D4008-A, record or upload all drive parameters. Document the current speed reference source, acceleration/deceleration ramp settings, current limit, and any application-specific tuning values. This data is essential for commissioning the replacement unit to the same operating point.

Step 3 — Module Removal: Disconnect all signal and power wiring from the module, labeling each connection point. Release the module from the rack using the appropriate extraction tool or lever mechanism. Inspect the backplane connector pins on both the module and the rack for damage or contamination before proceeding.

Step 4 — Replacement Installation: Seat the S-D4008-A replacement unit firmly into the rack slot, ensuring full backplane engagement. Reconnect all wiring per the original labeling and the drive’s wiring diagram. Verify that all terminal screws are torqued to specification and that cable shields are properly grounded at the designated grounding points.

Step 5 — Parameter Restore & Commissioning: Re-enter or upload the backed-up parameter set. Perform a no-load test run to verify drive response, speed reference tracking, and fault relay operation before returning the drive to process control. Document the replacement in your maintenance management system (CMMS) and update the spare parts inventory accordingly.

This structured approach eliminates the most common causes of repeat failures after drive module replacement and ensures that the replacement S-D4008-A is commissioned to the same performance standard as the original unit — minimizing the risk of a second unplanned outage within the same maintenance cycle.

Spare Parts Support FAQ

Q1: Is the S-D4008-A supplied by NINERMAS an original Reliance Electric unit or a third-party replacement?
All S-D4008-A units supplied by NINERMAS are original Reliance Electric spare parts sourced through established industrial surplus and OEM supply channels. Each unit undergoes functional verification prior to shipment. We do not supply counterfeit, remanufactured-to-non-original-spec, or third-party substitute modules for this part number.

Q2: What warranty coverage applies to the S-D4008-A, and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment on all S-D4008-A units. The warranty covers functional failure under normal operating conditions consistent with the original Reliance Electric D4000 Series specifications. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize any secondary downtime impact.

Q3: Can NINERMAS support a long-term spare parts program for multiple S-D4008-A units across several plant sites?
Yes. NINERMAS offers long-term supply agreements and multi-unit procurement support for maintenance teams managing aging Reliance Electric D4000 Series installations across multiple facilities. We can reserve stock, provide scheduled delivery against annual maintenance plans, and issue consolidated documentation for multi-site spare parts programs. Contact our team to discuss your specific inventory requirements.

Q4: How do I confirm compatibility between the S-D4008-A and my existing drive rack before ordering?
Compatibility is confirmed by matching the part number (S-D4008-A or S-D4008) against your existing module’s nameplate data and the drive rack’s bill of materials or maintenance manual. If you have the rack model number or a photograph of the existing module’s nameplate, our technical team can verify compatibility before your order is placed. We recommend providing the rack model, input voltage, and horsepower rating when making a compatibility inquiry to ensure the fastest possible response.
