Reliance GV3000E-AC005-AA-DBU-RFI Retrofit AC Drive DBU/RFI Filter

Reliance GV3000E-AC005-AA-DBU-RFI Retrofit-Compatible AC Drive DBU/RFI Filter for Legacy Systems

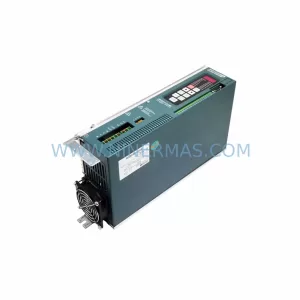

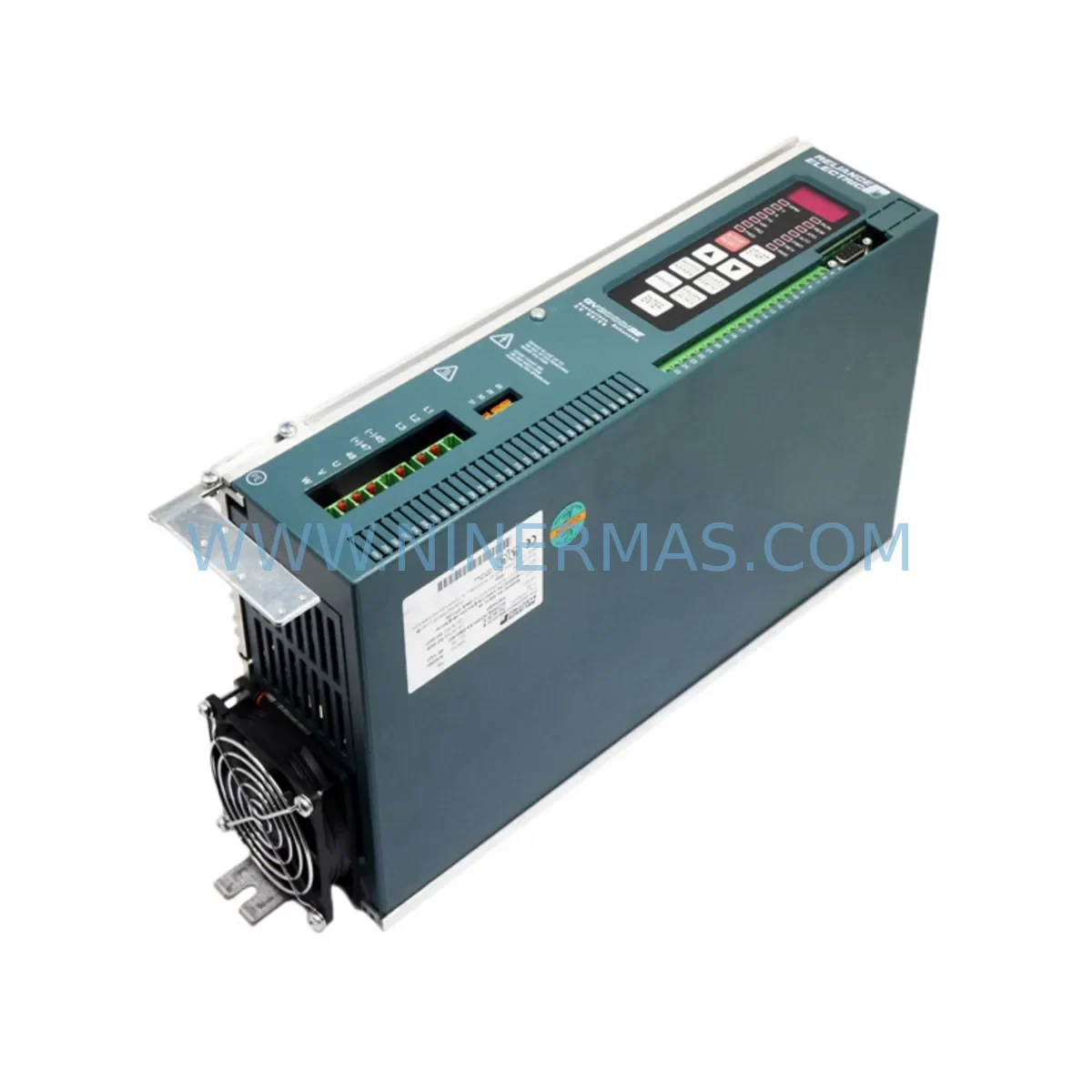

The Reliance Electric GV3000E-AC005-AA-DBU-RFI is a dynamic braking unit and RFI filter module designed for the GV3000/SE and GV3000E series AC variable frequency drive platform. As Reliance Electric’s GV3000 product line has reached end-of-life and official production has been discontinued, sourcing verified replacement modules has become a critical challenge for maintenance engineers managing legacy automation infrastructure. NINERMAS maintains tested inventory of this module to support ongoing retrofit, upgrade, and emergency replacement programs across process and discrete manufacturing environments.

This module serves as a direct retrofit-compatible replacement for existing GV3000/SE drive cabinets where the original DBU/RFI filter assembly has failed, degraded, or requires proactive replacement as part of a planned lifecycle extension program. The GV3000E-AC005-AA-DBU-RFI integrates the dynamic braking unit (DBU) and radio frequency interference (RFI) filter functions into a single field-replaceable assembly, reducing installation complexity during panel changeout and minimizing the number of discrete components that must be sourced separately during a retrofit project.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit of a legacy GV3000/SE drive system, the DBU/RFI filter module is rarely the only component requiring attention. A thorough site survey should evaluate the condition of the entire drive assembly, including the GV3000E main drive controller board, the GV3000E-AC power bridge module, and any associated GV3000E-AC keypad or operator interface panel that provides local speed reference and fault display. In many aging installations, the drive’s internal power supply board and gate driver board will show signs of capacitor aging or thermal stress alongside the DBU/RFI filter, making it prudent to assess these assemblies concurrently rather than performing sequential single-component replacements that extend total downtime.

Terminal wiring compatibility is a primary concern during GV3000/SE retrofit work. The original control wiring — including analog speed reference inputs (0–10 VDC or 4–20 mA), digital run/stop command signals, fault relay outputs, and motor thermistor inputs — must be carefully documented before any module is removed. Where the retrofit involves migrating from a GV3000/SE to a newer drive platform, such as a Rockwell PowerFlex 40 or PowerFlex 70, terminal mapping differences in the control I/O block will require a wiring adapter or rewiring of the control cabinet. The RFI filter bonding ground must also be verified against the panel earth bus to maintain EMC compliance after module replacement.

For installations where the GV3000/SE communicates with a supervisory PLC or DCS via a GV3000E-AC Remote I/O adapter or a GV3000E-AC DeviceNet communication module, protocol migration planning is essential. If the host controller — for example, a Reliance AutoMax PLC or an early Allen-Bradley PLC-5 — is also approaching end-of-life, the retrofit scope may expand to include controller replacement and program conversion. In such cases, the DBU/RFI filter module replacement should be sequenced as part of a phased upgrade plan rather than treated as an isolated repair, allowing the control program logic, HMI screen tag mapping, and communication node addresses to be validated in a staged manner before full production restart.

Backplane and rack compatibility should be confirmed when the GV3000E-AC005-AA-DBU-RFI is being installed as part of a broader drive cabinet rebuild. Where the original installation used a GV3000E drive mounting bracket assembly or a shared panel with other Reliance drive modules, the physical envelope, mounting hole pattern, and bus bar clearance of the replacement module must be verified against the existing cabinet layout. Adequate ventilation clearance above and below the module is required to maintain thermal ratings, particularly in high-ambient-temperature environments such as foundry, cement, or petrochemical plant control rooms.

Signal isolation requirements should also be reviewed during retrofit planning. Where the GV3000/SE receives speed reference signals from a DCS analog output card or a PLC analog output module, the addition of a signal isolator or loop-powered transmitter between the control source and the drive input may be required to eliminate ground loop interference introduced by the new RFI filter’s ground bonding. This is particularly relevant in installations where the original RFI filter was bypassed or removed due to nuisance tripping, and the replacement module restores full EMC filtering to the circuit.

Downtime Control During System Migration

Minimizing production downtime during a GV3000/SE DBU/RFI filter replacement requires careful pre-staging of the replacement module, tools, and documentation before the maintenance window begins. The following approach is recommended to protect original program logic, maintain field control continuity, and reduce retrofit risk:

Before de-energizing the drive, record all parameter settings from the GV3000/SE operator keypad or via the GV3000E-AC programming software connected through the drive’s RS-232 serial port. Parameter data including acceleration/deceleration ramps, current limit settings, speed reference scaling, and fault response configuration must be preserved and available for re-entry or download after the module is replaced and the drive is re-commissioned. Where the drive is controlled by a PLC program that issues speed references and monitors drive status via a communication adapter, the PLC program should be placed in a safe hold state — with motor outputs de-energized but program scan continuing — to avoid loss of process state data during the maintenance window.

Physical replacement of the GV3000E-AC005-AA-DBU-RFI module should follow a documented lockout/tagout (LOTO) procedure, with DC bus voltage verified at zero using a calibrated meter before any wiring is disturbed. After the replacement module is installed and wiring is reconnected, a no-load power-up test should be performed to verify drive ready status, fault-free operation, and correct RFI filter ground continuity before the motor is reconnected and a loaded test run is conducted. This staged commissioning approach reduces the risk of discovering wiring errors or parameter mismatches under production load conditions.

Retrofit Support FAQ

Q1: Is the GV3000E-AC005-AA-DBU-RFI a direct replacement for the original Reliance Electric OEM module?
Yes. This module is sourced from verified OEM production stock and is a direct form-fit-function replacement for the original GV3000/SE DBU/RFI filter assembly. No mechanical modification or wiring adaptation is required for like-for-like replacement within the same drive chassis.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes functional testing prior to dispatch, including verification of dynamic braking circuit continuity, RFI filter capacitor integrity, and ground bonding resistance. A test report is available upon request. All units are shipped with 12-month warranty coverage from the date of shipment.

Q3: Can this module be used in a retrofit where the GV3000/SE is being replaced by a different drive brand?
The GV3000E-AC005-AA-DBU-RFI is designed specifically for the Reliance GV3000/SE and GV3000E drive platform. If the host drive is being replaced by a different manufacturer’s product, the DBU and RFI filter requirements of the new drive must be evaluated separately, as the module’s electrical ratings and mounting interface are specific to the GV3000E platform.

Q4: What is the lead time and inventory availability?
NINERMAS maintains stock inventory of this module to support emergency replacement and planned retrofit programs. Standard lead time for in-stock units is 3–7 business days for international shipment. For bulk procurement or long-term supply agreements supporting extended lifecycle programs, please contact our sales team to discuss committed stock arrangements and fixed pricing.
