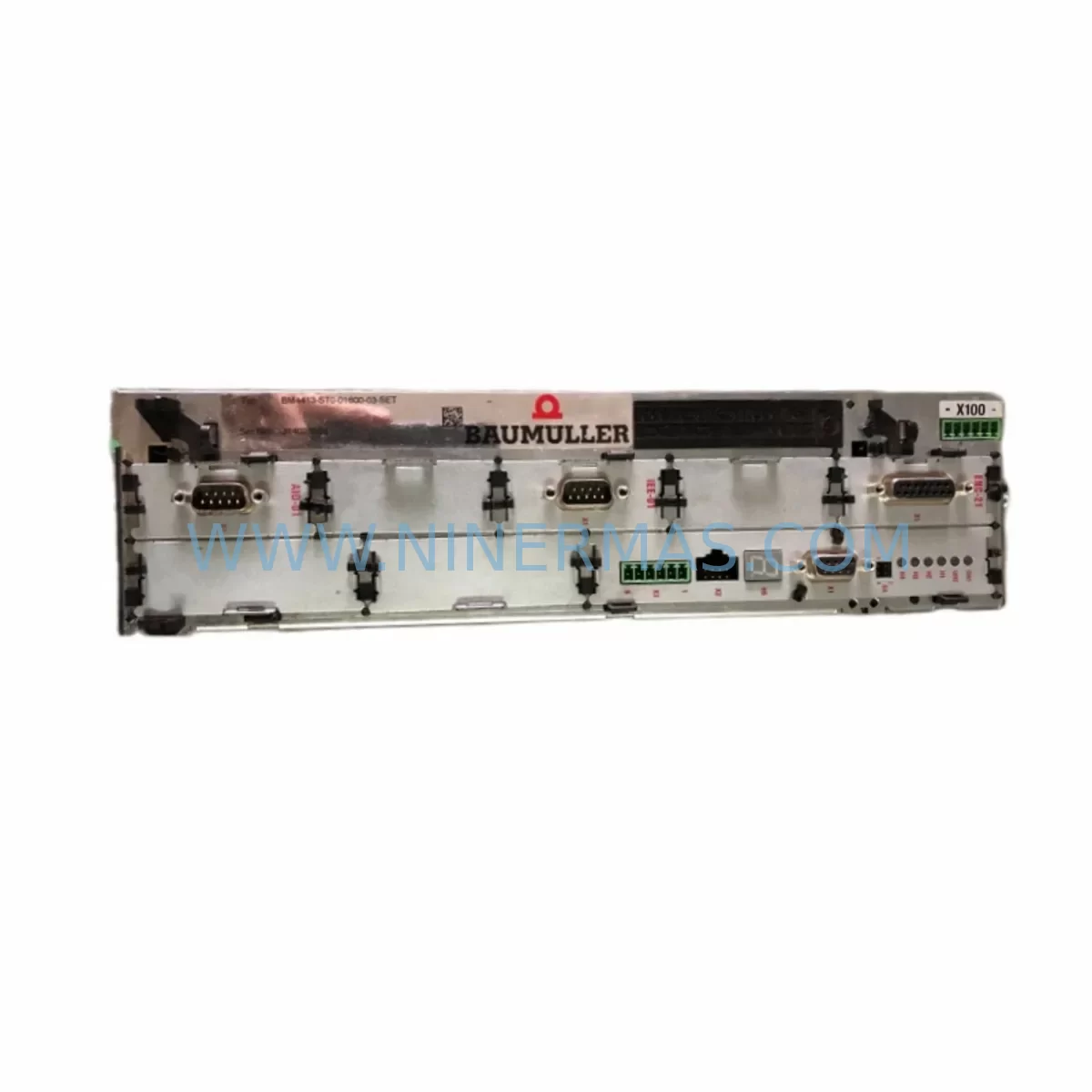

The Baumuller BM4413-ST0-01600-03-SET is an original ruggedized servo drive engineered for demanding industrial environments where motion control reliability is non-negotiable. As a direct service-ready replacement unit, this spare part is sourced to support maintenance engineers and procurement teams managing aging Baumuller BM4400-series drive systems across CNC machine tools, automated production lines, and multi-axis motion control cabinets.

Unplanned downtime caused by servo drive failure is one of the most disruptive events in a manufacturing facility. The BM4413-ST0-01600-03-SET is stocked and tested to enable rapid swap-out, minimizing mean time to repair (MTTR) and restoring production continuity with confidence. Each unit undergoes functional verification prior to shipment and is backed by a 12-month warranty, providing procurement engineers with the assurance required for critical spare parts inventory planning.

Whether you are responding to an emergency drive fault, executing a scheduled annual overhaul, or building a strategic buffer stock for a legacy Baumuller system, this service-ready unit is available for immediate dispatch to global destinations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BM4413-ST0-01600-03-SET servo drive is identified for replacement during a fault investigation or scheduled maintenance window, experienced maintenance engineers know that the drive itself is rarely the only component requiring attention. A thorough cabinet inspection and system audit at the time of replacement significantly reduces the risk of repeat failures and secondary downtime events.

Begin by inspecting the DC bus power supply module and any associated Baumuller BM4-PSU regenerative supply unit that feeds the drive rack. Voltage ripple or capacitor degradation in the power supply section can stress replacement drives prematurely. Verify that the 24 VDC control voltage rail — typically supplied by a dedicated SITOP or Phoenix Contact QUINT power supply — is within tolerance before energising the new axis module.

Check all encoder feedback cables between the servo motor and the BM4413 drive. Damaged shielding or corroded connectors on SinCos or EnDat encoder lines are a leading cause of drive faults that are misdiagnosed as drive failures. Replace any suspect cables with shielded, twisted-pair assemblies rated for continuous flexing if the axis is on a moving gantry or robot arm.

Inspect the I/O terminal blocks and signal wiring at the drive’s digital input/output connectors. Loose terminations on enable signals, fault reset lines, or speed reference inputs can cause intermittent faults after a drive swap. This is also the correct time to verify the condition of any Baumuller BM4-COM communication module or PROFIBUS-DP interface card installed in the drive rack, as communication faults can prevent the replacement drive from initialising correctly.

For multi-axis systems, audit the BM4400 drive backplane and axis interconnect bus. A failing backplane connector can corrupt parameter data or cause axis synchronisation errors that appear as drive faults. If the system uses a Baumuller b-maXX 4000 motion controller or a third-party Siemens SINUMERIK CNC as the master, confirm that the axis configuration parameters and drive firmware version are compatible with the replacement unit before commissioning.

Do not overlook the motor brake circuit. Verify that the 24 VDC brake relay and associated wiring are functional, particularly on vertical axes where brake failure poses a safety risk. Check fuse holders and miniature circuit breakers in the drive cabinet for signs of thermal stress or contact erosion. Finally, confirm that any signal isolators or surge protection devices on analogue reference inputs are intact, as these are frequently damaged during the same electrical event that caused the original drive failure.

Site Replacement Workflow

Replacing the BM4413-ST0-01600-03-SET on a live production site requires a structured approach to minimise downtime and avoid commissioning errors. Follow this recommended workflow to ensure a safe, efficient, and fully verified replacement:

1. Pre-Replacement Preparation: Download and save the existing drive parameters using the Baumuller b-Maxx Toolbox or ProDrive software before powering down. Confirm the firmware version of the installed drive and obtain the matching firmware file for the replacement unit if required. Photograph all wiring connections and label cables before disconnection.

2. Safe Isolation: Isolate the drive cabinet using the main isolator and lock-out/tag-out (LOTO) procedure. Discharge the DC bus — allow a minimum of 5 minutes after power-off before touching internal components. Verify zero voltage with a calibrated meter.

3. Physical Swap: Remove the faulty BM4413 axis module from the drive rack. Install the service-ready replacement unit, ensuring correct seating on the backplane connector. Reconnect all power, encoder, I/O, and communication cables in accordance with the original wiring documentation.

4. Parameter Restore and Commissioning: Upload the saved parameter set to the replacement drive. Verify motor data, encoder type, current limits, and ramp parameters. Perform a low-speed jog test before returning the axis to full automatic operation. Confirm that no fault codes are active and that the axis responds correctly to the motion controller.

5. Documentation and Stock Update: Record the replacement in the site maintenance log, including the date, fault description, and new unit serial number. Update the spare parts inventory to trigger reorder of a buffer unit, ensuring continuous coverage for future maintenance events.

Spare Parts Support FAQ

Q1: Is the BM4413-ST0-01600-03-SET a direct drop-in replacement for the original installed unit?
Yes. As an original Baumuller spare part, the BM4413-ST0-01600-03-SET is a direct functional replacement for the same part number installed in BM4400-series drive systems. Parameter compatibility is maintained across production batches. Minor firmware differences may require a parameter upload using Baumuller ProDrive software, which is standard practice for any servo drive replacement.

Q2: What testing is performed before shipment?
Every unit is functionally tested prior to dispatch to verify power stage integrity, communication interface operation, and parameter memory. Units are shipped with protective packaging to prevent transit damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term supply for end-of-life Baumuller BM4400 series components?
Yes. NINERMAS maintains sourcing relationships across authorised and specialist industrial spare parts channels to support long-term supply of discontinued and end-of-life Baumuller components. We recommend that facilities operating legacy BM4400 systems establish a minimum buffer stock of one spare axis module per critical drive position to protect against extended lead times as global availability tightens.

Q4: What information should I provide when enquiring about compatibility or placing an order?
Please provide the full part number (BM4413-ST0-01600-03-SET), the Baumuller system or machine type, the installed firmware version if known, and your required delivery timeline. For urgent breakdown situations, contact our team directly at sale@ninermas.com or +0086 187 5021 5667 for priority processing.
