BAUMULLER 60S-04/08-54-B-001-VC-AE-00 Safety-Reliable Servo Drive

BAUMULLER 60S-04/08-54-B-001-VC-AE-00 Safety-Reliable Servo Drive for Critical Control Sites

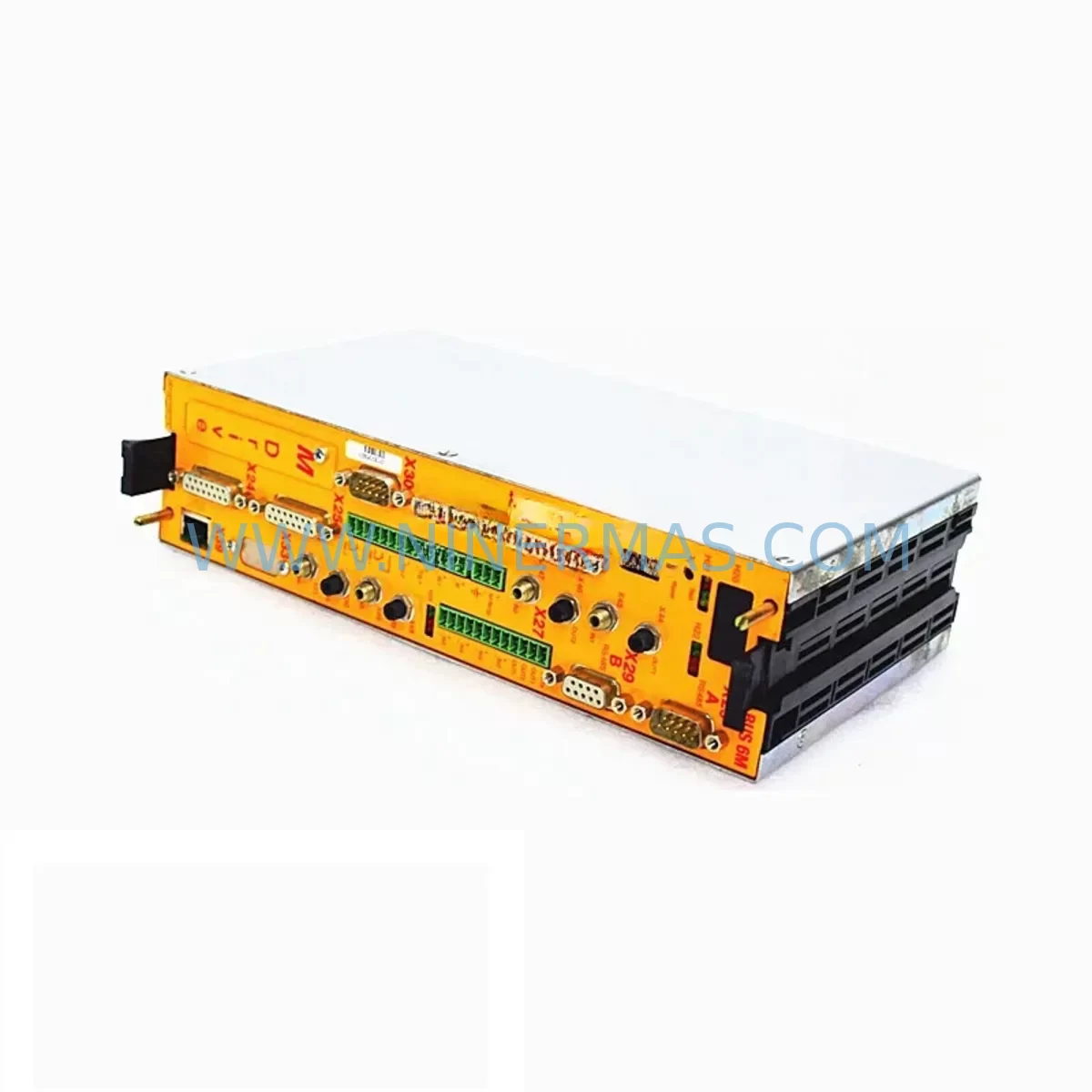

The BAUMULLER 60S-04/08-54-B-001-VC-AE-00 is a precision servo drive module from BAUMULLER’s proven 60S Series, engineered for continuous-duty industrial environments where control interruption, signal drift, and unplanned downtime carry serious operational and safety consequences. Designed to meet the demands of critical interlock circuits, heavy-duty control cabinets, and high-electromagnetic-interference (EMI) field installations, this unit delivers the motion control reliability that industrial safety engineers and maintenance teams depend on.

As a direct-replacement spare part, the 60S-04/08-54-B-001-VC-AE-00 is pre-shipment tested, stocked for immediate dispatch, and backed by a 12-month warranty — ensuring your facility can restore safe operation without extended lead times or procurement uncertainty.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving continuous production lines, a single drive failure can cascade into full-line shutdown, safety interlock activation, or — in worst cases — uncontrolled actuator behavior. The BAUMULLER 60S-04/08-54-B-001-VC-AE-00 is designed to minimize these risks through robust vector control architecture, stable DC bus management, and deterministic encoder feedback via the AE interface.

When integrating this drive into a safety-rated cabinet, it is standard practice to pair it with a BAUMULLER BM4-O-IFC-01 communication interface module to maintain fieldbus continuity across PROFIBUS-DP segments. For power conditioning upstream, a BAUMULLER line filter module (such as the NF series) suppresses conducted EMI before it reaches the drive’s rectifier stage — critical in environments with large motor starters, welding equipment, or variable-frequency loads sharing the same distribution panel.

On the safety interlock side, the STO input of the 60S-04/08-54-B-001-VC-AE-00 is typically wired through a Pilz PNOZ X safety relay or equivalent dual-channel safety relay, ensuring that the drive’s output stage is de-energized within the required response time when an E-stop or guard door event is triggered. This architecture eliminates the risk of residual torque on the motor shaft during personnel access.

For encoder signal integrity — especially in long cable runs through high-vibration or high-EMI cable trays — pairing this drive with a BAUMULLER encoder cable assembly (shielded, twisted-pair) and a dedicated signal isolator or encoder splitter module prevents signal drift and false position feedback that could cause servo hunting or positioning errors in precision axes.

In multi-axis cabinets, the DC bus of the 60S series can be linked with adjacent BAUMULLER 60S regenerative supply modules, allowing braking energy from decelerating axes to be redistributed to accelerating axes — reducing peak demand on the incoming supply and lowering the risk of DC bus overvoltage trips during rapid duty cycles. This is particularly valuable in winding, unwinding, and press-feed applications.

For communication redundancy in critical sites, the AE-00 communication variant supports integration with BAUMULLER ProMaster motion controllers and is compatible with standard CANopen DS402 motion profiles, enabling seamless fallback to local velocity control mode if the fieldbus master experiences a timeout — a key feature for preventing uncontrolled axis movement during network disturbances.

Finally, for cabinet thermal management in high-ambient or poorly ventilated enclosures, supplementing the drive’s internal fan with a cabinet cooling unit (e.g., Rittal SK series) and monitoring inlet air temperature with a PTC thermistor relay provides an early warning before thermal derating affects drive output — protecting both the 60S-04/08-54-B-001-VC-AE-00 and connected servo motors from heat-induced insulation degradation.

Critical Industrial Safety Applications

The BAUMULLER 60S-04/08-54-B-001-VC-AE-00 servo drive is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical & Refining: In pump and compressor drive cabinets at refineries and chemical plants, this drive supports precise flow control with STO interlock integration, ensuring that rotating equipment can be safely de-energized during emergency shutdowns without mechanical brake reliance. Its EMC-hardened design withstands the conducted interference generated by large MV/LV transformer installations common in these facilities.

Power Generation & Utilities: In auxiliary drive systems for turbine cooling fans, boiler feed pumps, and coal handling conveyors, the 60S series provides stable vector-controlled torque even under fluctuating grid voltage conditions — a critical requirement in facilities where supply quality is affected by large generator switching events.

Mining & Mineral Processing: Underground and surface mining operations subject drives to extreme dust ingress, vibration from blasting and heavy machinery, and wide ambient temperature swings. The 60S-04/08-54-B-001-VC-AE-00, installed within an IP54-rated enclosure with filtered air circulation, maintains reliable hoist, conveyor, and crusher drive control in these demanding conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pump operation for filtration, aeration, and chemical dosing. The drive’s ability to maintain precise speed control under varying load conditions — without hunting or oscillation — ensures consistent process output and prevents the surge pressures that can damage pipework and valves.

Metallurgy & Steel Processing: Rolling mill, continuous casting, and coil handling lines demand high dynamic response and precise tension control. The encoder feedback (AE) interface of this drive enables closed-loop position and velocity control with the accuracy required for strip tracking and gauge control in hot and cold rolling applications.

Port & Marine Logistics: Container crane drives, ship-to-shore gantries, and vessel mooring winches operate in salt-laden, high-humidity coastal environments. The 60S series’ robust construction and compatibility with marine-grade enclosure systems makes it a reliable choice for port automation where drive failure directly impacts vessel turnaround schedules and port safety.

Continuous Manufacturing: In automotive, packaging, textile, and food processing lines, the 60S-04/08-54-B-001-VC-AE-00 supports multi-axis synchronization through its CANopen interface, enabling electronic gearing and cam profiling without mechanical line shafts — reducing mechanical failure points and simplifying safety zone isolation during maintenance windows.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the BAUMULLER 60S-04/08-54-B-001-VC-AE-00?
This unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a pre-shipment functional test before dispatch to verify output performance, communication interface integrity, and protection circuit operation.

Q2: How is the unit tested before shipment?
Every 60S-04/08-54-B-001-VC-AE-00 is subject to a 100% pre-shipment inspection that includes power-on verification, output current measurement, encoder interface check, and communication port validation. Units that do not pass all test criteria are not dispatched. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is this drive compatible with existing BAUMULLER 60S Series installations?
Yes. The 60S-04/08-54-B-001-VC-AE-00 is a direct form-fit-function replacement for existing 60S series drive slots. It maintains full compatibility with BAUMULLER BM4 and ProMaster control platforms, standard 60S series DC bus linking, and AE-variant encoder and communication wiring. No firmware re-parameterization of the motion controller is required in most standard replacement scenarios — though parameter backup and restore from the existing drive is always recommended before replacement.

Q4: Can long-term supply continuity be guaranteed for this spare part?
We maintain dedicated stock of the BAUMULLER 60S-04/08-54-B-001-VC-AE-00 to support ongoing maintenance and emergency replacement requirements. For facilities with critical uptime requirements, we recommend establishing a consignment or scheduled replenishment agreement to ensure on-site spare availability. Contact our team to discuss long-term supply arrangements tailored to your maintenance strategy.
