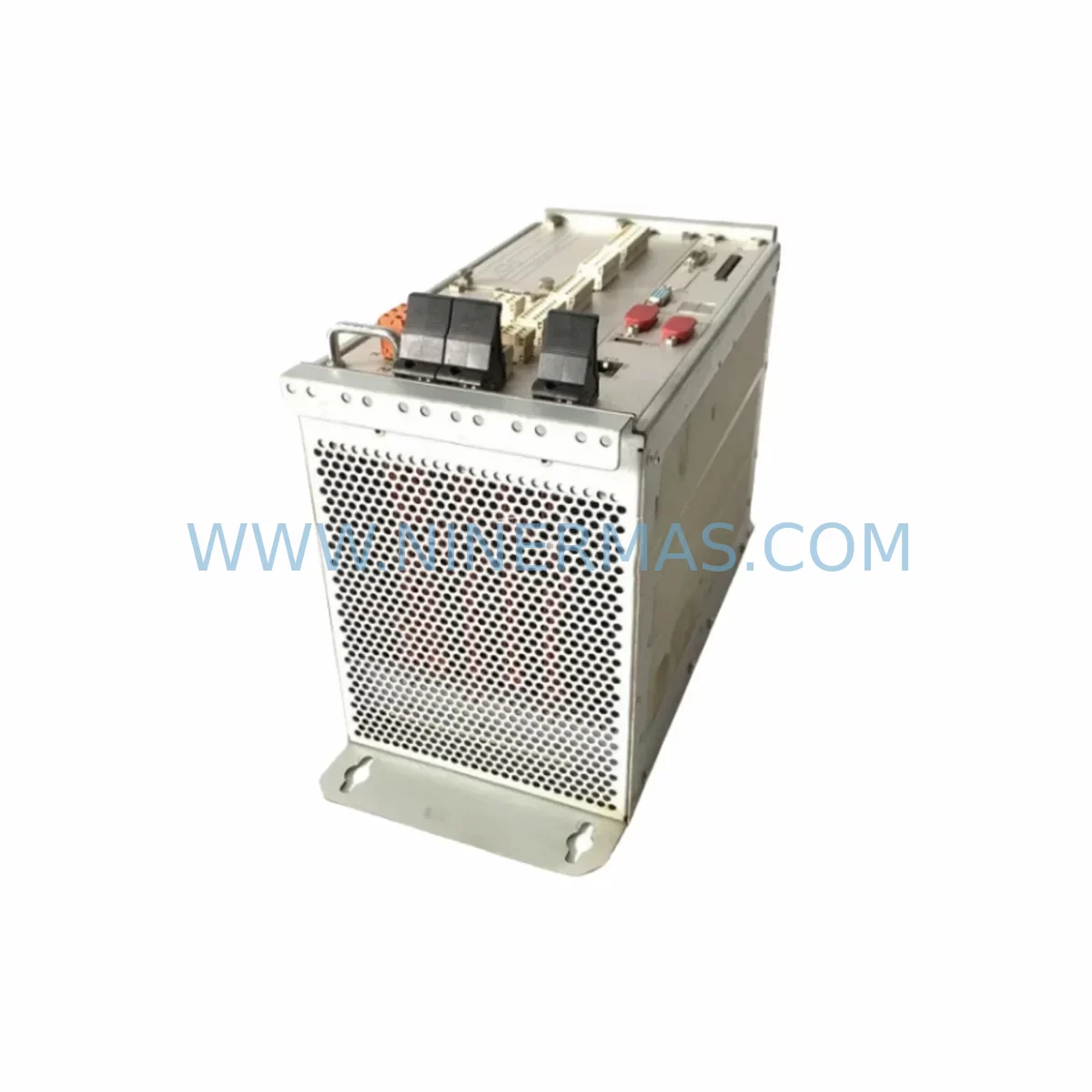

Berger Lahr TLC4362D312151 Retrofit-Compatible Servo Drive

Berger Lahr TLC4362D312151 Retrofit-Compatible Servo Drive for Legacy Systems

The Berger Lahr TLC4362D312151 is a ruggedized servo drive from the TLC4362 series, engineered for demanding industrial environments where motion control precision and long-term operational reliability are non-negotiable. As legacy automation systems age and original equipment manufacturers discontinue support, the TLC4362D312151 remains a critical retrofit component for engineers tasked with modernizing stepper and servo-driven axes without full system replacement. This unit supports smooth integration into existing control cabinets, preserving original wiring layouts, program logic, and HMI configurations while delivering the performance characteristics required for continued production continuity.

Whether you are managing a planned upgrade cycle or responding to an unplanned drive failure on a production line, the TLC4362D312151 provides a verified drop-in replacement path for legacy Berger Lahr servo and stepper drive installations. Each unit shipped by NINERMAS undergoes pre-shipment functional testing to confirm output stage integrity, enable signal response, fault relay behavior, and motor feedback loop stability before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TLC4362D312151 into a legacy automation system requires a structured pre-installation assessment. Engineers should begin by auditing the existing control cabinet layout to confirm available mounting space, DIN rail capacity, and ventilation clearance. The power supply module feeding the drive bus must be rated to handle the TLC4362D312151 inrush and continuous current draw — undersized PSUs are a common cause of nuisance faults during commissioning of replacement drives.

Terminal block wiring should be mapped against the original Berger Lahr wiring diagram before any connections are disturbed. In many legacy installations, the motor feedback cable — whether resolver, encoder, or Hall-effect — is routed through a cable management channel shared with the power wiring. Maintaining signal cable separation is essential to prevent interference on the feedback loop after the drive swap. If the original installation used a Berger Lahr SMSD or SMSB series power supply module, verify that the DC bus output voltage and current capacity remain within the TLC4362D312151 operating range.

For systems where the TLC4362D312151 is controlled by a Berger Lahr or third-party PLC — such as a Schneider Electric Modicon TSX or a Siemens S5/S7 series controller — the step/direction or analog command signal wiring must be verified at the controller output card. I/O modules providing the enable signal, fault reset, and ready output should be confirmed operational before the drive is powered. If the system uses a Berger Lahr WDP or WDM series programming interface, axis parameters including acceleration ramp, current limit, microstep resolution, and position window should be re-entered and verified against the original commissioning sheet.

In multi-axis cabinets where the TLC4362D312151 operates alongside other Berger Lahr TLC43xx or TLC44xx series drives, confirm that the shared DC bus architecture — if applicable — is balanced and that no single drive is drawing disproportionate bus current during simultaneous acceleration. Communication modules handling RS-485 or CANopen links between the drives and the supervisory controller should be tested for address conflicts after the replacement unit is installed. If the system includes a Berger Lahr HMI panel or a third-party operator terminal, drive status words and fault code mappings may require screen-level updates to reflect the replacement unit’s firmware behavior.

For installations involving signal isolators between the controller and the drive command input, verify that the isolator bandwidth is sufficient for the command signal frequency in use. Older galvanic isolators in legacy cabinets are a frequently overlooked source of signal degradation that becomes apparent only after a drive replacement. Similarly, if the system uses a Berger Lahr BRS or BRM series braking resistor module, confirm that the resistor rating and thermal protection settings are compatible with the TLC4362D312151 regenerative braking output.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the TLC4362D312151 with all known axis parameters entered and verified offline, so that the on-site swap is limited to mechanical installation, wiring reconnection, and a final commissioning check rather than a full parameter entry session under time pressure.

Before removing the failed or end-of-life drive, capture a complete record of the existing wiring terminations using labeled photographs or a terminal-by-terminal written log. This is particularly important in legacy cabinets where wire labels may have faded or been applied inconsistently during the original installation. If the original drive is still partially functional, use the commissioning software to export or manually record all axis parameters, including current settings, ramp profiles, feedback configuration, and fault response behavior.

During the swap, avoid disturbing adjacent drives or I/O modules unless necessary. In shared-bus installations, isolate the bus segment feeding the replacement drive before disconnecting the original unit to prevent voltage spikes from affecting neighboring Berger Lahr TLC43xx drives or connected I/O expansion modules. After mechanical installation and wiring reconnection, perform a controlled power-up sequence: enable the power supply first, confirm bus voltage at the drive terminals, then apply the enable signal and verify the ready output before commanding motion.

A phased test sequence — jog at low speed, confirm feedback direction, run a short positioning cycle, then verify full-speed operation — reduces the risk of discovering a wiring error or parameter mismatch during full production restart. If the system includes a safety relay or safety PLC monitoring the drive’s fault output, confirm that the safety circuit acknowledges the replacement drive’s ready signal before releasing the machine for production. Total planned downtime for a prepared TLC4362D312151 swap in a well-documented legacy system is typically achievable within a single shift maintenance window.

Retrofit Support FAQ

Q: Is the TLC4362D312151 a direct drop-in replacement for other TLC43xx series drives?
A: The TLC4362D312151 is designed as a retrofit-compatible replacement within the Berger Lahr TLC43xx drive family. Mechanical dimensions, terminal layout, and command interface are consistent with the series, but axis parameters must be re-commissioned after installation. Confirm the motor feedback type and power rating match before ordering.

Q: What commissioning steps are required after installation?
A: After mechanical installation and wiring, connect the Berger Lahr WDP or compatible programming interface to re-enter axis parameters. Verify current limit, acceleration/deceleration ramps, microstep resolution (if applicable), and position window settings. Perform a low-speed jog test before commanding full-speed operation. Confirm fault relay and enable signal behavior match the original system logic.

Q: How is the TLC4362D312151 tested before shipment?
A: Every unit dispatched by NINERMAS undergoes pre-shipment functional testing covering output stage integrity, enable signal response, fault relay operation, and motor feedback loop continuity. A test record is maintained for each unit. The 12-month warranty covers manufacturing defects and verified functional failures from the date of shipment.

Q: What is the lead time and warranty coverage?
A: Units in stock are dispatched within 1–3 business days of order confirmation. The TLC4362D312151 carries a 12-month warranty from the date of shipment, covering verified functional defects. Expedited dispatch is available for urgent line-down situations — contact our team directly to confirm current stock availability and shipping options.
