BERGER LAHR WD3-007 Safety-Reliable Stepper Drive for Critical Control

BERGER LAHR WD3-007 Safety-Reliable Stepper Drive for Critical Control Sites

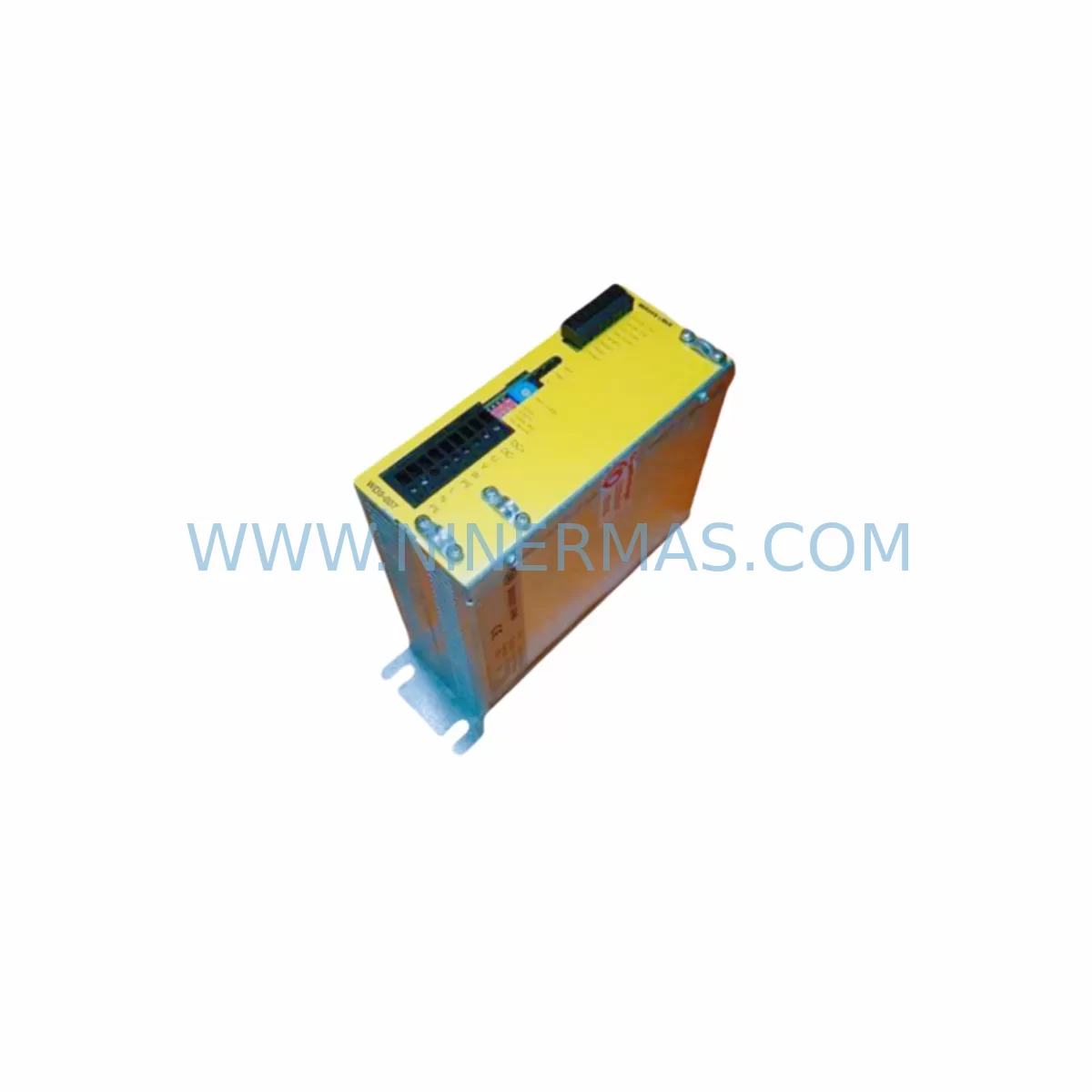

The BERGER LAHR WD3-007 is a ruggedized stepper drive engineered for demanding industrial environments where motion control reliability is non-negotiable. Designed to operate within continuous production lines, critical interlock circuits, and high-load control cabinets, the WD3-007 delivers consistent, repeatable positioning performance even under conditions of elevated electromagnetic interference, mechanical vibration, thermal stress, and ambient contamination from dust or moisture. For plant engineers and maintenance teams responsible for uptime in process-critical applications, this drive represents a proven, field-tested solution backed by BERGER LAHR’s legacy of precision motion engineering.

In industrial facilities where unplanned downtime translates directly into production loss and safety risk, the WD3-007 addresses the most common failure vectors in stepper drive systems: signal drift under EMI load, power supply fluctuation sensitivity, thermal derating in enclosed cabinets, and communication anomalies in multi-axis architectures. Its robust design philosophy prioritizes fault tolerance and long-term operational stability over raw performance metrics, making it the preferred choice for spare parts programs and lifecycle extension strategies in aging automation infrastructure.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the BERGER LAHR WD3-007 within a well-engineered control cabinet architecture significantly reduces the risk of motion-related process interruptions. In a typical stepper-driven axis cabinet, the WD3-007 operates in close coordination with a BERGER LAHR WD3 series stepper motor, where matched drive-motor pairing eliminates impedance mismatch and reduces phase current instability — a leading cause of missed steps and positional error in high-cycle applications.

Power quality is a critical upstream factor. Pairing the WD3-007 with a Schneider Electric Phaseo ABL7 series 24VDC regulated power supply ensures stable bus voltage delivery, protecting the drive from the surge and sag events common in shared power distribution panels. For applications where the stepper axis shares a cabinet with variable frequency drives or servo amplifiers, the addition of a line filter module (such as those in the Schneider Electric EMC filter range) on the incoming AC supply further suppresses conducted EMI that could otherwise cause erratic step counting or drive fault trips.

Control signal integrity is equally important. The WD3-007 receives step and direction pulses from upstream PLC output modules — typically Schneider Electric Modicon TM3 or TM2 series digital output modules — and is sensitive to signal noise on long cable runs. Shielded cable assemblies and proper grounding of the drive chassis to the cabinet earth bar are essential practices. In multi-axis systems, a Schneider Electric Modicon M340 or M580 PAC provides the coordinated pulse generation and motion sequencing required for synchronized axis control, with the WD3-007 serving as the final power stage for each stepper axis.

For safety circuit integration, the WD3-007’s enable input can be wired into a safety relay module (such as the Schneider Electric Preventa XPSAF or XPSMF series) to implement a hardwired motion inhibit function. This architecture ensures that in the event of a safety door opening, E-stop activation, or light curtain trip, the stepper drive is de-energized within the required response time, preventing uncontrolled axis movement. Complementing this, a Schneider Electric Zelio Logic smart relay or equivalent programmable relay can manage the sequencing logic for drive enable, fault reset, and homing routines, reducing the burden on the main PLC and improving fault isolation.

Surge protection at the cabinet level — using Schneider Electric Acti9 iQuick PRD surge protective devices on the incoming supply — guards the WD3-007 and associated control components against transient overvoltages from nearby switching equipment, lightning-induced surges on field cable runs, or capacitor bank switching events common in heavy industrial facilities.

Critical Industrial Safety Applications

The BERGER LAHR WD3-007 stepper drive has established a reliable service record across a broad spectrum of critical industrial applications where motion control failure carries significant safety and operational consequences.

In petrochemical and refinery facilities, the WD3-007 is deployed in valve actuator positioning systems, chemical dosing pump drives, and analyzer sample handling mechanisms. These applications demand zero missed steps and deterministic positioning — any deviation risks process upset, product contamination, or safety system activation. The drive’s robust fault protection and stable operation under high-EMI conditions from variable speed pump drives and large motor starters make it well-suited to these environments.

In power generation and electrical utility applications, the WD3-007 supports auxiliary positioning systems in turbine control panels, fuel feed mechanisms, and cooling system damper actuators. The drive’s tolerance for wide ambient temperature ranges and its compatibility with hardwired safety interlock circuits align with the stringent reliability requirements of power plant auxiliary systems.

In mining and mineral processing operations, where dust ingress, vibration from crushing and conveying equipment, and wide temperature swings are constant challenges, the WD3-007’s enclosed panel-mount design and vibration-rated construction support reliable operation in conveyor positioning, feeder gate control, and sampling system drives.

In water and wastewater treatment plants, the WD3-007 drives chemical dosing systems, filter backwash valve actuators, and sludge handling mechanisms. The corrosive atmosphere and high humidity typical of these facilities test the limits of standard industrial drives; the WD3-007’s humidity tolerance and sealed terminal design provide the necessary environmental resilience.

In metallurgical and steel mill environments, the drive supports positioning systems in rolling mill auxiliary equipment, ladle handling mechanisms, and furnace charging systems. The combination of high ambient temperatures, heavy electromagnetic interference from arc furnaces and large induction heaters, and the critical nature of positioning accuracy in these processes makes the WD3-007’s thermal and EMI performance characteristics particularly valuable.

In continuous manufacturing and packaging lines, the WD3-007 provides the precise, repeatable motion required for indexing, labeling, filling, and inspection station positioning. Its compatibility with standard PLC pulse output interfaces simplifies integration into existing Schneider Electric or third-party automation architectures, reducing commissioning time and spare parts complexity.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the BERGER LAHR WD3-007?
All WD3-007 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched from stock to minimize your downtime exposure. Warranty documentation is provided with each shipment.

Q2: Is the WD3-007 tested before shipment?
Yes. Every BERGER LAHR WD3-007 unit undergoes a full functional pre-shipment test prior to dispatch. This includes power-on verification, phase current output confirmation, fault protection circuit validation, and step/direction signal response testing. Test records are available on request and accompany critical orders by default.

Q3: Is the WD3-007 compatible with existing BERGER LAHR WD3 series motors and Schneider Electric PLC systems?
The WD3-007 is designed for direct compatibility with the BERGER LAHR WD3 series stepper motor range. It accepts standard step/direction pulse inputs compatible with Schneider Electric Modicon TM2, TM3, M340, and M580 digital output modules, as well as most third-party PLC pulse output cards operating at 5V or 24V logic levels. For specific compatibility queries, contact our technical team with your motor model and PLC output module specifications.

Q4: Can NINERMAS support long-term supply of the WD3-007 for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated stock of BERGER LAHR WD3 series drives to support lifecycle extension and planned maintenance programs. We offer volume commitment agreements, reserved stock arrangements, and fixed lead-time supply terms for customers with ongoing spare parts requirements. Contact our sales team to discuss a long-term supply program tailored to your maintenance schedule and installed base.
