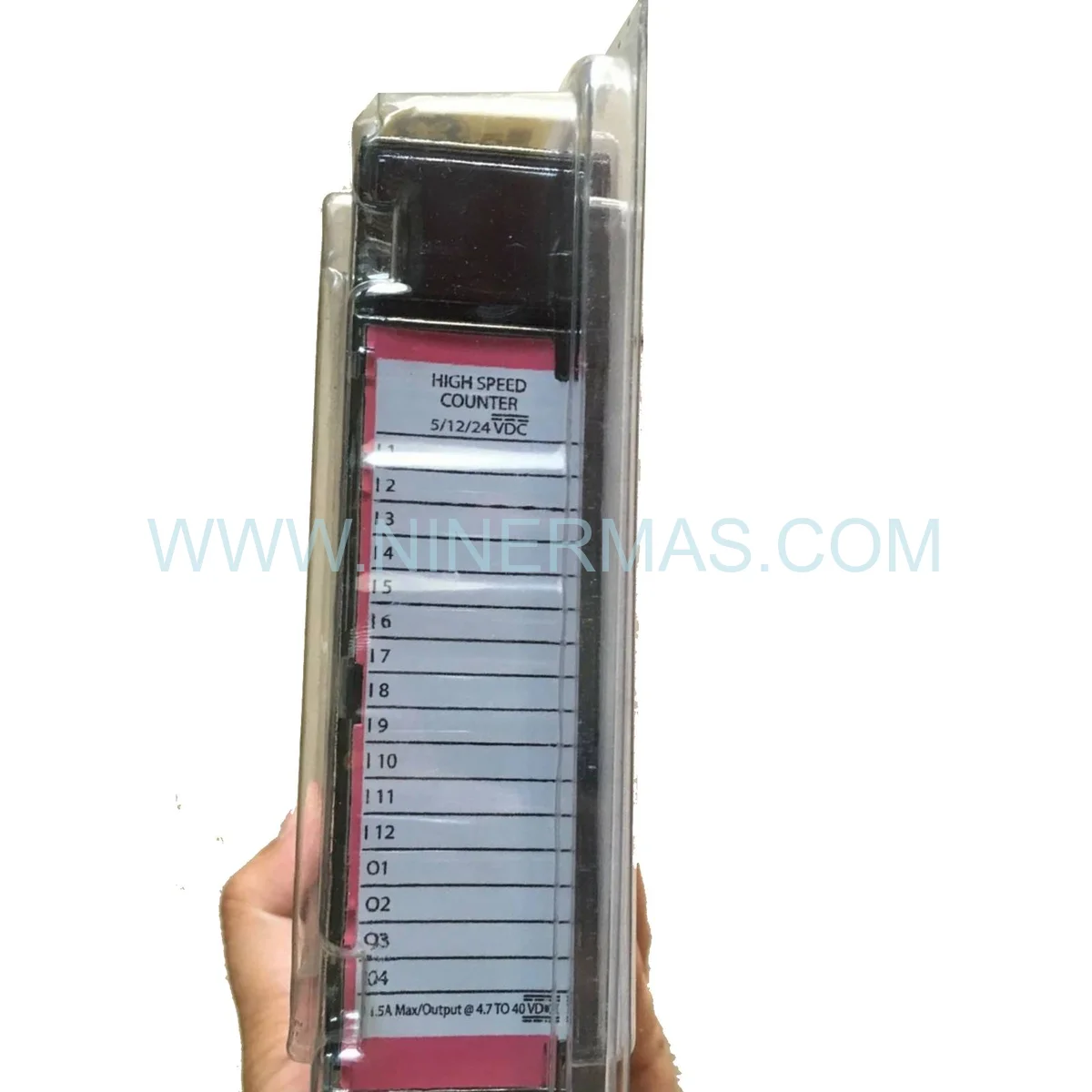

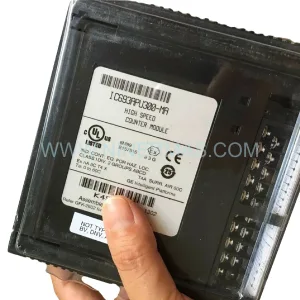

GE Fanuc IC693APU300MA High-Speed Counter Module | Series 90-30 HSC

GE Fanuc IC693APU300MA | Reliable Automation Component for Mission-Critical Industrial Systems

As a Site Reliability Engineer working across high-availability production environments, I consistently rely on the GE Fanuc IC693APU300MA as a cornerstone of pulse-counting infrastructure. The IC693APU300MA is a dual-channel high-speed counter (HSC) module purpose-built for the Series 90-30 PLC platform — delivering deterministic, sub-millisecond event capture that standard discrete I/O modules simply cannot match. In mission-critical automation architectures, this module directly contributes to system uptime by eliminating count-loss events that trigger unplanned shutdowns.

Deployed across petrochemical, food & beverage, and discrete manufacturing facilities, the IC693APU300MA demonstrates exceptional resilience in harsh industrial environments: wide thermal tolerance (0°C to 60°C), 5-95% non-condensing humidity rating, and a backplane-powered design that eliminates external power supply dependencies. During installation, ensure proper shielded cable routing and maintain separation from high-voltage conduits to preserve signal integrity at maximum counting frequencies.

For SRE teams managing aging Series 90-30 infrastructure, stocking the IC693APU300MA as a critical spare is non-negotiable. End-of-life (EOL) procurement windows are narrowing, and a single unavailable module can halt an entire production line. Securing verified, original-factory units now is the most cost-effective form of operational insurance available.

Key Operational Features

Dual Independent Counter Channels — Simultaneous monitoring of two encoder axes or pulse sources with zero cross-channel interference, supporting high-availability redundancy architectures.
20 kHz Maximum Count Frequency — Captures fast pulse trains from turbine meters, encoders, and proximity sensors that exceed standard I/O module scan-rate limits.
32-Bit Extended Count Range — ±2,147,483,647 count resolution prevents overflow in long-duration totalizing applications, ensuring process optimization continuity.
Flexible Operating Modes — Up, Down, Up/Down bidirectional counting, and frequency measurement modes configurable per channel for seamless system integration.
Preset & Compare Logic — Onboard comparison registers trigger CPU interrupts on preset match or overflow, enabling immediate automated control response without polling overhead.
Hot-Swap Capable — Module replacement without full system power-down minimizes maintenance windows and supports operational excellence in 24/7 production environments.
Front-Panel Diagnostic LEDs — Real-time status indicators accelerate fault isolation, reducing mean time to repair (MTTR) during field troubleshooting.

Maintenance & Performance Benchmarks

The IC693APU300MA is engineered to adapt across diverse industrial network architectures — from compact single-rack Series 90-30 systems to distributed multi-rack configurations spanning large-scale process plants. In single-rack deployments, the module occupies one I/O slot and communicates directly with the CPU via the backplane bus, delivering count data within a single PLC scan cycle. In distributed architectures utilizing Remote I/O (RIO) drops, the module maintains synchronization with the master CPU through the Series 90-30 bus controller, supporting deterministic data exchange across distances up to 750 meters.

For facilities integrating Automation Components into Proficy Historian or third-party SCADA platforms, the IC693APU300MA’s count registers are fully accessible via standard GE communication protocols, enabling real-time OEE (Overall Equipment Effectiveness) calculations and predictive maintenance dashboards. Benchmark data from field deployments confirms sustained accuracy at 20 kHz input frequencies with zero missed counts under normal operating conditions — a critical performance metric for flow totalizing and production counting applications where data integrity directly impacts regulatory compliance and billing accuracy.

Comprehensive Data Sheet

| Attribute | Technical Data | |—|—| | Model Number | IC693APU300MA | | Manufacturer | GE Fanuc (General Electric) | | Product Series | Series 90-30 PLC | | Module Classification | High-Speed Counter (HSC) / I/O Module | | Counter Channels | 2 Independent Channels | | Maximum Input Frequency | 20 kHz per channel | | Counter Resolution | 32-bit (±2,147,483,647 counts) | | Input Signal Types | Differential / Single-ended (configurable) | | Operating Modes | Up, Down, Up/Down, Frequency Measurement | | Backplane Power Draw | 5 VDC @ 150 mA (typical) | | Operating Temperature | 0°C to 60°C (32°F to 140°F) | | Storage Temperature | -40°C to 85°C (-40°F to 185°F) | | Relative Humidity | 5% to 95% non-condensing | | Mounting Compatibility | Series 90-30 Backplane (any slot) | | Programming Environment | Proficy Machine Edition / Legacy GE Software | | Certifications | UL, CE, CSA | | Warranty | 1 Year (NINERMAS) |

Professional Logistics & Sourcing Excellence

Every IC693APU300MA unit shipped by NINERMAS COMPANY LIMITED is sourced from authorized distribution channels and arrives in Original Factory Packaging with full traceability documentation. For in-stock units, same-day dispatch is available upon order confirmation before the daily cut-off time — a critical capability for facilities managing unplanned downtime events.

We maintain a dedicated global supply pipeline for EOL and legacy GE Fanuc Automation Components, ensuring that Series 90-30 operators can source mission-critical spares long after standard distribution channels have been discontinued. Worldwide express logistics partnerships (DHL, FedEx, UPS) guarantee delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific within 2-5 business days. All shipments include commercial invoice, packing list, and certificate of conformance for customs clearance and quality audit purposes.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the IC693APU300MA?
A: Power down the Series 90-30 rack before insertion (unless performing a validated hot-swap procedure). Seat the module firmly into any available I/O slot and secure the retention latch. Connect field wiring to the terminal block per the IC693APU300 User Manual (GFK-0293). Launch Proficy Machine Edition, perform an I/O configuration scan, and verify the module appears in the rack layout. Configure channel parameters (mode, preset values, interrupt enables) via the HSC configuration block before downloading to the CPU.

Q2: Which firmware versions are compatible with the IC693APU300MA?
A: The IC693APU300MA is compatible with Series 90-30 CPU firmware releases from version 9.x onward. For CPUs running firmware below 9.0, consult GE publication GFK-0293 for any functional limitations. It is strongly recommended to align CPU firmware with the latest validated release to ensure full HSC function block support and interrupt handling reliability.

Q3: Does the module support quadrature encoder input for position tracking?
A: Yes. The IC693APU300MA accepts A/B quadrature encoder signals and supports 1x, 2x, and 4x count multiplication modes, enabling enhanced positional resolution without additional hardware. Configure the multiplication factor through the channel setup parameters in the programming software.

Q4: How is the warranty claim process handled?
A: NINERMAS provides a 1-year warranty covering manufacturing defects. To initiate a claim, contact sale@ninermas.com with your order reference, a description of the observed fault, and photographic evidence of the module and packaging. Our technical team will respond within 24 business hours with an RMA authorization and return shipping instructions. Replacement units are dispatched upon receipt and inspection of the returned module.

Q5: Can count values be retained during a power cycle?
A: Count registers reside in volatile memory and are cleared on power loss. For applications requiring count persistence, implement a periodic save routine in ladder logic that writes current count values to CPU non-volatile (battery-backed) memory registers. Restore the saved value to the HSC preset register upon CPU restart to resume accurate totalizing.

Q6: What cable specifications are recommended for maximum counting accuracy?
A: Use shielded twisted-pair (STP) cable with 100% foil shield and a drain wire. Terminate the shield at the module end only (single-point grounding) to prevent ground loops. For runs exceeding 30 meters at 20 kHz, consider inline signal conditioning or reducing cable capacitance by selecting lower-gauge conductors. Maintain physical separation from AC power conduits by a minimum of 150 mm.
