Reliance GV3000E-AC003-AA-DBU-RFI Retrofit AC Drive

Reliance GV3000E-AC003-AA-DBU-RFI Retrofit AC Drive: Legacy System Compatible Upgrade

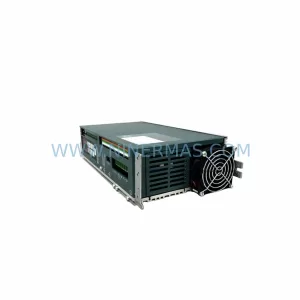

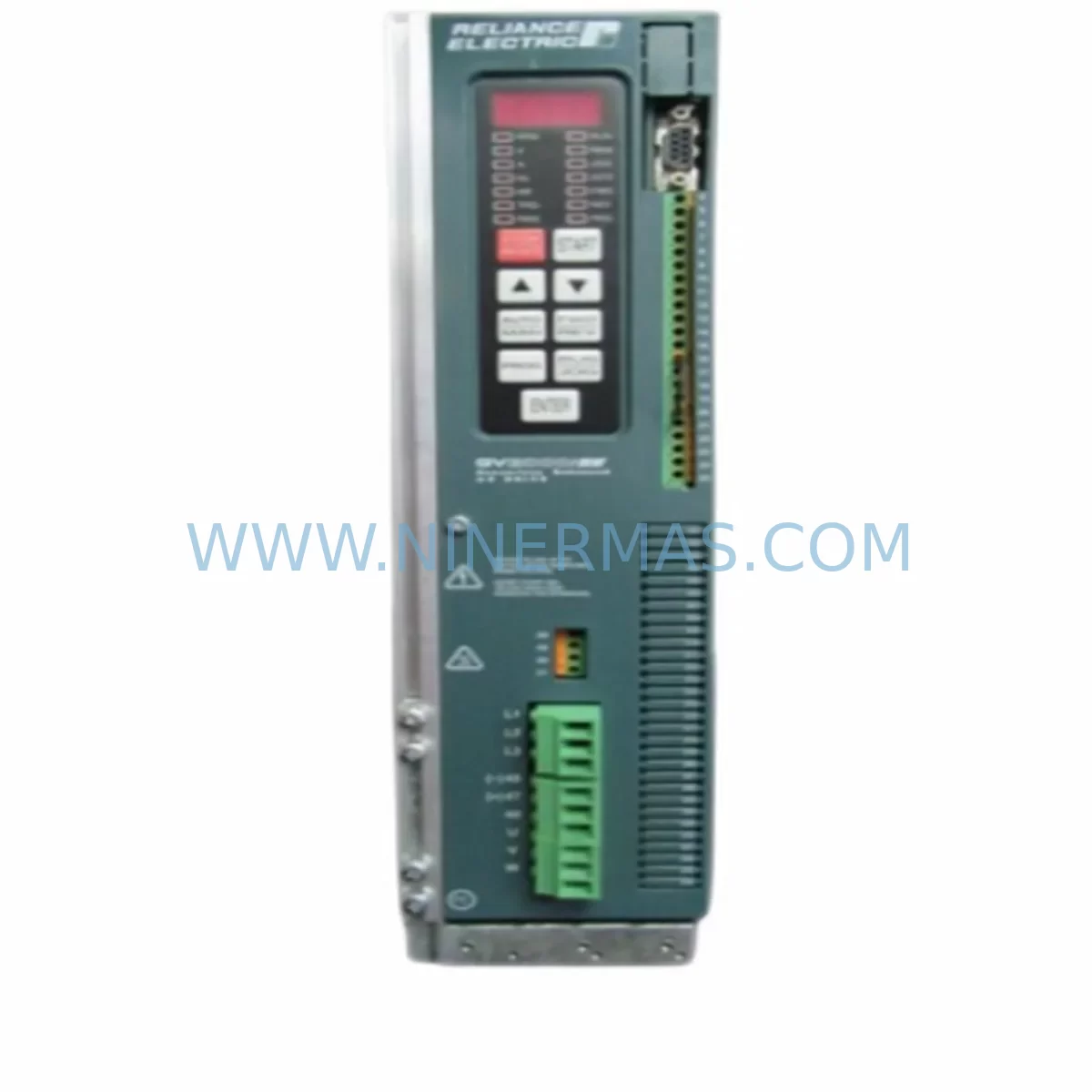

The Reliance Electric GV3000E-AC003-AA-DBU-RFI is a ruggedized AC variable frequency drive module engineered for demanding industrial environments. Rated at 0.3 HP (0.25 kW) at 230 VAC three-phase input, this compact drive integrates a Dynamic Braking Unit (DBU) and an RFI filter directly into the drive chassis — eliminating the need for external braking resistor controllers or separate EMC filter assemblies in retrofit installations. For facilities running aging GV3000E-series drive systems, this module represents the most direct and lowest-risk path to restoring full drive functionality without redesigning the control cabinet or rewriting PLC logic.

NINERMAS maintains verified stock of the GV3000E-AC003-AA-DBU-RFI and ships with a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing prior to dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life GV3000E-AC003-AA-DBU-RFI in an operating production line requires careful pre-work to avoid extended downtime. The first step is a full parameter backup using the GV3000/GV3000E Remote Operator Panel (ROP) or a compatible programming terminal. All acceleration ramps, deceleration times, current limits, and speed references stored in the existing drive must be documented before the unit is de-energized and removed from the panel.

On the power side, engineers should verify that the upstream circuit breaker or fused disconnect is correctly rated for the drive’s input current draw. The integrated RFI filter in the GV3000E-AC003-AA-DBU-RFI requires a solid PE (protective earth) ground connection — a missing or high-impedance ground bond is a common cause of nuisance trips after drive replacement. Terminal block wiring for L1, L2, L3 (input) and T1, T2, T3 (motor output) should be inspected for insulation condition and torqued to specification.

For facilities that also operate GV3000E-AC006-AA or GV3000E-AC010-AA drives on adjacent machine axes, the same parameter backup and terminal verification procedure applies. Where a control cabinet houses multiple GV3000E drives sharing a common DC bus or a shared GV3000E Power Interface Module, the bus voltage must be fully discharged before any module is removed — typically a minimum 5-minute wait after main power isolation.

Control wiring deserves equal attention. The GV3000E-AC003-AA-DBU-RFI accepts analog speed reference signals (typically 0–10 VDC or 4–20 mA) at its control terminal strip. If the existing installation uses a Reliance Electric AutoMax Network Adapter or a GV3000E DeviceNet Communications Module for network speed commands, the node address and baud rate settings must be re-entered after the drive replacement. Facilities using a Rockwell Automation PLC-5 or SLC 500 as the host controller should confirm that the drive’s I/O map and fault code outputs remain consistent with the existing ladder logic — in most cases, GV3000E-series drives maintain backward-compatible I/O behavior across the same power class.

Where the original installation included a separate Reliance Electric GV3000E Dynamic Braking Resistor assembly wired to an external DBU controller, the integrated DBU in the GV3000E-AC003-AA-DBU-RFI simplifies the retrofit: the external DBU controller can be removed, and the braking resistor is wired directly to the drive’s DB terminals. Confirm the resistor’s ohmic value and wattage rating are within the drive’s specified range before energizing.

For HMI integration, facilities running a Reliance Electric AutoMate HMI or a third-party panel display mapped to GV3000E drive status registers should verify that the drive’s serial communication address and register map are correctly restored after parameter re-entry. A brief communications test — confirming that the HMI correctly reads drive speed, current, and fault status — should be completed before returning the machine to production.

Downtime Control During System Migration

Minimizing unplanned downtime during a GV3000E-AC003-AA-DBU-RFI replacement begins with advance preparation. NINERMAS recommends maintaining at least one spare unit in the facility’s critical spares inventory for any production line where this drive controls a process-critical motor — conveyors, pumps, compressors, or positioning axes where an unplanned stop carries significant production cost.

A structured replacement sequence reduces exposure: isolate and lock out the drive, discharge the DC bus, photograph all terminal wiring before disconnection, remove the failed unit, install the replacement, restore all wiring to original positions, re-enter drive parameters from the backup record, and perform a no-load test run before reconnecting the motor. This sequence can typically be completed in under two hours by a qualified technician familiar with the GV3000E platform.

Where the control system uses a Reliance Electric GV3000E Encoder Feedback Module for closed-loop speed control, the encoder wiring and PPR (pulses per revolution) setting must be verified and re-entered as part of the commissioning sequence. Skipping this step is a common cause of speed instability or drive fault on first run after replacement.

For facilities managing a broader migration from GV3000E drives to a current-generation platform — such as the Rockwell Automation PowerFlex 40 or PowerFlex 525 — the GV3000E-AC003-AA-DBU-RFI serves as a reliable interim solution, maintaining production continuity while the broader migration is planned and budgeted. NINERMAS can support both immediate spare supply and longer-term lifecycle planning for GV3000E-series installations.

Retrofit Support FAQ

Q: Is the GV3000E-AC003-AA-DBU-RFI a direct drop-in replacement for my existing GV3000E drive?
A: Yes, for the same power class (0.3 HP / 230 VAC 3-phase). The physical form factor, terminal layout, and parameter set are consistent with the GV3000E series. Confirm your existing drive’s nameplate power and voltage rating before ordering.

Q: Do I need to re-enter all drive parameters after replacement?
A: Yes. The replacement unit ships with factory default parameters. You must re-enter all application-specific settings — acceleration/deceleration ramps, speed references, current limits, and communication addresses — from your pre-removal backup. NINERMAS recommends using the GV3000E Remote Operator Panel (ROP) for parameter transfer.

Q: Does the integrated DBU eliminate the need for my existing external braking resistor controller?
A: The integrated DBU replaces the external DBU controller. Your existing braking resistor can be retained and wired directly to the drive’s DB terminals, provided its resistance and wattage ratings are within the drive’s specified range. Remove the external DBU controller from the circuit before energizing.

Q: What warranty and testing does NINERMAS provide with this unit?
A: Every GV3000E-AC003-AA-DBU-RFI shipped by NINERMAS carries a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify power stage integrity, control board operation, and RFI filter continuity. In-stock units are available for same-week dispatch.
