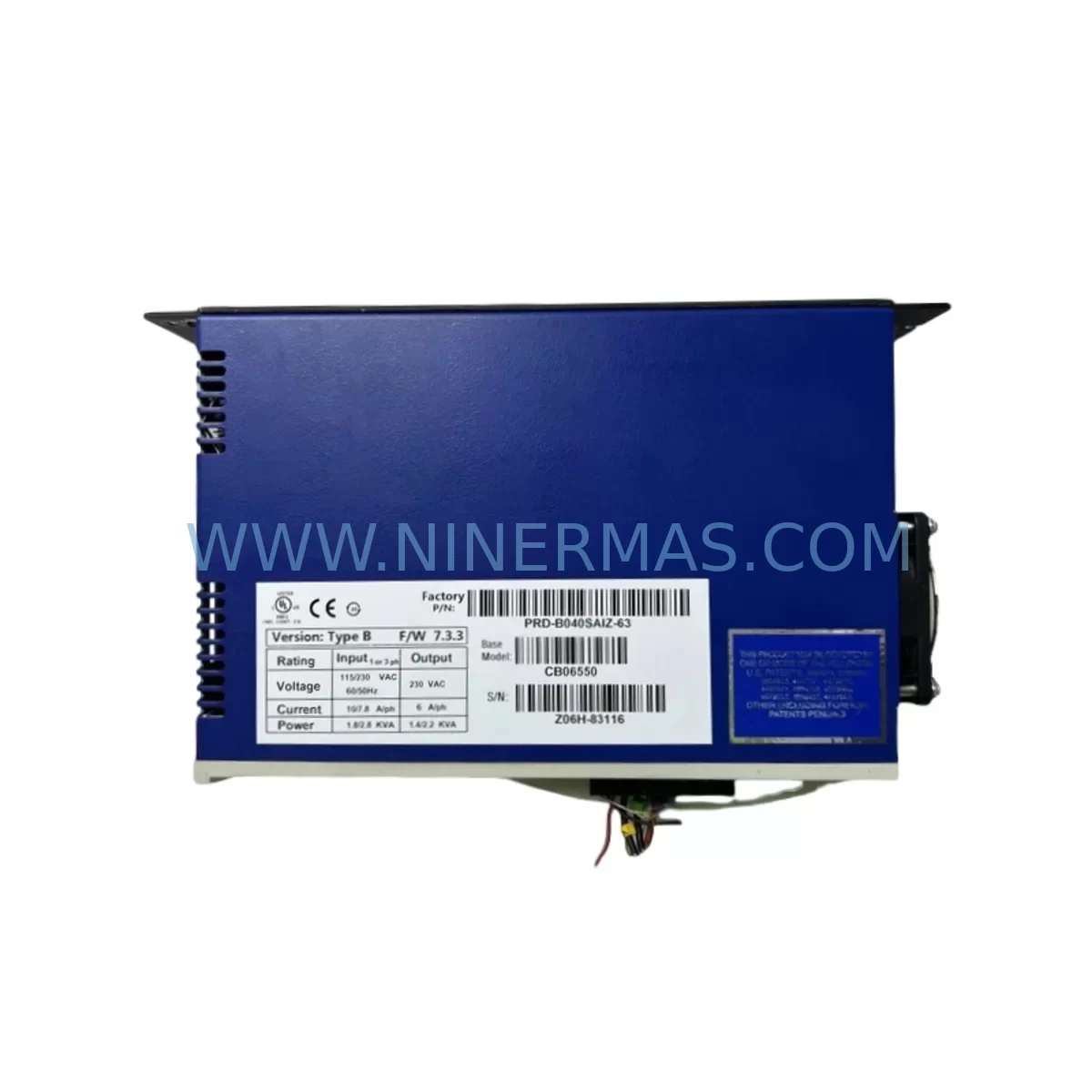

The Kollmorgen CB06550 is an original servo feedback cable engineered for the Servostar CD Series servo drive platform — one of the most widely deployed motion control systems in precision manufacturing, packaging automation, and CNC machining environments. As legacy Servostar CD drives continue to operate well beyond their original design lifecycle, maintaining a verified stock of CB06550 cables is a critical element of any proactive maintenance strategy. Unplanned downtime caused by a degraded or failed feedback cable can halt an entire production line within seconds. Sourcing a service-ready, original CB06550 from a reliable supplier with documented compatibility and a 12-month warranty eliminates that risk.

The CB06550 provides the resolver or encoder feedback signal path between the Kollmorgen servo motor and the Servostar CD drive amplifier. Signal integrity on this cable directly determines positioning accuracy, velocity loop stability, and fault-free operation of the drive. A worn, kinked, or electrically degraded CB06550 will manifest as encoder fault alarms, erratic axis motion, or drive trips — symptoms that are frequently misdiagnosed as drive or motor failures, leading to unnecessary and costly component replacements. Replacing the CB06550 as part of a scheduled inspection cycle is a low-cost intervention that protects far more expensive assets.

For maintenance engineers managing Servostar CD-based motion axes, the CB06550 should be treated as a consumable spare with a defined replacement interval, particularly in high-cycle or harsh-environment installations where cable flexing, vibration, and thermal cycling accelerate wear on the connector terminations and cable jacket.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CB06550 feedback cable is flagged for replacement during a scheduled inspection or after a drive fault event, experienced maintenance engineers know that the cable itself is rarely the only component that warrants attention. A thorough site inspection of the Servostar CD axis should include a review of the Servostar CD drive amplifier module for any stored fault history, thermal discoloration, or capacitor bulging. The 24VDC control power supply feeding the drive enable circuit should be load-tested, as voltage sag under load can cause intermittent enable faults that are incorrectly attributed to the feedback path.

The motor power cable — the companion to the CB06550 — should be inspected for jacket integrity, particularly at the motor conduit entry point where abrasion is most common. The SFD (Smart Feedback Device) or resolver module on the motor end should be checked for mechanical damage or moisture ingress. If the installation uses a Kollmorgen AKD or S700 series drive as a retrofit candidate, compatibility mapping of the feedback interface should be confirmed before any cross-series substitution is attempted.

Within the control cabinet, the terminal block wiring on the feedback connector header should be inspected for fretting corrosion, particularly in vibration-prone environments. The motion controller or PLC axis card — whether a Siemens S7 series, Allen-Bradley ControlLogix, or Beckhoff EtherCAT master — should have its axis configuration parameters backed up before any cable swap, as some controllers re-initialize encoder counts on power cycle. The cabinet backplane bus and any signal isolators in the feedback loop should also be verified for correct grounding, as ground loops introduced by improper cable shielding termination are a common source of noise-induced encoder faults.

For sites running multiple Servostar CD axes, a spare CB06550 cable set covering the most common cable lengths in the installation is strongly recommended. Pairing this with a stock of Kollmorgen servo drive fuses and 24VDC DIN rail power supplies creates a first-response kit that allows most axis faults to be resolved within a single shift without waiting for emergency freight.

Site Replacement Workflow

Step 1 — Fault Isolation: Before removing the CB06550, record all active and stored fault codes from the Servostar CD drive using the drive’s front panel display or the Kollmorgen WorkBench software interface. This establishes a baseline and confirms whether the fault is feedback-related (e.g., Encoder Loss, Resolver Fault) or originates elsewhere in the axis.

Step 2 — Safe De-energization: Disable the drive enable signal from the PLC or motion controller. Remove AC mains power and 24VDC control power. Allow the DC bus capacitors to discharge fully (minimum 5 minutes) before touching any internal wiring. Verify zero voltage with a calibrated meter.

Step 3 — Cable Removal: Disconnect the CB06550 at both the drive-side feedback connector and the motor-side resolver/encoder connector. Inspect the connector shells and pins for corrosion, bent pins, or damaged locking tabs. Document the cable routing path for reinstallation reference.

Step 4 — New Cable Installation: Route the replacement CB06550 along the same path, maintaining minimum bend radius and avoiding proximity to high-voltage power cables. Secure with cable ties at the same intervals as the original. Seat both connectors fully and verify locking engagement.

Step 5 — Verification and Recommission: Restore 24VDC control power first. Confirm the drive recognizes the feedback device without fault. Restore AC mains and perform a low-speed jog test to verify smooth motion and correct encoder count direction. Clear any residual fault history and return the axis to automatic mode.

This workflow minimizes axis downtime to under 60 minutes for a trained technician and eliminates the risk of re-energizing a system with an incorrectly seated feedback connector — a common cause of immediate drive fault recurrence after cable replacement.

Spare Parts Support FAQ

Q1: Is the CB06550 compatible with all Servostar CD drive variants?
The CB06550 is designed for the Kollmorgen Servostar CD Series platform. Compatibility depends on the specific motor model and cable length required for your installation. Always cross-reference the motor nameplate and the original cable part number from your drive documentation or wiring diagram before ordering. Our technical team can assist with compatibility verification based on your motor and drive model numbers.

Q2: What is included in the 12-month warranty coverage?
All CB06550 cables supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, connector integrity failures, and signal continuity issues under normal operating conditions. Each unit undergoes pre-shipment continuity and insulation resistance testing. Warranty claims are supported with replacement dispatch and technical documentation.

Q3: Can the CB06550 be used as a long-term stocking spare for end-of-life Servostar CD systems?
Yes. The CB06550 is well-suited as a long-term stocking spare for sites committed to extending the operational life of Servostar CD-based motion systems. NINERMAS maintains sourcing relationships that support ongoing supply for discontinued and end-of-life Kollmorgen components. We recommend holding a minimum of two units per axis for critical production lines, with annual stock review aligned to your planned maintenance schedule.

Q4: How is the CB06550 tested before shipment?
Each CB06550 unit is tested for pin-to-pin continuity across all signal conductors, insulation resistance between conductors and shield, and mechanical integrity of both connector assemblies. Test records are available upon request for quality-critical procurement processes. Units that do not meet specification are quarantined and not dispatched.
