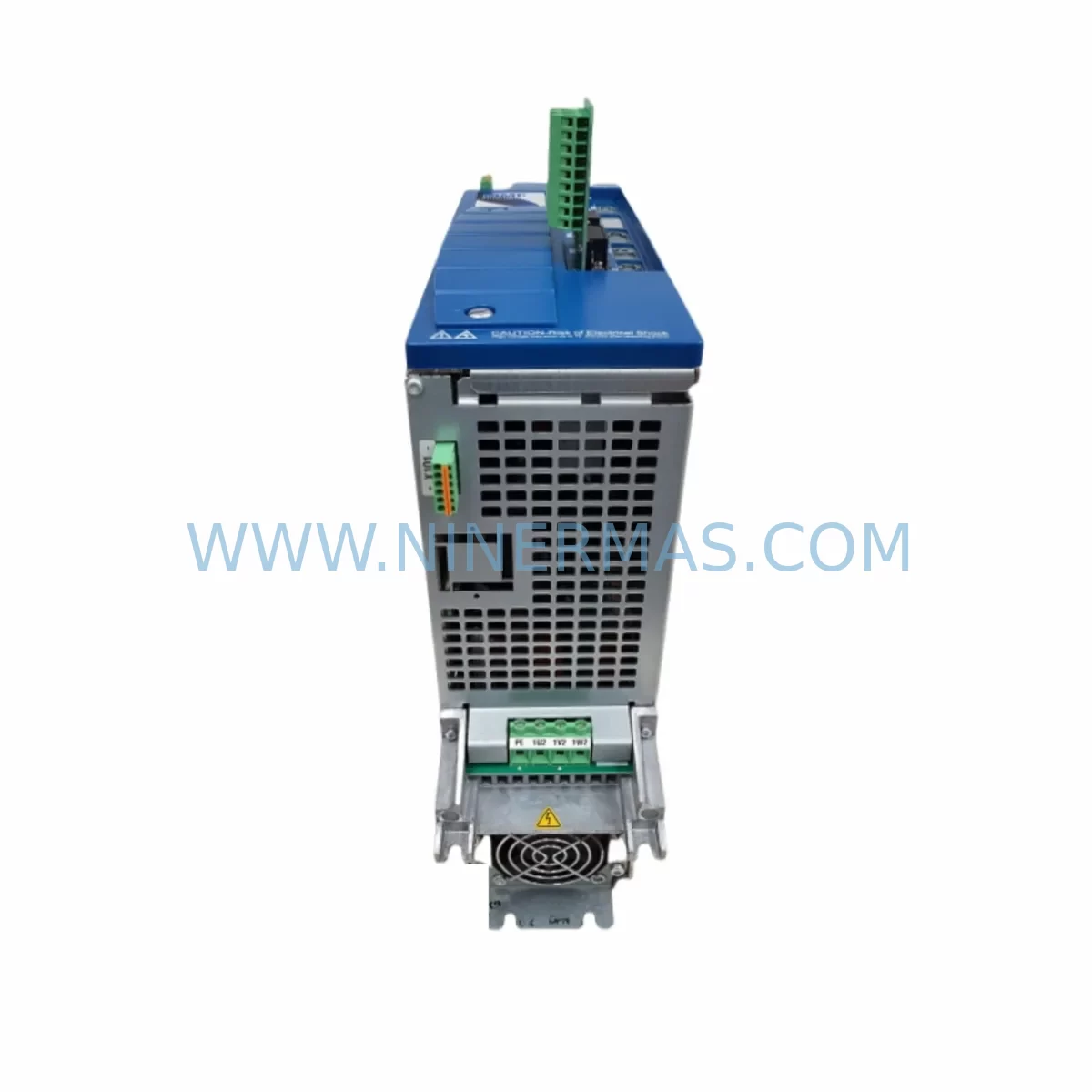

Kollmorgen MMC-SD-8.0-460-D Safety-Reliable Drive for Critical Control

Kollmorgen MMC-SD-8.0-460-D Safety-Reliable Drive for Critical Control

The Kollmorgen MMC-SD-8.0-460-D is a ruggedized Multi-Axis Master Controller servo drive module engineered for uncompromising reliability in critical industrial control environments. Rated at 8.0 A continuous output current and designed for 460 V AC three-phase input, this drive module delivers deterministic motion control performance where control interruption, signal drift, or unplanned downtime carry serious operational and safety consequences. Whether deployed in continuous process manufacturing, heavy-duty motion axes, or safety-critical interlock circuits, the MMC-SD-8.0-460-D is built to maintain stable, precise servo loop closure under the most demanding field conditions.

Kollmorgen’s MMC (Multi-axis Motion Controller) platform integrates drive intelligence directly into the control cabinet architecture, eliminating the latency and communication vulnerabilities associated with distributed drive topologies. The MMC-SD-8.0-460-D operates as a coordinated slave drive module under the Kollmorgen MMC master controller, sharing a high-speed synchronous backplane bus that ensures sub-millisecond axis synchronization — a critical requirement in applications where axis mis-coordination could trigger safety shutdowns or mechanical damage.

In high electromagnetic interference environments — such as those found near large variable frequency drives, arc furnaces, or high-current bus bars — the MMC-SD-8.0-460-D’s ruggedized design provides enhanced noise immunity to prevent spurious faults, nuisance trips, and velocity command errors. Its sealed, conformal-coated electronics resist moisture ingress, conductive dust, and corrosive atmospheres, making it suitable for deployment in petrochemical plants, mineral processing facilities, and coastal or marine-adjacent installations where humidity and salt air accelerate component degradation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the MMC-SD-8.0-460-D within a well-engineered control cabinet ecosystem is the foundation of a robust risk reduction strategy. The drive module operates in concert with the Kollmorgen MMC master controller, which manages trajectory generation, axis coordination, and fault arbitration across all slave drive modules on the backplane. A properly configured MMC master ensures that any axis fault — including overcurrent, encoder loss, or thermal overload — triggers a coordinated, safe deceleration sequence rather than an abrupt stop that could damage tooling or injure personnel.

On the power supply side, pairing the MMC-SD-8.0-460-D with a Kollmorgen MMC power supply module rated for the full cabinet load ensures stable DC bus voltage under regenerative braking conditions and heavy acceleration cycles. Voltage sag on the DC bus is a leading cause of drive fault trips in multi-axis systems; a properly sized power supply with adequate bus capacitance absorbs regenerative energy and prevents nuisance faults during rapid deceleration of high-inertia loads.

For surge and transient protection at the cabinet input, installing a three-phase line reactor or EMC input filter upstream of the MMC power supply significantly reduces the risk of voltage transients — generated by nearby large motor starts, capacitor bank switching, or utility grid disturbances — from propagating into the drive electronics. In facilities with known power quality issues, a harmonic filter or active front-end module may be warranted to protect the entire MMC system.

Feedback integrity is equally critical. The MMC-SD-8.0-460-D relies on accurate position and velocity feedback from the motor’s resolver or encoder to maintain closed-loop servo control. Shielded feedback cables, properly grounded at the drive end only, prevent common-mode noise from corrupting the feedback signal — a failure mode that manifests as velocity oscillation, position error faults, or, in worst cases, uncontrolled axis runaway. Pairing the drive with Kollmorgen AKM or CD series servo motors, which are factory-matched to the MMC platform’s feedback interface, eliminates compatibility uncertainty and simplifies commissioning.

For applications requiring functional safety compliance, the MMC-SD-8.0-460-D integrates with external safety relay modules and safety PLCs via the MMC master’s digital I/O interface. Emergency stop circuits, light curtain inputs, and two-hand control interlocks can be wired through the MMC safety I/O to achieve a coordinated, monitored stop function. Supplementing the drive system with a 24 VDC UPS module for the control logic power rail ensures that the MMC master and safety circuits remain powered during brief AC supply interruptions, preventing uncontrolled axis drops or loss of safe-state outputs.

Critical Industrial Safety Applications

The MMC-SD-8.0-460-D is deployed across a broad spectrum of safety-critical and continuous-process industrial applications where servo drive reliability is non-negotiable.

In petrochemical and refinery facilities, the drive module controls precision positioning of valve actuators, compressor inlet guide vanes, and reactor agitator drives. In these environments, a drive fault that causes an uncontrolled stop or position error can trigger process upsets, pressure relief valve actuation, or flare events — all of which carry significant safety and environmental consequences. The MMC-SD-8.0-460-D’s ruggedized construction and deterministic fault response make it a preferred choice for these high-consequence applications.

In electric power generation and transmission facilities, the drive is used in turbine governor actuator systems, excitation control mechanisms, and cooling fan drives for generator sets. Grid-connected generation equipment demands extremely high drive availability; even a brief unplanned stop can result in generation capacity loss and grid stability penalties. The MMC platform’s redundant feedback monitoring and configurable fault response thresholds allow plant engineers to tune the drive’s behavior to match the specific risk profile of each axis.

In mining and mineral processing operations — including underground coal mines, open-pit copper operations, and hard-rock gold processing plants — the MMC-SD-8.0-460-D drives conveyor positioning systems, crusher feed control axes, and flotation cell agitators. These environments combine high dust loading, vibration from blasting and heavy equipment, and wide ambient temperature swings. The drive’s conformal coating and ruggedized mechanical design provide the environmental resilience required for reliable operation without frequent maintenance interventions.

In water and wastewater treatment plants, the drive controls pump positioning, screen drive systems, and sludge handling equipment. Continuous operation is essential; treatment plant operators cannot tolerate unplanned drive failures that interrupt aeration, chemical dosing, or effluent pumping. The MMC-SD-8.0-460-D’s long-term spare parts availability and 12-month warranty provide the procurement confidence that plant maintenance teams require when specifying replacement drives for aging control systems.

In port and marine terminal applications — including ship-to-shore crane drives, rubber-tyred gantry crane hoist axes, and vessel mooring winch systems — the drive operates in salt-laden, high-humidity coastal environments with frequent heavy load cycles. The MMC platform’s coordinated multi-axis control is particularly valuable in crane applications where hoist, trolley, and gantry axes must be precisely synchronized to prevent load swing and structural overload.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the MMC-SD-8.0-460-D?
All MMC-SD-8.0-460-D units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis assistance and replacement unit coordination to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every MMC-SD-8.0-460-D undergoes a pre-shipment functional inspection prior to dispatch. Units are verified for physical integrity, connector condition, and basic electrical continuity. Where test equipment is available, power-on functional verification is performed. Each unit ships with inspection documentation confirming its tested condition.

Q3: Is the MMC-SD-8.0-460-D compatible with my existing Kollmorgen MMC system?
The MMC-SD-8.0-460-D is designed for use within the Kollmorgen MMC multi-axis backplane architecture. Compatibility depends on your specific MMC master controller firmware version and backplane configuration. We recommend confirming your MMC master model and firmware revision before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q4: Can NINERMAS support long-term supply of this part for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation components, including end-of-life and hard-to-source Kollmorgen MMC series modules. We maintain sourcing relationships across multiple supply channels to support your planned maintenance schedules and emergency replacement requirements. Contact our team to discuss blanket order arrangements or consignment stock programs tailored to your facility’s needs.
