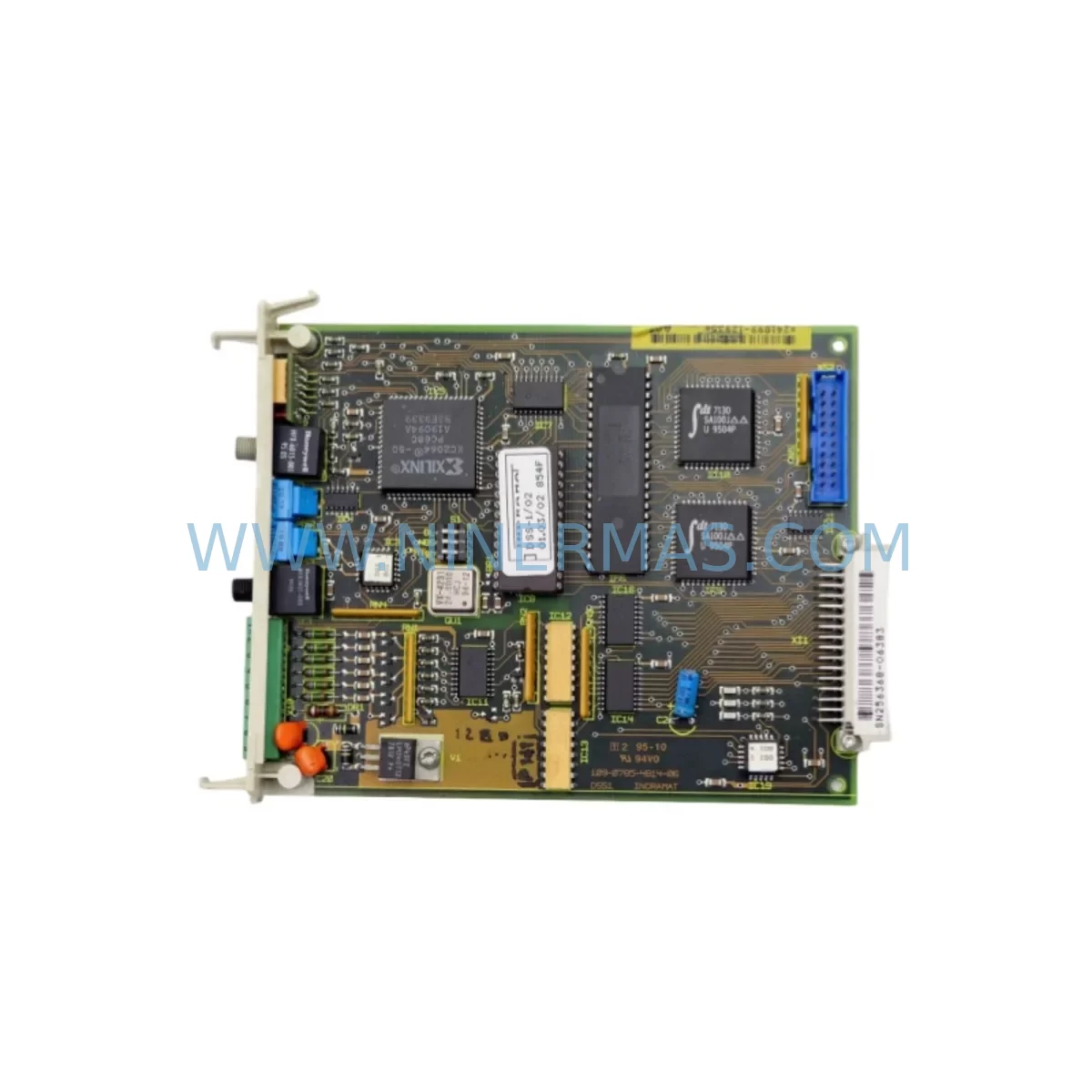

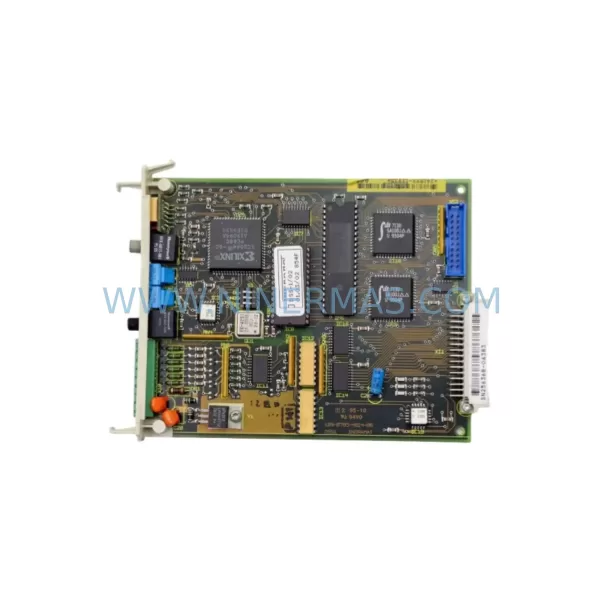

Bosch DSS 1.3 Retrofit-Compatible Drive Control Card

Bosch DSS 1.3 Retrofit-Compatible Drive Control Card for Legacy System Modernization

The Bosch DSS 1.3 is a drive control card designed for use within Bosch Rexroth drive systems, widely deployed across legacy automation lines in the processing, packaging, and heavy manufacturing industries. As original equipment manufacturers discontinue support for aging drive platforms, the DSS 1.3 has become a critical retrofit and replacement component for engineers tasked with extending the operational life of existing control infrastructure without committing to a full system overhaul.

This retrofit-compatible unit is sourced, inspected, and pre-shipment tested to ensure functional equivalence with the original Bosch DSS 1.3 specification. It is suitable for direct board-level replacement in Bosch drive cabinets where the original card has failed, degraded, or become unavailable through standard OEM channels. With a 12-month warranty and confirmed in-stock availability, the DSS 1.3 supports planned maintenance schedules and emergency breakdown recovery alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the Bosch DSS 1.3, engineers must account for the full scope of the drive system architecture. The DSS 1.3 typically operates within a Bosch Rexroth drive cabinet alongside a dedicated power supply module, a feedback processing board, and in many installations, a Bosch CNC or PLC controller interfacing via a proprietary drive bus. Before initiating a card swap, it is essential to document the existing terminal wiring, confirm the backplane slot assignment, and record all active drive parameters — including speed reference scaling, current limits, ramp times, and encoder feedback configuration.

In systems where the DSS 1.3 interfaces with a Bosch CC 220 or CC 320 CNC controller, the drive parameter set must be re-entered or restored from a backup after replacement. Engineers working on lines that also include Bosch servo amplifier modules, such as the SM 3/60 or SM 6/60, should verify that the replacement DSS 1.3 is compatible with the shared DC bus voltage and that the drive enable signal logic remains consistent across all axes. Where the control cabinet also houses Bosch I/O expansion modules or digital input/output cards, the address mapping and signal routing should be confirmed against the original machine documentation before powering up the retrofitted drive.

For installations that have migrated or are planning to migrate from legacy Bosch proprietary bus communication to a more modern fieldbus such as PROFIBUS-DP or CANopen, the DSS 1.3 replacement provides an opportunity to evaluate whether an intermediate gateway module is required to bridge the old drive interface with the new communication layer. In such cases, a PROFIBUS interface card or a dedicated drive communication adapter may need to be installed in parallel with the DSS 1.3 to maintain compatibility with the upstream PLC or SCADA system.

Where the original machine uses a Bosch operator panel or HMI terminal connected directly to the drive system, screen layouts and drive status displays should be verified after the card replacement to ensure that all diagnostic and parameter screens remain functional. If the HMI communicates with the drive via a serial RS-232 or RS-485 link, the baud rate and protocol settings on the replacement DSS 1.3 must be configured to match the original setup. Installations that include a Bosch programming cable or PC interface adapter for drive parameterization should confirm software version compatibility before attempting to upload or download parameter files.

Physical installation considerations include confirming that the replacement card fits within the available rack space, that the backplane connector engages fully without mechanical interference, and that any heat sink or cooling arrangement present on the original card is replicated or adapted on the replacement unit. In high-density drive cabinets where multiple Bosch drive modules share a common cooling airflow path, the thermal management of the retrofitted card should be assessed to prevent overheating during continuous operation.

Downtime Control During System Migration

Minimizing production downtime during a DSS 1.3 replacement requires a structured approach to pre-outage preparation. Before the scheduled maintenance window, the engineering team should complete a full parameter backup of the existing drive, document all terminal wiring connections with photographs or wiring diagrams, and confirm that the replacement DSS 1.3 unit has been received, inspected, and bench-tested. Where possible, a cold swap should be performed with the drive cabinet fully de-energized and locked out in accordance with local electrical safety regulations.

To protect the original program logic and control sequences, the PLC or CNC program controlling the drive should be backed up independently of the drive parameter set. In systems where the Bosch drive receives speed or torque references from a higher-level controller via analog signals or a digital fieldbus, the reference signal integrity should be verified after the card swap before returning the machine to automatic mode. A controlled manual jog test at reduced speed is recommended as the first operational check following installation, allowing the commissioning engineer to confirm correct direction of rotation, feedback signal integrity, and absence of fault codes before resuming full production speed.

For critical production lines where even a brief unplanned stoppage carries significant cost, maintaining a pre-tested DSS 1.3 spare on the shelf as part of a structured spare parts program is strongly recommended. With confirmed in-stock availability and fast dispatch capability, NINERMAS supports both planned procurement cycles and emergency breakdown supply, helping maintenance teams reduce mean time to repair and maintain control system continuity across aging Bosch drive installations.

Retrofit Support FAQ

Q: Is the Bosch DSS 1.3 a direct replacement for the original card without modification?
A: In most standard Bosch Rexroth drive configurations, the DSS 1.3 is a direct board-level replacement. However, customers should confirm backplane connector compatibility and terminal layout against their specific drive cabinet model before installation. Drive parameters will need to be re-entered or restored from a backup after the swap.

Q: What pre-shipment testing is performed on each DSS 1.3 unit?
A: Each unit undergoes a functional test prior to dispatch to verify basic operational integrity. Units are inspected for physical condition, connector integrity, and component-level anomalies. A 12-month warranty is provided from the date of shipment.

Q: How should I handle drive parameter migration when replacing the DSS 1.3?
A: Before removing the original card, use a Bosch-compatible programming cable or PC interface tool to export and save all drive parameters. After installing the replacement DSS 1.3, re-import the parameter file or manually re-enter the values. Verify all speed references, current limits, ramp settings, and encoder configurations before returning the drive to service.

Q: What is the typical lead time and stock availability for the DSS 1.3?
A: The Bosch DSS 1.3 is held in stock and available for immediate dispatch. Lead time for standard orders is subject to current inventory levels at time of enquiry. For planned maintenance programs requiring guaranteed stock reservation, long-term supply arrangements are available. Contact our team to confirm availability and arrange priority dispatch if required.
