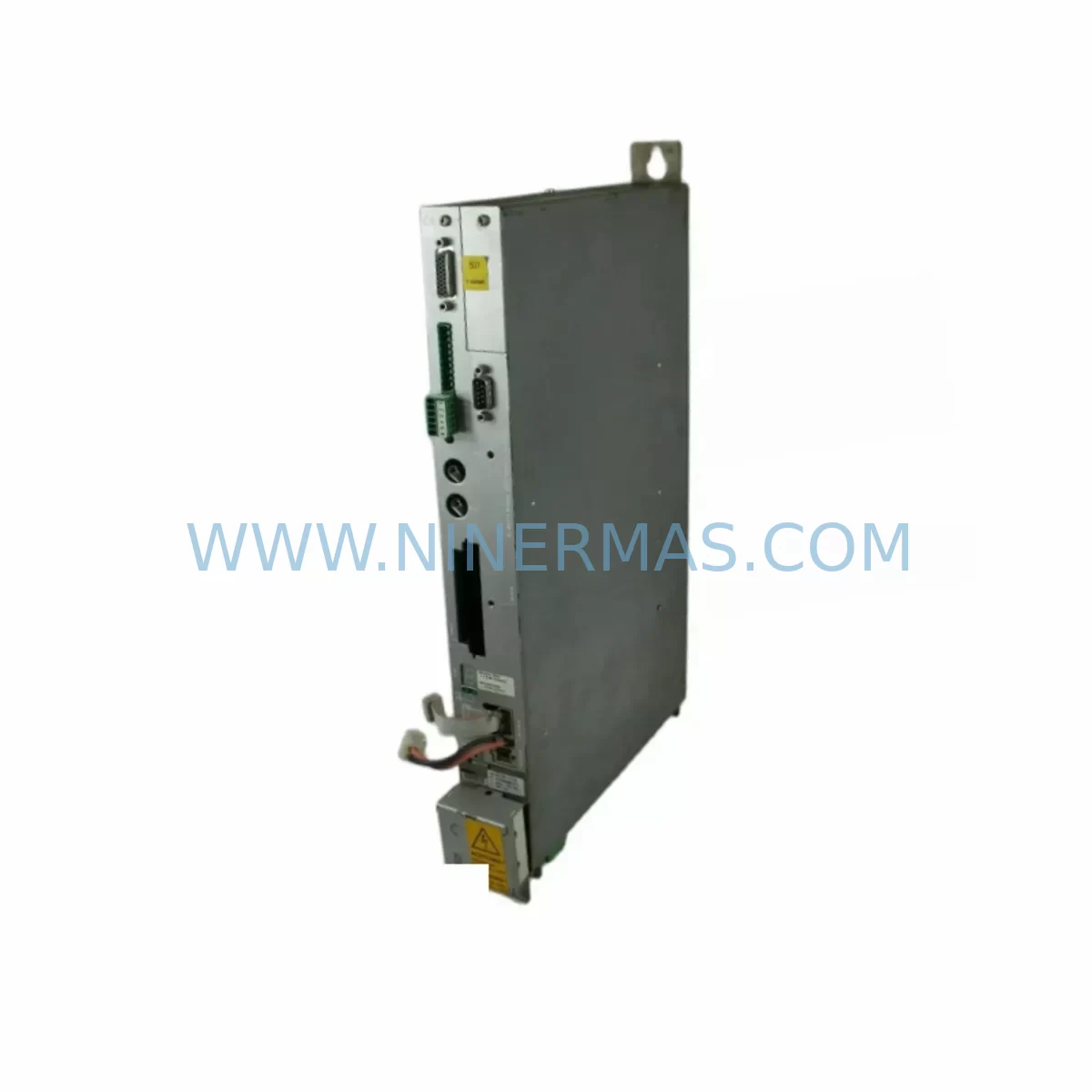

Bosch 30K 1101-D Retrofit-Compatible Drive Controller

Bosch 30K 1101-D Retrofit-Compatible Drive Controller

When aging automation infrastructure reaches end-of-life, the Bosch 30K 1101-D drive controller stands as a proven retrofit solution for maintenance engineers and procurement teams managing legacy system transitions. The 30K 1101-D belongs to Bosch’s 30K series of industrial drive controllers — a platform widely deployed across machine tool, press, and general-purpose automation lines throughout the 1990s and 2000s. As original equipment manufacturers discontinue support and spare parts become increasingly scarce, sourcing a verified replacement unit becomes critical to sustaining production continuity without committing to a full system overhaul.

The 30K 1101-D is designed for applications where the existing control cabinet architecture, wiring harness, and mechanical mounting envelope must be preserved. Retrofit engineers frequently encounter this unit in Bosch-controlled machining centers, transfer lines, and hydraulic press systems where the original drive controller has failed or is approaching the end of its reliable service life. Replacing the 30K 1101-D in-kind — rather than migrating to a newer platform — allows facilities to avoid the cost and downtime associated with full PLC reprogramming, HMI screen redesign, and field bus reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 30K 1101-D retrofit requires a structured pre-replacement audit of the surrounding control architecture. Before removing the failed unit, maintenance engineers should document the existing terminal block wiring layout and photograph all connector positions on the drive controller’s I/O interface. The 30K series uses a dedicated power supply module to deliver regulated DC bus voltage to the drive stage — confirming that the existing Bosch power supply module is within specification is a mandatory pre-check, as an undersized or degraded supply will cause the replacement unit to fault immediately on startup.

The control cabinet typically houses additional components that interact directly with the 30K 1101-D. The axis interface board, which routes encoder feedback and reference signals between the CNC controller and the drive, must be inspected for damaged connectors or corroded contacts before the new unit is installed. In multi-axis configurations, the Bosch 30K series rack backplane distributes power and communication signals across all installed drive modules — any backplane connector damage or oxidation will prevent the replacement drive from initializing correctly.

Signal integrity is another critical factor. Encoder cables connecting the servo motor to the 30K 1101-D should be tested for continuity and shielding integrity, as degraded encoder signals are a common root cause of drive faults that are incorrectly attributed to the drive controller itself. Similarly, the reference voltage input — typically supplied from the CNC interpolator or a dedicated signal conditioner — should be verified with a calibrated meter before the replacement unit is powered on.

For facilities running Bosch CC220 or CC300 CNC controllers in conjunction with the 30K series drives, the communication link between the CNC and the drive controller must be re-established after replacement. This involves confirming the axis address configuration on the replacement 30K 1101-D matches the original unit’s DIP switch settings. Failure to replicate the address configuration will result in the CNC failing to recognize the drive on the serial bus, preventing axis initialization.

Procurement engineers sourcing the 30K 1101-D for inventory stock should also consider holding buffer quantities of the associated Bosch 30K series feedback module and the drive enable relay, both of which are subject to the same end-of-life supply constraints as the drive controller itself. Maintaining a small strategic inventory of these components alongside the 30K 1101-D significantly reduces the risk of extended downtime caused by secondary component failures during or after the retrofit process.

Downtime Control During System Migration

Minimizing unplanned downtime during a 30K 1101-D replacement requires preparation before the machine is taken offline. The most effective approach is to perform a full parameter backup of the existing drive controller while the machine is still operational. Bosch 30K series drives store axis-specific tuning data — including gain settings, velocity limits, and fault response parameters — that must be transferred to the replacement unit to restore original machine performance without an extended re-commissioning period.

Once the machine is offline, the physical replacement process should follow a defined sequence: isolate the control cabinet power, discharge the DC bus capacitors, disconnect the motor power cables and encoder feedback connectors, remove the failed 30K 1101-D from its mounting position, and install the replacement unit before reconnecting all cables in reverse order. This sequence protects both the replacement drive and the connected servo motor from damage caused by improper hot-swap procedures.

After physical installation, the parameter upload should be performed before the first powered test. Running the axis through a slow-speed manual jog cycle allows the engineer to verify encoder feedback direction, velocity response, and fault-free operation before returning the machine to automatic production mode. This structured commissioning approach consistently achieves machine restoration within a single shift, preserving production schedules and avoiding the multi-day downtime associated with unplanned drive failures where no replacement unit is available on-site.

For facilities managing multiple machines equipped with 30K series drives, a documented retrofit procedure — including wiring diagrams, parameter backup files, and commissioning checklists — should be maintained in the plant’s maintenance management system. This institutional knowledge significantly accelerates future replacements and reduces dependence on external service engineers for routine drive swap-outs.

Retrofit Support FAQ

Q: Is the Bosch 30K 1101-D a direct replacement for all 30K series drive variants?
A: The 30K 1101-D is a specific variant within the Bosch 30K series. While the physical form factor and cabinet interface are consistent across the 30K family, axis current rating and feedback interface options vary between sub-models. Confirm the original unit’s nameplate data — particularly the current rating suffix — before ordering to ensure the replacement matches the motor load requirements of your application.

Q: What pre-shipment testing is performed on the 30K 1101-D?
A: Each unit undergoes functional power-on testing and output stage verification before shipment. Units are inspected for physical damage, connector integrity, and correct firmware version where applicable. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the 30K 1101-D be used with a different CNC controller brand during a partial retrofit?
A: The 30K 1101-D is designed for use within the Bosch 30K drive system and communicates via Bosch’s proprietary serial interface. Integration with third-party CNC controllers requires a compatible interface adapter or signal converter. For partial retrofit scenarios where the CNC is being upgraded while the drive system is retained, consult your system integrator to confirm interface compatibility before proceeding.

Q: What is the typical lead time and long-term supply availability?
A: Stock availability is maintained for immediate shipment where possible. For facilities requiring guaranteed long-term supply, we recommend discussing a scheduled inventory agreement to secure buffer stock against future sourcing constraints. Contact our team to confirm current availability and discuss multi-unit procurement options.
