Reliance S-D4006-D Safety-Reliable Digital I/O Module

Reliance S-D4006-D Safety-Reliable Digital I/O Module for Critical Control Sites

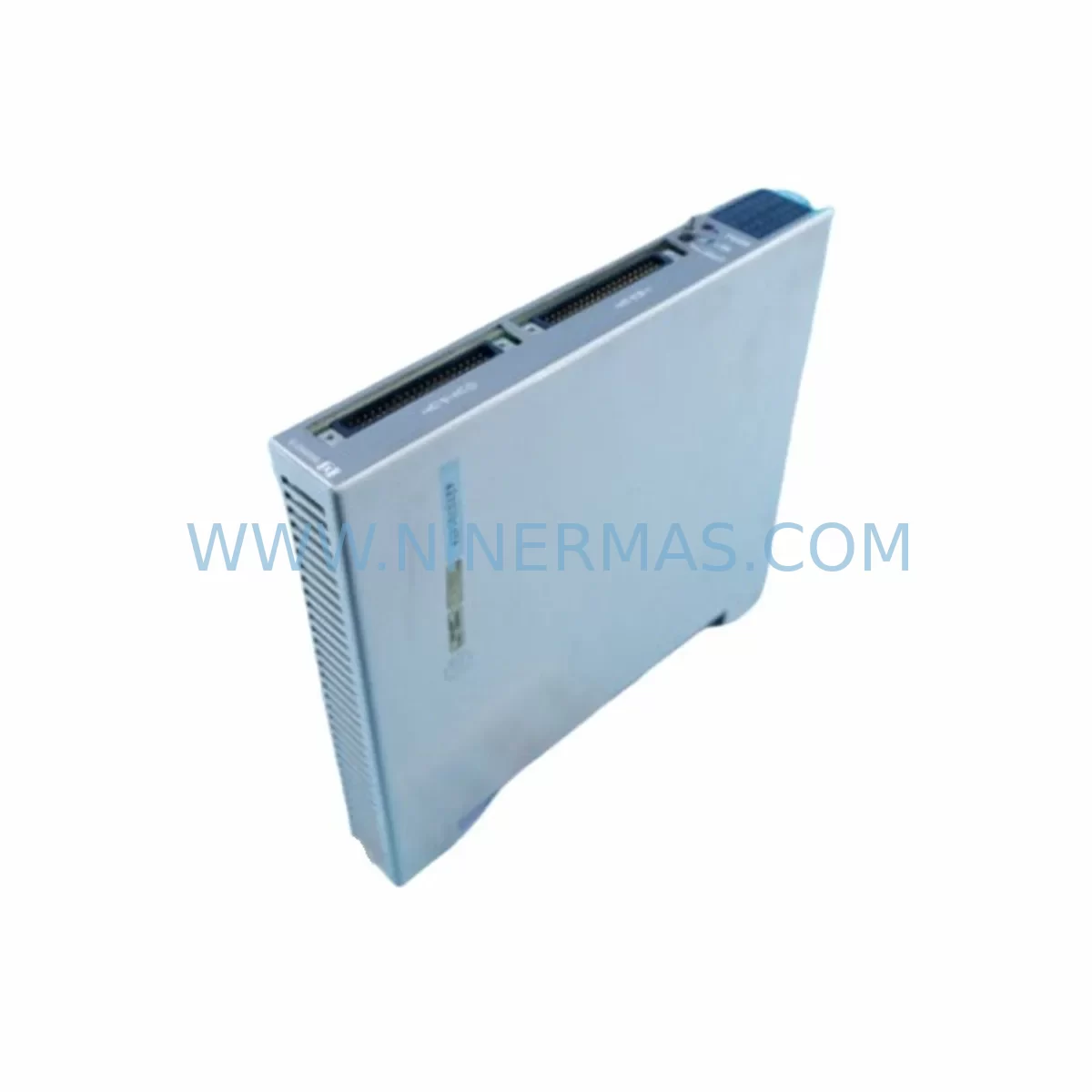

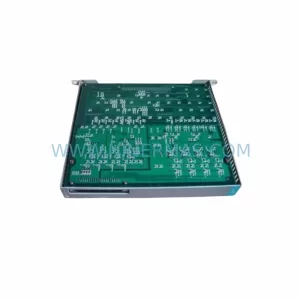

The Reliance Electric S-D4006-D (also referenced as S-D4006) is a ruggedized digital input/output module engineered for continuous-duty industrial control environments where safety, signal integrity, and uninterrupted operation are non-negotiable. Designed to integrate seamlessly into Reliance Electric AutoMax and GV3000 distributed control architectures, this module delivers deterministic I/O response times and robust noise immunity — making it a trusted component in critical interlock loops, emergency shutdown systems, and high-availability control cabinets across heavy industry.

In facilities where a single I/O failure can cascade into unplanned downtime, equipment damage, or personnel hazard, the S-D4006-D provides the electrical isolation, surge tolerance, and thermal stability required to maintain safe control loop continuity. Its ruggedized construction addresses the most demanding field conditions: high electromagnetic interference from variable frequency drives and large motor starters, ambient temperature extremes, mechanical vibration from rotating machinery, and ingress of conductive dust or moisture in non-climate-controlled switchgear rooms.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the S-D4006-D does not operate in isolation — it functions as part of a layered protection and control architecture. When paired with the Reliance Electric S-D4003-D analog input module, plant engineers gain simultaneous discrete and analog signal acquisition within the same AutoMax rack, reducing wiring complexity and eliminating inter-module communication latency that could delay safety responses.

Power supply stability is foundational to reliable I/O operation. The Reliance Electric S-D4001 power supply module provides regulated backplane power to the entire rack assembly, ensuring that voltage transients on the plant power bus do not propagate into the logic circuits of the S-D4006-D. For sites with unstable utility feeds or frequent switching surges, supplementing the rack power with an external Phoenix Contact QUINT-PS 24VDC power supply adds a second layer of voltage conditioning upstream of the Reliance rack.

Communication integrity is equally critical. In AutoMax-based distributed control systems, the Reliance Electric S-D4010 communication module manages peer-to-peer data exchange across the control network. Any communication anomaly — packet loss, address conflict, or bus overload — can cause the S-D4006-D’s output states to freeze or revert to fail-safe defaults. Maintaining a spare S-D4010 alongside the S-D4006-D ensures that communication faults can be resolved within a single maintenance window rather than extending into a multi-day outage.

For motor-driven processes where the S-D4006-D interfaces with Reliance Electric GV3000 variable frequency drives, the digital outputs of the module are commonly used to command drive enable, fault reset, and speed reference selection. In this topology, signal integrity between the I/O module and the drive’s control terminals is paramount. Shielded control cable, properly grounded at the panel end, and ferrite cores on signal leads near the drive output terminals are standard practice to prevent induced noise from corrupting the discrete command signals.

Safety relay modules — such as the Pilz PNOZ X series or Schneider Electric Preventa XPS safety relays — are frequently wired to the input channels of the S-D4006-D to monitor E-stop circuits, light curtain outputs, and gate interlock switches. The optical isolation built into the S-D4006-D prevents ground loops between the safety relay output circuits and the AutoMax backplane, a common source of nuisance trips in mixed-voltage control panels.

Surge protection at the field terminal level is provided by Phoenix Contact TERMITRAB or Dehn DEHNguard surge arresters installed on the I/O terminal blocks feeding the S-D4006-D. These devices clamp transient overvoltages caused by nearby lightning strikes, motor switching, or capacitor bank switching before they reach the module’s input circuitry — extending service life and reducing the risk of latent damage that manifests as intermittent signal errors months after the surge event.

For sites transitioning from legacy relay logic to PLC-based control, the S-D4006-D’s discrete I/O channels can be mapped directly to existing hardwired interlock circuits, preserving the safety logic structure while gaining the diagnostic visibility and remote monitoring capability of the AutoMax platform. This retrofit approach, combined with a Reliance Electric S-D4008 specialty module for high-speed counter or encoder inputs where required, delivers a modernized control architecture without the risk and cost of a full system replacement.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation columns, hydrotreaters, and compressor trains — the S-D4006-D monitors field instrument status signals, valve position feedback, and motor run/fault contacts. Its optical isolation and surge tolerance are essential in environments where ground potential differences between field instruments and control room equipment can introduce common-mode voltages that corrupt discrete signal states. Reliable I/O operation in these applications directly supports process safety management (PSM) compliance and reduces the risk of spurious ESD activations.

Electric Power Generation and Transmission: In coal-fired, gas turbine, and hydroelectric generating stations, the S-D4006-D is deployed in turbine control panels, excitation systems, and switchyard protection circuits. The module’s ability to maintain accurate discrete I/O in the presence of high-frequency electromagnetic interference from high-voltage switching equipment and bus differential protection relays makes it suitable for generator protection and load dispatch control applications.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, conductive dust, and wide temperature swings. The S-D4006-D’s ruggedized construction supports reliable operation in conveyor drive control panels, crusher interlock systems, and ventilation fan control circuits — applications where a false output state or missed input signal can result in equipment collision, belt fire, or ventilation failure.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the S-D4006-D for pump station control, chemical dosing interlock monitoring, and UV disinfection system status acquisition. The module’s resistance to humidity and its optical isolation prevent corrosion-induced leakage currents from generating false input states in wet environments where panel condensation is a persistent challenge.

Metallurgy and Steel Production: Electric arc furnace control systems, rolling mill drive panels, and continuous casting machine controls operate in environments with extreme thermal radiation, heavy vibration, and intense electromagnetic fields from high-current bus bars. The S-D4006-D’s EMI immunity and thermal operating range support reliable discrete control in these demanding metallurgical applications, where I/O module failure during a cast or rolling sequence can result in significant material loss and equipment damage.

Port and Marine Applications: Ship-to-shore crane control systems, bulk material handling conveyors, and vessel engine room automation panels require I/O modules that can withstand salt air corrosion, vibration from wave action and machinery, and wide ambient temperature ranges. The S-D4006-D’s robust construction and proven field reliability make it a suitable retrofit spare for legacy Reliance Electric-based crane and marine propulsion control systems.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Reliance Electric S-D4006-D?
All S-D4006-D units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify I/O channel operation, isolation integrity, and backplane interface compatibility before dispatch.

Q2: How is the S-D4006-D tested before shipment?
Each module is subject to a pre-shipment inspection protocol that includes visual examination for physical damage, connector integrity verification, and functional power-on testing where applicable. Units sourced from original manufacturer stock or certified refurbishment channels are prioritized to ensure field reliability consistent with the module’s original design specification.

Q3: Is the S-D4006-D compatible with all Reliance Electric AutoMax rack configurations?
The S-D4006-D is designed for use within the Reliance Electric AutoMax distributed control rack system. Compatibility with specific rack revisions and firmware versions should be confirmed against the site’s existing AutoMax system documentation. NINERMAS technical support can assist with compatibility verification based on your system’s rack model and software revision.

Q4: Can NINERMAS support long-term supply of the S-D4006-D for ongoing maintenance programs?
Yes. NINERMAS maintains inventory of legacy Reliance Electric spare parts specifically to support plant maintenance programs for end-of-life and discontinued control systems. We can discuss scheduled supply agreements, consignment stock arrangements, and multi-unit procurement pricing to ensure your facility has reliable access to S-D4006-D modules for the duration of your planned system lifecycle.
