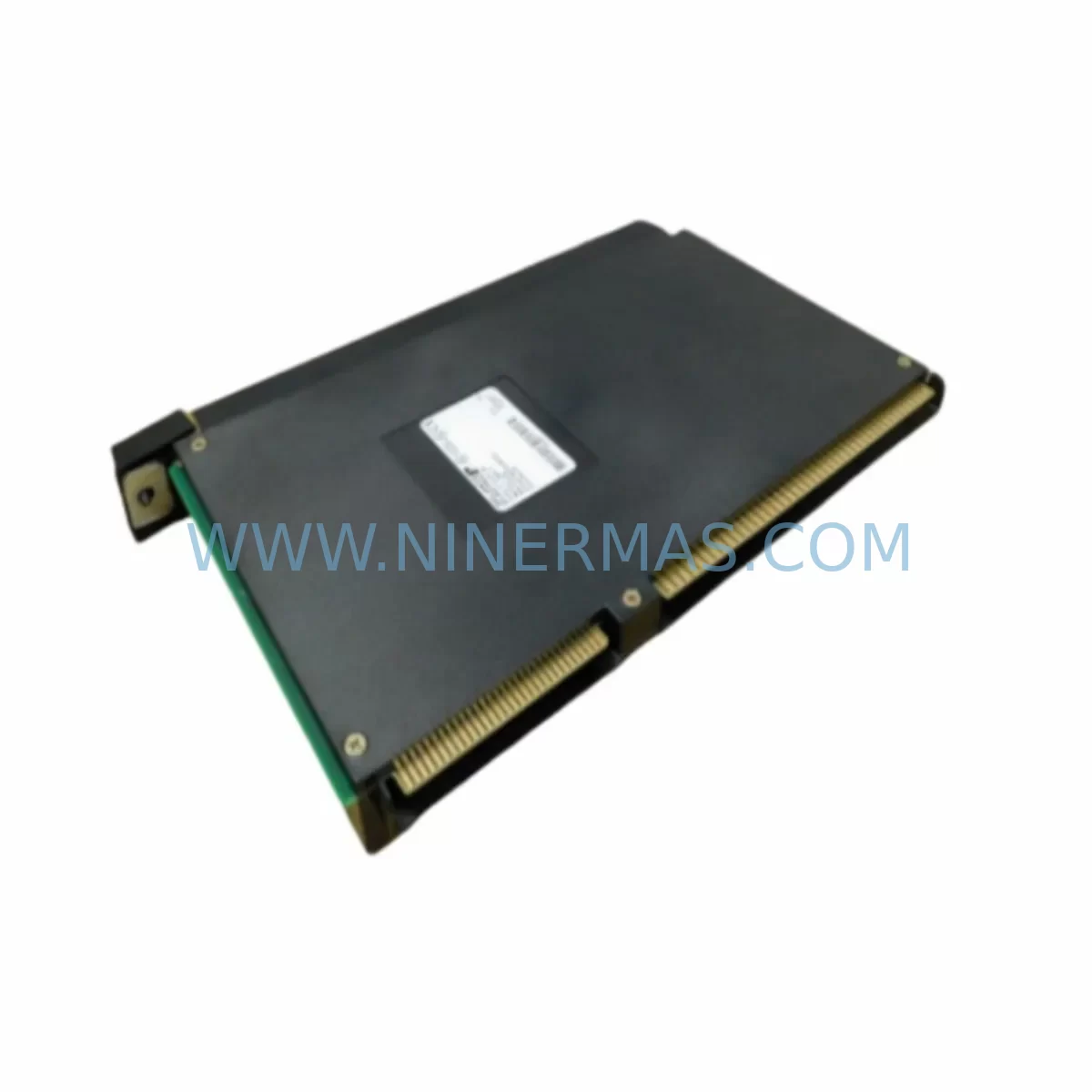

The Reliance Electric 57C413B is a retrofit-compatible control module engineered for seamless integration into aging AutoMate Series automation platforms. As legacy Reliance Electric systems approach end-of-life and original spare parts become increasingly scarce, the 57C413B provides a reliable, drop-in replacement path that preserves existing control logic, minimizes rewiring effort, and dramatically reduces planned downtime during system migration. Whether you are managing a phased upgrade of a continuous production line or executing an emergency replacement of a failed module in a critical control cabinet, the 57C413B delivers the compatibility and confidence your engineering team requires.

Designed for industrial environments where stopping the line is not an option, this module supports the original AutoMate backplane architecture, maintaining slot addressing, I/O mapping, and communication link integrity with the host controller. Engineers undertaking a retrofit project must verify power supply capacity within the existing rack — the Reliance 57C410 power supply module is a commonly paired component that should be assessed for load headroom before installation. Terminal wiring layouts are preserved from the original 57C413 footprint, reducing field adaptation time and the risk of miswiring during changeover.

For sites running mixed-generation AutoMate racks, the 57C413B coexists with adjacent modules including Reliance 57C401 analog input modules, 57C402 analog output modules, and 57C404 discrete I/O modules, allowing partial cabinet upgrades without disrupting the broader control architecture. Communication protocol continuity is a critical concern during any legacy migration: the 57C413B maintains compatibility with the Reliance AutoMate communication interface, ensuring that upstream SCADA systems, HMI panels, and historian platforms continue to receive valid process data without requiring driver reconfiguration or screen remapping.

When planning the retrofit, engineers should document the existing module address settings, DIP switch configurations, and jumper positions before removal. The replacement 57C413B ships pre-tested and configured to factory defaults; field commissioning typically involves restoring the original address map and performing a live I/O verification scan before returning the loop to automatic control. For sites using Reliance AutoMate programming software or third-party ladder logic tools connected via a Reliance programming cable adapter, the existing program does not require modification — the 57C413B is recognized as a native module type within the original project file.

Installation space is a frequent constraint in legacy control cabinets. The 57C413B retains the original module form factor, fitting standard AutoMate rack slots without requiring panel modifications, additional DIN rail adapters, or custom mounting brackets. This is particularly valuable in compact switchgear rooms, offshore platform control rooms, and skid-mounted process units where physical space is at a premium. For applications where the original rack itself requires replacement, the Reliance 57C400 series rack chassis provides a compatible housing that accepts all 57C413-family modules.

Signal integrity during the transition period is protected by ensuring that signal isolators and surge protection devices on field wiring terminals remain in place throughout the swap. In high-noise environments — common in steel mills, cement plants, and petrochemical facilities — maintaining these protective components prevents transient-induced faults from corrupting the module during its first power-on cycle. The 57C413B has been validated for operation in environments with elevated electromagnetic interference, temperature cycling, and vibration loads consistent with heavy industrial service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing control cabinet. Before ordering the 57C413B, engineers should photograph the current module’s label, record all DIP switch and jumper settings, and export a backup of the PLC program using the site’s Reliance AutoMate programming terminal or compatible programming cable. This backup protects against data loss in the event of an unexpected controller fault during the changeover window.

Power budget verification is the next critical step. The Reliance 57C410 power supply module feeding the rack must have sufficient spare capacity to support the 57C413B without triggering an overload shutdown. If the existing power supply is already operating near its rated output — a common situation in cabinets that have been incrementally expanded over the years — a parallel power supply or rack segmentation may be required before the retrofit proceeds.

I/O continuity must be maintained throughout the migration. Adjacent modules such as the 57C401 analog input module, 57C402 analog output module, and 57C404 discrete I/O module should remain powered and in service during the swap to avoid nuisance trips on interlock circuits. Where the process safety system permits, a brief hold on automatic control — coordinated with the operations team — allows the module swap to be completed cleanly without generating spurious alarms in the DCS historian or SCADA alarm management system.

Communication link restoration is straightforward: once the 57C413B is seated and powered, the AutoMate controller performs an automatic module recognition scan. HMI screens built on the original tag database require no modification, and Modbus or proprietary AutoMate protocol connections to upstream systems resume without driver changes. For sites that have migrated their HMI to a modern platform while retaining the legacy PLC, a protocol gateway or communication bridge may already be in place — the 57C413B is fully compatible with this architecture.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver behind every legacy retrofit decision. The 57C413B is designed to reduce the changeover window to the shortest possible duration by eliminating the need for rewiring, program modification, or rack reconfiguration. A typical hot-swap procedure — performed during a scheduled maintenance window — can be completed in under 30 minutes by a qualified automation technician familiar with the AutoMate platform.

To further protect production continuity, NINERMAS recommends maintaining a minimum of one spare 57C413B module on-site for critical control loops. This eliminates the lead time risk associated with emergency procurement and ensures that a failed module can be replaced within a single shift. Our standard stock program supports rapid dispatch, with most orders shipped within 24–48 hours of order confirmation.

Program logic integrity is preserved throughout the migration because the 57C413B is recognized as a native module type by the AutoMate controller firmware. There is no need to modify rung logic, reassign I/O addresses, or update function block parameters. The controller resumes normal scan cycle operation immediately after the module completes its initialization sequence, typically within 5–10 seconds of power application.

For sites undertaking a broader system migration — replacing the entire AutoMate platform with a modern controller — the 57C413B can serve as a bridge component, keeping the legacy system operational while the new control architecture is engineered, programmed, and commissioned in parallel. This phased approach eliminates the risk of a hard cutover and allows the operations team to validate the new system against live process data before committing to the final switchover.

Retrofit Support FAQ

Q1: Is the Reliance 57C413B a direct drop-in replacement for the 57C413 and 57C413A?
Yes. The 57C413B is backward-compatible with both the 57C413 and 57C413A. Terminal wiring, backplane connector, slot dimensions, and module addressing are identical. No rewiring or rack modification is required. Restore the original DIP switch and jumper settings from your site documentation before powering up.

Q2: What pre-shipment testing is performed on the 57C413B?
Every 57C413B unit undergoes a full functional test prior to dispatch, including power-on verification, I/O channel integrity check, and communication bus response validation. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you confirm long-term stock availability for the 57C413B?
NINERMAS maintains dedicated inventory of the 57C413B to support ongoing spare parts programs for AutoMate Series installations. We offer scheduled procurement arrangements for customers managing multi-site maintenance contracts, ensuring guaranteed availability without reliance on spot-market sourcing. Contact our team to discuss a tailored supply agreement.

Q4: What compatibility checks should be completed before installation?
Before installing the 57C413B, verify: (1) rack slot compatibility with the 57C400 series chassis; (2) power supply headroom on the 57C410 module; (3) existing DIP switch and jumper configuration matches your site documentation; (4) PLC program backup is current and stored off-site; (5) communication links to SCADA and HMI systems are documented and can be verified post-installation. NINERMAS technical support is available to assist with pre-installation compatibility reviews.
