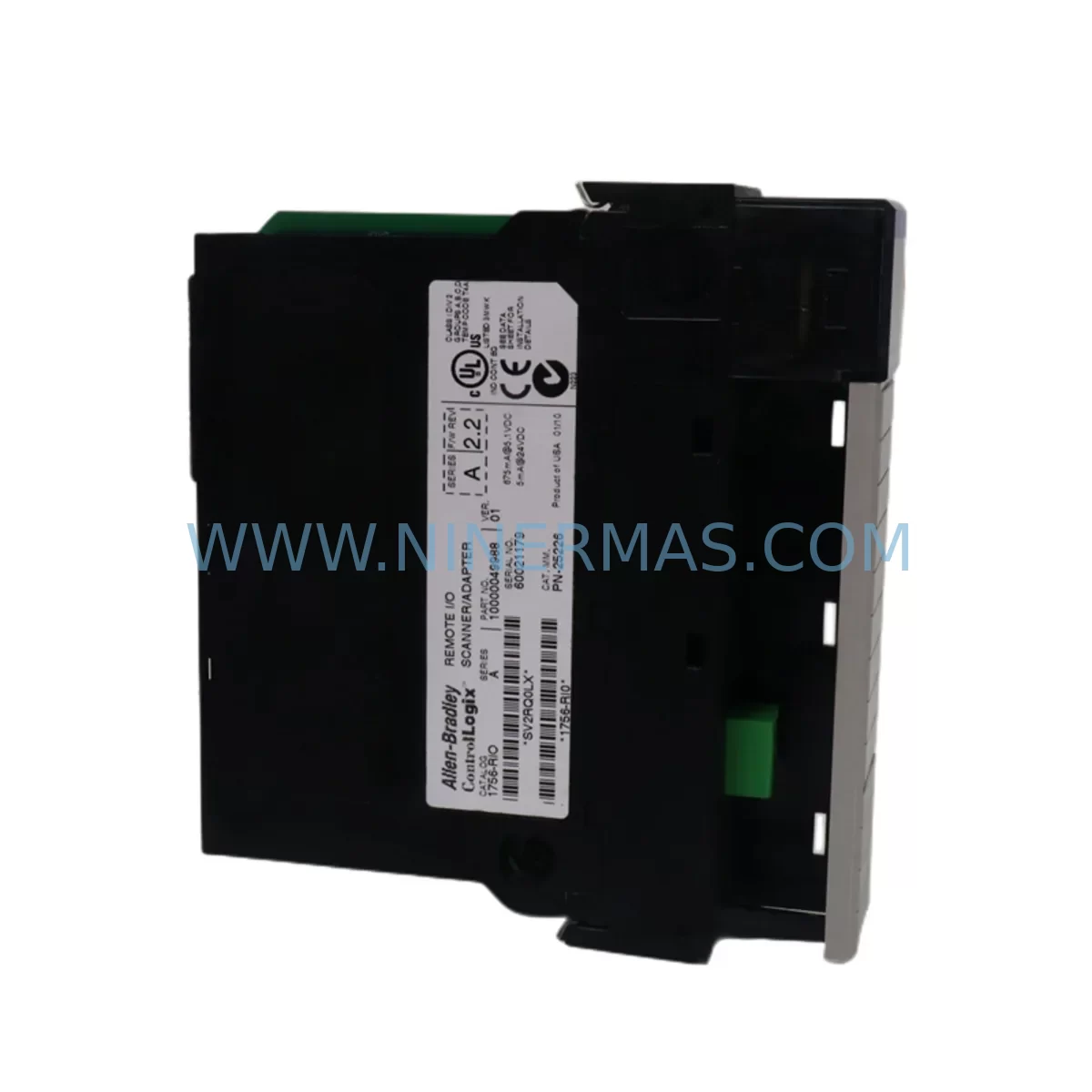

The Allen-Bradley 1756-RIO is a ruggedized Remote I/O Communication Module engineered for the ControlLogix platform, designed to maintain reliable communication between the main control rack and distributed I/O racks in demanding industrial environments. For maintenance engineers managing aging automation infrastructure or procurement teams building strategic spare parts inventories, sourcing a verified, service-ready 1756-RIO is critical to minimizing unplanned downtime and sustaining production continuity.

This module serves as the backbone of remote I/O communication in ControlLogix-based control systems, enabling the main processor to scan and control distributed field devices across extended plant layouts. Its ruggedized design makes it particularly suited for harsh environments where temperature extremes, vibration, and electrical noise are constant operational challenges. When this module fails or degrades, the entire remote I/O network it manages goes offline — making rapid, like-for-like replacement with a tested spare the only viable recovery path.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1756-RIO module is flagged for replacement during a scheduled outage or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site inspection and replacement workflow should encompass the entire communication chain and power distribution architecture to prevent repeat failures and ensure the restored system operates reliably through the next maintenance cycle.

Begin by verifying the integrity of the 1756-PA72 or 1756-PB72 power supply module feeding the ControlLogix chassis. A degraded power supply is a common root cause of intermittent communication faults that are incorrectly attributed to the RIO module itself. Simultaneously, inspect the 1756-A10 or 1756-A17 chassis backplane for signs of corrosion, bent connector pins, or thermal damage — backplane faults can cause persistent module errors even after a new 1756-RIO is installed.

The remote I/O cable network connected to the 1756-RIO deserves careful inspection. Shielded Belden 9463 or equivalent RIO trunk cable should be checked for insulation damage, improper termination resistors (typically 82Ω at each end of the trunk), and secure connection at the module’s BNC or terminal block connectors. Faulty termination is a leading cause of communication errors on RIO networks and is frequently overlooked during rapid fault-response scenarios.

On the distributed rack side, inspect the 1771-ASB Remote I/O Adapter modules that interface with legacy 1771 PLC-5 I/O racks. These adapters translate the RIO protocol for older I/O hardware and are subject to wear in high-cycle environments. If the system includes analog I/O, verify the calibration and wiring integrity of 1756-IF16 analog input modules and 1756-OF8 analog output modules in the remote racks, as signal drift can indicate power quality issues that stress the RIO communication link.

For facilities running mixed architectures, the 1756-DHRIO dual-port DH+/Remote I/O module is a closely related component that may share the same maintenance window. If your control system uses a 1756-EN2T EtherNet/IP communication module for supervisory SCADA connectivity alongside the RIO network, confirm its firmware version and port status during the same inspection — communication module firmware mismatches can cause subtle interoperability issues after a rack reconfiguration.

Procurement engineers should also consider stocking 1756-TBCH or 1756-TBS6H removable terminal blocks for I/O modules in the remote racks, as these wear items are frequently damaged during field wiring changes. Maintaining a minimum of one spare 1756-RIO module per production line, alongside a spare 1756-L73 or 1756-L74 ControlLogix processor, represents industry best practice for facilities where RIO-based remote I/O is part of the critical control path.

Site Replacement Workflow

Replacing the 1756-RIO in a live production environment requires a structured approach to minimize downtime and eliminate the risk of configuration loss or network disruption. Begin by exporting the current controller project from Studio 5000 Logix Designer and documenting the RIO module’s configured baud rate, rack address, and last rack/group assignments. This configuration data is essential for commissioning the replacement module to the exact same network parameters.

With the chassis de-energized and locked out per site LOTO procedures, remove the faulty 1756-RIO and inspect the backplane connector and chassis slot for debris or damage before inserting the replacement unit. Power the chassis and allow the ControlLogix processor to re-establish communication with the remote I/O network. Monitor the module’s status indicators: the RIO LED should cycle from flashing red (scanning) to solid green (communicating) within the normal scan cycle time. If the module remains in fault state, verify termination resistor placement and cable continuity before suspecting a module defect.

For systems transitioning away from legacy RIO architecture, the 1756-RIO can serve as a long-term bridge solution, maintaining compatibility with existing 1771-series I/O hardware while the broader migration to EtherNet/IP-based distributed I/O is planned and budgeted. This approach allows facilities to extend the operational life of proven field wiring and I/O hardware investments while modernizing the control backbone incrementally — a strategy that significantly reduces capital expenditure and retraining requirements compared to a full cutover.

All replacement units shipped by NINERMAS undergo pre-shipment functional testing, including backplane communication verification and RIO network scan confirmation, ensuring the module is operationally ready upon arrival at your facility.

Spare Parts Support FAQ

Q: Is the 1756-RIO still available as a new or refurbished spare part?
A: Yes. While Rockwell Automation has transitioned newer system designs toward EtherNet/IP architectures, the 1756-RIO remains available as a service spare to support installed base systems. NINERMAS maintains stock of both new-surplus and professionally refurbished 1756-RIO modules, each tested to original performance specifications and covered by a 12-month warranty.

Q: How do I verify compatibility between a replacement 1756-RIO and my existing ControlLogix system?
A: Compatibility is confirmed by matching the module’s catalog number (1756-RIO) and verifying the chassis slot assignment and RIO network configuration in your Studio 5000 project file. The 1756-RIO is compatible with all standard ControlLogix 1756-series chassis. If your system uses a specific firmware revision, contact our technical team with your controller catalog number and firmware version for pre-shipment compatibility confirmation.

Q: What pre-shipment testing does NINERMAS perform on the 1756-RIO?
A: Each 1756-RIO unit undergoes a multi-point inspection covering backplane connector integrity, RIO communication port functionality, status LED verification, and a powered operational test in a ControlLogix chassis. Units that do not meet original specification thresholds are not shipped. A test report is available upon request for quality-critical procurement processes.

Q: What is the warranty coverage and what does it include?
A: All 1756-RIO modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund after fault verification. Long-term supply agreements and volume pricing are available for MRO procurement teams managing multi-site spare parts programs.
