HOLLEYWELL 10014/H/F Retrofit-Compatible Module for Legacy Systems

HOLLEYWELL 10014/H/F Retrofit-Compatible Module for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

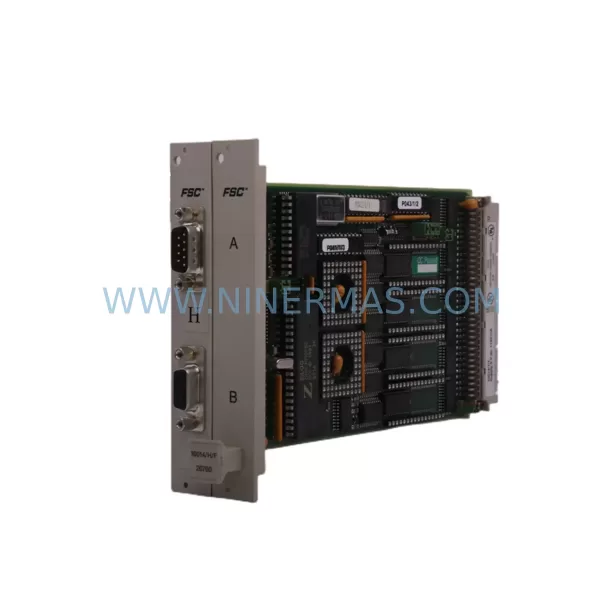

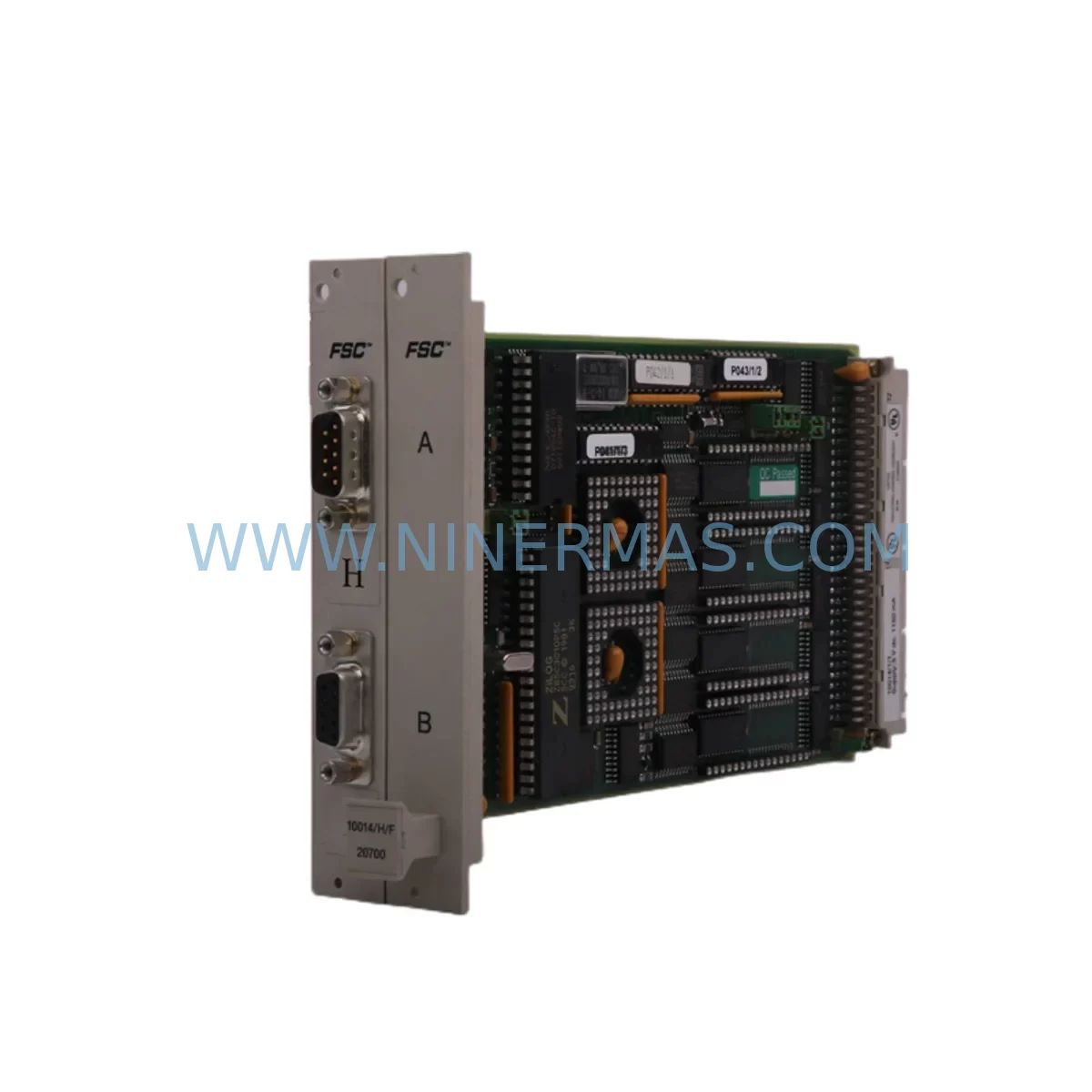

The HOLLEYWELL 10014/H/F is a retrofit-compatible industrial control module engineered for integration into legacy H Series automation platforms. As industrial facilities face increasing pressure to extend the operational life of aging control systems — while managing the risks of discontinued spare parts and obsolete hardware — the 10014/H/F provides a reliable, verified replacement path for engineers and maintenance teams working within tight downtime budgets.

Whether you are replacing a failed module in an existing H Series control cabinet, migrating from an end-of-life controller platform, or expanding I/O capacity on a legacy rack, the HOLLEYWELL 10014/H/F is designed to minimize engineering rework and preserve existing program logic. Its compatibility with standard H Series backplane interfaces and terminal wiring conventions means that in most retrofit scenarios, no hardware redesign is required at the cabinet level.

NINERMAS maintains verified inventory of the 10014/H/F with full pre-shipment functional testing, 12-month warranty coverage, and documented traceability — critical requirements for industrial procurement teams managing spare part lifecycle risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HOLLEYWELL 10014/H/F into an existing control system begins with a structured pre-retrofit assessment. Engineers should start by auditing the current H Series rack configuration — identifying occupied and available backplane slots, confirming the installed power supply module’s total output capacity, and reviewing the existing terminal block wiring against the original cabinet drawings.

In many legacy installations, the H Series rack may also house companion modules such as analog input/output cards, digital I/O expansion modules, and dedicated communication interface modules. When replacing or upgrading the 10014/H/F, it is important to verify that adjacent modules — including any signal isolator cards or relay output modules sharing the same power rail — remain within the power budget of the installed H Series power supply unit.

For systems that include a dedicated H Series CPU or controller module, engineers should confirm that the firmware version supports the 10014/H/F’s functional profile. In retrofit scenarios involving protocol migration — for example, transitioning from a legacy serial communication link to a modern fieldbus or Ethernet-based architecture — a communication gateway or protocol converter module may be required alongside the 10014/H/F to bridge the old and new network segments without disrupting live process signals.

Terminal wiring adaptation is another critical step. Field cables connected to the original module’s terminal block should be documented and labeled before disconnection. In cases where the replacement module uses a compatible but not identical terminal layout, a wiring adapter or marshalling panel may be used to maintain signal integrity without re-pulling field cables — a significant time and cost saving in brownfield retrofit projects.

Where the existing control system includes an HMI panel — whether a legacy operator terminal or a modern SCADA workstation — engineers should validate that all screen elements referencing the replaced module’s I/O addresses continue to resolve correctly after the swap. In most H Series compatible retrofits, the address structure is preserved, but a full HMI screen walkthrough during commissioning is recommended best practice.

For facilities managing a broader control cabinet upgrade — for example, replacing an entire legacy PLC rack with a modernized H Series equivalent — the 10014/H/F can serve as a bridge component, allowing phased migration where individual modules are replaced incrementally rather than requiring a full system cutover. This approach is particularly valuable in continuous process environments where extended planned shutdowns are not feasible.

Programming cable compatibility should also be confirmed prior to on-site commissioning. Legacy H Series systems may require a specific RS-232 or USB programming cable to connect a laptop running the original engineering software. Having the correct programming cable and a verified backup of the existing PLC program on-site before beginning the retrofit is essential to controlling recovery time in the event of an unexpected fault during the module swap.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern in any legacy system retrofit. When replacing the HOLLEYWELL 10014/H/F in a live production environment, a structured migration plan should be developed and reviewed with both the maintenance team and the process control engineer before any hardware is touched.

The recommended approach begins with a full backup of the existing PLC program, including all data blocks, function blocks, and hardware configuration files. This backup should be stored on at least two independent media — typically a USB drive and a network-accessible engineering workstation — to ensure rapid recovery if the new module requires re-commissioning.

Where the process allows, the module swap should be scheduled during a planned maintenance window or a low-production period. If a hot-swap or partial shutdown is possible within the H Series rack architecture, this should be evaluated against the risk of disturbing adjacent modules sharing the same backplane segment. In most cases, a controlled partial shutdown of the affected rack section — with field signals placed in a safe hold state via the controller’s I/O forcing function — is the safest approach.

After physical installation of the 10014/H/F, the module should be powered up and its diagnostic indicators checked before the PLC program is restarted. Any fault codes or communication errors should be resolved at this stage, before field signals are re-enabled. A structured loop check — verifying each I/O point against the field instrument or actuator — should be completed before returning the system to automatic control.

Throughout the migration, maintaining clear communication between the control room operator and the field engineer is essential. The operator should be prepared to intervene manually if any process variable deviates from its expected range during the commissioning phase. Once all I/O points are verified and the system has operated stably in automatic mode for a defined observation period, the retrofit can be considered complete and the maintenance record updated accordingly.

Retrofit Support FAQ

Q1: Is the HOLLEYWELL 10014/H/F a direct drop-in replacement for the original discontinued H Series module?
In most H Series rack configurations, the 10014/H/F is designed as a compatible replacement for the original module it supersedes. However, engineers should verify the backplane slot address, terminal wiring layout, and firmware compatibility with the installed H Series CPU before completing the swap. NINERMAS technical support can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on the 10014/H/F?
Every HOLLEYWELL 10014/H/F unit shipped by NINERMAS undergoes functional testing prior to dispatch. Testing covers power-up diagnostics, communication link verification, and I/O channel integrity checks. A test report is available upon request for quality-critical procurement requirements.

Q3: Can the 10014/H/F be used in a system that has already been partially upgraded to a newer communication protocol?
Yes, in many cases. Where the H Series rack includes a communication interface module supporting both legacy and modern protocol stacks, the 10014/H/F can operate alongside upgraded modules without requiring a full system migration. Protocol compatibility should be confirmed against the installed communication module’s firmware version and the controller’s network configuration.

Q4: What warranty and after-sales support does NINERMAS provide for the 10014/H/F?
NINERMAS provides a 12-month warranty on all HOLLEYWELL 10014/H/F units from the date of shipment. Warranty coverage includes functional failure under normal operating conditions. NINERMAS maintains stock inventory for rapid dispatch and can support urgent replacement requirements with expedited shipping. For technical support, contact sale@ninermas.com or +0086 187 5021 5667.
