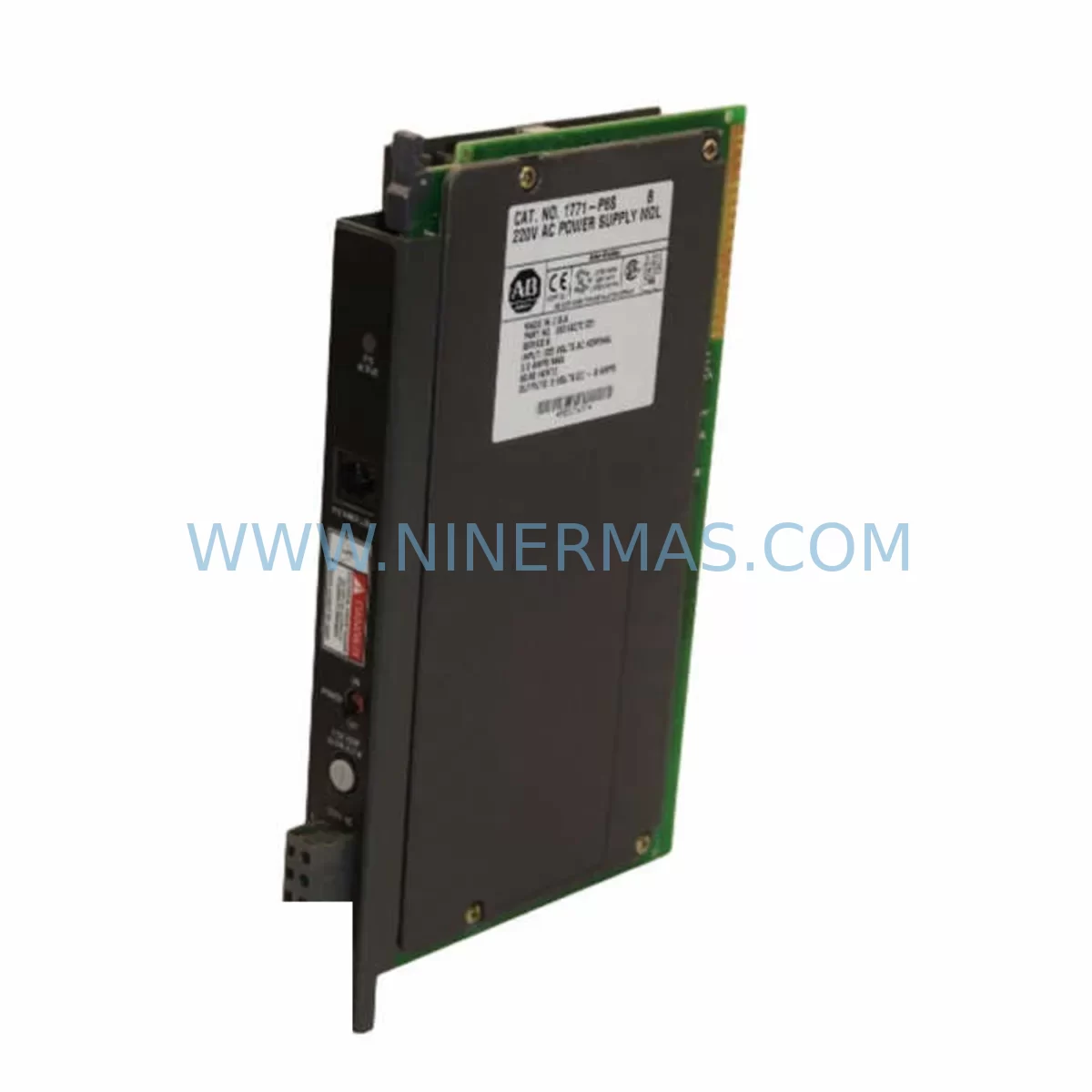

Allen-Bradley 1771-P6S Retrofit-Compatible Power Supply

Allen-Bradley 1771-P6S Retrofit-Compatible Power Supply for Legacy PLC-5 Systems

The Allen-Bradley 1771-P6S is a high-capacity power supply module engineered for the PLC-5 family of programmable logic controllers, one of the most widely deployed control platforms in industrial automation history. As legacy PLC-5 systems continue to operate across manufacturing, oil & gas, water treatment, and discrete assembly lines worldwide, the 1771-P6S remains a critical spare part for engineers managing aging control infrastructure. Whether you are executing a planned retrofit, responding to an unplanned failure, or building a long-term spare parts inventory, the 1771-P6S provides the power backbone that keeps your 1771-series I/O chassis operational without requiring a full system overhaul.

Sourced and tested to original Allen-Bradley specifications, this unit is compatible with the 1771 Universal I/O chassis family, including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B chassis configurations. It delivers regulated DC output to power I/O modules across the backplane, supporting both local and remote rack installations. For engineers managing multi-rack PLC-5 systems, the 1771-P6S is the preferred power supply choice where higher current capacity is required to support dense I/O configurations involving analog input modules, thermocouple modules, or high-density digital I/O cards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life 1771-P6S in an active production environment requires careful pre-planning to avoid extended downtime and configuration errors. Before removing the existing power supply, engineers should document the current I/O module layout within the 1771 chassis, noting the slot addresses assigned to each module — including any 1771-IFE analog input modules, 1771-OFE analog output modules, 1771-IBD digital input modules, and 1771-OBD digital output modules. These slot assignments are referenced directly in the PLC-5 processor’s I/O configuration table, and any discrepancy after reinstallation can cause I/O faults or communication errors that require program re-download.

For systems where the PLC-5 processor — such as the 1785-L40B or 1785-L80B — communicates with remote I/O racks via a 1771-ASB remote I/O adapter, it is essential to verify that the remote rack power supply is also within its service life. A degraded remote rack power supply can cause intermittent I/O faults that are easily misdiagnosed as processor or communication issues. Similarly, if the system uses a 1785-KA5 Data Highway Plus communication adapter for HMI connectivity or SCADA integration, confirm that the adapter’s power draw is accounted for in the total chassis current budget.

Control cabinet thermal management is another critical factor during retrofit planning. The 1771-P6S generates heat during operation, and in cabinets where cooling has degraded over years of service, replacing the power supply alone may not resolve recurring thermal shutdowns. Inspect cabinet ventilation, clean or replace air filters, and verify that the internal ambient temperature remains within the module’s rated operating range. If the cabinet also houses a 1336 PLUS or 1336 IMPACT variable frequency drive sharing the same enclosure, ensure adequate separation and airflow between the drive and the PLC rack.

For sites planning a phased migration from PLC-5 to ControlLogix or CompactLogix platforms, the 1771-P6S can serve as a bridge component — keeping the legacy system operational while the new control architecture is engineered, programmed, and tested in parallel. During this transition period, maintaining a tested spare 1771-P6S on-site eliminates the risk of an unplanned outage halting the migration project. Pair this with a spare 1785-L40B processor and a set of critical I/O modules to build a complete emergency recovery kit for your legacy PLC-5 rack.

Downtime Control During System Migration

Minimizing production downtime during a power supply replacement or system migration is the primary concern for maintenance engineers and plant managers alike. For a 1771-P6S replacement in a running system, the recommended approach is to schedule the swap during a planned maintenance window rather than responding reactively to a failure. Before the maintenance window, upload and archive the current PLC-5 program from the 1785-series processor using RSLogix 5 or an equivalent programming terminal. Store the program file — including all rung comments, symbol tables, and data file configurations — in a secure, version-controlled location. This ensures that if the processor loses its program during the power interruption, recovery is a matter of minutes rather than hours.

During the physical swap, follow lockout/tagout (LOTO) procedures for the control cabinet. After installing the replacement 1771-P6S, restore AC power and observe the power supply’s status LEDs before re-enabling the processor. The DC OK LED should illuminate steadily within seconds of power application. If the LED flashes or fails to illuminate, check the total current load on the backplane — an overloaded backplane is the most common cause of power supply startup failure in dense 1771 chassis configurations.

Once the processor restarts, verify that all I/O modules are recognized correctly in the I/O status display within RSLogix 5. Check that communication links to any connected PanelView HMI terminals — such as the PanelView 550 or PanelView 1000 — are re-established and that all HMI screens are displaying live data correctly. For systems with DH+ network connections to other PLC-5 nodes or to a SCADA system via a 1784-KTX or 1784-PKTX communication card, verify network node status and confirm that all peer-to-peer MSG instructions are executing without faults. Document the completed replacement in the site’s maintenance log, including the serial number of the replaced unit and the new unit, the date of replacement, and the technician’s name.

Retrofit Support FAQ

Q1: Is the 1771-P6S a direct drop-in replacement for other 1771-series power supplies?
The 1771-P6S is designed for the 1771 Universal I/O chassis and occupies the dedicated power supply slot. It is not interchangeable with lower-capacity models such as the 1771-P4S or 1771-P7 without first verifying that the total I/O module current draw falls within the replacement unit’s rated output. Always calculate the chassis current budget before substituting power supply models within the 1771 family.

Q2: What pre-shipment testing is performed on the 1771-P6S?
Every 1771-P6S unit shipped by NINERMAS undergoes functional power-on testing to verify output voltage regulation, DC OK signal operation, and AC input compatibility. Units are inspected for physical damage, connector integrity, and component condition before packaging. A 12-month warranty is provided on all units from the date of shipment.

Q3: Can the 1771-P6S support a chassis with both analog and digital I/O modules installed?
Yes. The 1771-P6S is rated for high-current output, making it suitable for mixed I/O chassis configurations that include analog modules such as the 1771-IFE or 1771-OFE alongside standard digital I/O modules. Confirm the total current draw of all installed modules against the power supply’s rated output before finalizing the chassis configuration.

Q4: How quickly can the 1771-P6S be shipped, and is stock available?
NINERMAS maintains ready stock of the 1771-P6S to support urgent retrofit and emergency replacement requirements. Standard lead times and shipping options are available upon inquiry. For time-critical projects, contact our sales team directly to confirm current inventory levels and expedited shipping arrangements.
