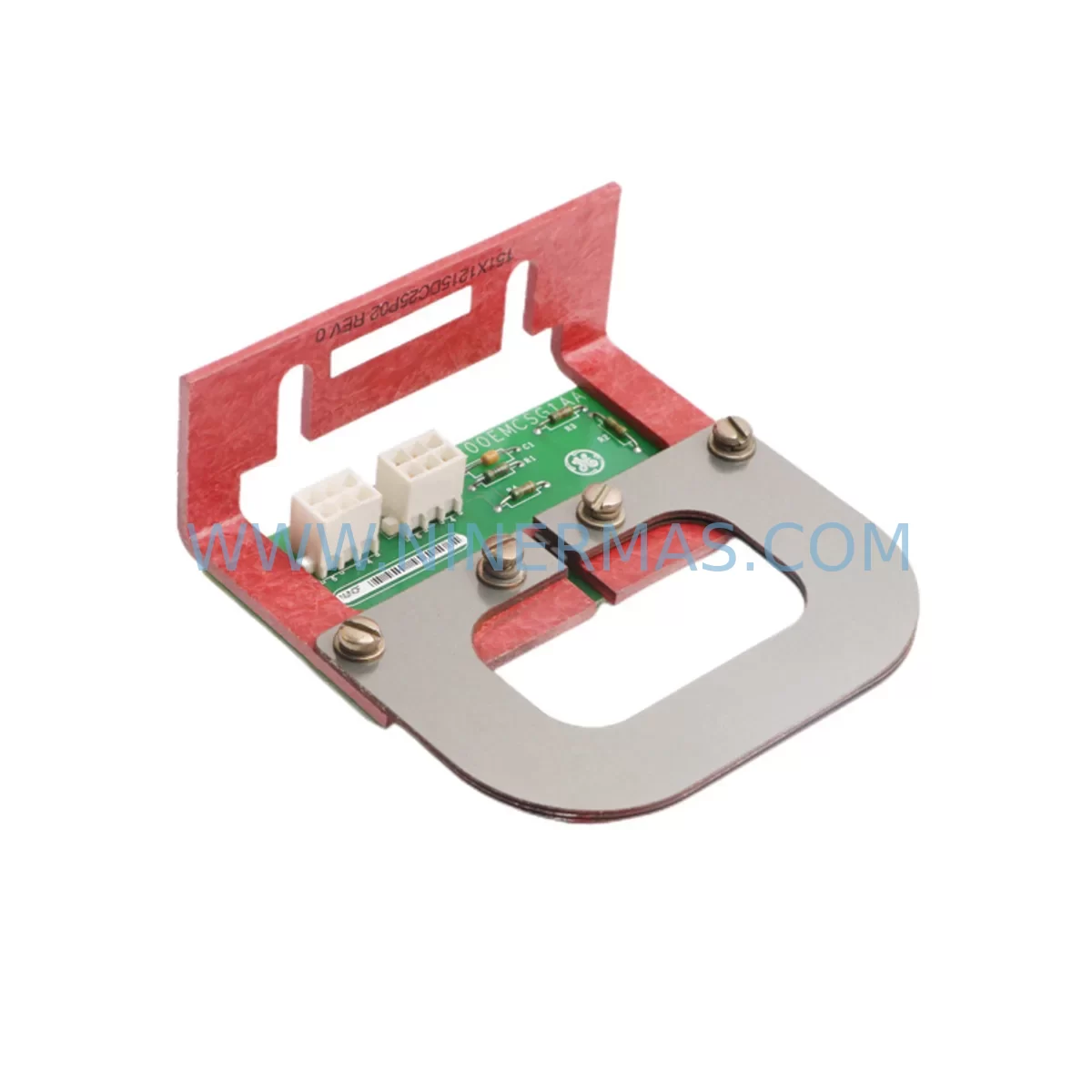

GE IS200EMCSG1AA Retrofit-Compatible Conduction Sensor Card

GE IS200EMCSG1AA Retrofit-Compatible Conduction Sensor Card for Legacy Systems

The GE IS200EMCSG1AA is a Conduction Sensor Card designed for the GE Mark VI Turbine Control System, one of the most widely deployed distributed control platforms in power generation, oil & gas, and heavy industrial applications. As legacy Mark VI installations age and OEM support windows narrow, the IS200EMCSG1AA has become a critical retrofit and replacement component for engineers managing system continuity, planned upgrades, and emergency spare strategies.

At NINERMAS, we maintain verified stock of the IS200EMCSG1AA with full pre-shipment functional testing and a 12-month warranty, ensuring that your retrofit or replacement project proceeds with confidence and minimal unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS200EMCSG1AA within an operating Mark VI control cabinet requires a structured approach that accounts for both hardware compatibility and software continuity. The Mark VI platform is a modular, rack-based system, and the IS200EMCSG1AA occupies a defined slot within the I/O expansion rack. Before initiating the swap, engineers must confirm the following:

Power Supply Capacity: The Mark VI rack relies on dedicated DC power distribution modules such as the IS200EPSMG1A power supply card. Verify that the existing power budget accommodates the IS200EMCSG1AA’s draw without affecting adjacent I/O modules. Any degradation in the power rail can cause intermittent signal faults across the entire rack.

Terminal Block and Field Wiring: The IS200EMCSG1AA connects to field-side conduction sensors through dedicated terminal boards. In many Mark VI installations, the IS200TBCIH1C or equivalent terminal board is used as the interface between the sensor card and field wiring. Confirm terminal block model, wiring polarity, and shield grounding before disconnecting the legacy card.

Backplane Slot and Module Address: The Mark VI VME backplane assigns logical addresses to each module slot. When inserting the replacement IS200EMCSG1AA, the slot address must match the original configuration stored in the Mark VI controller — typically managed through the Toolbox engineering software. Mismatched addresses will result in the controller failing to recognize the new card, triggering a system fault.

Controller Firmware Compatibility: The Mark VI controller card — such as the IS215VCMIH2CC — must be running a firmware version that supports the IS200EMCSG1AA’s signal processing routines. In older installations where the controller has not been updated, a firmware compatibility check is essential before the replacement is finalized.

Communication Link Verification: The IS200EMCSG1AA communicates sensor data to the Mark VI controller over the IONET network. After installation, verify that the module appears correctly on the network topology within the Toolbox software and that all associated I/O points are reporting correctly. Communication modules such as the IS200EACFG1A Ethernet adapter card may need to be reconfigured if the network topology has changed.

HMI Screen and Tag Mapping: In turbine control applications, conduction sensor data is typically displayed on operator HMI screens. After replacing the IS200EMCSG1AA, confirm that all associated HMI tags — including temperature trends, alarm thresholds, and interlock status — are correctly mapped and displaying live data. HMI systems connected to the Mark VI, such as those running GE Cimplicity or third-party SCADA platforms, should be validated against the updated I/O configuration.

Signal Isolation and Conditioning: In high-noise industrial environments, signal isolators or conditioners installed between the IS200EMCSG1AA and field sensors should be inspected during the retrofit. Devices such as DIN-rail mounted signal isolators help prevent ground loops and electromagnetic interference from corrupting conduction sensor readings, particularly in environments with large motor drives or high-voltage switchgear nearby.

Programming Cable and Diagnostic Access: During commissioning, a Mark VI programming cable (typically USB-to-serial or Ethernet-based) is required to connect a laptop running Toolbox software to the controller for live diagnostics, module configuration, and alarm verification. Ensure this cable and the appropriate Toolbox license are available on-site before the maintenance window begins.

Downtime Control During System Migration

Minimizing downtime during an IS200EMCSG1AA replacement is achievable with proper pre-planning. The most effective strategy is to perform a hot-standby verification before the maintenance window: use the Mark VI Toolbox to export the current system configuration, including all I/O assignments, alarm setpoints, and interlock logic, so that the original program can be restored immediately if the replacement card does not initialize correctly.

Where the process allows, consider placing the turbine or associated equipment in a controlled hold state rather than a full emergency shutdown. This preserves the integrity of the control program in the Mark VI controller’s non-volatile memory and reduces the risk of configuration loss during the card swap.

For sites operating redundant Mark VI configurations — where the system uses dual or triple-redundant I/O modules — the IS200EMCSG1AA can often be replaced in one redundant channel while the remaining channels maintain control continuity. This approach, sometimes called a hot swap under redundancy, is the preferred method for critical turbine applications in power plants and LNG facilities where any interruption to the control loop is unacceptable.

After the replacement card is seated and powered, allow the Mark VI controller sufficient time to complete its self-diagnostic cycle before re-enabling the associated control loops. Monitor the Toolbox diagnostic screen for any fault codes related to the IS200EMCSG1AA slot, and verify that all conduction sensor readings are within expected ranges before returning the system to automatic control.

NINERMAS ships the IS200EMCSG1AA with a full pre-shipment functional test report, reducing the risk of receiving a non-functional card and eliminating the need for on-site burn-in testing. Our inventory is maintained to support both planned retrofit projects and emergency replacement scenarios, with fast international shipping to minimize the gap between failure and restoration.

Retrofit Support FAQ

Q1: Is the IS200EMCSG1AA a direct drop-in replacement for the original GE card?
Yes. The IS200EMCSG1AA is an original GE Mark VI Conduction Sensor Card and is a direct slot-compatible replacement for the same part number in any Mark VI rack. No hardware modification is required. However, we recommend verifying firmware compatibility with your Mark VI controller version using GE Toolbox before installation.

Q2: What pre-shipment testing does NINERMAS perform on the IS200EMCSG1AA?
Every IS200EMCSG1AA unit shipped by NINERMAS undergoes functional testing to verify power-up behavior, communication interface integrity, and signal processing capability. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the IS200EMCSG1AA be used in both simplex and redundant Mark VI configurations?
Yes. The IS200EMCSG1AA is compatible with both simplex and TMR (Triple Modular Redundant) Mark VI configurations. In redundant systems, the card can be replaced in one channel while the remaining channels maintain control, subject to your site’s safety procedures and the Mark VI system’s redundancy management settings.

Q4: How does NINERMAS support long-term supply for discontinued or hard-to-find Mark VI components?
NINERMAS maintains a dedicated inventory of legacy GE Mark VI components, including the IS200EMCSG1AA and related cards such as I/O modules, power supply cards, and communication adapters. We support both single-unit emergency orders and bulk procurement for planned retrofit projects. Our 12-month warranty and consistent stock availability make us a reliable long-term supply partner for sites managing aging Mark VI installations.
