GE IS220PTCCH1A Safety-Reliable IO Pack for Critical Control

GE IS220PTCCH1A Safety-Reliable IO Pack for Critical Control Sites

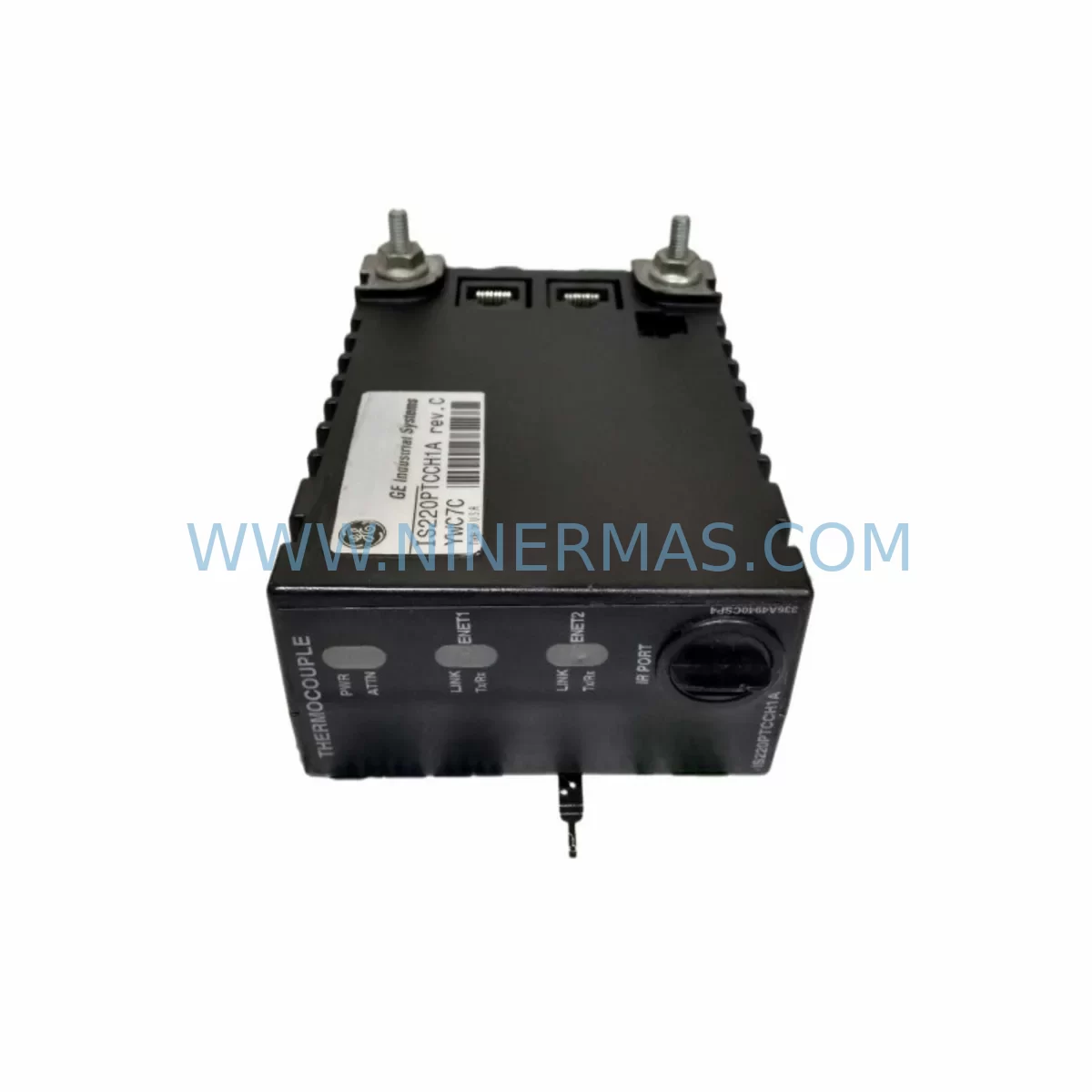

The GE IS220PTCCH1A is a high-integrity Thermocouple Input IO Pack designed for the GE Mark VIe turbine and industrial control platform. Engineered for continuous-duty environments where control interruption is not an option, the IS220PTCCH1A delivers stable, low-drift signal acquisition across demanding thermocouple measurement loops in power generation, petrochemical processing, and heavy industrial applications. Its robust design addresses the core risks of critical control sites: signal drift, electromagnetic interference, power transients, and unplanned downtime — making it a trusted spare and replacement module for safety-critical control cabinets worldwide.

At NINERMAS, every IS220PTCCH1A unit is sourced from verified supply channels, pre-shipment tested against OEM functional benchmarks, and backed by a 12-month warranty. We maintain ready stock to support urgent maintenance windows, planned turnarounds, and long-term spare parts programs for Mark VIe-based control systems.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark VIe control cabinet, the IS220PTCCH1A IO Pack operates as part of a tightly integrated I/O subsystem. Its thermocouple inputs feed directly into the turbine’s safety and performance logic, making signal integrity a non-negotiable requirement. A single degraded IO Pack can introduce temperature measurement errors that propagate into combustion control, exhaust monitoring, or protective trip logic — creating both safety and availability risks.

To build a resilient control cabinet architecture around the IS220PTCCH1A, site engineers typically pair it with complementary Mark VIe IO Packs and system components. The IS220PVIBH1B Vibration Monitor IO Pack handles shaft and bearing vibration inputs in the same cabinet, while the IS220PPROH1A Protection IO Pack manages critical protective relay outputs. For analog process inputs beyond thermocouples, the IS220PAICH1B Analog Input IO Pack provides high-accuracy 4–20 mA signal acquisition. Power integrity for the entire IO subsystem is maintained through the IS200EPCTG1A power conditioning module, which suppresses voltage spikes and brownout conditions that could cause IO Pack resets or data corruption.

On the communication side, the Mark VIe IONet architecture relies on the IS220PTURH1A Turbine Control IO Pack and the IS200ETBCH1A terminal board to route signals cleanly between field devices and the controller. In high-EMI environments — common in gas turbine enclosures, motor control centers, and heavy process areas — shielded IONet cables and proper grounding of the IS200TBCIH1A terminal board are essential to prevent communication anomalies and spurious trips. For sites with redundant control architectures, the IS220PTCCH1A can be deployed in TMR (Triple Modular Redundancy) configurations alongside redundant IS200EACFG1A controller modules, ensuring that no single point of failure can interrupt the safety loop.

Surge events from nearby VFDs, large motor starts, or lightning strikes represent a persistent threat to IO Pack longevity. Coordinating the IS220PTCCH1A with upstream surge protection devices — such as DIN-rail mounted SPDs on the 24 VDC control power rail — significantly extends mean time between failures and reduces the risk of latent damage that only manifests during high-demand operating periods.

Critical Industrial Safety Applications

The GE IS220PTCCH1A IO Pack is deployed across a wide range of critical industrial environments where temperature measurement accuracy directly affects process safety and equipment protection:

Power Generation (Gas & Steam Turbines): The IS220PTCCH1A is a core component in GE Frame 6, Frame 7, and Frame 9 gas turbine control systems. It monitors exhaust gas temperatures (EGT), combustion dynamics, and bearing temperatures — inputs that feed directly into protective trip logic. Accurate thermocouple data prevents over-temperature events that could cause hot-section damage or unplanned outages.

Petrochemical & Refinery Processing: In continuous process plants, the IS220PTCCH1A supports temperature monitoring in reactor vessels, heat exchangers, and distillation columns. Its stable signal acquisition under high-EMI conditions — generated by large pumps, compressors, and variable-speed drives — ensures that safety instrumented systems (SIS) receive reliable process data for interlock activation.

Mining & Mineral Processing: Heavy-duty mining environments subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The conformal-coated design of the IS220PTCCH1A provides resilience in crusher control rooms, conveyor drive panels, and mill control cabinets where standard IO modules would degrade rapidly.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise temperature monitoring for biological process control and equipment protection. The IS220PTCCH1A’s low-drift performance ensures consistent readings in high-humidity pump stations and chemical dosing control panels.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting control systems demand IO hardware that can withstand intense electromagnetic interference and thermal cycling. The IS220PTCCH1A’s shielded input architecture and robust construction make it suitable for integration into melt shop and rolling mill control systems.

Port & Marine Applications: Shipboard power management systems and port crane control panels increasingly use GE Mark VIe-based architectures. The IS220PTCCH1A supports temperature monitoring for diesel generator sets, thruster motor protection, and HVAC control in marine-grade control cabinets.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IS220PTCCH1A?
The 12-month warranty covers all functional failures under normal operating conditions, including signal acquisition faults, communication errors, and hardware component failures. If the module fails to perform to GE Mark VIe IO Pack specifications within the warranty period, NINERMAS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each IS220PTCCH1A unit?
Every IS220PTCCH1A undergoes a full functional verification process before dispatch. This includes power-on self-test, channel-by-channel thermocouple input verification across multiple TC types, IONet communication handshake testing, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the IS220PTCCH1A compatible with both Mark VIe and Mark VI control systems?
The IS220PTCCH1A is natively designed for the GE Mark VIe platform and its IONet-based I/O architecture. Compatibility with legacy Mark VI systems depends on the specific hardware revision and terminal board configuration at the installation site. NINERMAS technical support can assist with compatibility verification based on your existing system’s BOM and revision level prior to purchase.

Q4: Can NINERMAS support long-term spare parts supply for IS220PTCCH1A across multiple sites?
Yes. NINERMAS maintains standing inventory of the IS220PTCCH1A and related Mark VIe IO Packs to support multi-site spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. We offer volume pricing, reserved stock arrangements, and expedited shipping to minimize control system downtime across your global operations.
