GE DS200TCRAG1ABC Retrofit-Compatible Safety Control Module

GE DS200TCRAG1ABC Retrofit-Compatible Safety Control Module for Legacy Systems

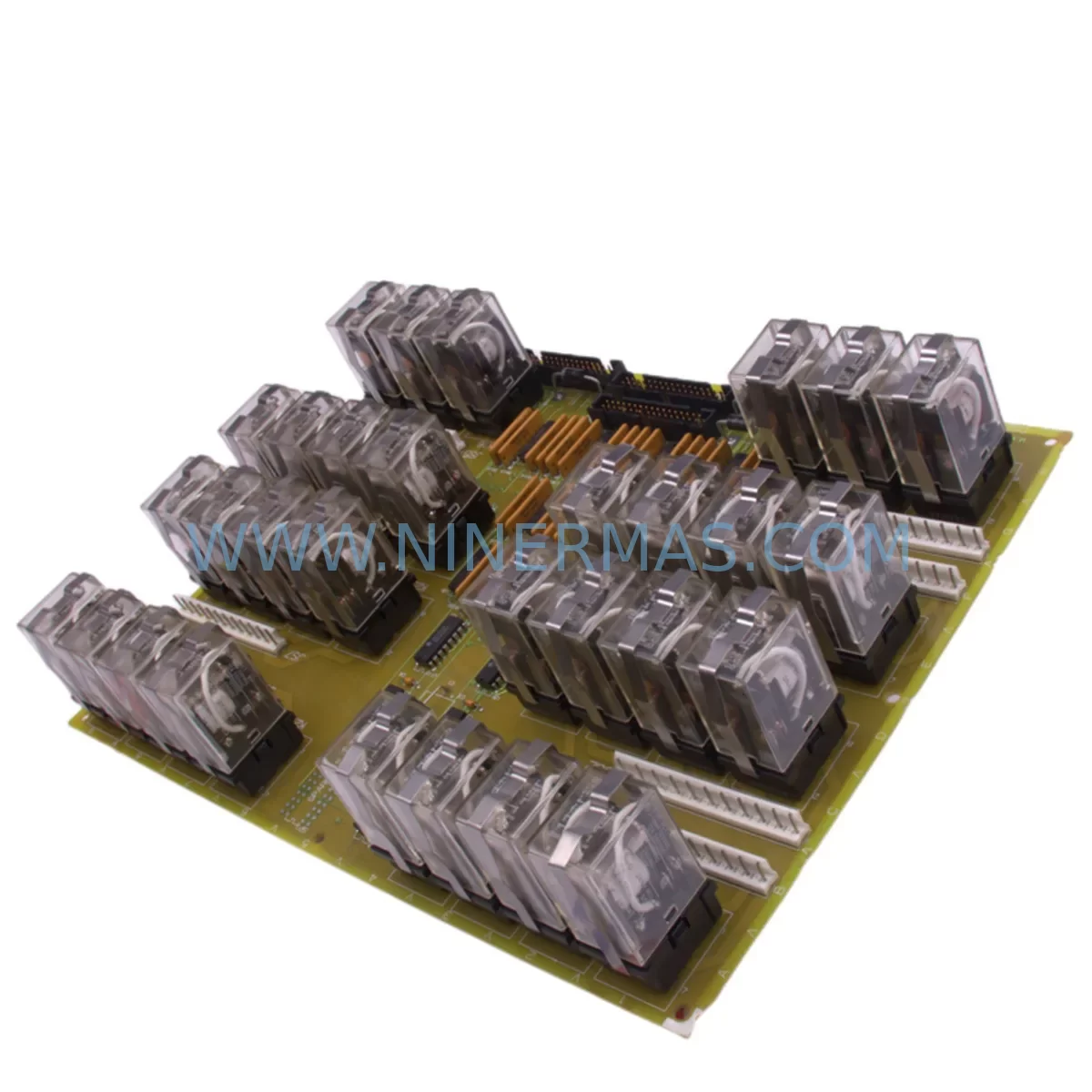

The GE DS200TCRAG1ABC is a ruggedized safety control module originally designed for GE’s Mark VI turbine control platform. As industrial facilities face the challenge of maintaining aging distributed control systems (DCS) and turbine management infrastructure, the DS200TCRAG1ABC has become a critical retrofit component for engineers seeking to extend the operational life of legacy control cabinets without committing to a full platform migration. NINERMAS maintains verified stock of this module with full functional testing and a 12-month warranty, supporting customers across power generation, oil & gas, petrochemical, and heavy manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the DS200TCRAG1ABC, engineers must account for the full scope of the control cabinet ecosystem. In a typical Mark VI turbine control enclosure, this module operates alongside the DS200TCQAG1A terminal board, which provides the physical I/O termination points for field wiring. Before swapping the DS200TCRAG1ABC, technicians should document all terminal assignments and verify that the existing wiring harness is compatible with the replacement module’s connector pinout.

Power integrity is a frequent concern during retrofits. The DS200TPSG1A power supply module must be confirmed to deliver stable 28 VDC within tolerance before the new safety control card is installed. Voltage sag or ripple from an aging power supply can cause the replacement module to fault on startup, leading to unnecessary troubleshooting delays. In parallel, the DS200SDCIG2A servo drive control card — if present in the same rack — should be inspected for firmware compatibility with the updated safety module.

Communication continuity is equally important. The Mark VI platform relies on the IS420UCSBH3A controller board to manage IONet communication between the turbine control modules and the HMI workstation. When replacing the DS200TCRAG1ABC, engineers should verify that the IONet node address assigned to the original module is correctly re-mapped in ToolboxST, and that the HMI CIMPLICITY display screens referencing safety status signals are updated to reflect the new module’s tag assignments. Failure to update HMI signal bindings is one of the most common causes of post-retrofit alarm floods.

For facilities migrating from older Mark V systems to Mark VI, the DS200TCRAG1ABC often serves as a bridging component during phased upgrades. In these scenarios, the DS200DSPCH7A digital signal processor card and the DS200EXPSG1ADA I/O expansion module are frequently installed in the same upgrade cycle to extend the I/O capacity of the modernized control rack. Rack space must be confirmed before ordering — a fully populated Mark VI rack leaves limited room for additional modules, and the physical dimensions of the DS200TCRAG1ABC must be verified against available slot positions.

Signal isolation is another consideration when integrating the DS200TCRAG1ABC into a mixed-generation control system. Where legacy 4–20 mA analog loops interface with the updated safety module, a signal isolator or loop-powered transmitter barrier may be required to prevent ground loops and protect the module’s analog input circuits. This is particularly relevant in older plants where cable shielding practices were inconsistent.

Finally, programming cable compatibility should be confirmed before on-site commissioning. The IS420UCSBH3A USB-to-serial programming interface and the ToolboxST configuration software version must both support the DS200TCRAG1ABC firmware revision. NINERMAS recommends requesting the module’s firmware label during order confirmation to ensure alignment with the customer’s existing ToolboxST environment.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any facility replacing a safety control module in an active turbine or process control system. When replacing the DS200TCRAG1ABC, the recommended approach is a hot-standby swap procedure where the redundant control path (if available in the Mark VI TMR configuration) is verified as fully operational before the primary module is taken offline. In simplex configurations, a planned maintenance window of 4–8 hours is typically sufficient to complete the physical swap, re-address the module in ToolboxST, verify I/O signal integrity, and perform a controlled restart sequence.

Original program logic should be exported and archived from ToolboxST before any hardware change is made. This backup protects against configuration loss in the event of an unexpected controller fault during the swap. HMI screens should be placed in manual override mode where process safety permits, and field operators should be briefed on the expected alarm behavior during the transition period.

NINERMAS ships all DS200TCRAG1ABC units with a pre-shipment functional test report, reducing the risk of receiving a non-functional module and extending the maintenance window unnecessarily. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage to the backplane connector pins — a common failure point for improperly packaged control modules.

Retrofit Support FAQ

Q: Is the DS200TCRAG1ABC a direct drop-in replacement for the DS200TCRAG1A?
A: In most Mark VI installations, yes. The DS200TCRAG1ABC is functionally equivalent to earlier DS200TCRAG1A revisions. However, customers should verify the firmware revision and terminal board compatibility (TCQA/TCQB/TCQC) before installation, as minor hardware revisions can affect I/O channel mapping.

Q: Does NINERMAS test modules before shipment?
A: Yes. Every DS200TCRAG1ABC unit undergoes functional verification on a GE Mark VI test bench prior to shipment. A test report is included with each order. All units are covered by a 12-month warranty against functional failure.

Q: What wiring changes are required when replacing the DS200TCRAG1ABC?
A: In most cases, no wiring changes are required if the replacement module matches the original’s terminal board configuration. Technicians should photograph and document all field wiring connections before removal and verify terminal torque specifications during reinstallation to ensure reliable signal continuity.

Q: How quickly can NINERMAS supply the DS200TCRAG1ABC?
A: NINERMAS maintains ready stock of the DS200TCRAG1ABC and can typically ship within 1–3 business days. Express shipping options are available for emergency breakdown situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory and lead time.
