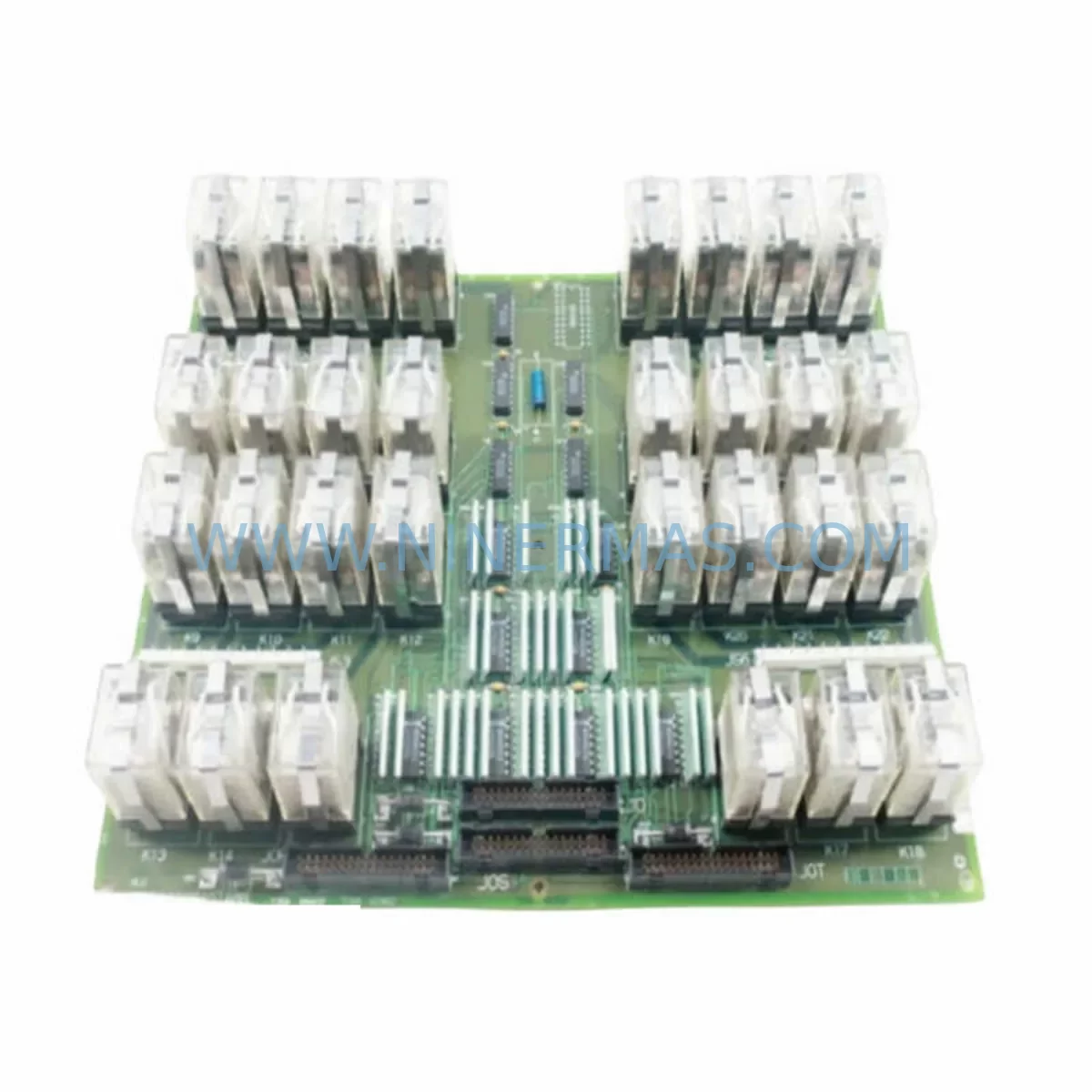

The GE DS200TCRAG1ABB is a critical turbine control board designed for the GE Mark V Turbine Control System, widely deployed in gas turbine, steam turbine, and combined-cycle power generation facilities. For maintenance engineers managing aging turbine control infrastructure, sourcing a verified, service-ready DS200TCRAG1ABB spare is essential to minimising unplanned downtime and protecting long-term plant availability. This board serves as a core component within the Mark V control cabinet, handling real-time I/O processing, signal conditioning, and inter-board communication that keeps turbine sequencing and protection logic operational.

At NINERMAS, every DS200TCRAG1ABB unit is sourced from original production runs, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Whether you are responding to an emergency trip event, building a strategic spare parts inventory, or executing a scheduled annual overhaul, this board is available for immediate dispatch with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DS200TCRAG1ABB in a Mark V turbine control cabinet is rarely an isolated task. Experienced maintenance engineers treat board replacement as an opportunity to audit the surrounding control architecture and reduce the risk of secondary failures. During the same maintenance window, it is advisable to inspect the DS200TCQAG1A (turbine control I/O board) and the DS200TCEAG1BDD (excitation control board), both of which share the same backplane power rails and are subject to similar thermal and electrical stress cycles.

The Mark V backplane itself — including the DS200TBCBG1AAA terminal board — should be checked for corrosion, loose connectors, and damaged ribbon cables before the new DS200TCRAG1ABB is seated. Power supply modules such as the DS200DPBAG1A power distribution board should be load-tested to confirm stable +5 VDC and ±15 VDC outputs, as undervoltage conditions are a leading cause of premature board failure.

Signal integrity is equally important. The DS200SDCCG1A (speed and dynamics control card) and associated speed pickup signal cables should be inspected for shielding continuity and connector integrity. If the plant uses thermocouple or RTD inputs routed through the Mark V, the DS200TCDAG1A thermocouple input board should be verified for calibration drift. Relay output modules and terminal strips connected to the turbine trip circuit — including the DS200TCCAG1B — should be exercised and confirmed operational before returning the unit to service.

For facilities running extended maintenance intervals, maintaining at least one DS200TCRAG1ABB as a hot-standby spare, alongside a DS200TCQAG1A and a power supply module, is a widely adopted strategy in gas turbine fleet management. This approach eliminates the sourcing lead time risk during emergency outages and supports a predictable spare parts budget cycle.

Site Replacement Workflow

Step 1 — Isolate and document: Prior to removal, capture the existing board’s configuration via the Mark V HMI (Cimplicity or equivalent operator interface). Record all active I/O assignments, alarm states, and any site-specific calibration offsets stored in the control panel.

Step 2 — Safe de-energisation: Follow plant LOTO (Lockout/Tagout) procedures. Confirm that the turbine is in a safe shutdown state and that the Mark V panel is de-energised at the appropriate breaker. Discharge any residual backplane capacitance before handling boards.

Step 3 — Board extraction: Release the card ejector levers on the DS200TCRAG1ABB slot. Withdraw the board slowly and place it in an ESD-safe bag immediately. Inspect the vacated slot for debris, bent connector pins, or signs of heat damage on the backplane.

Step 4 — Install replacement: Insert the new DS200TCRAG1ABB into the correct slot, ensuring full backplane connector engagement. Re-seat any associated ribbon cables or inter-board connectors that were disturbed during extraction.

Step 5 — Power-up and verification: Re-energise the panel and observe the Mark V diagnostic LEDs and HMI status screens. Confirm that the replacement board is recognised, that I/O channels are reporting correctly, and that no new alarms are present. Perform a controlled turbine start sequence if plant conditions permit.

Step 6 — Documentation and spare replenishment: Log the replacement in the plant maintenance management system (CMMS). Initiate a purchase order for a replacement DS200TCRAG1ABB spare to restore your inventory buffer. NINERMAS supports long-term supply agreements to ensure consistent availability for multi-unit fleets.

Spare Parts Support FAQ

Q1: Is the DS200TCRAG1ABB a direct drop-in replacement for all Mark V panel configurations?
In the majority of Mark V and Mark V LM installations, the DS200TCRAG1ABB is a direct slot-compatible replacement requiring no firmware modification. However, site-specific I/O configurations and software revisions should always be verified against the existing panel documentation before installation. NINERMAS technical support can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the DS200TCRAG1ABB?
Each unit undergoes power-on functional testing, visual inspection for component damage, connector integrity checks, and board-level diagnostics. Units that do not meet our quality threshold are not shipped. A test report summary is available upon request.

Q3: Can NINERMAS support long-term or blanket purchase orders for DS200TCRAG1ABB?
Yes. NINERMAS offers long-term supply agreements for fleet operators and EPC contractors who require guaranteed availability of critical Mark V spare parts. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programmes.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimise plant downtime.
