GE DS200IMCPG1BBA Retrofit-Compatible IGBT Power Supply Board

GE DS200IMCPG1BBA Retrofit-Compatible IGBT Power Supply Board: Legacy System Modernization & Smooth Upgrade

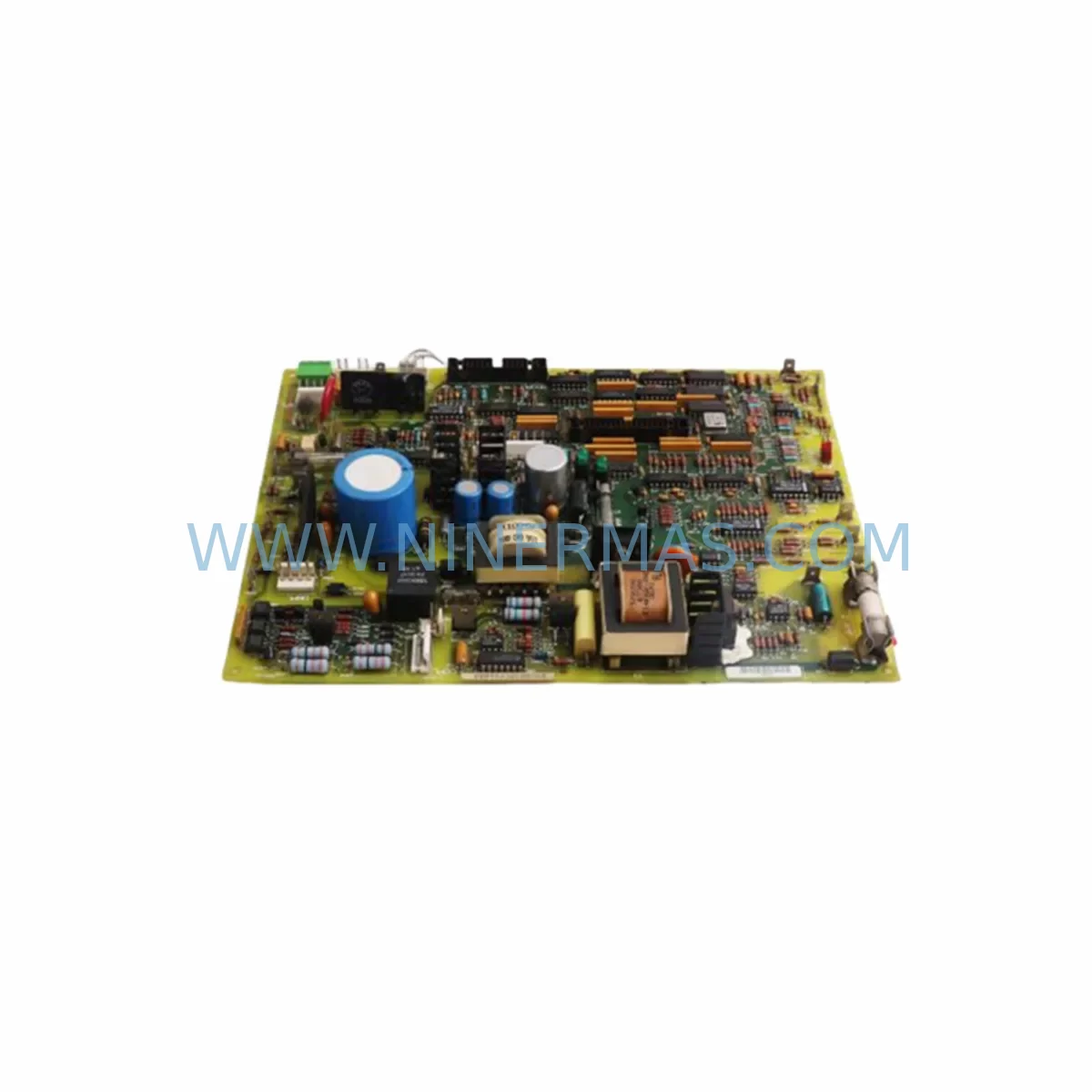

The GE DS200IMCPG1BBA is a critical IGBT gate driver and power supply board originally designed for GE’s Mark V and Mark VI turbine control platforms. As legacy automation systems age and OEM support windows close, the DS200IMCPG1BBA has become one of the most sought-after retrofit components for engineers tasked with extending the operational life of gas turbine control cabinets, power generation systems, and heavy industrial drive enclosures. NINERMAS maintains verified stock of the DS200IMCPG1BBA with full functional testing and a 12-month warranty, making it a reliable solution for both emergency replacement and planned system modernization projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DS200IMCPG1BBA into an aging control system requires careful pre-installation planning. Engineers should begin by auditing the existing Mark V or Mark VI control cabinet to confirm available backplane slot positions and verify that the power rail voltage — typically +5 VDC and ±15 VDC — meets the board’s operating requirements. In many retrofit scenarios, the DS200IMCPG1BBA is replaced alongside related boards such as the DS200SDCCG1A (Speed Detector and Control Card), the DS200TCQAG1BHF (Turbine Control I/O board), or the DS200DSPCH1A (Digital Signal Processor Card) to restore full system integrity after cascading failures.

When upgrading the power distribution architecture within the control cabinet, it is common to simultaneously service the DS200PCCAG1A power supply module and the DS200EXPSG1ADA I/O expansion board to ensure stable voltage delivery across all active slots. If the system includes a GE Mark VI HMI workstation running Toolbox software, engineers should confirm that the HMI display screens and alarm pages remain consistent with the restored I/O mapping after the board swap. Communication links — particularly those running on the GE IONet or ARCNET protocol — must be verified for continuity after any backplane-level hardware change.

For systems that include a DS200TCDAG1AHF analog I/O termination board or a DS200TCEAG1BHF excitation control board, terminal wiring diagrams should be cross-referenced against the original engineering drawings before powering up the retrofitted cabinet. Address configuration for the replacement DS200IMCPG1BBA should be confirmed against the existing rack addressing scheme to prevent module conflicts. Where signal isolation is required between legacy field wiring and the new board, inline signal isolators or barrier strips may be needed to protect the IGBT gate circuits from transient overvoltage events common in older plant environments.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing the DS200IMCPG1BBA in an operating turbine or drive control system. NINERMAS recommends a structured hot-swap preparation process: before removing the failed board, capture a full backup of the Mark V or Mark VI application program using GE’s Toolbox or Control System Toolbox software. This preserves all ladder logic, function block sequences, setpoint tables, and alarm configurations, ensuring that the restored system can be brought back online without reprogramming from scratch.

During the physical swap, the control cabinet should be de-energized at the appropriate isolation point while maintaining auxiliary power to any UPS-backed HMI or historian systems to preserve real-time data continuity. Once the DS200IMCPG1BBA is seated in the backplane, a staged power-up sequence should be followed: first verify DC bus voltages, then confirm IGBT gate signal integrity using an oscilloscope before enabling the main drive or turbine excitation circuit. This approach reduces the risk of secondary component damage caused by a mis-seated board or incorrect gate timing.

For planned maintenance windows, NINERMAS can provide pre-tested, pre-configured DS200IMCPG1BBA units with lead times confirmed at the time of order, allowing maintenance teams to schedule the replacement within a defined outage window and return the system to full production status with confidence. All units ship with a 12-month warranty and documented test results.

Retrofit Support FAQ

Q1: Is the DS200IMCPG1BBA a direct drop-in replacement for all DS200IMCPG1B variants?
A: The DS200IMCPG1BBA is functionally compatible with most DS200IMCPG1B series variants used in GE Mark V and Mark VI platforms. However, customers should confirm the hardware revision level and backplane connector type against their existing installation drawings before ordering. NINERMAS technical staff can assist with cross-referencing part numbers.

Q2: What commissioning checks are required after installing the DS200IMCPG1BBA?
A: After installation, verify IGBT gate drive voltage levels, confirm correct slot addressing, check all interlock and permissive logic in the Mark V/VI application, and perform a controlled low-load test run before returning the system to full operation. Communication link integrity on IONet or ARCNET should also be confirmed.

Q3: Does NINERMAS test the DS200IMCPG1BBA before shipment?
A: Yes. All DS200IMCPG1BBA units supplied by NINERMAS undergo functional bench testing prior to shipment. Test reports are available upon request. Each unit is covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and inventory availability?
A: NINERMAS maintains stock of the DS200IMCPG1BBA for immediate dispatch. Lead times for in-stock units are typically 1–3 business days for international express shipment. For volume orders or long-term supply agreements, please contact our sales team directly.
