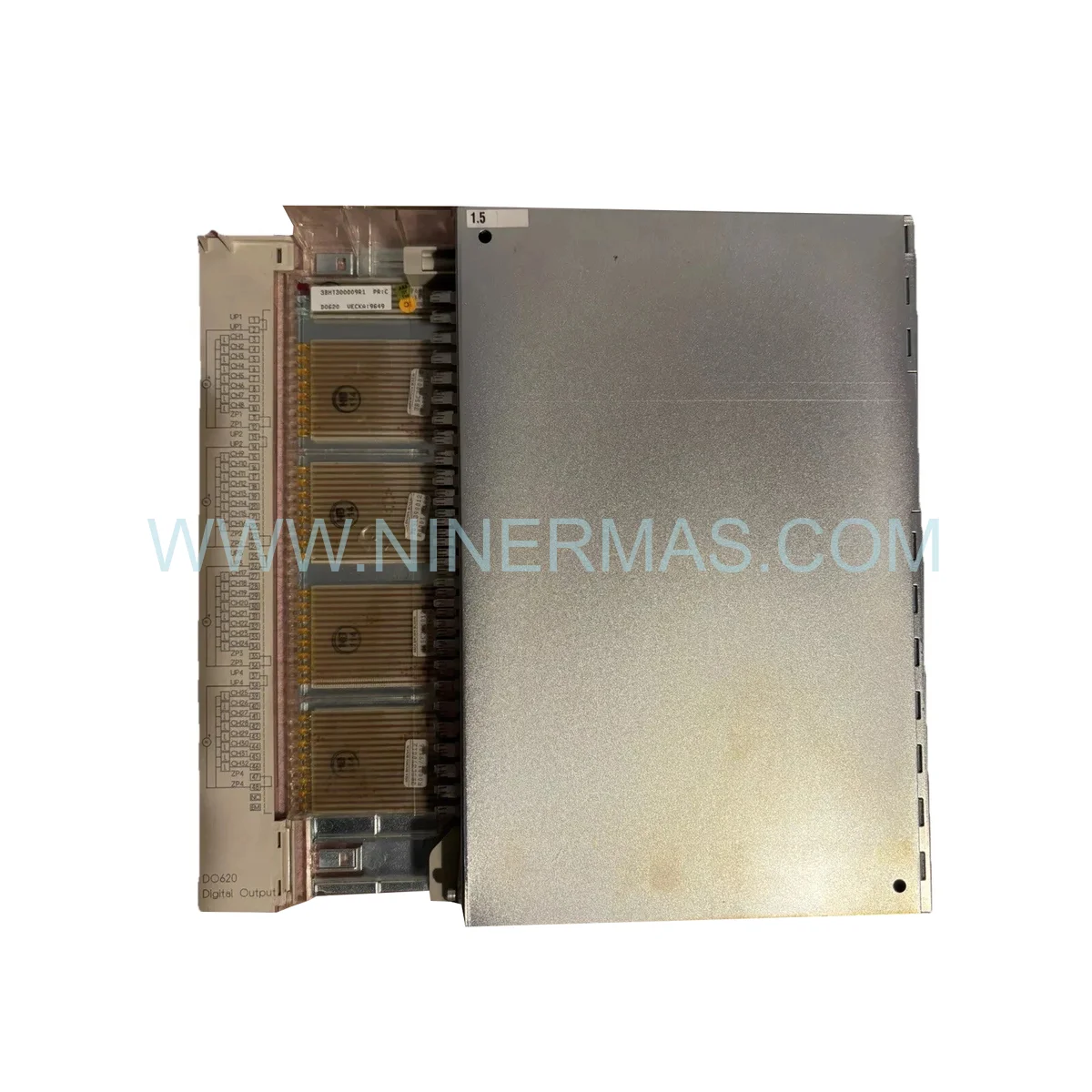

ABB DO620 3BHT300009R1 | 32-Ch 60VDC Digital Output Module

ABB DO620 3BHT300009R1 | Reliable Automation Component for Mission-Critical Operations

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed control infrastructure, the ABB DO620 3BHT300009R1 stands as a cornerstone component in sustaining system availability across high-demand industrial environments. This 32-channel digital output module, rated at 60VDC, delivers opto-isolated switching control organized across four independent channel groups — a structural advantage that directly reduces unplanned downtime by containing fault propagation at the group level rather than cascading across the entire output bus. Facilities running Advant OCS or S600 I/O architectures depend on the ABB DO620 3BHT300009R1 to maintain deterministic output response times, a non-negotiable requirement in process optimization scenarios where milliseconds translate to production yield.

Engineered for durability in harsh industrial conditions, this module operates reliably across a temperature range of -25°C to +60°C, making it suitable for deployment in outdoor substations, marine control panels, and thermally variable manufacturing cells. Each channel features short-circuit-proof transistor outputs with 0.5A continuous current capacity, and the four-group isolation architecture ensures that wiring faults in one zone do not compromise adjacent control circuits. During installation, engineers should verify group-level ground references and confirm that field device voltage ratings align with the 60VDC maximum to prevent premature output stage degradation.

As production lines age and OEM support windows close, maintaining a verified stock of the DO620 becomes a strategic imperative. EOL (End-of-Life) and legacy module availability gaps are among the leading causes of extended unplanned outages in brownfield automation sites. Sourcing a certified spare of this module in advance is a proven practice in operational excellence programs, ensuring that replacement cycles do not become production crises.

Key Operational Features

32 Discrete Output Channels — Organized in 4 independent opto-isolated groups (8 channels per group) for fault containment and redundancy support
60VDC High-Voltage Switching — Eliminates external relay amplification for DC solenoids, electromagnetic brakes, and industrial actuators
Short-Circuit Proof Transistor Outputs — Built-in overload and thermal shutdown protection for continuous high-availability operation
Seamless Integration with S600 I/O Bus — Plug-compatible with Advant OCS, AC160, and Master SW controller platforms without hardware modification
Channel-Level Fault Diagnostics — Real-time status reporting and LED indicators enable rapid fault isolation during maintenance windows
Hot-Swap Capable in Redundant Configurations — Supports live module replacement without system shutdown, maximizing operational continuity

Maintenance & Performance Benchmarks

The DO620 module is designed to integrate into both compact local I/O racks and large-scale distributed control architectures spanning multiple electrical zones. Its MTBF exceeds 150,000 hours under standard operating conditions, positioning it as a low-maintenance, high-reliability component in long-cycle industrial networks.

In multi-zone installations, the four-group isolation structure allows engineers to assign separate ground references per group, eliminating ground loop interference across distributed field device clusters. This capability is particularly valuable in oil & gas facilities and chemical processing plants where control cabinets are separated by significant distances and potential differences between ground points are common.

Firmware compatibility is maintained across Advant OCS platform upgrades, and configuration files created in earlier engineering station versions remain valid — reducing re-commissioning effort during controller migrations. Diagnostic thresholds and fault response behaviors are configurable via standard I/O configuration tools, allowing maintenance teams to tailor module behavior to site-specific reliability requirements without custom programming.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ABB DO620 3BHT300009R1 unit dispatched from our inventory is supplied in original factory packaging with full manufacturer traceability documentation, including batch certificates and compliance declarations. We maintain dedicated stock of S600 I/O family components specifically to support EOL and legacy system operators who cannot afford extended lead times from standard distribution channels.

Original Factory Packaging — Modules shipped in ABB OEM packaging with intact tamper-evident seals
Same-Day Dispatch — Available for in-stock units when orders are confirmed before daily cut-off time
Global Supply for EOL & Legacy Modules — Dedicated sourcing network for discontinued and hard-to-find Advant OCS components
Worldwide Express Logistics — DHL, FedEx, and UPS priority shipping to over 150 countries with full customs documentation support
1-Year Warranty — All modules covered against manufacturing defects with direct replacement guarantee

Engineering Support & FAQ

Q1: What controller platforms are compatible with the DO620 3BHT300009R1?
The DO620 is designed for ABB Advant OCS systems, including Advant Controller 160 (Version 2.2 and later) running Master SW. It communicates via the S600 I/O bus and is compatible with both local and remote I/O rack configurations.

Q2: What firmware version is required for full DO620 functionality?
Full channel diagnostics and group-level fault reporting require Master SW Version 2.2 or higher. Earlier firmware versions support basic output control but may not expose per-channel status data to the engineering station. Verify your controller firmware revision before deployment in SIL-rated applications.

Q3: Can the DO620 be replaced while the system is running?
Yes. In redundant I/O configurations, the DO620 supports hot-swap replacement without requiring a full system shutdown. Ensure the replacement module is pre-configured with matching channel parameters before insertion to minimize output interruption during the swap procedure.

Q4: How do I initiate a warranty claim for a DO620 module?
Contact our technical support team via email at sale@ninermas.com with your order reference number, module serial number, and a description of the observed fault. Our team will initiate the RMA process and arrange express replacement shipment within 2 business days of fault confirmation.

Q5: What wiring gauge is recommended for field connections?
Field wiring should use conductors between 0.5mm² and 2.5mm² (20-14 AWG) terminated with ferrules for screw-terminal connections. For 60VDC field circuits, ensure wiring insulation is rated for at least 300V to maintain safety margins and comply with local electrical installation codes.

Q6: Is the DO620 suitable for SIL-rated safety applications?
The DO620 can be incorporated into SIL-rated architectures when properly configured within a validated safety instrumented system (SIS). The four-group isolation structure supports separation of safety and standard process outputs. Consult ABB’s functional safety documentation and engage a certified functional safety engineer for SIL validation activities.
