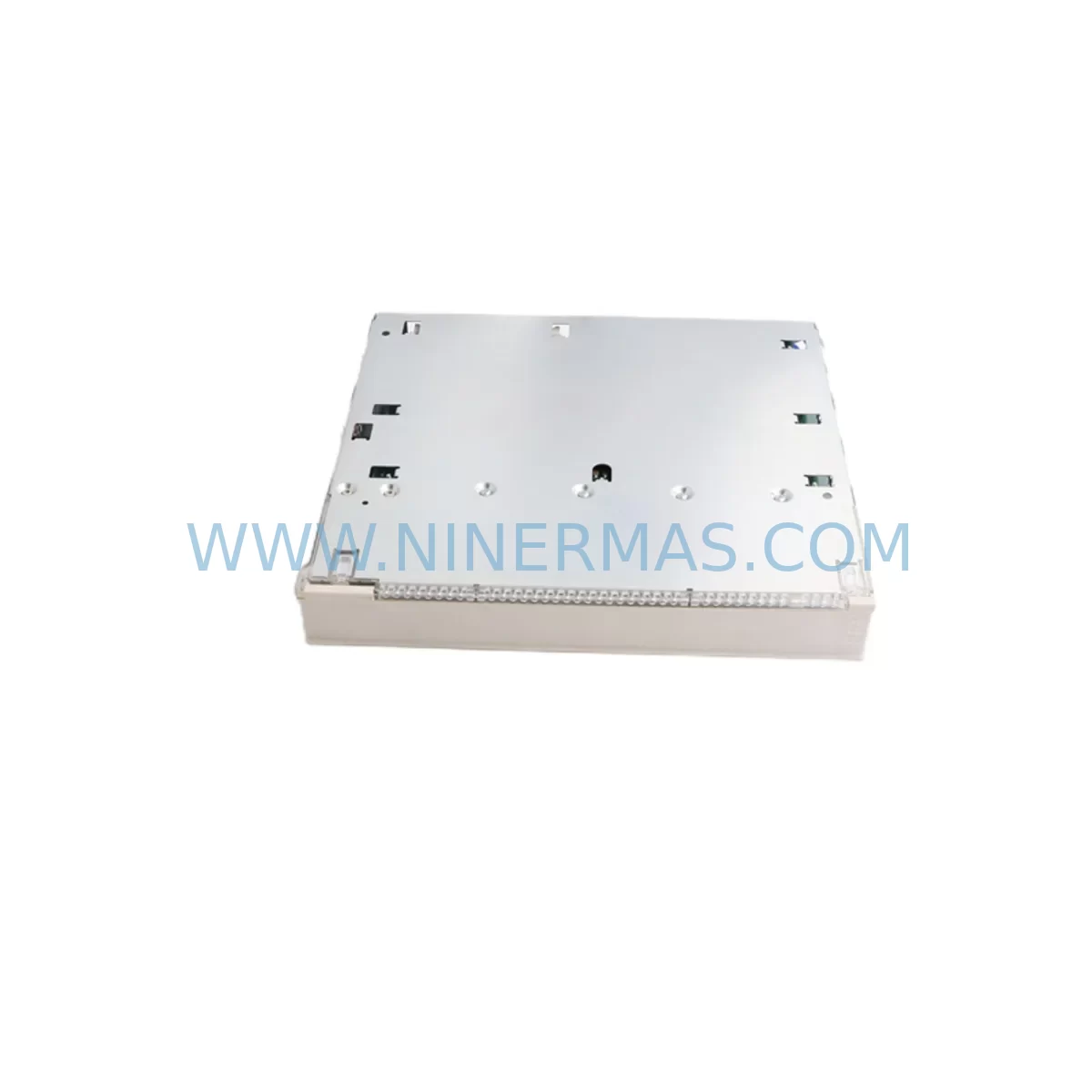

ABB AO610 3BHT300008R1 Safety-Reliable Analog Output Module

ABB AO610 3BHT300008R1: Safety-Reliable Analog Output Module for Critical Industrial Control Sites

The ABB AO610 (Part No. 3BHT300008R1) is a high-performance analog output module engineered for deployment in the most demanding industrial automation environments. Designed as a core component of ABB’s AC500 and Advant Controller series, this module delivers precision signal output with the robustness required for continuous production, critical interlock systems, and heavy-duty control cabinet installations. Whether your facility operates in petrochemical processing, power generation, mining, water treatment, metallurgy, port logistics, marine applications, or continuous manufacturing, the AO610 3BHT300008R1 provides the signal integrity and operational stability that safety-critical control loops demand.

In environments characterized by high electromagnetic interference (EMI), dust ingress, humidity fluctuations, elevated temperatures, and mechanical vibration, standard analog output modules frequently suffer from signal drift, output instability, and premature failure. The ABB AO610 3BHT300008R1 is built to overcome these challenges, maintaining accurate 4–20 mA or 0–10 V output signals even under adverse field conditions. Its robust hardware design minimizes the risk of control interruption, false actuation, signal drift, power fluctuation, communication anomalies, surge impact, and unplanned downtime — all of which represent critical safety and productivity risks in industrial operations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the ABB AO610 3BHT300008R1 does not operate in isolation — it functions as part of an integrated safety and control architecture. To maximize system reliability and minimize the risk of unplanned shutdowns, it is essential to pair the AO610 with complementary modules and protective components from the same control ecosystem.

Within the same ABB AC500 backplane, the ABB AI610 analog input module works in tandem with the AO610 to form a complete closed-loop control circuit, enabling precise process variable monitoring and corrective output adjustment. For digital interlock and safety relay functions, the ABB DI610 digital input module and ABB DO610 digital output module provide the discrete signal handling required for emergency stop circuits, valve control, and motor starter interlocks. Together, these I/O modules form the backbone of a reliable, safety-oriented control loop capable of withstanding the rigors of continuous industrial operation.

Power supply stability is a foundational requirement for analog signal accuracy. Voltage ripple or transient surges on the 24 V DC bus can introduce output errors in analog modules. Pairing the AO610 with a high-quality ABB CP-E 24/5.0 DIN-rail power supply unit ensures a clean, regulated supply voltage. For additional surge protection, installing Phoenix Contact TRABTECH surge protection devices (SPDs) on the 24 V DC supply rail upstream of the AO610 significantly reduces the risk of surge-induced module damage in lightning-prone or high-energy switching environments. This layered power protection strategy is especially important in outdoor substations, coastal facilities, and sites with frequent thunderstorm activity.

Communication integrity is equally critical. In distributed control architectures, the AO610 is typically managed via the ABB PM591 or ABB PM595 CPU module over the internal AC500 backplane bus. Ensuring firmware compatibility between the CPU and I/O modules, and using shielded backplane connectors, prevents communication anomalies that could cause output freeze or erratic signal behavior. For PROFIBUS DP or Modbus RTU field networks, the ABB CI590-CS31-HA communication interface module provides reliable protocol bridging with built-in diagnostic capabilities, enabling remote fault detection and reducing the need for on-site intervention in hazardous areas.

In high-vibration environments such as mining conveyors, ship engine rooms, or steel mill rolling lines, module retention and cable management are critical. Using ABB-approved terminal blocks such as the ABB TB82 series and properly torqued field wiring connectors prevents intermittent contact faults that can masquerade as signal drift or output instability. Additionally, periodic replacement of aging I/O modules — including the AO610 3BHT300008R1 — as part of a planned preventive maintenance schedule is strongly recommended to avoid the compounding risk of simultaneous multi-module failure in aging control cabinets.

NINERMAS maintains ready stock of the AO610 3BHT300008R1 along with a broad range of compatible ABB AC500 series modules, enabling rapid spare parts dispatch to minimize mean time to repair (MTTR) in the event of an unplanned module failure. Our inventory management system is designed to support both emergency replacement orders and long-term planned maintenance procurement programs.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units, catalytic crackers, and compressor control systems, the AO610 3BHT300008R1 provides stable 4–20 mA output signals to control valve positioners, variable frequency drives (VFDs), and flow control loops. Signal drift or output interruption in these applications can trigger emergency shutdowns or, worse, uncontrolled process deviations with serious safety consequences. The AO610’s robust design and EMI shielding make it well-suited for installation in control rooms adjacent to high-voltage switchgear and large rotating machinery.

Power Generation & Substation Automation: Thermal power plants, hydroelectric stations, and wind farm SCADA systems rely on analog output modules to regulate turbine governors, excitation systems, and cooling water flow. The AO610 3BHT300008R1 supports these applications with stable output under fluctuating supply conditions, ensuring that generator control loops remain responsive and accurate even during grid disturbances or load-shedding events.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme dust, humidity, and vibration. The AO610 is deployed in conveyor speed control, crusher load management, and ventilation fan regulation — all of which require reliable analog output performance to maintain safe operating conditions and prevent equipment overload. Its compliance with IEC 60068 environmental standards ensures continued operation in the harshest mining environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use analog output modules to control dosing pumps, aeration blowers, and sludge handling systems. Precise and stable output from the AO610 3BHT300008R1 ensures accurate chemical dosing and flow regulation, which are directly linked to effluent quality compliance and public health safety. The module’s resistance to humidity and condensation makes it particularly suitable for wet process environments.

Metallurgy & Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills operate under extreme thermal and electromagnetic stress. The AO610’s tolerance for high-temperature environments and its compliance with IEC EMC standards make it a reliable choice for analog control in these harsh metallurgical processes, where output accuracy directly affects product quality and equipment longevity.

Port Logistics & Marine Applications: Ship-to-shore cranes, bulk material handling systems, and marine propulsion control panels require analog output modules that can withstand salt air corrosion, vibration, and wide temperature swings. The AO610 3BHT300008R1, when installed in appropriately rated enclosures, delivers the signal stability required for safe and efficient port and marine operations, supporting both cargo handling precision and vessel safety systems.

Safety and Quality FAQ

Q1: What warranty does the ABB AO610 3BHT300008R1 carry when purchased from NINERMAS?
All ABB AO610 3BHT300008R1 modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. NINERMAS provides replacement or repair support within the warranty period to minimize disruption to your production operations.

Q2: What pre-shipment testing and inspection is performed on each unit?
Every AO610 3BHT300008R1 unit undergoes functional verification and visual inspection prior to dispatch. Modules are checked for output channel integrity, power supply input response, and physical condition including connector pins, housing, and labeling. Units that do not meet quality standards are quarantined and not shipped. Test records are available upon request for critical project applications.

Q3: Is the AO610 3BHT300008R1 compatible with my existing ABB AC500 or Advant Controller system?
The AO610 3BHT300008R1 is designed for integration within ABB’s AC500 PLC platform and Advant Controller architectures. It is compatible with standard AC500 backplanes and CPU modules including the PM591, PM592, and PM595 series. For legacy Advant systems, compatibility should be verified against the specific system configuration. NINERMAS technical support can assist with compatibility confirmation prior to purchase.

Q4: Can NINERMAS support long-term or repeat supply of the AO610 3BHT300008R1 for ongoing maintenance programs?
Yes. NINERMAS specializes in the long-term supply of industrial automation spare parts, including discontinued and hard-to-source ABB modules. We maintain buffer stock of the AO610 3BHT300008R1 to support planned maintenance schedules, emergency replacements, and capital project procurement. Customers with ongoing maintenance programs are encouraged to contact us to discuss framework supply agreements and reserved stock arrangements.
