HOLLEYWELL 8C-PDILA1 51454471-175 Retrofit-Compatible DI Module for Legacy C300

HOLLEYWELL 8C-PDILA1 51454471-175 Retrofit-Compatible Digital Input Module for Legacy C300 DCS Systems

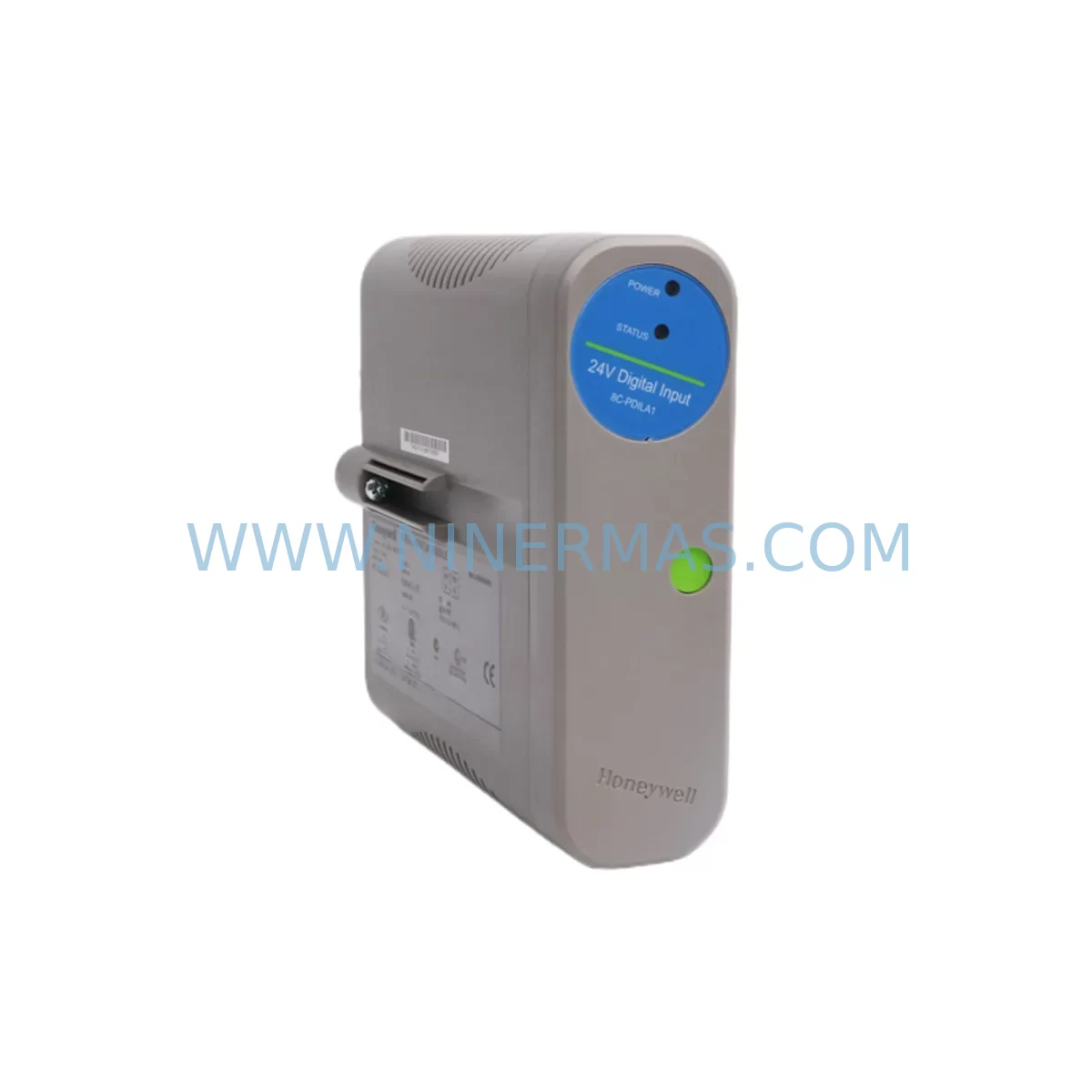

The HOLLEYWELL 8C-PDILA1 (part number 51454471-175) is a retrofit-compatible digital input module engineered for seamless integration into legacy Honeywell C300 Distributed Control System environments. As original OEM spare parts for the C300 DCS series become increasingly scarce and discontinued, the 8C-PDILA1 provides a reliable, drop-in compatible solution that preserves existing control logic, field wiring, and HMI configurations — minimizing engineering rework and unplanned downtime during system modernization projects.

Whether you are managing a planned control system upgrade, responding to an emergency spare part shortage, or executing a phased migration from an aging DCS platform, the 8C-PDILA1 is designed to restore operational continuity with minimal disruption to your production environment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 8C-PDILA1 into an existing C300 DCS environment requires a structured pre-installation assessment. Engineers should begin by auditing the current rack and backplane configuration. The C300 series uses a modular I/O architecture where each slot on the IOTA (I/O Termination Assembly) backplane is assigned a specific module address. Before removing the legacy digital input module, document the existing slot address, channel assignments, and field wiring terminations to ensure a like-for-like swap.

Power budget verification is a critical step often overlooked during emergency replacements. The C300 controller cabinet typically houses a redundant power supply pair — such as the 8C-PSMX01 or equivalent C300 power supply module — and the total I/O load must remain within the rated capacity after the new module is installed. If the cabinet is already near its power ceiling due to additional I/O expansion, a power audit should be completed before proceeding.

For sites running Honeywell Experion PKS, the C300 Controller module (e.g., 8C-PCNT01) manages all downstream I/O communication via the FTE network. After installing the 8C-PDILA1, engineers should open Control Builder and verify that the new module is recognized at the correct node address. If the system was previously configured with a CIOM-A (C300 I/O Module Adapter) or an 8C-TAIX11 analog input termination assembly in adjacent slots, confirm that the backplane addressing sequence has not shifted.

Field wiring compatibility should be validated against the original loop sheets. The 8C-PDILA1 accepts standard 24VDC digital input signals from field devices such as limit switches, proximity sensors, and relay contacts. If the site is migrating from an older TDC 3000 or PlantScape platform to the C300 architecture, signal conditioning may be required — in which case a signal isolator or signal conditioner module should be inserted between the field device and the new DI module to protect against ground loops and voltage mismatches.

Communication link integrity must be confirmed before returning the loop to automatic control. The C300 FTE network relies on a dual-redundant Ethernet backbone. If the site uses Cisco IE series industrial Ethernet switches or equivalent managed switches within the control network, verify that the switch port connected to the C300 controller is operating at the correct speed and duplex settings. Any network interruption during module hot-swap can trigger a controller failover event.

For sites that also need to expand I/O capacity during the same maintenance window, the 8C-PDOB01 digital output module and 8C-PAIM01 analog input module are commonly installed alongside the 8C-PDILA1 as part of a broader I/O refresh. If HMI faceplate updates are required following the I/O change, Experion PKS Station or the Honeywell HMIWeb Display Builder can be used to update graphic displays without requiring a full controller download.

Programming cable access may be needed if the controller requires a firmware update or a partial database reload following the module replacement. The Honeywell USB-to-serial programming cable or a direct Ethernet connection to the Experion server is typically used for this purpose. Ensure that the Experion PKS server has a current backup of the controller database before initiating any download to the C300 controller.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any control system retrofit. The 8C-PDILA1 supports hot-swap installation in most C300 configurations, allowing the module to be replaced while the controller remains in service — provided the affected I/O channels are placed in manual mode or their outputs are held at last value before the swap is initiated.

Before beginning the physical replacement, coordinate with the operations team to identify which process loops are affected by the digital input channels on the module being replaced. Place all affected controllers in manual mode and confirm with the field operator that the process is in a safe, stable state. Document the current DI channel status (open/closed) for each point to allow rapid verification after the new module is installed.

Once the 8C-PDILA1 is seated in the backplane slot, the C300 controller will automatically attempt to recognize the module and restore communication. Monitor the Experion PKS System Status Display for any module fault alarms. If the module address was correctly preserved and the firmware revision is compatible, the controller will resume normal I/O scanning within seconds. Return each affected loop to automatic mode only after confirming that all DI channel readings match expected field conditions.

To further reduce retrofit risk, NINERMAS recommends maintaining a minimum of one spare 8C-PDILA1 module in site inventory at all times. Given the discontinued status of many C300-era components, lead times for emergency procurement can extend to several weeks. A pre-tested, shelf-ready spare eliminates this risk entirely and supports a rapid recovery strategy in the event of an unplanned module failure.

All units supplied by NINERMAS undergo pre-shipment functional testing to verify digital input channel integrity, backplane communication, and power consumption within specification. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q1: Is the HOLLEYWELL 8C-PDILA1 (51454471-175) a direct replacement for the original Honeywell OEM part?
Yes. The 8C-PDILA1 supplied by NINERMAS is retrofit-compatible with the original Honeywell C300 DCS digital input module of the same part number. It is designed to install into the same backplane slot, use the same terminal wiring, and operate under the same Experion PKS configuration without requiring hardware or software modifications under standard replacement conditions. Customers are advised to verify the firmware revision compatibility with their site’s Experion PKS version before commissioning.

Q2: What pre-installation checks are required before replacing the module in a live C300 system?
Prior to installation, engineers should: (1) document the existing module slot address and channel assignments; (2) verify the cabinet power budget with the installed power supply module; (3) place all affected control loops in manual mode; (4) back up the Experion PKS controller database; and (5) confirm that the replacement module’s firmware revision is compatible with the site’s controller version. These steps ensure a safe, low-risk swap with minimal impact on production continuity.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
Yes. Every 8C-PDILA1 unit undergoes functional testing prior to shipment, including digital input channel verification, backplane communication checks, and power consumption validation. The 12-month warranty covers manufacturing defects and functional failures arising under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. NINERMAS maintains in-stock inventory of the 8C-PDILA1 to support both planned procurement and emergency replacement requirements.

Q4: Can the 8C-PDILA1 be used in a migration from TDC 3000 or PlantScape to the C300 platform?
The 8C-PDILA1 is a C300-native digital input module and is not directly compatible with TDC 3000 or PlantScape hardware architectures. However, it is commonly used as the target I/O module when migrating field wiring from legacy platforms to a new C300 rack. In such migrations, signal conditioning equipment — such as a signal isolator or barrier module — may be required to adapt legacy field signals to C300 input specifications. NINERMAS can advise on the appropriate signal conditioning components based on your specific field device types and wiring configurations.
