Allen-Bradley 1746-HS Retrofit Motion Controller for SLC 500

Allen-Bradley 1746-HS Retrofit-Compatible Motion Controller for SLC 500 Legacy Systems

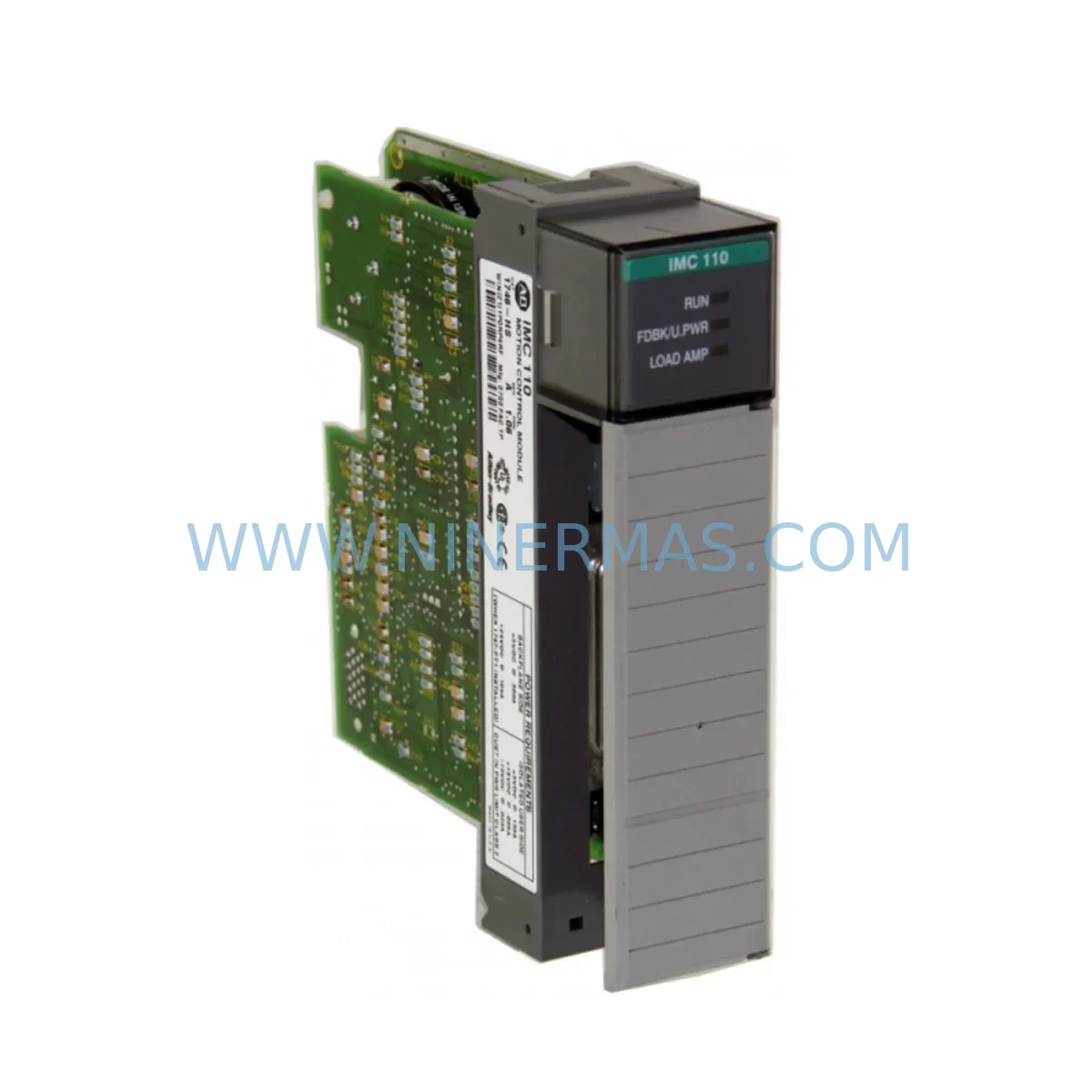

The Allen-Bradley 1746-HS (IMC 110 Integrated Motion Controller) is a single-axis servo motion control module designed for installation in the SLC 500 modular chassis. As production lines built around the SLC 500 platform age and original spare parts become increasingly scarce, the 1746-HS has become one of the most sought-after retrofit components for facilities seeking to extend the operational life of their existing automation infrastructure without committing to a full control system overhaul.

NINERMAS maintains verified inventory of the 1746-HS, with each unit subject to pre-shipment functional testing, visual inspection, and firmware version confirmation. All units are supplied with a 12-month warranty covering defects in materials and workmanship under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 1746-HS in an active production environment requires careful pre-planning across several interdependent system layers. The module sits at the intersection of the SLC 500 processor, the servo drive, and the machine’s motion logic — meaning a poorly managed swap can introduce faults across all three domains simultaneously.

Begin by auditing the existing SLC 500 chassis configuration. Identify the processor model — typically a 1747-L532, 1747-L541, or 1747-L553 — and confirm the firmware revision, as certain IMC 110 instruction blocks behave differently across processor generations. Export a full program backup from RSLogix 500 before any hardware is disturbed. This backup should include all rung logic, motion configuration files, and axis parameter tables.

Next, assess the power supply. The 1746-P4 and 1746-P7 are the most common power supplies found in SLC 500 systems running motion modules. Adding or replacing a 1746-HS changes the backplane current draw; confirm the supply’s available 5 VDC capacity against the updated module load calculation. Insufficient power supply headroom is a frequent cause of intermittent faults after module replacement.

Terminal wiring for the 1746-HS involves encoder feedback lines, drive enable signals, and analog command output. Before disconnecting the existing module, photograph or document all terminal assignments. The encoder differential signals (A+, A−, B+, B−, Z+, Z−) must be reconnected with correct polarity; reversed channels will cause the axis to fault immediately on enable. The analog ±10 VDC command output to the servo drive — often a Kinetix 300, Ultra 3000, or third-party equivalent — must also be verified for correct scaling and polarity.

If the system includes a PanelView or PanelView Plus HMI communicating over DH-485 or DH+ via a 1747-AIC or 1747-KE interface module, confirm that the HMI program references the correct slot address for the 1746-HS. Slot address mismatches between the physical installation and the RSLogix 500 program are a common source of post-replacement communication faults. Similarly, if a 1747-SDN DeviceNet Scanner or 1746-BAS BASIC module is present in the same chassis, verify that their configurations are unaffected by the slot change.

For systems where the 1746-HS interfaces with external I/O expansion via a 1746-HSTP1 or similar specialty module, confirm that the expansion addressing and program file references remain consistent after the replacement. Document the full I/O map before and after the swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1746-HS replacement begins with preparation completed entirely offline. The goal is to reduce the live intervention window to the shortest possible period — ideally a single planned maintenance shift.

Before the maintenance window opens, prepare the replacement 1746-HS by confirming its firmware version matches or is compatible with the existing RSLogix 500 program. If the firmware differs, determine whether a program modification is required or whether the module can be updated prior to installation. Have the RSLogix 500 program backup loaded on a programming laptop with the correct version of RSLogix 500 software installed and verified.

During the maintenance window, power down the SLC 500 chassis following the correct sequence: disable the servo drive first, then remove the drive enable signal, then power down the chassis. Remove the faulty or end-of-life 1746-HS from its slot, noting the slot number. Install the replacement unit in the identical slot position. Reconnect all terminal wiring per the documented assignments. Power up the chassis and allow the processor to complete its I/O scan before going online with RSLogix 500.

Once online, navigate to the motion configuration for the 1746-HS slot and verify that the axis parameters — including encoder counts per unit, velocity limits, acceleration/deceleration ramps, and software travel limits — match the backed-up values. Perform a controlled jog test at low speed before returning the axis to automatic mode. Confirm that the HMI displays correct axis status and that all interlocks tied to the motion module are functioning as expected.

By following this structured approach, most 1746-HS replacements can be completed within a single 4–8 hour maintenance window, preserving the original program logic and minimizing the risk of unplanned production interruptions.

Retrofit Support FAQ

Q: Is the 1746-HS a direct drop-in replacement for an existing IMC 110 module in my SLC 500 chassis?
A: Yes, provided the replacement unit is installed in the same chassis slot as the original. The SLC 500 processor identifies the module by slot address, so maintaining the original slot position ensures the RSLogix 500 program requires no modification. If the slot must change, the program file references will need to be updated accordingly.

Q: Does NINERMAS test the 1746-HS before shipment?
A: Yes. Each 1746-HS unit undergoes pre-shipment functional testing, including backplane communication verification and encoder interface checks. Units are inspected for physical condition and firmware version prior to dispatch. All units are covered by a 12-month warranty.

Q: What information should I have ready before ordering to confirm compatibility?
A: Please have the following available: your SLC 500 processor model and firmware revision, the chassis model (e.g., 1746-A7), the current RSLogix 500 program version, the servo drive model connected to the 1746-HS, and the encoder type and wiring configuration. This allows our technical team to confirm compatibility and flag any known revision-specific considerations before shipment.

Q: What is the typical lead time and do you maintain stock?
A: NINERMAS maintains warehouse inventory of the 1746-HS to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For time-critical breakdowns, please contact our team directly to confirm current stock availability and expedited shipping options.
