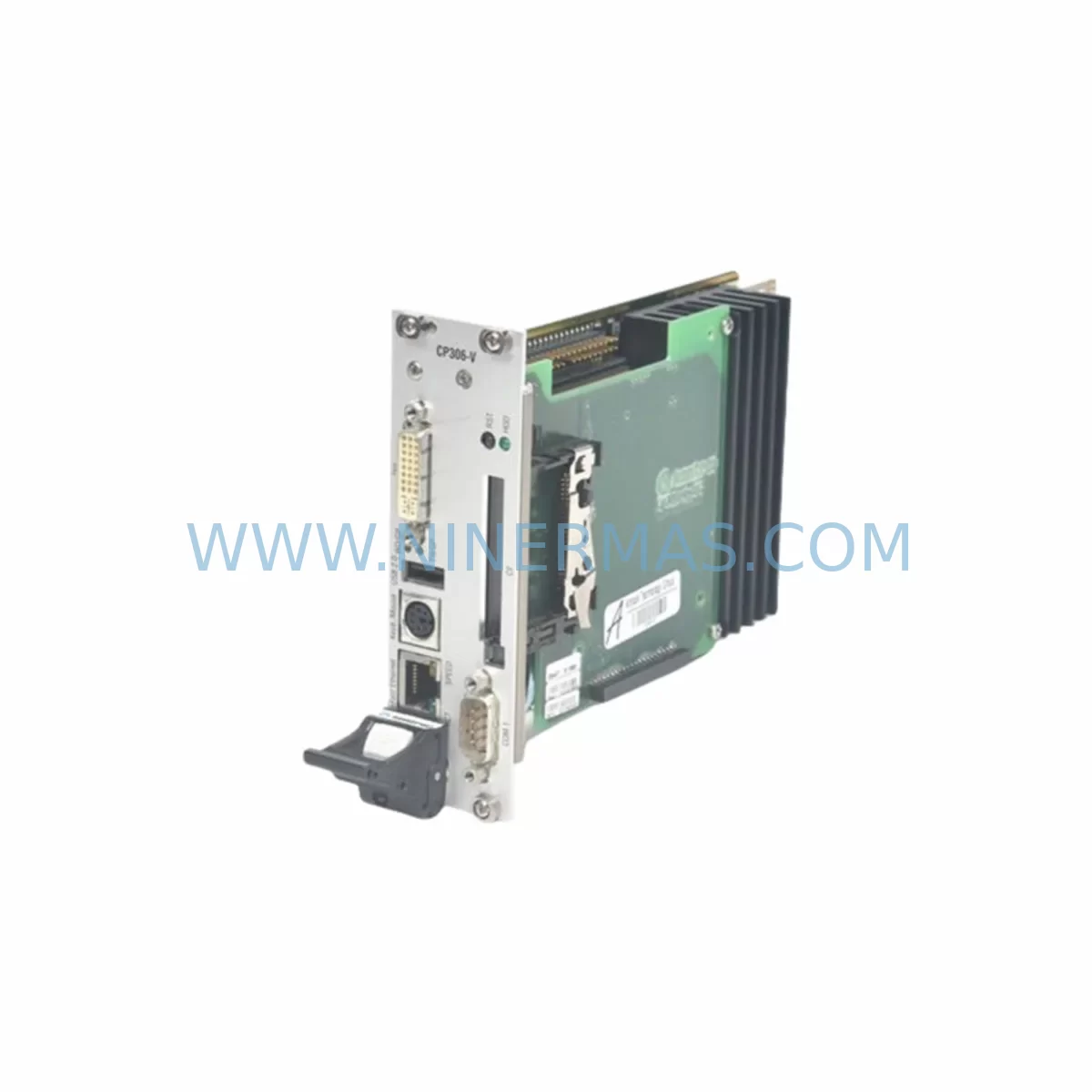

The KONTRON CP306-V is a CompactPCI CPU board engineered for demanding industrial automation environments. As a direct service-ready spare part for the CP300 Series platform, the CP306-V is a critical component in control cabinet architectures where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a proactive spare parts inventory, sourcing a verified CP306-V replacement from a reliable supply partner is the first step toward rapid system recovery.

At NINERMAS, every CP306-V unit undergoes pre-shipment functional verification to confirm board integrity, connector condition, and firmware compatibility before dispatch. We maintain long-term stock commitments for CP300 Series components, supporting maintenance engineers and procurement teams across manufacturing, energy, transportation, and process automation sectors. All units are covered by our 12-month warranty, giving your team confidence in every replacement decision.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KONTRON CP306-V in a live production environment requires a structured approach that goes beyond swapping the CPU board alone. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding control cabinet ecosystem and reduce the risk of secondary failures after restart.

Begin with the CompactPCI backplane itself — inspect all slot connectors for oxidation, bent pins, or thermal stress marks. A degraded backplane can cause intermittent faults even with a new CP306-V installed. Next, verify the cPCI power supply module (typically a dedicated industrial PSU feeding the 3.3V and 5V rails) is within specification; an aging or undersized power supply is a common root cause of CPU board failures in legacy systems.

Check all I/O modules seated in adjacent cPCI slots — digital input/output cards, analog signal conditioning boards, and serial communication modules should be reseated and inspected for connector wear. If the CP300 Series chassis includes a KONTRON CP307 or CP308 companion board for extended I/O or graphics, confirm those boards remain compatible with the replacement CP306-V firmware revision.

For systems integrated with a PROFIBUS DP communication module or CANopen interface card, validate that the network address settings and baud rate configurations are preserved after the CPU board swap — these parameters are sometimes stored on the board itself and may need to be reconfigured. Similarly, if the control system connects to a Siemens S7 PLC or Beckhoff TwinCAT runtime via Ethernet, verify the IP address and gateway settings are correctly restored post-replacement.

Do not overlook the UPS module or battery-backed power buffer that protects the cPCI chassis during power interruptions — a failed buffer can corrupt the new CPU board’s non-volatile storage on the next power event. Inspect terminal blocks and field wiring connected to I/O modules for loose terminations, especially in high-vibration environments. Finally, review the HMI panel (if connected via serial or Ethernet) to confirm display communication is re-established after the CPU board replacement and that operator screens reflect the correct process state.

Procurement engineers building a spare parts kit around the CP306-V should also consider stocking a CompactPCI system slot filler, replacement CMOS battery for RTC retention, and a set of backplane termination resistors if the chassis design requires them. Maintaining at least one cold-standby CP306-V unit on-site is strongly recommended for any production line where this board is the primary controller.

Site Replacement Workflow

Step 1 — Pre-Replacement Audit: Document the current system configuration — firmware version, BIOS settings, IP/network parameters, and any jumper or DIP switch positions on the CP306-V. Photograph the board and surrounding slot layout before removal.

Step 2 — Safe Shutdown: Follow the system’s controlled shutdown procedure. Do not hot-swap a CompactPCI CPU board unless the chassis explicitly supports hot-swap on the system slot. Power down the chassis completely and discharge any residual voltage on the backplane before extraction.

Step 3 — Board Extraction: Use the ejector handles to release the CP306-V from the backplane. Inspect the extracted board for visible damage — burnt components, cracked PCB traces, or swollen capacitors — to help diagnose the root cause of failure.

Step 4 — Replacement Installation: Insert the new CP306-V into the system slot, ensuring full engagement with the backplane connector. Secure the front panel retaining screws to the correct torque specification to maintain reliable electrical contact.

Step 5 — Configuration Restore: Apply the documented BIOS settings, network parameters, and any application-specific configuration. If the system uses a CompactFlash or industrial SSD for OS storage, verify the storage device is correctly detected before booting.

Step 6 — Functional Verification: Power up the chassis and confirm the CP306-V completes POST without errors. Validate all I/O modules, communication links, and HMI connections are operational before returning the system to production.

This structured workflow minimizes mean time to repair (MTTR) and reduces the risk of introducing secondary faults during the replacement process — a critical consideration for any maintenance team managing aging CP300 Series installations.

Spare Parts Support FAQ

Q1: Is the CP306-V a direct drop-in replacement for all CP300 Series slots?
The CP306-V is designed for the system (master) slot of CP300 Series CompactPCI chassis. Compatibility depends on the specific chassis model and backplane revision. We recommend confirming your chassis part number and backplane version before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q2: What pre-shipment testing does NINERMAS perform on the CP306-V?
Every CP306-V unit is functionally tested prior to dispatch — including power-on self-test (POST) verification, connector integrity inspection, and where applicable, firmware version confirmation. Units are packed in anti-static ESD-safe packaging with a test report. Our 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: Can NINERMAS support long-term supply of CP306-V for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-lifecycle spare parts supply for industrial automation platforms, including legacy KONTRON CP300 Series components. We can discuss stock reservation agreements, scheduled delivery programs, and priority allocation for customers with ongoing maintenance commitments. Contact our team to discuss your annual consumption forecast.

Q4: What should I do if the replacement CP306-V does not boot after installation?
