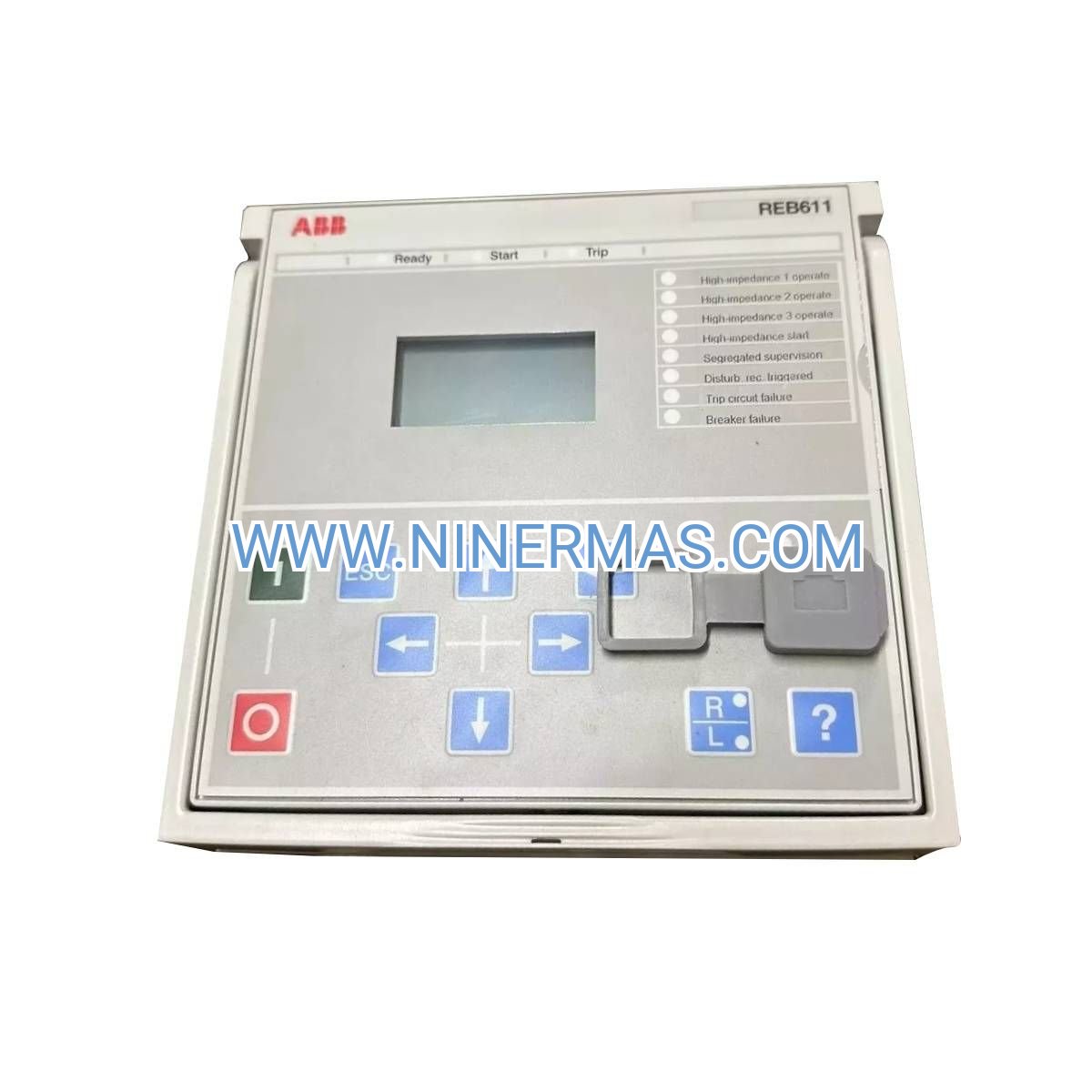

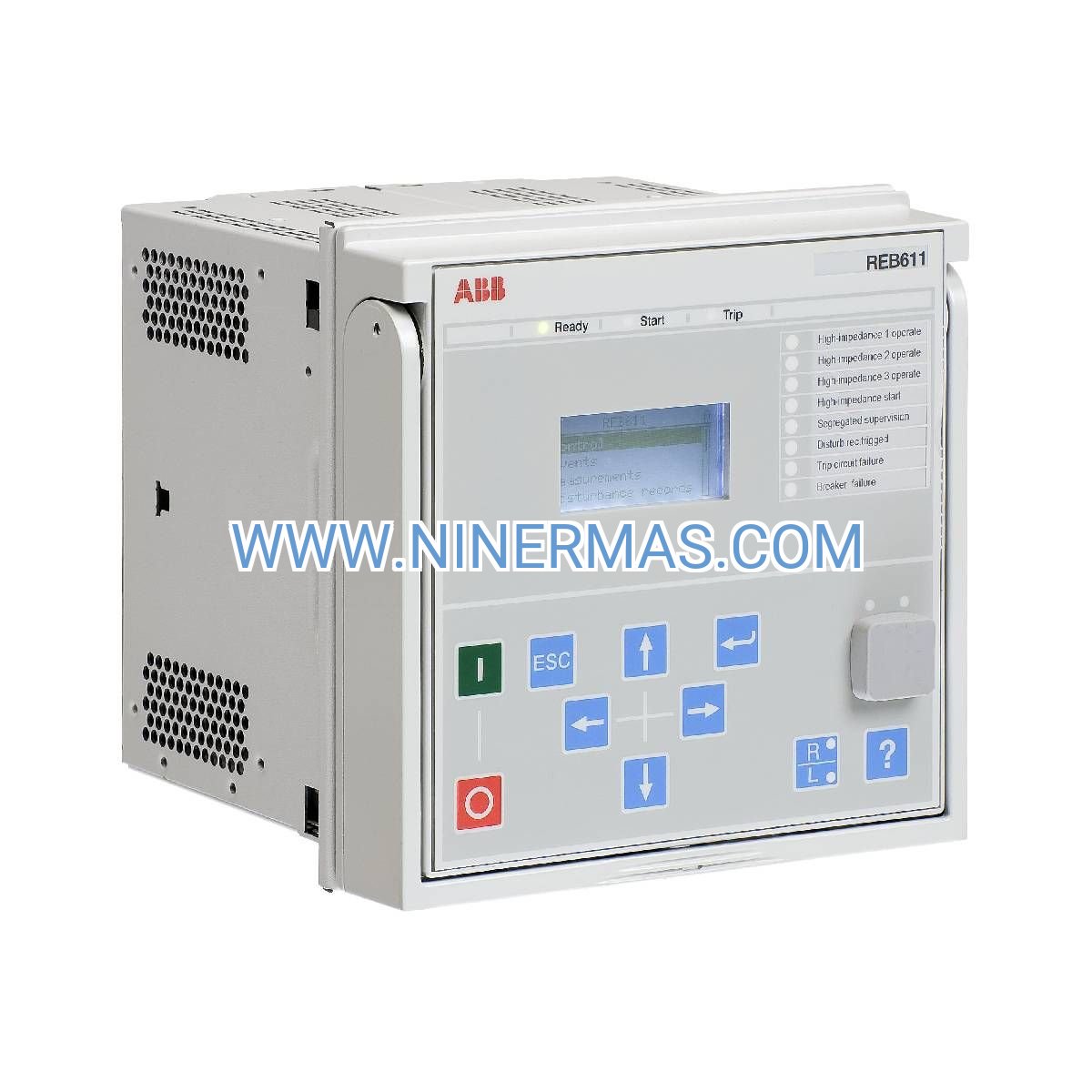

ABB REB611E-1G Multipurpose Differential Protection Relay (Industrial-Grade Power System Guardian)

The ABB REB611E-1G (model REB611HBAABA1NN11G) delivers mission-critical protection for high-value electrical assets in power generation, transmission, and industrial facilities. Engineered with advanced differential algorithms and multi-protocol communication, this relay provides comprehensive fault detection, isolation, and diagnostics to minimize downtime and extend equipment service life.

Designed for engineers and facility managers overseeing substations, power plants, and manufacturing operations, the REB611E-1G addresses the challenge of protecting diverse equipment types—transformers, generators, motors, and busbars—within a single, configurable platform. Its adaptive protection logic responds to evolving grid conditions while maintaining selectivity and speed.

Key advantages include sub-20ms fault clearing times, 5% differential sensitivity for early fault detection, IEC 61850 native support for digital substation integration, and field-proven reliability in harsh industrial environments rated from -40°C to +70°C.

Core Capabilities & Business Value

→ Precision Differential Protection: Detects internal faults in transformers, generators, motors, and busbars with 5% sensitivity, preventing catastrophic equipment damage and reducing repair costs by up to 60%.

→ Integrated Multi-Function Design: Combines overcurrent, earth fault, thermal overload, and breaker failure protection in one unit, eliminating the need for multiple relays and reducing panel space by 40%.

→ Digital Substation Ready: Native IEC 61850 support with GOOSE messaging enables seamless integration with modern SCADA systems, reducing commissioning time by 30% compared to legacy protocols.

→ Advanced Power Quality Monitoring: Real-time harmonic analysis and metering capabilities identify power quality issues before they impact production, supporting predictive maintenance strategies.

→ Comprehensive Self-Diagnostics: Continuous internal monitoring with event recording and fault localization reduces troubleshooting time and improves mean time to repair (MTTR).

→ Flexible Programming Logic: Customizable protection schemes adapt to unique system requirements without hardware changes, future-proofing your investment as operations evolve.

Typical Application Scenarios

✓ Power Generation Facilities: Protects high-capacity generators (10-500 MVA) and step-up transformers in thermal, hydro, and combined-cycle plants. Addresses the challenge of coordinating protection across complex generation schemes while maintaining grid code compliance. Delivers rapid fault isolation to prevent cascading failures and minimize revenue loss from unplanned outages.

✓ Industrial Manufacturing Plants: Safeguards critical motors (500 kW to 10 MW) driving compressors, pumps, and production machinery. Solves the problem of nuisance tripping in electrically noisy environments while providing thermal overload protection that extends motor life by 25%. Reduces production downtime through fast, selective fault clearing.

✓ Utility Substations: Provides differential protection for power transformers (10-200 MVA) and busbar configurations in transmission and distribution substations. Overcomes coordination challenges in meshed networks while meeting utility protection standards. Enhances system reliability and supports regulatory compliance reporting.

✓ Renewable Energy Installations: Protects step-up transformers and collector systems in wind farms and solar parks. Addresses unique challenges of bidirectional power flow and variable generation patterns. Adaptive algorithms maintain protection integrity across wide operating ranges, maximizing energy capture and grid stability.

✓ Data Centers & Mission-Critical Facilities: Ensures uninterrupted power to IT infrastructure through rapid fault detection and isolation. Solves the challenge of maintaining 99.999% uptime requirements while protecting expensive UPS systems and backup generators. Integrated metering supports energy efficiency initiatives and PUE optimization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the REB611E-1G when you require multi-function protection for transformers rated 1-200 MVA, generators up to 500 MVA, or motors above 500 kW. This relay is ideal for applications demanding IEC 61850 integration, advanced diagnostics, and flexible protection logic. For feeder-only applications, consider the REF615 series; for pure transformer differential without multi-function needs, the RED615 offers a streamlined alternative.

Extended Functions & Integration Capabilities

IoT & Remote Monitoring: Built-in web server enables secure remote access for configuration, diagnostics, and real-time monitoring via standard browsers. SNMP support facilitates integration with enterprise network management systems. Cybersecurity features include role-based access control and encrypted communications compliant with IEC 62351.

Advanced Analytics: Oscillography and sequence-of-events recording capture fault transients with microsecond resolution, supporting root cause analysis and system studies. Disturbance recorder functionality stores up to 100 fault records with configurable pre- and post-fault windows.

Customization Options: Modular I/O expansion allows field upgrades to accommodate changing system requirements. Custom protection logic can be implemented using ABB's Protection and Control IED Manager (PCM600) software, enabling unique schemes without firmware modifications.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking. All relays ship factory-sealed with calibration certificates and test reports.

Custom Configuration: 7-10 business days for pre-programmed units with customer-specific settings loaded and verified prior to shipment.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications.

Technical Support: Lifetime access to application engineering support via email and phone. Commissioning assistance and on-site startup services available upon request.

Documentation Package: Each unit includes installation manual, technical reference guide, IEC 61850 ICD file, Modbus register map, and PCM600 configuration templates.

Frequently Asked Questions

Q: How does the REB611E-1G interface with existing SCADA systems?
A: The relay supports multiple protocols simultaneously—IEC 61850 for modern digital substations, Modbus RTU/TCP for legacy systems, and DNP3 for utility applications. Dual Ethernet ports enable redundant network architectures. Configuration is simplified using standard ICD files and pre-built SCADA templates.

Q: What transformer capacity range is suitable for this protection relay?
A: The REB611E-1G effectively protects transformers from 1 MVA to 200 MVA. For smaller distribution transformers below 1 MVA, consider the REF615 series. For extra-high-voltage transformers above 200 MVA, consult our engineering team for application-specific recommendations.

Q: Can this relay reduce energy costs through improved monitoring?
A: Yes. The integrated power quality metering identifies inefficiencies such as harmonic distortion, power factor issues, and load imbalances. Customers typically achieve 3-8% energy savings by addressing issues revealed through the relay's analytics. Real-time demand monitoring also supports peak shaving strategies.

Q: What are the installation requirements and panel space needed?
A: The relay mounts in standard 19-inch racks or vertical panels using the included bracket kit. Panel cutout dimensions are 165mm (W) × 127mm (H). Depth behind panel is 220mm including cable clearance. Installation typically requires 2-3 hours for mechanical mounting, wiring, and basic configuration.

Q: Does the REB611E-1G support remote firmware updates?
A: Yes. Firmware can be updated remotely via Ethernet using ABB's PCM600 software, minimizing site visits. The relay maintains full protection functionality during updates through automatic fallback mechanisms. All firmware revisions are backward-compatible with existing configurations.

Q: How does differential protection improve reliability compared to overcurrent-only schemes?
A: Differential protection detects internal faults with superior speed and selectivity by comparing current entering and leaving the protected zone. This eliminates coordination delays inherent in overcurrent schemes, reducing fault clearing time from 300-500ms to under 20ms. Faster clearing prevents fault escalation, reducing equipment damage by 70% and improving system stability.

Ready to Enhance Your Power System Protection?

Contact our protection engineering specialists today for application-specific guidance, custom configuration support, or volume pricing. Our team is available to review your single-line diagrams and recommend optimal protection schemes tailored to your facility.

Request a Quote: Email your technical requirements to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
