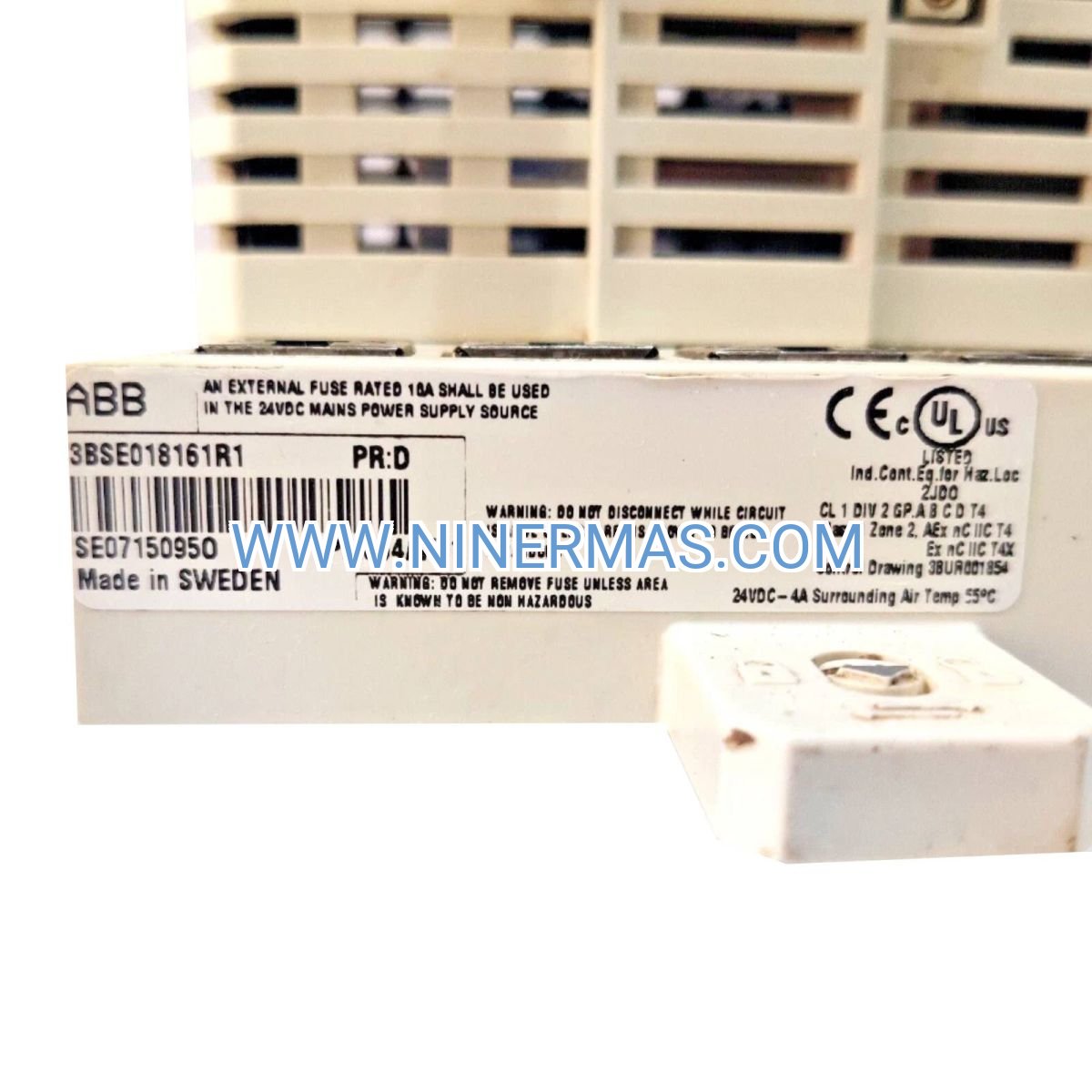

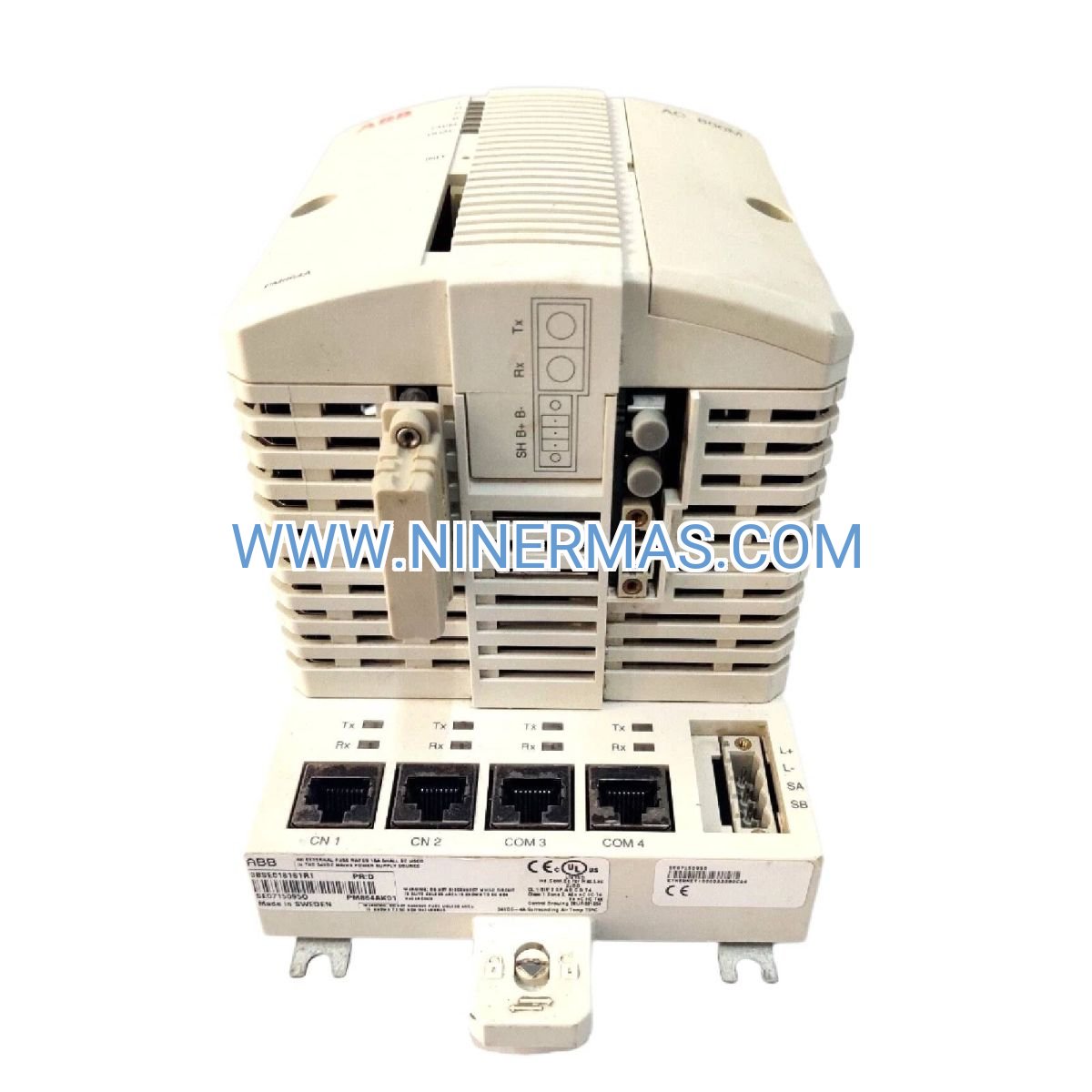

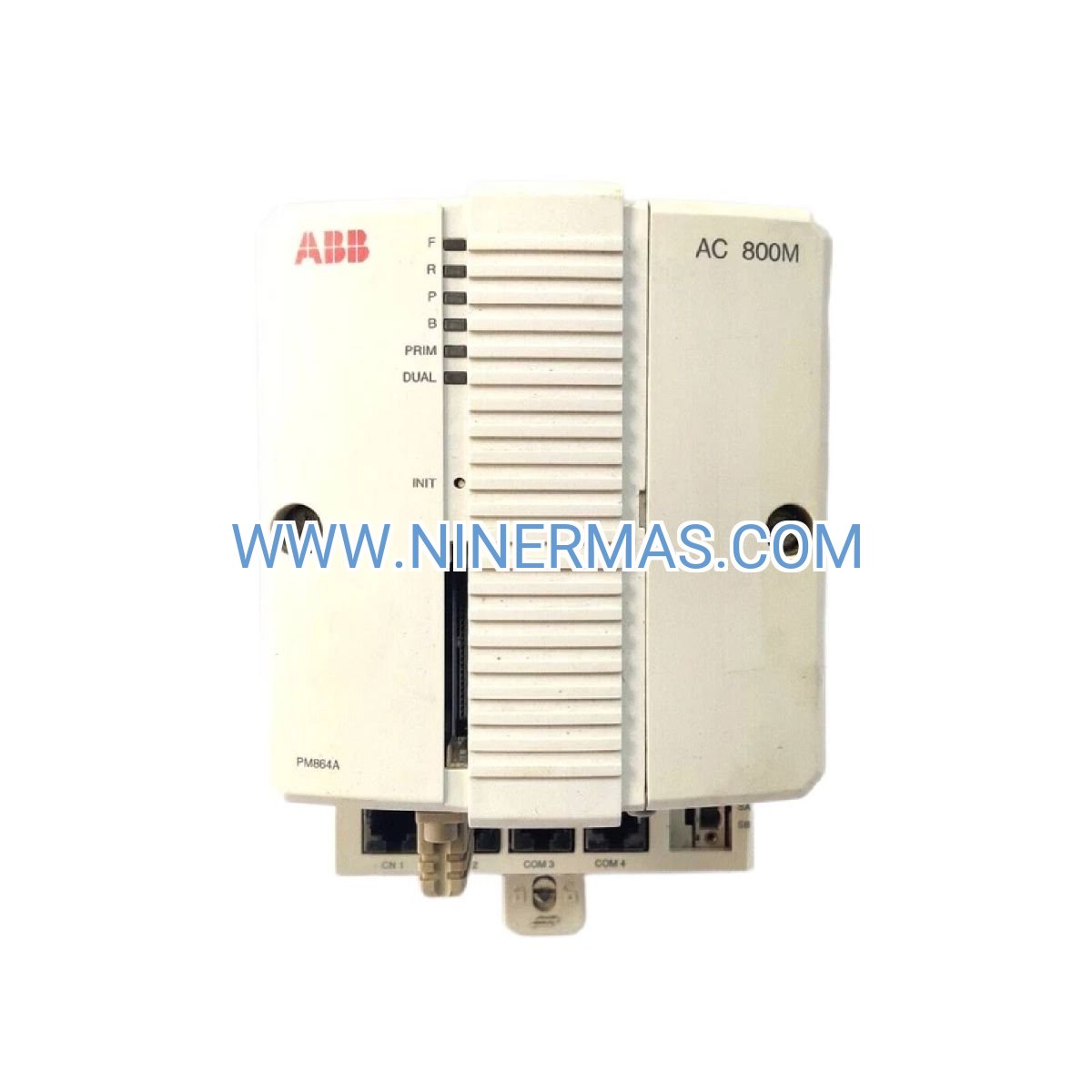

ABB PM864 AC 800M Processor Unit — Industrial-Grade DCS Controller

The ABB PM864 represents a cornerstone solution in distributed control system (DCS) architecture, delivering deterministic processing power for complex industrial automation environments. Built on the proven AC 800M platform, this processor unit combines robust hardware design with flexible programming capabilities to address mission-critical control requirements across process industries.

Designed for engineers and system integrators managing large-scale automation projects, the PM864 serves as the central intelligence in System 800xA deployments. Whether you're modernizing legacy control infrastructure or designing greenfield installations, this processor unit provides the computational backbone for coordinated process control, data acquisition, and supervisory functions.

With native support for IEC 61131-3 programming standards and seamless integration into ABB's ecosystem, the PM864 accelerates commissioning timelines while ensuring long-term system scalability. Its industrial-hardened construction and comprehensive diagnostic capabilities make it the preferred choice for operations demanding 24/7 reliability.

Core Capabilities & Technical Advantages

→ High-Performance Computing Architecture
32-bit RISC processor delivers deterministic scan cycles for time-critical control loops, ensuring precise coordination of sequential operations and real-time response to process variables.

→ Multi-Protocol Communication Framework
Integrated Ethernet, Modbus TCP/IP, and PROFIBUS DP interfaces enable seamless connectivity with field devices, HMI systems, and enterprise networks—reducing integration complexity and wiring costs.

→ Expandable Memory Configuration
Scalable RAM architecture accommodates growing control logic complexity, supporting applications from basic regulatory control to advanced model predictive algorithms without hardware replacement.

→ Industrial Environmental Resilience
Operates reliably across 0°C to +55°C temperature range with superior EMC immunity, maintaining performance stability in electrically noisy environments typical of heavy industrial facilities.

✓ Hot-Standby Redundancy Ready
Supports redundant controller configurations for fault-tolerant architectures, automatically transferring control during primary unit failures to eliminate unplanned downtime.

✓ Unified Engineering Environment
Programmable via Control Builder M software using Ladder Logic, Function Block Diagram, or Structured Text—allowing engineering teams to leverage existing skill sets and code libraries.

Industry Application Scenarios

Oil & Gas Processing Facilities
Manages separator control, compressor sequencing, and pipeline monitoring in upstream/midstream operations. Addresses the challenge of coordinating multiple process units while maintaining safety integrity levels (SIL) compliance. Delivers real-time alarm management and historical trending for regulatory reporting.

Chemical Manufacturing Plants
Executes batch recipe management, reactor temperature profiling, and material tracking in specialty chemical production. Solves the pain point of recipe version control and audit trail requirements. Provides deterministic execution for exothermic reaction control and emergency shutdown sequences.

Power Generation Stations
Controls boiler combustion optimization, turbine governor systems, and auxiliary equipment coordination in thermal power plants. Tackles the complexity of load-following operations and grid synchronization. Ensures millisecond-level response for protective relay integration.

Water & Wastewater Treatment
Orchestrates filtration processes, chemical dosing systems, and SCADA data collection across distributed treatment facilities. Resolves remote site monitoring challenges and regulatory compliance documentation. Enables predictive maintenance through continuous equipment health monitoring.

Pharmaceutical Production Lines
Enforces 21 CFR Part 11 compliant batch control, clean-in-place (CIP) automation, and electronic batch records in GMP environments. Addresses validation documentation requirements and change control procedures. Supports FDA audit trails with tamper-proof event logging.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the PM864 when your application requires deterministic control with scan cycles under 10ms, multi-protocol fieldbus integration, or future scalability to redundant architectures. For applications with I/O counts exceeding 500 points or requiring hot-standby failover, verify memory configuration and redundancy module compatibility during specification.

Extended Functionality & Integration Options

Industrial IoT Connectivity: The PM864 supports OPC UA server functionality, enabling secure data exchange with cloud-based analytics platforms and enterprise MES/ERP systems. This facilitates Industry 4.0 initiatives including predictive maintenance algorithms and digital twin implementations.

Advanced Control Libraries: Pre-validated function blocks for PID control, cascade loops, and feedforward compensation accelerate application development. Custom library integration allows proprietary control strategies to be encapsulated and reused across multiple projects.

Cybersecurity Features: Built-in firewall capabilities, user authentication protocols, and encrypted communication channels align with IEC 62443 industrial cybersecurity standards, protecting critical infrastructure from unauthorized access.

Customization Services: Factory configuration options include pre-loaded application code, custom I/O mapping, and project-specific firmware versions—reducing on-site commissioning time by up to 40%.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for stock units via express courier with tracking. All shipments include anti-static packaging and shock-absorbing materials to ensure product integrity.

Custom Configuration: 7-10 business days for factory-programmed units with application-specific settings and firmware versions.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to application engineers for configuration assistance, troubleshooting guidance, and integration planning. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each unit ships with installation manual, quick-start guide, wiring diagrams, and digital access to Control Builder M programming examples and configuration templates.

Frequently Asked Questions

What communication protocols does the PM864 processor support for fieldbus integration?
The PM864 natively supports Ethernet TCP/IP, Modbus TCP/IP, and PROFIBUS DP communication protocols. Additional protocol support (DeviceNet, Foundation Fieldbus) can be achieved through communication interface modules in the AC 800M rack configuration.

Can the PM864 handle redundant controller configurations for high-availability applications?
Yes, the PM864 supports hot-standby redundancy when paired with a redundancy module. The system automatically synchronizes controller states and performs bumpless transfer during primary unit failures, maintaining process continuity.

What are the power consumption specifications for cabinet thermal management planning?
Typical power consumption ranges from 15-25W depending on I/O configuration and communication activity. For cabinet cooling calculations, use 30W as a conservative thermal load estimate per processor unit.

How does the PM864 integrate with existing ABB System 800xA installations?
The PM864 integrates seamlessly via Control Builder M engineering software and the 800xA system bus. It appears as a native controller object in the 800xA workspace, supporting unified alarm management, trending, and operator interface development.

What programming languages are supported for control logic development?
The PM864 supports all five IEC 61131-3 programming languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC). Engineers can mix languages within a single project.

Are there specific installation requirements for electromagnetic compatibility in industrial environments?
Install the PM864 in grounded metal cabinets with proper cable shielding and separation between power and signal wiring. Maintain minimum 200mm clearance from high-voltage switchgear and variable frequency drives. Follow ABB's grounding guidelines in the installation manual for optimal EMC performance.

Request Technical Consultation

Our automation specialists are ready to assist with system architecture design, I/O sizing calculations, and migration planning from legacy control platforms. Contact us today to discuss your specific application requirements and receive a detailed technical proposal tailored to your project scope.
