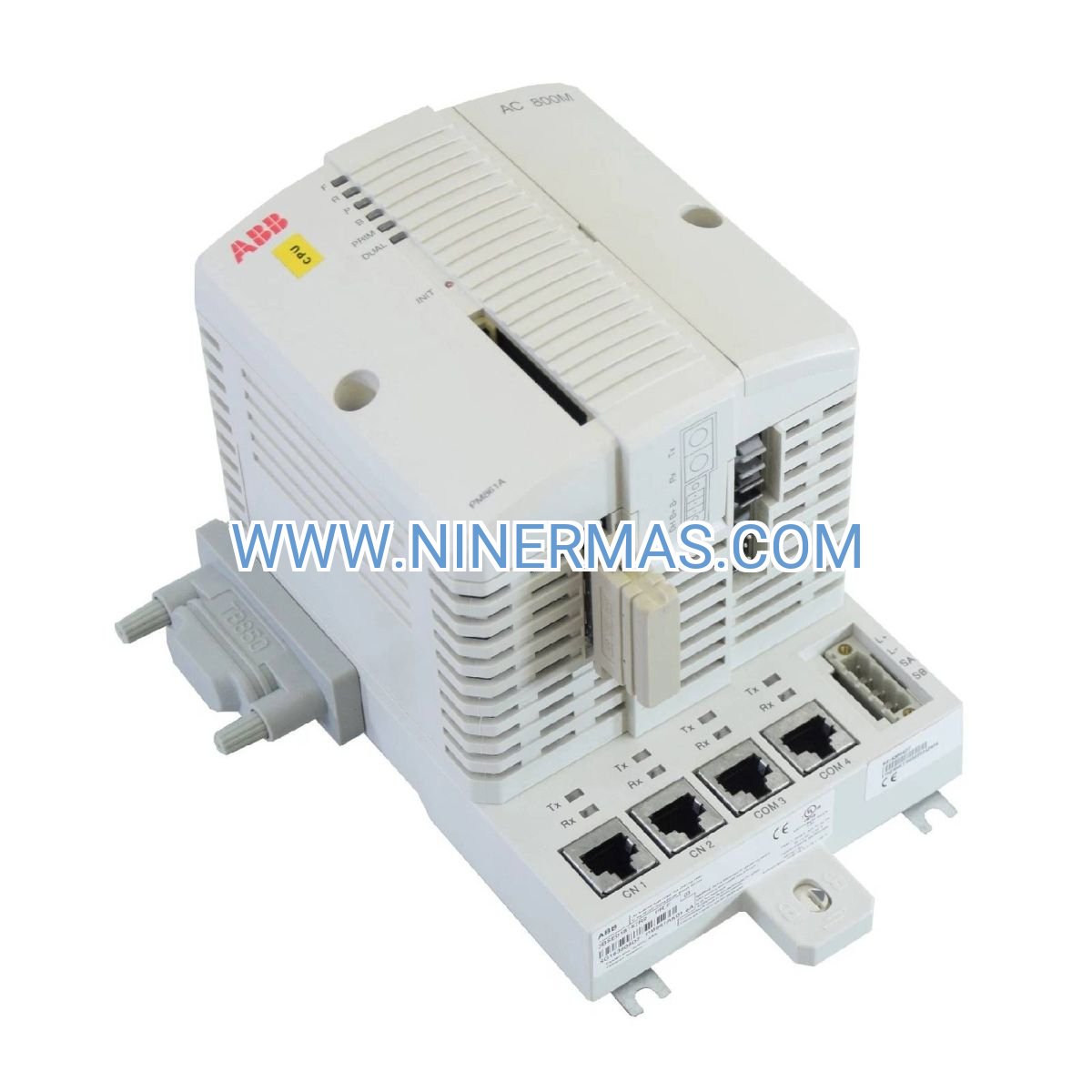

ABB PM861AK01 AC 800M Processor Unit (Industrial-Grade Automation Controller)

The ABB PM861AK01 is a mission-critical processor unit within the AC 800M controller platform, purpose-built for industries demanding uncompromising reliability and deterministic control performance. Engineered for process automation, manufacturing execution, and safety-instrumented systems, this controller kit delivers the processing power and architectural flexibility required for complex industrial environments where downtime is not an option.

Designed for plant engineers, system integrators, and automation professionals managing distributed control systems (DCS), the PM861AK01 addresses the challenges of legacy system modernization, capacity expansion, and cybersecurity compliance. Whether you're orchestrating batch processes in pharmaceutical production, managing continuous control loops in chemical plants, or coordinating safety systems in oil and gas facilities, this processor unit provides the foundation for scalable, future-proof automation architectures.

With native support for redundant configurations, hot-swappable modules, and encrypted communications, the PM861AK01 minimizes operational risk while maximizing system availability. Its compatibility with ABB's Control Builder M engineering suite and seamless integration with 800xA DCS platforms ensures rapid deployment and simplified lifecycle management across your automation infrastructure.

Core Capabilities & Business Value

→ Deterministic Control Execution: High-speed industrial processor ensures precise timing for time-critical applications, eliminating jitter in batch sequencing and continuous control loops while maintaining scan cycle consistency under full computational load.

✓ Redundancy Architecture: Built-in support for hot-standby configurations guarantees seamless failover in mission-critical applications, protecting production continuity and reducing unplanned downtime costs by up to 95% compared to non-redundant systems.

→ Multi-Protocol Connectivity: Native support for Modbus TCP/RTU, PROFIBUS DP, Ethernet/IP, and OPC UA enables unified integration with legacy equipment and modern IoT platforms, eliminating protocol gateway costs and reducing integration complexity.

✓ IEC 61131-3 Programming: Full compliance with international automation standards (FBD, ST, SFC, LD) accelerates engineering workflows, reduces training requirements, and ensures code portability across controller platforms and vendor ecosystems.

→ Cybersecurity Hardening: Role-based access control, encrypted communications (TLS 1.2+), and audit logging capabilities meet IEC 62443 industrial cybersecurity standards, protecting critical infrastructure from unauthorized access and cyber threats.

✓ Expandable Memory Architecture: Scalable memory configuration supports complex control strategies with thousands of I/O points, advanced regulatory algorithms, and data historian integration without performance degradation or controller replacement.

Industrial Application Scenarios

Oil & Gas Processing: Manages separator control, compressor sequencing, and pipeline monitoring in upstream/midstream facilities. Addresses the challenge of coordinating distributed wellhead controllers while maintaining real-time visibility across remote sites. Delivers 24/7 operational reliability with built-in redundancy for safety-instrumented systems (SIS) compliance.

Chemical Manufacturing: Orchestrates batch reactor control, continuous blending operations, and material tracking in specialty chemical plants. Solves the pain point of recipe management complexity and regulatory compliance (FDA 21 CFR Part 11, GAMP 5). Provides deterministic execution for exothermic reaction control and emergency shutdown coordination.

Power Generation: Coordinates turbine control, boiler management, and emissions monitoring in combined-cycle plants and renewable energy facilities. Addresses grid synchronization challenges and load-following requirements. Ensures sub-second response times for frequency regulation and voltage control in ancillary services markets.

Water & Wastewater Treatment: Automates clarification processes, chemical dosing, and SCADA integration across municipal treatment facilities. Resolves the challenge of multi-site coordination and regulatory reporting (EPA compliance). Enables predictive maintenance through real-time performance monitoring and diagnostic analytics.

Pharmaceutical Production: Controls clean room environments, fermentation processes, and serialization systems in GMP-regulated facilities. Tackles the complexity of electronic batch records (EBR) and audit trail requirements. Supports validation protocols (IQ/OQ/PQ) with deterministic control behavior and comprehensive documentation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the PM861AK01 when your application requires deterministic control with scan cycles under 10ms, redundancy for safety-critical processes (SIL 2/3), or integration with existing ABB 800xA infrastructure. For applications with I/O counts exceeding 2,000 points or requiring advanced motion control, consider the PM866 or PM891 series. Evaluate communication requirements early—if your architecture demands dual Ethernet ports or fiber-optic connectivity, specify appropriate communication modules during procurement.

Extended Functionality & Integration

IoT & Cloud Connectivity: Native OPC UA server functionality enables secure data exchange with MES/ERP systems, cloud analytics platforms (Azure IoT, AWS Greengrass), and mobile HMI applications. MQTT client support (via communication modules) facilitates edge computing architectures and predictive maintenance workflows.

Advanced Diagnostics: Built-in web server provides real-time performance metrics, alarm history, and configuration backup without requiring dedicated engineering workstations. Integrated diagnostics monitor CPU load, memory utilization, communication health, and I/O status with configurable alert thresholds.

Customization Options: Field-proven expansion with specialty modules including high-speed counting, analog signal conditioning, safety I/O (SIL-rated), and wireless communication gateways. Custom firmware configurations available for OEM applications requiring application-specific protocols or proprietary algorithms.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units (express shipping available to major industrial hubs). Custom configurations with specialty modules: 10-15 business days including factory testing and documentation.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical applications requiring 24/7 support and advance replacement guarantees.

Technical Support: Pre-sales application engineering assistance for system sizing, architecture design, and protocol compatibility verification. Post-sales support includes remote diagnostics, firmware updates, and configuration backup services. On-site commissioning and training available through certified system integrators.

Documentation Package: Includes installation manual, programming guide, communication protocol specifications, CAD drawings (DWG/DXF), and sample application code. Compliance certificates (CE, UL, ATEX) and material declarations (RoHS, REACH) provided with each shipment.

Frequently Asked Questions

Q: What communication protocols does the PM861AK01 support for integration with existing SCADA systems?
A: The controller natively supports Modbus TCP/RTU, Ethernet/IP, and OPC UA for SCADA integration. PROFIBUS DP and PROFINET connectivity available via communication modules. OPC UA server functionality enables vendor-agnostic integration with Wonderware, Ignition, and other modern SCADA platforms.

Q: How many I/O points can a single PM861AK01 controller manage in a distributed architecture?
A: The processor supports up to 12,000 I/O points when configured with distributed I/O modules (S800, S900 series). Actual capacity depends on scan cycle requirements, communication overhead, and control algorithm complexity. For applications exceeding 5,000 points, consult application engineering for performance optimization.

Q: Does this controller support energy monitoring and power quality analysis for ISO 50001 compliance?
A: Yes, when integrated with ABB's energy management modules and power meters (M2M, M4M series), the PM861AK01 can collect real-time energy data, calculate KPIs (kWh/unit, PUE), and generate compliance reports. Built-in data logging supports historical trending for energy audits and continuous improvement initiatives.

Q: What are the installation requirements for mounting in harsh industrial environments?
A: The controller requires DIN-rail mounting in a climate-controlled enclosure (IP54 minimum). Operating temperature range: -40°C to +70°C (derate above 60°C). Ensure adequate ventilation (convection cooling) and maintain 50mm clearance on all sides. For hazardous area installations (Zone 2, Division 2), use approved enclosures with proper grounding and surge protection.

Q: Can the PM861AK01 be integrated with remote monitoring systems for predictive maintenance?
A: Absolutely. The controller's OPC UA interface and built-in diagnostics enable real-time data streaming to condition monitoring platforms (ABB Ability, Azure IoT Hub, AWS IoT Core). Monitor CPU load, memory usage, communication errors, and I/O health remotely. Configure email/SMS alerts for critical events and integrate with CMMS systems for automated work order generation.

Q: Is firmware upgrade possible without production shutdown in redundant configurations?
A: Yes, redundant PM861AK01 configurations support online firmware updates with bumpless transfer. The standby controller is updated first, validated, then promoted to active while the original active controller is updated. Total process interruption: <2 seconds during switchover. Always test firmware updates in non-production environments before deployment.

Request Technical Consultation

Our application engineering team is ready to assist with system architecture design, protocol compatibility verification, and performance optimization for your specific automation requirements. Contact us for detailed technical specifications, CAD drawings, and project-specific quotations.
