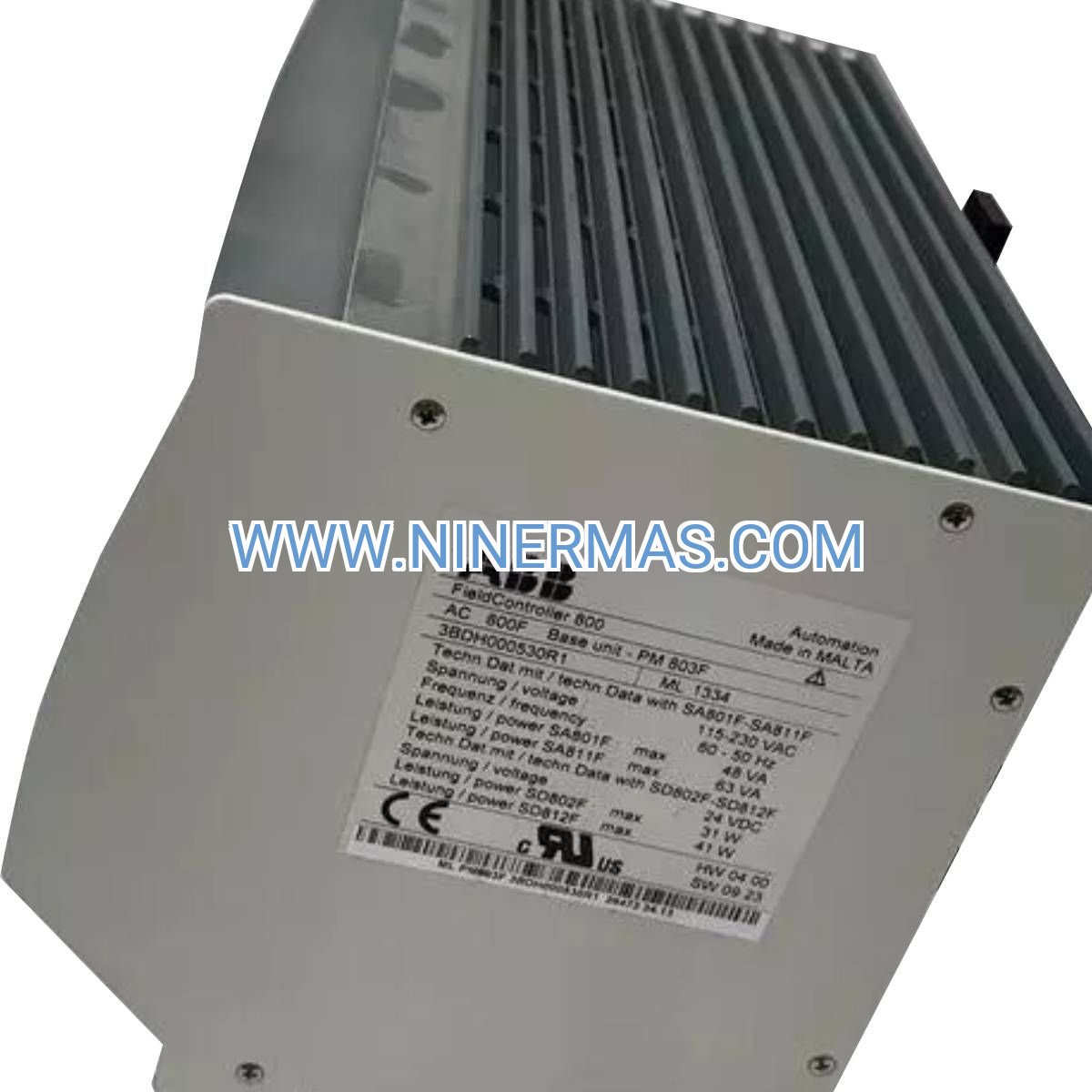

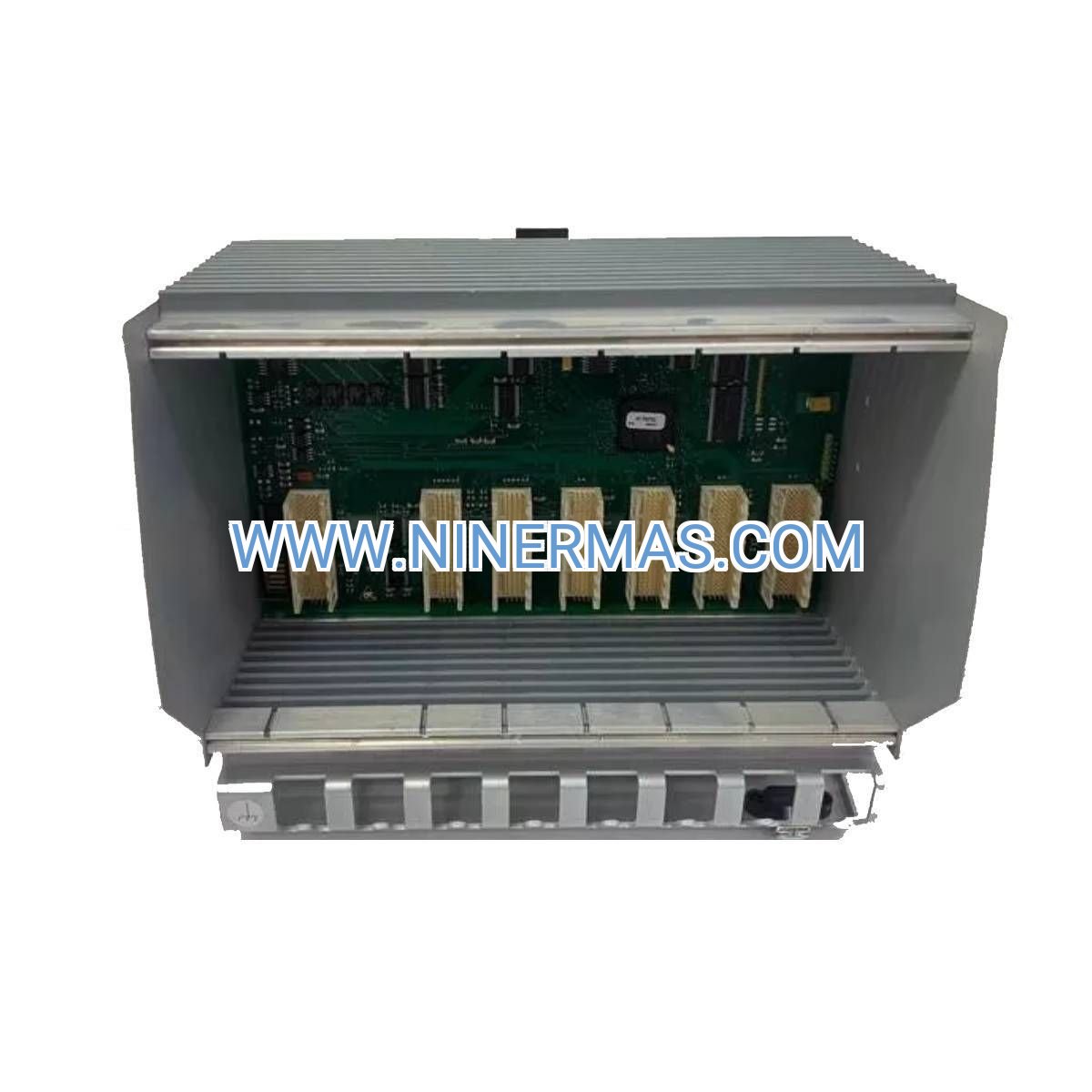

ABB PM 803F Central Processing Unit (Industrial-Grade DCS Controller)

The ABB PM 803F represents a mission-critical central processing unit engineered for AC 800F distributed control systems and Freelance automation platforms. Designed for continuous process industries, this controller delivers deterministic execution, hot-standby redundancy, and multi-protocol fieldbus integration to ensure uninterrupted operations in demanding industrial environments.

Built for process engineers and system integrators managing complex automation architectures, the PM 803F addresses challenges of legacy system modernization, multi-vendor protocol integration, and high-availability requirements. Its modular design and IEC 61131-3 programming environment accelerate commissioning while reducing lifecycle costs.

Key differentiators include bumpless redundancy transfer, 12,000 I/O point capacity, and native support for FOUNDATION Fieldbus, PROFIBUS DP, and Modbus protocols—enabling seamless integration across heterogeneous automation landscapes.

Core Capabilities & Business Value

✓ High-Availability Architecture
Hot-standby redundancy with automatic failover ensures zero-downtime operations during controller maintenance or unexpected failures, protecting production continuity and reducing unplanned outage costs.

✓ Scalable I/O Capacity
Supports up to 12,000 I/O points per controller, accommodating plant expansions without architectural redesign. Reduces capital expenditure by consolidating multiple smaller controllers into unified control strategies.

✓ Multi-Protocol Connectivity
Native FOUNDATION Fieldbus, PROFIBUS DP, and Modbus RTU/TCP support eliminates costly protocol gateways. Simplifies integration with existing instrumentation and third-party devices across brownfield installations.

✓ Real-Time Performance
32-bit RISC processor with configurable scan rates (10ms to 10 seconds) delivers predictable control loop execution. Ensures regulatory compliance in safety-instrumented systems and critical process control applications.

✓ IEC 61131-3 Programming
Standardized Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC) languages reduce engineering training costs and enable code portability across ABB control platforms.

✓ Online Diagnostics & Modification
Built-in fault logging and parameter tuning without process interruption accelerate troubleshooting. Reduces mean time to repair (MTTR) and minimizes production losses during commissioning or optimization phases.

Industry Applications & Use Cases

→ Chemical & Petrochemical Processing
Manages batch reactors, continuous distillation columns, and blending operations requiring precise recipe execution. Addresses challenges of multi-grade production, material traceability, and ISA-88 batch compliance.

→ Oil & Gas Production Facilities
Controls offshore platforms, gas processing trains, and pipeline compression stations where fail-safe shutdown logic and redundancy are mandatory. Meets SIL-rated safety requirements for emergency shutdown systems (ESD).

→ Power Generation & Utilities
Coordinates turbine control, boiler management, and emissions monitoring in combined-cycle plants. Handles complex interlocking sequences and load-following algorithms for grid stability.

→ Water & Wastewater Treatment
Regulates multi-stage filtration, chemical dosing, and SCADA integration for municipal utilities. Optimizes energy consumption through adaptive PID tuning and predictive maintenance algorithms.

→ Pulp & Paper Manufacturing
Manages stock preparation, forming sections, and dryer control in continuous paper machines. Synchronizes drive systems and quality control loops to maintain sheet consistency and minimize waste.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose PM 803F for applications requiring 500+ I/O points, redundancy, or multi-protocol integration. For smaller systems (under 500 I/O), consider PM 802F variant. Verify power budget when combining with multiple fieldbus modules—each FI 830F adds ~5W load.

Advanced Integration Features

800xA System Compatibility: Seamlessly integrates with ABB's Extended Automation platform for unified engineering, operations, and asset management. Supports Aspect Objects for graphical process visualization and batch management.

OPC UA Connectivity: Native OPC UA server enables secure data exchange with MES/ERP systems, historian databases, and cloud analytics platforms without third-party middleware.

Cybersecurity Hardening: Role-based access control (RBAC), encrypted communications, and audit logging comply with IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Customization Options: Factory-configured redundant pairs available with pre-loaded application templates for common process units (PID loops, motor control, sequential logic). Custom I/O mapping and protocol configuration services reduce commissioning time by 30-40%.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for stock configurations (single controller with standard firmware). Express shipping available for critical spares.

Custom Configurations: 6-8 weeks for redundant pairs with pre-commissioned application code and factory acceptance testing (FAT).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months.

Technical Support: Lifetime access to firmware updates, configuration tools, and technical documentation portal. Email/phone support during business hours (GMT+8). On-site commissioning assistance available in major industrial regions.

Documentation Package: Includes installation manual, programming guide, hardware reference, and sample application code. CAD drawings (DWG/PDF) and 3D STEP models provided for panel design integration.

Frequently Asked Questions

Q: How does the PM 803F controller integrate with existing FOUNDATION Fieldbus H1 segments?
A: The controller requires an FI 830F fieldbus module (sold separately) for H1 connectivity. Each FI 830F supports two H1 segments with up to 32 devices per segment. Configuration is performed via ABB's Control Builder software using standard DD/EDDL device descriptions.

Q: What is the maximum control loop capacity for regulatory PID control?
A: The PM 803F handles 500+ PID loops with 100ms scan rates, or 200+ loops at 10ms for fast processes. Actual capacity depends on algorithm complexity—cascade loops, feedforward compensation, and model predictive control (MPC) blocks consume additional CPU resources.

Q: Can the controller reduce energy consumption in variable-speed drive applications?
A: Yes. The PM 803F supports advanced motor control algorithms including load-based speed optimization and coordinated drive sequencing. Typical energy savings range from 15-25% in pumping and fan applications through adaptive setpoint adjustment and anti-surge control.

Q: What are the physical installation requirements for redundant controller pairs?
A: Redundant PM 803F pairs require two adjacent slots in the AC 800F rack, dual SD802F power supplies, and synchronized Ethernet connections. Minimum rack configuration: 8-slot chassis with redundant power and communication modules. Total depth: 220mm including cable clearance.

Q: Does the system support remote monitoring and diagnostics over cellular networks?
A: The PM 803F's Ethernet interface enables VPN-based remote access when paired with industrial routers (e.g., Moxa, Cisco IE series). ABB's Remote Connect service provides secure cloud gateway for mobile diagnostics, alarm notifications, and performance trending without exposing controllers to public internet.

Q: How do I migrate legacy Freelance systems to AC 800F architecture?
A: ABB offers migration tools to convert Freelance application code to AC 800F format. The PM 803F maintains backward compatibility with Freelance I/O modules via adapter racks. Typical migration projects follow phased approach: parallel operation → cutover → decommissioning, minimizing production disruption.

Next Steps: Request Technical Consultation

Our automation specialists are ready to assist with system sizing, protocol selection, and application-specific configuration. Contact us for detailed datasheets, reference architectures, or to schedule a virtual demonstration of the PM 803F in simulated process environments.

Ready to modernize your DCS infrastructure? Submit your technical requirements for a customized quotation including controller hardware, engineering services, and commissioning support.
