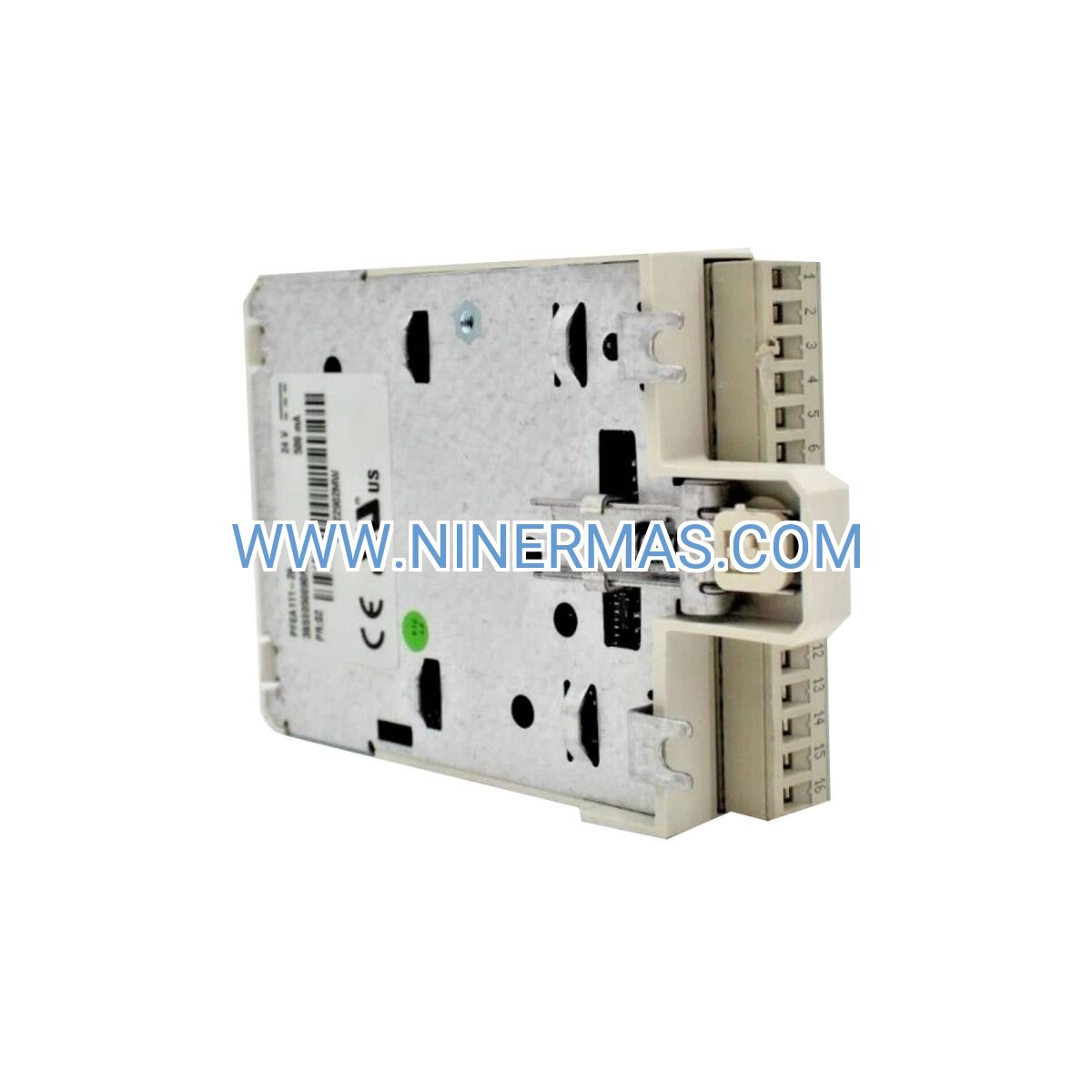

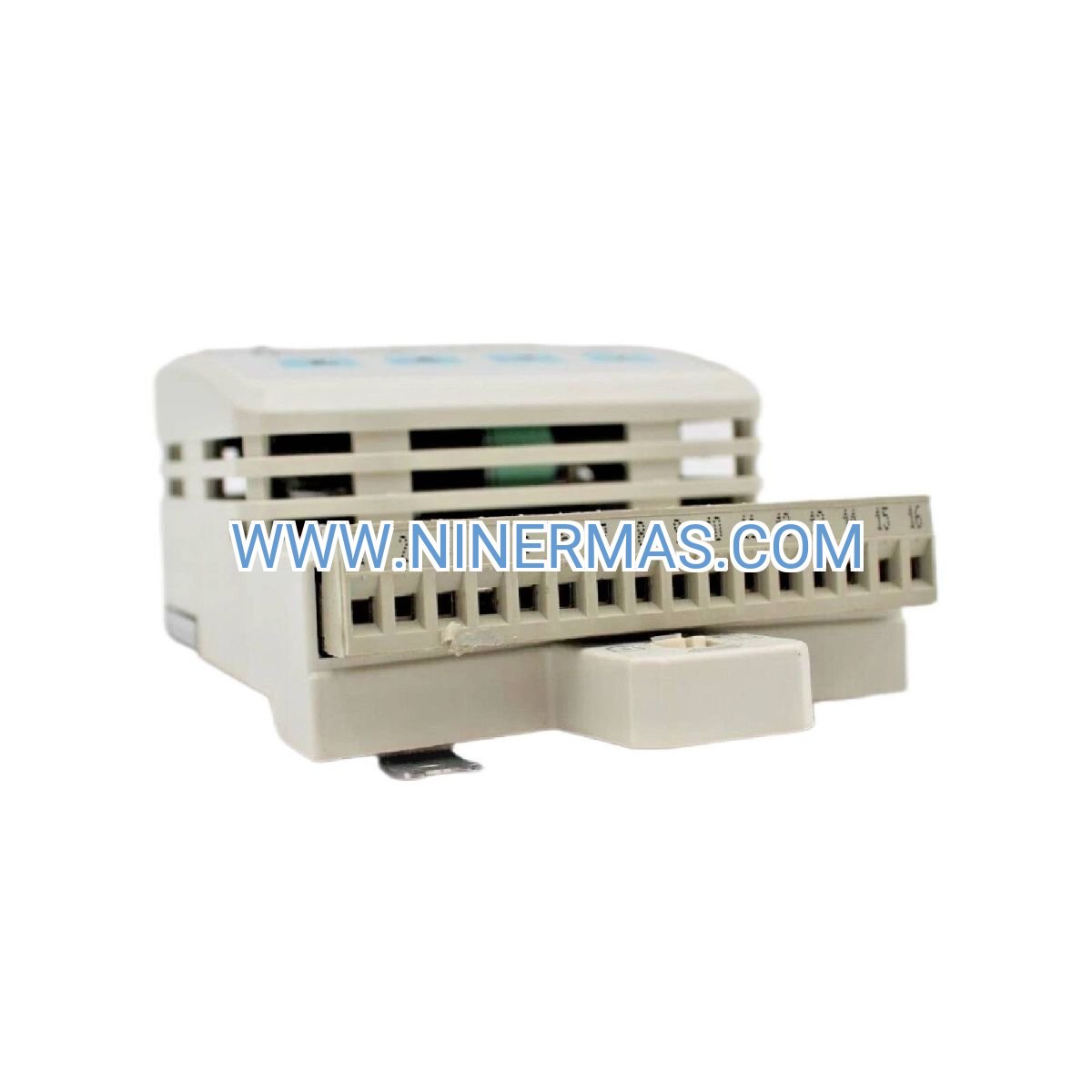

ABB PFEA111-20 Tension Control Electronics – Industrial-Grade Load Cell Signal Conditioner

The ABB PFEA111-20 represents Swiss precision engineering in web tension measurement technology. This industrial signal conditioner transforms raw load cell outputs into actionable digital data, delivering the accuracy and reliability demanded by high-speed converting, printing, and textile production environments.

Designed for manufacturers who cannot afford tension-related defects, the PFEA111-20 eliminates guesswork from web handling processes. Whether you're running pharmaceutical packaging lines, flexible film extrusion, or technical textile production, this module provides the real-time feedback necessary for maintaining optimal material tension throughout your process.

With proven performance across thousands of installations worldwide, the PFEA111-20 delivers consistent results in the harshest industrial conditions – from sub-zero cold storage facilities to high-temperature coating operations.

Core Features & Technical Advantages

→ 16-Bit Analog-to-Digital Conversion
Captures microvolt-level signal changes from strain gauge load cells, enabling detection of tension variations as small as 0.1% of full scale. This sensitivity prevents material damage and quality defects before they occur.

→ Multi-Input Channel Architecture
Processes signals from multiple load cell zones simultaneously, providing zone-specific tension profiling across wide web widths. Essential for maintaining uniform tension distribution in multi-zone winding and unwinding applications.

→ Industrial Fieldbus Integration
Native PROFIBUS and Modbus RTU support enables plug-and-play connectivity with ABB AC800M controllers, Siemens PLCs, and third-party automation platforms. Reduces commissioning time and eliminates custom interface programming.

→ Non-Volatile Calibration Storage
Retains sensor-specific calibration coefficients, zero offsets, and span adjustments through power interruptions. Eliminates recalibration requirements after maintenance shutdowns or power failures.

→ Continuous Diagnostic Monitoring
Automated self-test routines detect open circuits, short circuits, sensor drift, and signal saturation conditions. Predictive fault alerts enable proactive maintenance scheduling before production disruptions occur.

→ Extended Temperature Performance
Operates reliably from -10°C to +55°C ambient temperature, maintaining ±0.05% accuracy across the full range. Suitable for climate-controlled cleanrooms and non-conditioned industrial facilities alike.

Industry Applications & Problem-Solving Capabilities

✓ Flexible Packaging & Film Converting
Maintains precise web tension during high-speed slitting, laminating, and bag-making operations running at speeds exceeding 300 meters/minute. Prevents telescoping in finished rolls, edge wrinkling, and thickness variations that cause downstream processing issues. Typical ROI achieved within 6 months through reduced material waste and improved first-pass yield.

✓ Commercial & Industrial Printing
Ensures consistent substrate tension across multi-color print stations in gravure, flexographic, and offset web presses. Eliminates registration errors, color-to-color misalignment, and web breaks that result in costly production stops. Critical for maintaining ±0.25mm registration tolerance in pharmaceutical label printing and security document production.

✓ Textile & Nonwoven Manufacturing
Controls fabric tension during weaving, knitting, tufting, and spunbond processes where material properties vary continuously. Reduces yarn breakage, prevents pattern distortion, and improves dimensional stability in finished goods. Particularly valuable in technical textile production where material costs exceed $50/kg.

✓ Paper & Board Production
Monitors tension in coating, calendaring, and winding sections of paper machines operating at speeds up to 1,200 m/min. Prevents sheet breaks, caliper variations, and surface defects that downgrade product quality. Integrates with existing DCS infrastructure for centralized process visualization.

✓ Wire & Cable Extrusion
Measures pulling force during conductor drawing, insulation extrusion, and cable jacketing operations. Protects expensive conductor materials from overstress damage while maintaining concentricity tolerances required by UL and IEC standards.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the PFEA111-20 when your application requires single or dual-zone tension measurement with standard fieldbus connectivity. For applications demanding IP65 environmental protection, consider the PFEA111-65 variant. For systems requiring more than four load cell inputs, the PFEA113 series offers expanded I/O capacity.

Advanced Integration Capabilities

ABB AC800M Controller Compatibility
Pre-configured function blocks available in ABB's Control Builder software accelerate programming and commissioning. Tension control algorithms, PID loops, and diagnostic routines can be implemented without custom code development.

Third-Party Automation Platform Support
Standard Modbus register mapping enables integration with Rockwell, Siemens, Schneider Electric, and Mitsubishi control systems. Detailed communication protocol documentation included with each module.

SCADA & HMI Visualization
Real-time tension data streams to Wonderware, FactoryTalk, WinCC, and web-based visualization platforms. Historical trending supports process optimization and quality troubleshooting initiatives.

IoT & Industry 4.0 Readiness
OPC UA gateway compatibility enables cloud-based analytics, predictive maintenance algorithms, and remote monitoring capabilities. Supports digital transformation initiatives without replacing existing control infrastructure.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory-configured units with custom calibration or special communication protocols.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical production applications.

Technical Assistance: Application engineering support provided during system design phase. Commissioning assistance available via remote connection or on-site service. Lifetime access to firmware updates and technical documentation portal.

Documentation Package: Each module ships with installation manual, wiring diagrams, communication protocol specifications, calibration procedures, and troubleshooting guides. CAD drawings and 3D STEP models available for download.

Frequently Asked Questions

Q: How does the PFEA111-20 interface with existing PLC-based tension control systems?
A: The module communicates via standard PROFIBUS DP or Modbus RTU protocols, making it compatible with virtually all industrial PLCs. Connection requires only a fieldbus cable and configuration of the communication parameters (baud rate, node address). Pre-built function blocks are available for ABB controllers, while register mapping documentation supports integration with other platforms.

Q: What load cell capacity range works best with this tension electronics module?
A: The PFEA111-20 accepts standard strain gauge load cells with 2 mV/V or 3 mV/V sensitivity ratings. Typical capacity ranges from 50 kg to 5,000 kg depending on your web width and material density. For optimal accuracy, select load cells where normal operating tension falls between 20% and 80% of rated capacity.

Q: Can this module reduce energy consumption in our web handling process?
A: Yes – precise tension control prevents over-tensioning that wastes motor energy and causes premature material fatigue. Customers typically report 8-15% reduction in drive system power consumption after implementing closed-loop tension control with the PFEA111-20, particularly in applications with frequent speed changes or material transitions.

Q: What installation requirements should we plan for when retrofitting existing machinery?
A: The module mounts on standard 35mm DIN rail and requires 24 VDC power (typically 3-5 watts per channel). Load cell wiring should use shielded twisted-pair cable with shield grounded at the module end only. Allow 100mm clearance above and below the module for heat dissipation and cable routing. Total installation time averages 2-4 hours including calibration.

Q: Does the PFEA111-20 support remote monitoring and diagnostics for predictive maintenance?
A: Absolutely – the module continuously monitors signal quality, excitation voltage stability, and communication health. Diagnostic data streams to your SCADA system or can be accessed via OPC UA gateways for cloud-based analytics platforms. This enables condition-based maintenance strategies that reduce unplanned downtime by up to 40%.

Q: How do we ensure measurement accuracy remains stable over time in dusty or humid production environments?
A: The PFEA111-20 features conformal-coated circuit boards and sealed terminal blocks that resist moisture and particulate contamination. For extremely harsh environments (washdown areas, outdoor installations), specify the IP65-rated PFEA111-65 variant. Annual calibration verification is recommended, though most installations maintain ±0.1% accuracy for 18-24 months between calibrations.

Ready to Optimize Your Web Tension Control?

Contact our application engineering team for a no-obligation consultation. We'll review your process requirements, recommend the optimal configuration, and provide a detailed quotation within 24 hours. Volume pricing and technical training programs available for OEMs and system integrators.
