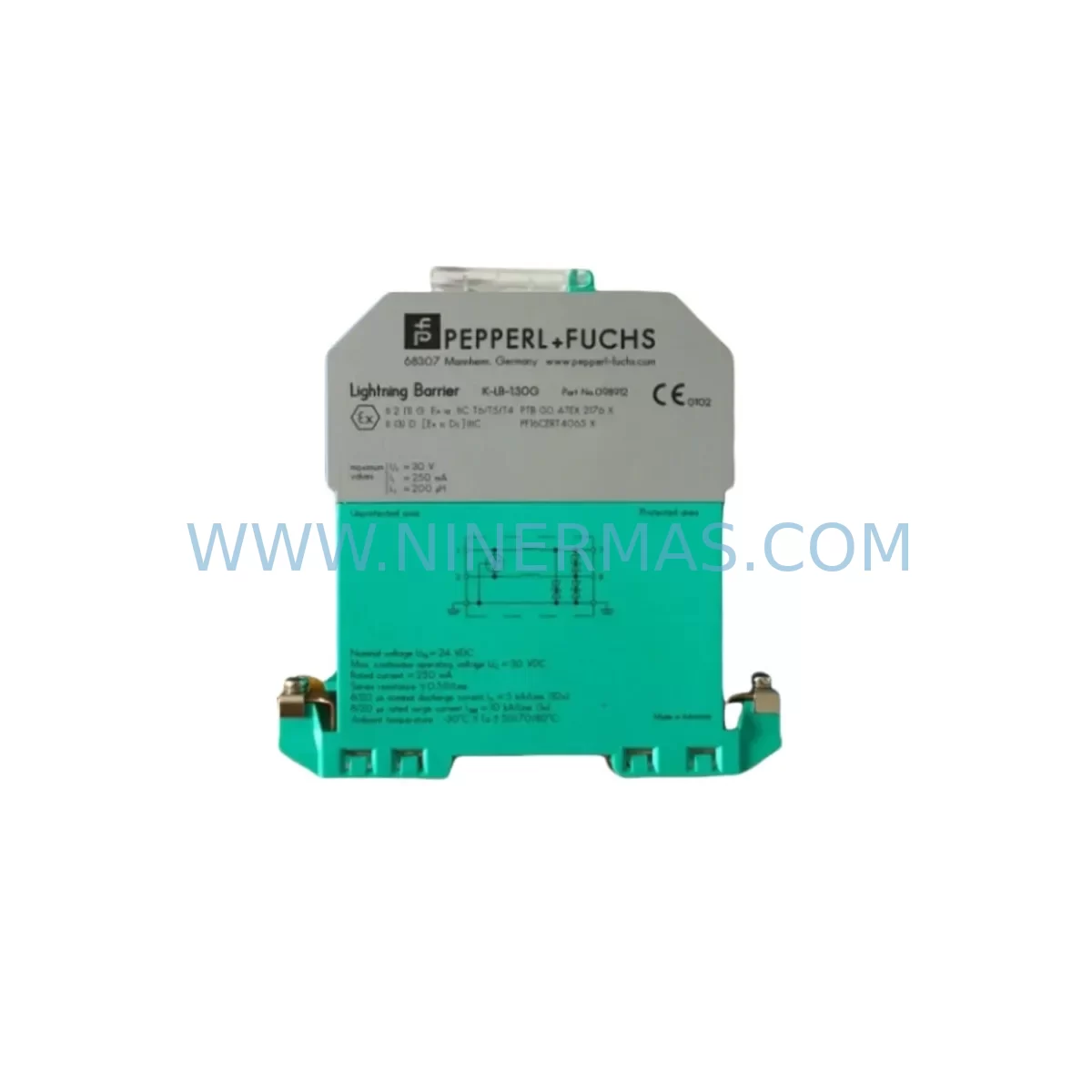

The Pepperl+Fuchs K-LB-1.30G is a DIN-rail-mounted lightning and surge protection barrier engineered for the K-System signal conditioning platform. Designed to protect field instrumentation signals from transient overvoltage events caused by lightning strikes, switching surges, and electrostatic discharge, the K-LB-1.30G is a critical spare part for maintenance engineers managing continuous process plants, chemical facilities, offshore platforms, and power generation sites. With a clamping voltage optimized for 30 V signal circuits and a robust housing rated for industrial cabinet installation, this module ensures that sensitive 4–20 mA loops, NAMUR sensor circuits, and discrete field signals remain intact even under severe electromagnetic disturbance conditions.

For maintenance and procurement engineers responsible for keeping aging DCS and PLC systems operational, maintaining a stock of the K-LB-1.30G is a straightforward risk-reduction measure. Surge events are unpredictable, and a single unprotected transient can destroy multiple field transmitters, signal conditioners, and I/O cards simultaneously. Replacing a failed K-LB-1.30G barrier takes minutes; recovering from a cascade failure across an unprotected marshalling cabinet can take days. NINERMAS holds verified inventory of the K-LB-1.30G and ships each unit after pre-shipment electrical testing, backed by a 12-month warranty from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a K-LB-1.30G barrier fails or shows signs of degradation — such as increased loop resistance, signal clipping, or nuisance tripping — the replacement procedure should be treated as part of a broader marshalling cabinet inspection. Maintenance engineers should simultaneously verify the condition of adjacent K-System components to prevent repeat failures and ensure the entire signal path is restored to specification.

Start by checking the Pepperl+Fuchs K-System power rail (such as the K-PS-24VDC/24VDC/1A or equivalent) that supplies the barrier segment. A degraded or overloaded power rail can stress surge protection components and shorten their service life. Next, inspect the K-System signal conditioners installed in the same cabinet row — modules such as the KFD2-STC4-Ex1.20C (HART-transparent isolating converter) and the KFD2-UT2-Ex1.D (universal temperature converter) are frequently co-located with lightning barriers in hazardous-area marshalling cabinets and should be checked for drift or communication errors.

For discrete signal circuits, review the status of KFD2-SR2-Ex2.W switch amplifiers and KFD2-RSH-1.4S relay modules that may share the same field cable runs as the protected circuit. A surge event strong enough to damage the K-LB-1.30G may have also induced stress on these modules. Similarly, inspect the KFD2-CD-Ex1.32 NAMUR signal conditioner and any KFD2-UT2-Ex2 dual-channel converters in the vicinity.

On the field side, verify the integrity of the field cable shielding and grounding connections. Improperly grounded cable shields are a leading cause of repeated surge barrier failures. Check the terminal blocks — Pepperl+Fuchs KFD2-GUT-1.D or equivalent grounding terminals — to confirm that shield drain wires are terminated correctly and that ground continuity is intact throughout the marshalling cabinet.

For plants running Fieldbus or HART communication architectures, also inspect the KFD2-HMM-16 HART multiplexer or K-System segment couplers if they share the same cabinet. A surge event on one channel can introduce noise that disrupts HART polling across the entire segment. Procurement engineers should consider stocking at least two to four K-LB-1.30G units per cabinet as a minimum buffer, particularly for remote sites where emergency procurement lead times may exceed 72 hours.

Site Replacement Workflow

Replacing the K-LB-1.30G in the field is a straightforward procedure that can typically be completed within 15 to 30 minutes by a qualified instrument technician, minimizing control loop downtime. The following workflow is recommended for safe and efficient replacement:

Step 1 — Isolate the loop: Inform the control room operator and place the affected loop in manual mode at the DCS or PLC. For safety-instrumented loops, follow the site Management of Change (MOC) and bypass procedures before proceeding.

Step 2 — De-energize and label: Isolate the K-System power rail segment supplying the barrier. Use lockout/tagout (LOTO) procedures as required by site safety policy. Label the removed barrier with the date, loop tag, and reason for replacement for traceability records.

Step 3 — Remove and inspect: Slide the K-LB-1.30G off the DIN rail. Inspect the terminal connections and adjacent barriers for signs of burn marks, discoloration, or mechanical damage that may indicate a more severe surge event. If adjacent barriers show similar symptoms, replace them proactively rather than waiting for a second failure.

Step 4 — Install the replacement unit: Clip the new K-LB-1.30G onto the DIN rail and reconnect field and system-side terminals according to the original wiring documentation. Verify terminal torque to manufacturer specification to prevent loose connections that could introduce signal errors.

Step 5 — Restore and verify: Re-energize the power rail, restore the loop to automatic mode, and verify the 4–20 mA signal reading at the DCS against the field transmitter output. Confirm that loop resistance is within the expected range and that no HART communication errors are present before closing the work order.

Maintaining accurate as-built wiring records and a cabinet-level spare parts list that includes the K-LB-1.30G will significantly reduce the time required for future replacements and support efficient annual shutdown planning.

Spare Parts Support FAQ

Q1: Does the K-LB-1.30G carry a warranty when purchased from NINERMAS?
Yes. Every K-LB-1.30G unit supplied by NINERMAS is covered by a 12-month warranty from the date of delivery. Each unit undergoes pre-shipment electrical testing to verify surge clamping function and terminal integrity before dispatch. If a unit fails within the warranty period under normal operating conditions, NINERMAS will provide a replacement or full refund.

Q2: How do I confirm compatibility with my existing K-System installation?
The K-LB-1.30G is designed for the Pepperl+Fuchs K-System DIN-rail platform and is compatible with standard 35 mm DIN rails and K-System power rails. Compatibility should be confirmed against your existing cabinet documentation, including the barrier’s rated voltage (30 V) and the signal type of the protected circuit. NINERMAS technical support can assist with compatibility verification if you provide your existing barrier part number or cabinet layout drawing.

Q3: Can NINERMAS supply K-LB-1.30G units for long-term or blanket purchase orders?
Yes. NINERMAS supports long-term supply agreements and blanket purchase orders for critical spare parts including the K-LB-1.30G. For plants with multiple marshalling cabinets or multi-site operations, we recommend establishing a standing stock arrangement to ensure availability during annual shutdowns and emergency replacement scenarios. Contact our sales team to discuss volume pricing and delivery scheduling.

Q4: What should I do if the replacement K-LB-1.30G does not resolve the loop signal issue?
If replacing the K-LB-1.30G does not restore normal loop operation, the fault may lie in an adjacent component that was also damaged by the surge event. Check the field transmitter output, the signal conditioner on the system side, and the I/O card input channel at the DCS or PLC. A systematic loop check using a calibrator will help isolate the remaining fault. NINERMAS can supply replacement K-System signal conditioners, isolators, and related components to support a complete cabinet restoration.
