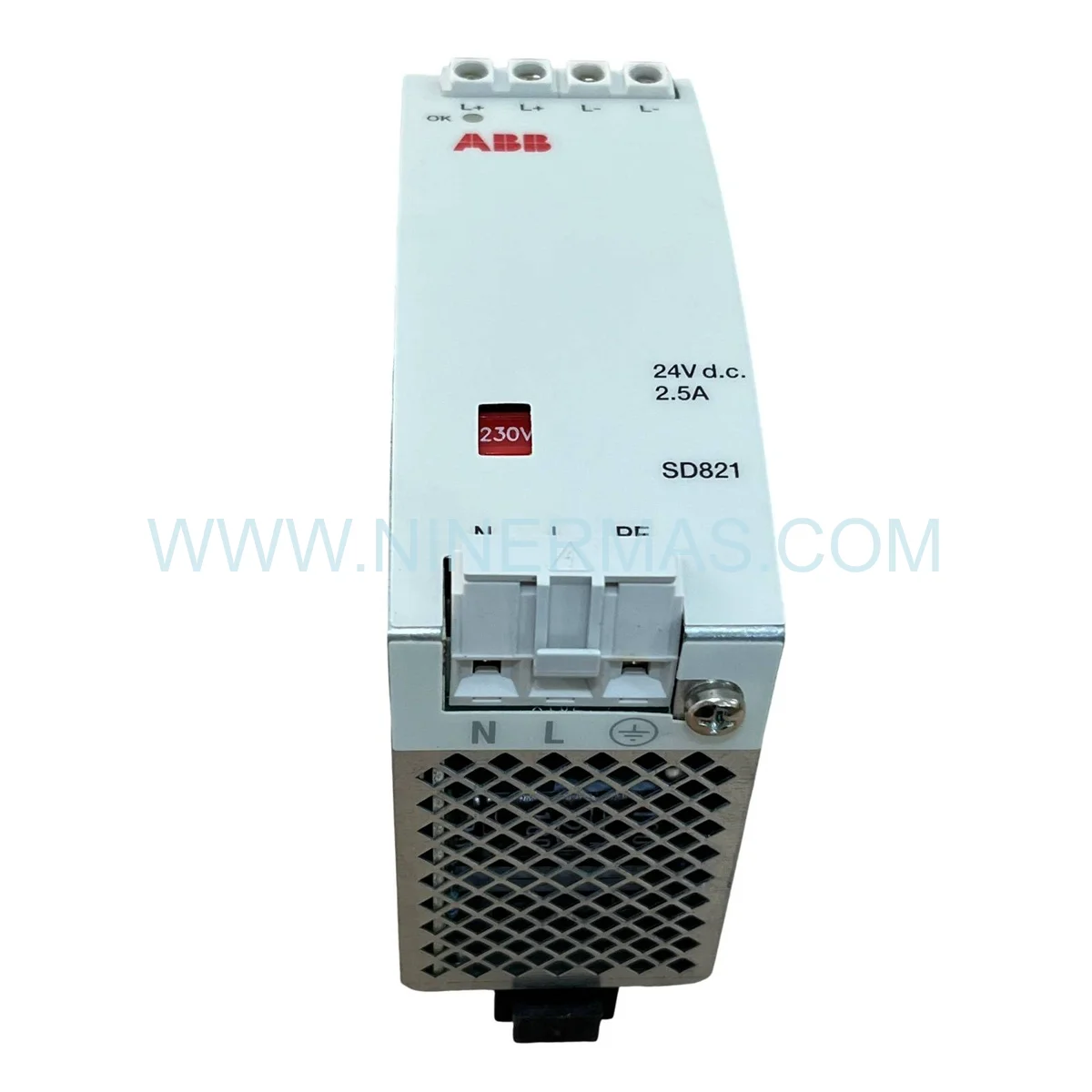

ABB SD821 Power Supply 3BSC610037R1 | 24V DC 2.5A New & Original

ABB SD821 3BSC610037R1 | Reliable Automation Component for Mission-Critical Power Distribution

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous process operations, the ABB SD821 3BSC610037R1 represents a foundational element in sustaining system availability across distributed control architectures. Deployed as the primary 24V DC power source for AC 800M controllers and S800 I/O modules, the 3BSC610037R1 directly underpins Operational Excellence by eliminating voltage instability as a root cause of unplanned shutdowns. Its switch-mode topology delivers tightly regulated output with less than 50mV peak-to-peak ripple — a specification that matters enormously when powering microprocessor-based I/O Modules in high-density marshalling cabinets.

In demanding industrial environments — including petrochemical plants, offshore platforms, and pharmaceutical batch facilities — the ABB SD821 3BSC610037R1 demonstrates exceptional durability across an operating temperature range of -20°C to +60°C. Installation engineers should note that the unit requires a minimum 50mm clearance above and below for convective airflow; failure to observe this spacing in tightly packed enclosures is a leading cause of premature thermal shutdown. The DIN-rail spring-clip mechanism allows tool-free swap in under three minutes, a critical advantage during live maintenance windows on redundant power rails.

For SRE teams managing aging DCS infrastructure or executing phased modernization programs, maintaining certified spare inventory of the 3BSC610037R1 is not optional — it is a risk mitigation imperative. With many legacy ABB Advant OCS and AC 800M installations now classified as end-of-life (EOL) by the OEM, sourcing verified original units from authorized distributors is the only path to preserving system integrity without costly platform migration.

Key Operational Features

High Availability Architecture: Supports N+1 redundancy via ABB SS82x Voting Units — enables hot-swap replacement with zero process interruption
Seamless System Integration: Plug-compatible with AC 800M, S800 I/O, and Advant OCS platforms — no firmware or configuration changes required
Wide Input Tolerance: Accepts 85-264V AC without derating — immune to grid fluctuations in heavy industrial facilities
Precision Output Regulation: ±5% voltage stability across full load range — protects sensitive Automation Components from power-induced faults
Multi-Layer Protection Suite: Overvoltage crowbar, overcurrent foldback, short-circuit hiccup mode, and thermal shutdown with auto-restart
Certified for Hazardous Locations: ATEX Zone 2 / IECEx / Class I Div 2 — qualified for installation in explosive atmosphere areas without additional enclosures

Maintenance & Performance Benchmarks

The 3BSC610037R1 is engineered to integrate into industrial network architectures ranging from compact standalone PLC panels to large-scale DCS installations spanning multiple remote I/O drops. In Process Optimization scenarios, its 100 kHz switching frequency minimizes conducted EMI — a measurable benefit in facilities where variable frequency drives and high-current motor starters share the same electrical infrastructure.

Benchmark maintenance intervals for this unit in continuous-duty applications: annual terminal torque verification (recommended 0.5-0.6 Nm), semi-annual output voltage measurement under rated load, and quarterly visual inspection of ventilation slots for particulate accumulation. Mean Time Between Failures (MTBF) for the SD821 series under standard industrial conditions exceeds 200,000 hours — a figure that supports 5-year planned maintenance cycles in most process industries.

For System Integration teams, the SD821’s parallel load-sharing capability when used in redundant pairs ensures that neither unit operates above 60% of rated capacity under normal conditions, extending component service life and reducing thermal stress on internal capacitors — the primary aging mechanism in switch-mode power supplies.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ABB SD821 3BSC610037R1 unit dispatched from our facility ships in Original Factory Packaging with manufacturer labels, serial number traceability, and original test documentation intact. For emergency breakdown scenarios, same-day dispatch is available on confirmed in-stock units when orders are placed before the daily cut-off — contact our team to verify real-time availability before placing your order.

We maintain dedicated inventory of EOL and legacy ABB automation modules specifically to support facilities that cannot execute platform migrations on short notice. Our global supply network spans warehousing across Asia, Europe, and North America, enabling Worldwide Express Logistics with DHL, FedEx, and UPS Priority services. Typical transit times: 3-5 business days to most destinations. All shipments are fully insured and include commercial invoice documentation for customs clearance.

A 1-Year Warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 48 hours of receipt, with advance replacement available for critical production environments.

Engineering Support & FAQ

Q1: What is the correct installation orientation for the ABB SD821 3BSC610037R1, and are there airflow requirements?
The 3BSC610037R1 must be mounted vertically on a 35mm DIN rail with the AC input terminals at the top. Maintain a minimum 50mm clearance above and below the unit for natural convective cooling. Horizontal mounting is not recommended as it restricts airflow and may trigger thermal shutdown under sustained full-load conditions.

Q2: Which ABB controller and I/O platforms are directly compatible with the 3BSC610037R1?
The SD821 is the standard power supply for ABB AC 800M controller families (PM851, PM856, PM860, PM861, PM864, PM866), all S800 I/O modules (AI810, AO810, DI810, DO810 series), and legacy Advant OCS Master stations. It is also compatible with CI858 PROFIBUS interfaces and CI854 FOUNDATION Fieldbus communication interfaces.

Q3: Can the SD821 3BSC610037R1 be used in a redundant power configuration, and what additional hardware is required?
Yes. Redundant operation requires an ABB SS821 or SS822 Voting Unit (diode-OR module). Two SD821 units connect to the voting unit inputs; the voting unit output feeds the controller bus. This configuration supports hot-swap replacement of a failed supply without interrupting the control system. Load sharing is automatic.

Q4: What firmware or software configuration is required after installing a replacement 3BSC610037R1?
None. The SD821 is a passive power conversion device with no embedded firmware, network address, or software configuration. Replacement is purely a hardware swap — install the unit, verify output voltage (24V DC ±5%), and restore AC input power. No Control Builder or System 800xA configuration changes are required.

Q5: How is the warranty claim process handled for units purchased through your store?
Submit a warranty claim via email to sale@ninermas.com with your order number, unit serial number, and a description of the observed fault. Our technical team will respond within 48 hours with a Return Merchandise Authorization (RMA) number. Advance replacement units are dispatched upon RMA issuance for customers with active production requirements. Return shipping of the defective unit must be completed within 30 days of RMA issuance.

Q6: Is the ABB SD821 3BSC610037R1 suitable for installation in ATEX Zone 2 hazardous areas?
Yes, provided installation complies with the applicable ATEX/IECEx certification conditions. The unit must be installed inside a certified Ex e (increased safety) or Ex d (flameproof) enclosure rated for Zone 2 Group IIC. The enclosure must be selected and installed per IEC 60079-14 requirements. Direct open-air installation in Zone 2 without an appropriate enclosure is not permitted under the certification.
