Pepperl+Fuchs KFD2-STC5-EX1 Retrofit Signal Conditioner

Pepperl+Fuchs KFD2-STC5-EX1 Retrofit Signal Conditioner for Legacy Automation Systems

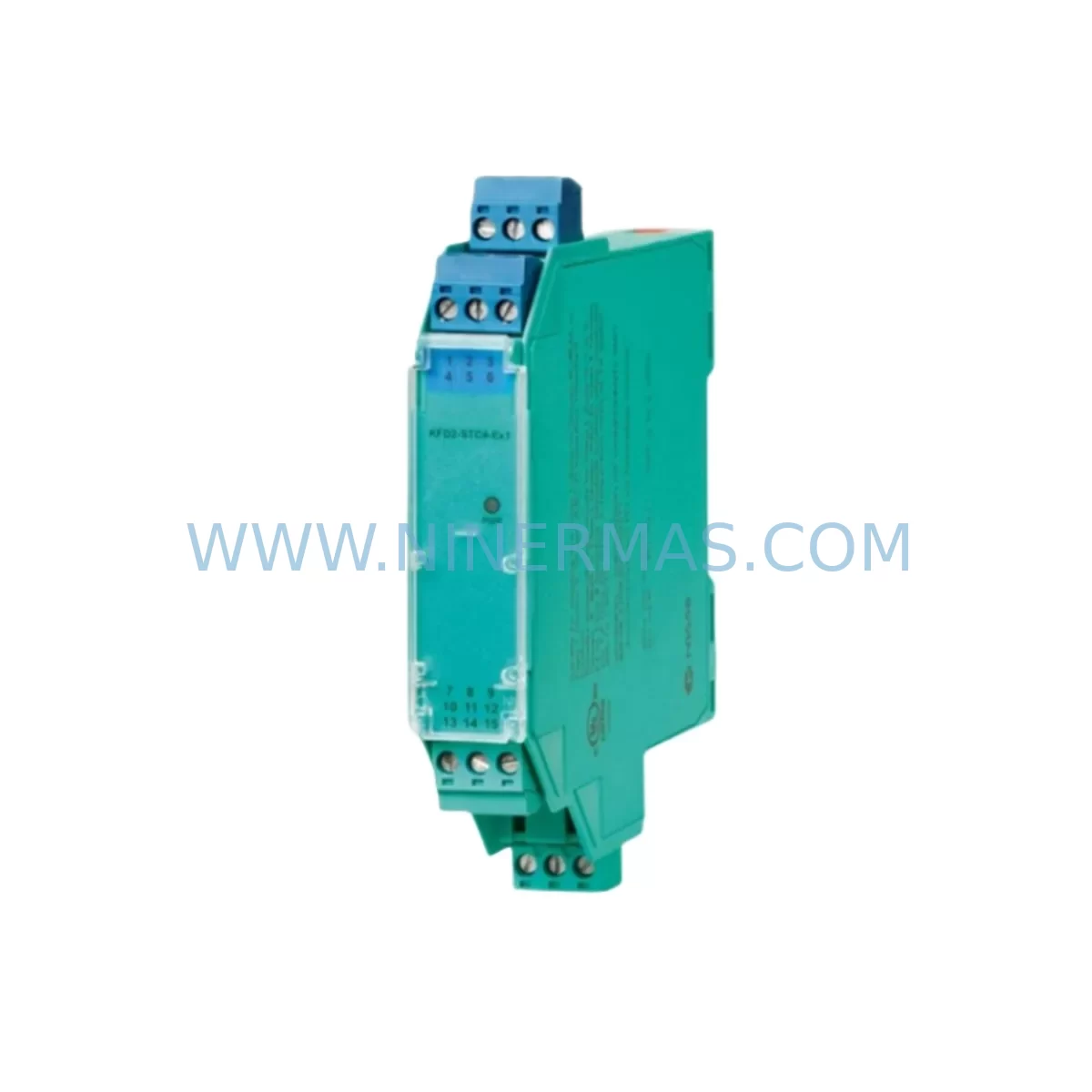

The Pepperl+Fuchs KFD2-STC5-EX1 is a DIN rail-mounted, intrinsically safe signal conditioner designed for 4–20 mA current loop transmission in hazardous area applications classified under ATEX and IECEx Zone 1/2 and Zone 21/22. As a core component of the KFD2 Series isolation barrier platform, the KFD2-STC5-EX1 provides galvanic isolation between field instruments and control system I/O, making it a critical interface module in process automation environments where legacy DCS, PLC, and SCADA systems must be maintained, extended, or modernized without full system replacement.

For facilities operating aging control infrastructure — including first-generation Siemens SIMATIC S5, Honeywell TDC 3000, Yokogawa CENTUM CS, or ABB Advant OCS platforms — the KFD2-STC5-EX1 offers a proven, field-compatible retrofit path. Its standardized 24 VDC supply rail, compact 20 mm housing, and passive field circuit design allow direct substitution into existing KFD2 Series marshalling cabinets without modification to terminal wiring or backplane layout. Engineers planning a phased migration from legacy analog I/O to modern distributed I/O systems can retain the KFD2-STC5-EX1 as a stable signal interface layer while upgrading upstream controller hardware incrementally.

Each unit shipped by NINERMAS is pre-tested under load conditions, verified for loop current accuracy, and accompanied by a 12-month warranty covering manufacturing defects and functional performance. Long-term inventory commitment programs are available for facilities requiring multi-year spare parts supply assurance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KFD2-STC5-EX1 into a legacy control system begins with a structured pre-retrofit audit. Engineers should first confirm the power supply capacity of the existing KFD2 bus rail — the KFD2-PWR-1.24W single-channel power supply and the KFD2-PWR-2.24W dual-channel variant are the standard supply modules for this series, and adding replacement signal conditioners to an undersized bus can cause voltage sag that degrades loop accuracy across adjacent channels.

Terminal wiring is the next critical checkpoint. The KFD2-STC5-EX1 uses a three-terminal field connection (terminals 1, 2, 3) and a two-terminal output connection (terminals 6, 7). When replacing a failed or end-of-life unit, technicians should photograph the existing wiring before removal and verify that field cable polarity is preserved during reconnection. In installations where the original marshalling panel used the KFD2-UT2-EX1 universal temperature converter or the KFD2-SR2-EX1 solenoid driver in adjacent slots, care must be taken to avoid cross-terminal contamination during module swap.

For systems migrating from older Pepperl+Fuchs KFD0 or KFD1 Series barriers to the KFD2 platform, the physical DIN rail footprint and terminal numbering conventions differ. A terminal adapter plate or re-termination of field cables may be required. In these cases, the KFD2-UT2-EX2 universal transmitter power supply and the KFD2-CD-EX1 current driver module are commonly installed alongside the STC5 to complete the signal chain from field transmitter to DCS analog input card.

Where the control system includes a Pepperl+Fuchs F-LB-POWER fieldbus power conditioner or a KFD2-HLC-Ex1.D HART loop converter, the KFD2-STC5-EX1 can be integrated into the same marshalling rack without protocol conflict, as the HART signal passes transparently through the analog loop. This is particularly valuable in facilities upgrading to asset management platforms such as Emerson AMS or Yokogawa PRM, where HART device diagnostics are required without replacing field transmitters.

For I/O expansion projects where a legacy PLC rack — such as a Siemens S7-300 with SM 331 analog input modules or a GE Fanuc Series 90-30 with IC693ALG221 cards — is being extended to accommodate additional field instruments, the KFD2-STC5-EX1 provides a reliable signal conditioning layer that normalizes field transmitter output to the 4–20 mA range expected by standard analog input cards. This eliminates the need for custom scaling at the controller level and simplifies loop commissioning.

In control cabinet upgrade projects, where the goal is to replace an aging Honeywell PM I/O or a Foxboro FBM I/O subsystem with a modern distributed I/O platform such as the Pepperl+Fuchs Remote I/O system or a Siemens ET 200SP, the KFD2-STC5-EX1 can serve as a transitional signal interface, maintaining field instrument connectivity while the upstream I/O infrastructure is replaced in stages. This phased approach minimizes the scope of simultaneous changes and reduces the risk of unplanned process interruptions.

Downtime Control During System Migration

Minimizing production downtime during a signal conditioner replacement or marshalling panel upgrade requires a disciplined sequence of pre-outage preparation, controlled switchover, and post-installation verification. For the KFD2-STC5-EX1, the recommended approach is to complete all pre-wiring, module staging, and documentation review during normal operation, reserving the actual module swap for a planned maintenance window.

Before the outage window opens, engineers should verify that the replacement KFD2-STC5-EX1 unit has been bench-tested with a calibrated 4–20 mA loop calibrator to confirm output linearity across the full signal range. The DCS or PLC analog input channel associated with the affected loop should be placed in manual mode or forced to a safe fallback value to prevent spurious control actions during the transition. If the loop feeds a PID controller — for example, a flow control loop on a Yokogawa CENTUM VP or a pressure control loop on a Honeywell Experion PKS — the controller output should be held at the last stable value before the field signal is interrupted.

During the swap, the field cable terminations should be transferred one conductor at a time, with continuity checks performed after each connection. Once the replacement module is seated and wired, the loop should be energized and the output signal verified at the DCS analog input before the controller is returned to automatic mode. The entire swap sequence for a single KFD2-STC5-EX1 channel can typically be completed within 15–30 minutes by a qualified instrument technician, making it feasible to replace multiple channels within a single four-hour maintenance window without impacting adjacent process loops.

For larger-scale marshalling panel replacements involving 20 or more KFD2 Series modules, a parallel wiring strategy — where new modules are pre-wired on a temporary DIN rail assembly and then transferred as a complete assembly — can further compress the outage window. This approach also allows the new module assembly to be fully tested and verified before the cutover, reducing the risk of post-installation faults that extend downtime beyond the planned window.

Retrofit Support FAQ

Q1: Is the KFD2-STC5-EX1 a direct drop-in replacement for the KFD2-STC4-EX1?
Yes. The KFD2-STC5-EX1 is the current production successor to the KFD2-STC4-EX1 and shares the same 20 mm DIN rail housing, terminal layout, and power rail interface. No wiring changes are required for a direct substitution. Verify that the ATEX approval category of the replacement unit matches the zone classification of the installation before commissioning.

Q2: Can the KFD2-STC5-EX1 be used with HART-enabled field transmitters?
Yes. The KFD2-STC5-EX1 is HART transparent, meaning the HART communication signal superimposed on the 4–20 mA loop is passed through without attenuation or distortion. A HART handheld communicator or a HART multiplexer connected to the output terminals can communicate with the field transmitter without removing the module from service.

Q3: What pre-shipment testing is performed on each KFD2-STC5-EX1 unit?
Each unit supplied by NINERMAS undergoes a functional load test using a calibrated 4–20 mA loop source, verifying output accuracy at 4 mA, 12 mA, and 20 mA setpoints. Isolation resistance between field, supply, and output circuits is verified to exceed 500 V AC. A test record is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q4: Is long-term inventory supply available for multi-year maintenance programs?
Yes. NINERMAS offers stock commitment programs for facilities requiring guaranteed availability of KFD2-STC5-EX1 units over a 12–36 month horizon. Committed stock is reserved under a framework agreement with defined lead times and pricing. Contact our technical sales team to discuss volume requirements and supply terms.
