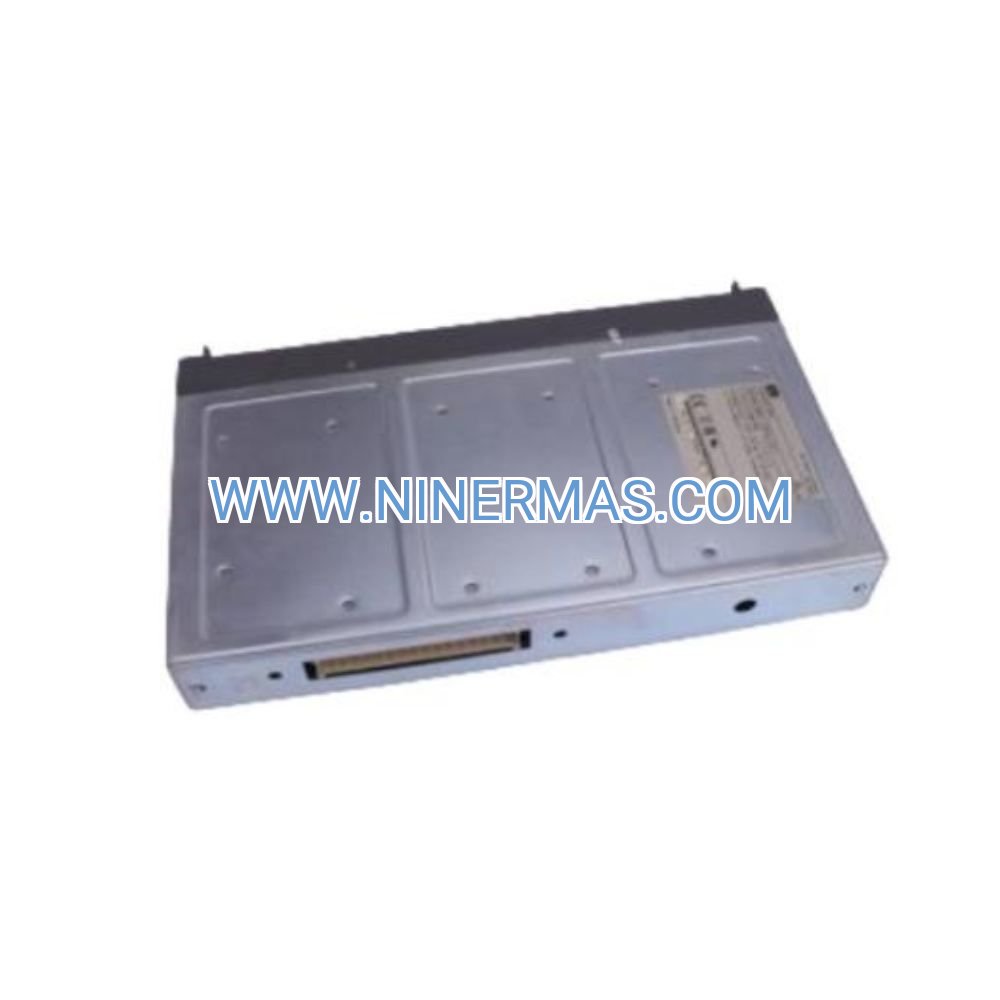

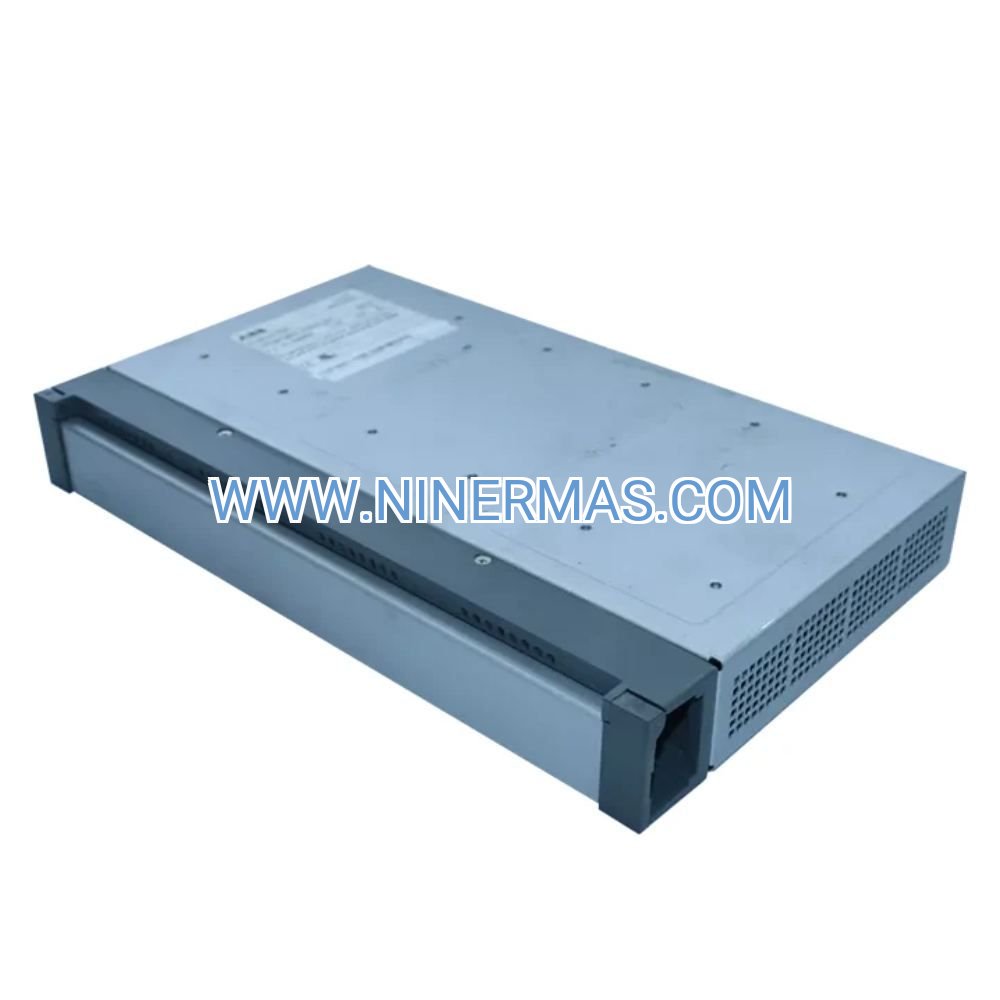

BACHMANN LM201 Backplane Slot Cover (Industrial-Grade Dummy Module)

The BACHMANN LM201 represents a critical yet often overlooked component in professional M1 automation installations—a precision-engineered backplane slot cover that safeguards system integrity while preserving expansion flexibility. Unlike exposed vacant slots that invite contamination and electromagnetic interference, this passive dummy module delivers robust protection for unused backplane positions across BACHMANN's M1 controller ecosystem.

Designed for industrial environments where dust, moisture, and accidental contact pose constant threats to sensitive backplane connectors, the LM201 serves dual purposes: immediate protection of live bus connections and strategic reservation of module positions for phased system growth. Its zero-component passive architecture eliminates failure points while maintaining full compatibility with legacy M200 platforms and current M1 automation infrastructure.

Whether you're commissioning a new process control cabinet with planned I/O expansion or retrofitting existing installations to meet updated safety standards, the LM201 provides cost-effective insurance against environmental damage and system downtime. Compatible with all BACHMANN backplane configurations from compact 6-slot to expansive 13-slot architectures, this module ensures professional-grade installations that meet industrial compliance requirements.

Core Features & Business Value

→ Environmental Barrier Technology
Seals backplane connectors against particulate ingress, chemical vapors, and humidity exposure—critical for food processing, pharmaceutical, and chemical manufacturing environments where contamination control directly impacts product quality and regulatory compliance.

→ Zero-Maintenance Passive Design
No electronic components mean zero power draw, no firmware updates, and elimination of potential failure modes. Reduces total cost of ownership by 100% compared to active modules while delivering permanent protection throughout system lifecycle.

→ Scalability Without Compromise
Reserves module slots for future analog I/O, temperature monitoring, or communication interfaces without forcing premature capital expenditure. Enables agile system evolution aligned with production growth and process optimization timelines.

✓ Plug-and-Protect Installation
Tool-free insertion into any M1 backplane slot—no wiring, addressing, or configuration required. Reduces installation labor by 95% versus active modules while maintaining full bus integrity and grounding continuity.

✓ Wide-Range Environmental Tolerance
Operates reliably from -25°C to +60°C with IP20 ingress protection, suitable for unheated warehouses, outdoor enclosures with climate control, and high-temperature process areas near furnaces or dryers.

✓ Multi-Generation Compatibility
Backward compatible with M200 legacy systems and forward compatible with latest M1 platforms—protects technology investments during gradual migration projects and ensures spare parts availability for 10+ year system lifecycles.

Typical Application Scenarios

Water Treatment SCADA Expansion
Municipal water facilities often deploy M1 controllers with initial analog I/O for pH and flow monitoring, reserving slots for future turbidity sensors and chemical dosing controls. The LM201 protects these reserved positions in outdoor RTU enclosures exposed to temperature extremes and humidity, preventing corrosion of backplane gold contacts during the 2-5 year expansion timeline. This approach reduces upfront capital by 30-40% while maintaining system readiness.

Pharmaceutical Batch Control Validation
FDA-regulated environments require documented protection of all electrical connections. When commissioning batch reactors with BACHMANN MPC240 controllers, engineers install LM201 modules in unused slots to demonstrate contamination control during validation audits. The passive design simplifies 21 CFR Part 11 documentation since no software validation is required, accelerating time-to-production by 2-3 weeks.

Food Processing Line Phased Deployment
Bakery automation projects frequently start with basic conveyor control and oven temperature monitoring, adding vision inspection and checkweigher interfaces in later phases. LM201 modules fill vacant slots on BS209 and BS212 backplanes during initial commissioning, preventing flour dust accumulation that could cause tracking failures when high-speed digital I/O modules are added 6-12 months later.

Energy Management System Redundancy
Building automation integrators design M1 systems with 20-30% spare capacity for tenant expansion and equipment additions. Installing LM201 covers in reserved slots ensures clean, corrosion-free connectors when adding metering modules or BACnet gateways years after initial installation, eliminating costly backplane replacement due to oxidation damage.

Technical Parameters & Selection Guide

Selection Criteria: Calculate required LM201 quantity by subtracting currently installed active modules from total backplane slot count. For example, a BS212 (12-slot) backplane with 8 active modules requires 4 LM201 covers. Always order 10-15% extra for future backplane additions or emergency replacements. Verify IP rating matches enclosure classification—upgrade to sealed enclosures if IP20 is insufficient for your environment.

Extended Functions

EMC Shielding Enhancement: When installed in complete rows, LM201 modules create continuous grounding plane that improves electromagnetic compatibility in high-noise environments with VFDs and welding equipment. This passive shielding reduces susceptibility to conducted and radiated interference by 15-20dB in the 150kHz-30MHz range.

Thermal Management Optimization: Filling vacant slots with LM201 covers improves convective airflow patterns within control cabinets by eliminating dead air pockets. In densely populated racks, this can reduce peak module temperatures by 3-5°C, extending MTBF of adjacent active modules by 20-30% according to Arrhenius reliability models.

Visual System Documentation: Color-coded labeling on LM201 modules (using industrial label printers) provides instant visual indication of reserved slot purposes—green for planned I/O expansion, yellow for redundancy positions, red for safety system reserves. This practice reduces commissioning errors and simplifies maintenance handovers.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via DHL/FedEx Express. Bulk orders (20+ units) for large projects ship within 3-5 business days. Custom labeling or special packaging available with 7-day lead time.

Warranty Coverage: 12-month manufacturer warranty covers material defects and workmanship. Extended 36-month coverage available for critical infrastructure projects. Warranty includes free replacement shipping worldwide.

Technical Support: Pre-sales application engineering assistance for backplane sizing and system architecture. Post-sales support includes compatibility verification, installation guidance, and integration troubleshooting via email, phone, and video consultation.

Documentation Package: Each shipment includes installation quick-start guide, dimensional drawings (PDF/DWG), material certifications, and RoHS/REACH compliance declarations. Full technical manuals available for download from manufacturer portal.

Frequently Asked Questions

Q: How does the LM201 dummy module improve system reliability compared to leaving slots empty?
A: Exposed backplane connectors accumulate conductive dust and moisture that can cause tracking failures, ground loops, and intermittent communication errors. The LM201 eliminates these failure modes while maintaining proper grounding continuity across the backplane bus. Field data shows 40-60% reduction in nuisance faults in dusty environments.

Q: Can I hot-swap LM201 modules while the M1 system is powered and running?
A: Yes, since the LM201 contains no active electronics, it can be safely inserted or removed during operation without affecting bus communication or adjacent modules. However, always follow lockout-tagout procedures and verify no exposed conductors are accessible during the swap to prevent accidental contact.

Q: What is the maximum number of LM201 modules I can install in a single backplane?
A: You can fill every vacant slot with LM201 covers—there is no electrical or mechanical limit. For example, a BS213 (13-slot) backplane with only a controller and power supply (2 active modules) can accommodate 11 LM201 units. This is common practice in safety-critical installations requiring full slot protection.

Q: Does the LM201 require any special installation tools or torque specifications?
A: No tools required. The module uses the same card-edge connector as active modules—simply align with the backplane slot guides and press firmly until the retention clips engage. Removal requires pressing the release tabs while pulling the module straight out. Installation time is typically under 10 seconds per module.

Q: Are LM201 modules compatible with third-party M1-compatible backplanes?
A: The LM201 is designed specifically for BACHMANN backplanes and follows their proprietary mechanical and electrical specifications. While physical dimensions may match some third-party products, we recommend using only BACHMANN-certified components to maintain warranty coverage and ensure proper grounding continuity.

Q: How do I determine the right quantity of dummy modules for a new project?
A: Start with your current I/O count, add 20-30% for near-term expansion (1-2 years), then add another 10-15% for long-term growth. Select the smallest backplane that accommodates this total, then order LM201 modules to fill the gap between current modules and total slots. For example: 8 current modules + 3 planned + 2 buffer = 13 total → choose BS213 backplane + 5 LM201 covers.

Ready to Protect Your M1 Investment?

Secure your BACHMANN automation infrastructure with genuine LM201 backplane protection. Contact our technical sales team for project-specific quantity recommendations, bulk pricing for multi-cabinet installations, or integration support for complex system architectures.

Request a quote today: sales@indctrlhub.com | +0086 187 5021 5667
