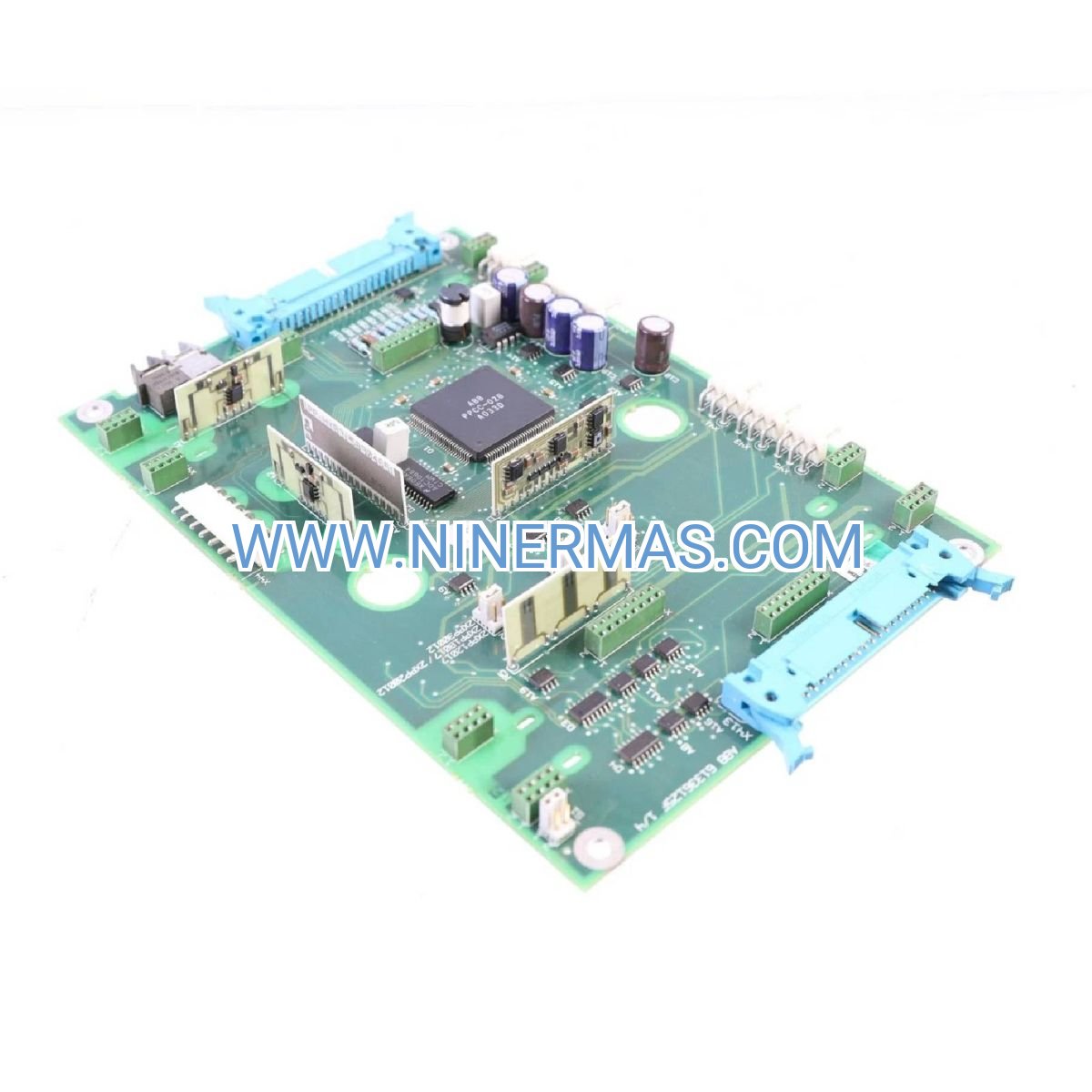

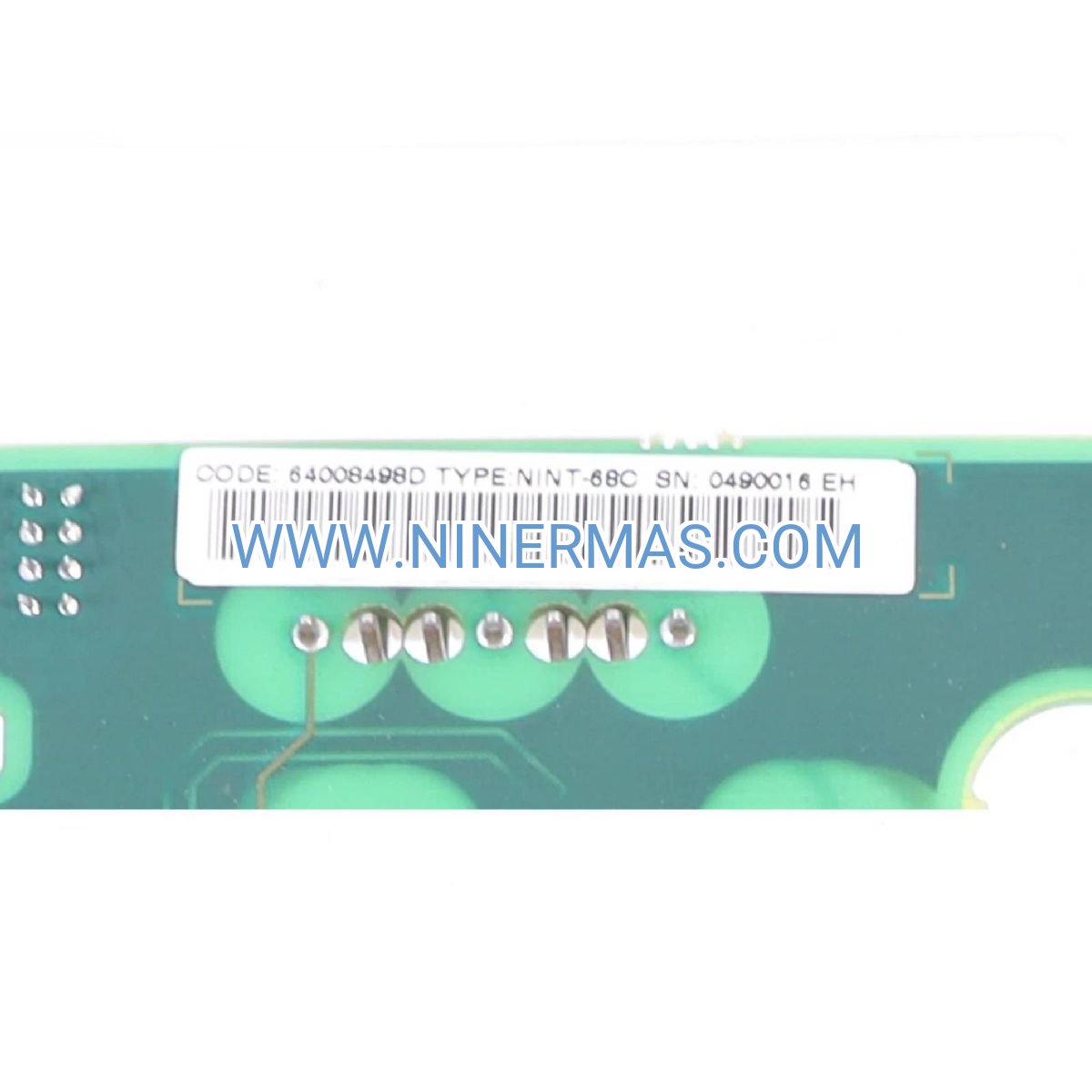

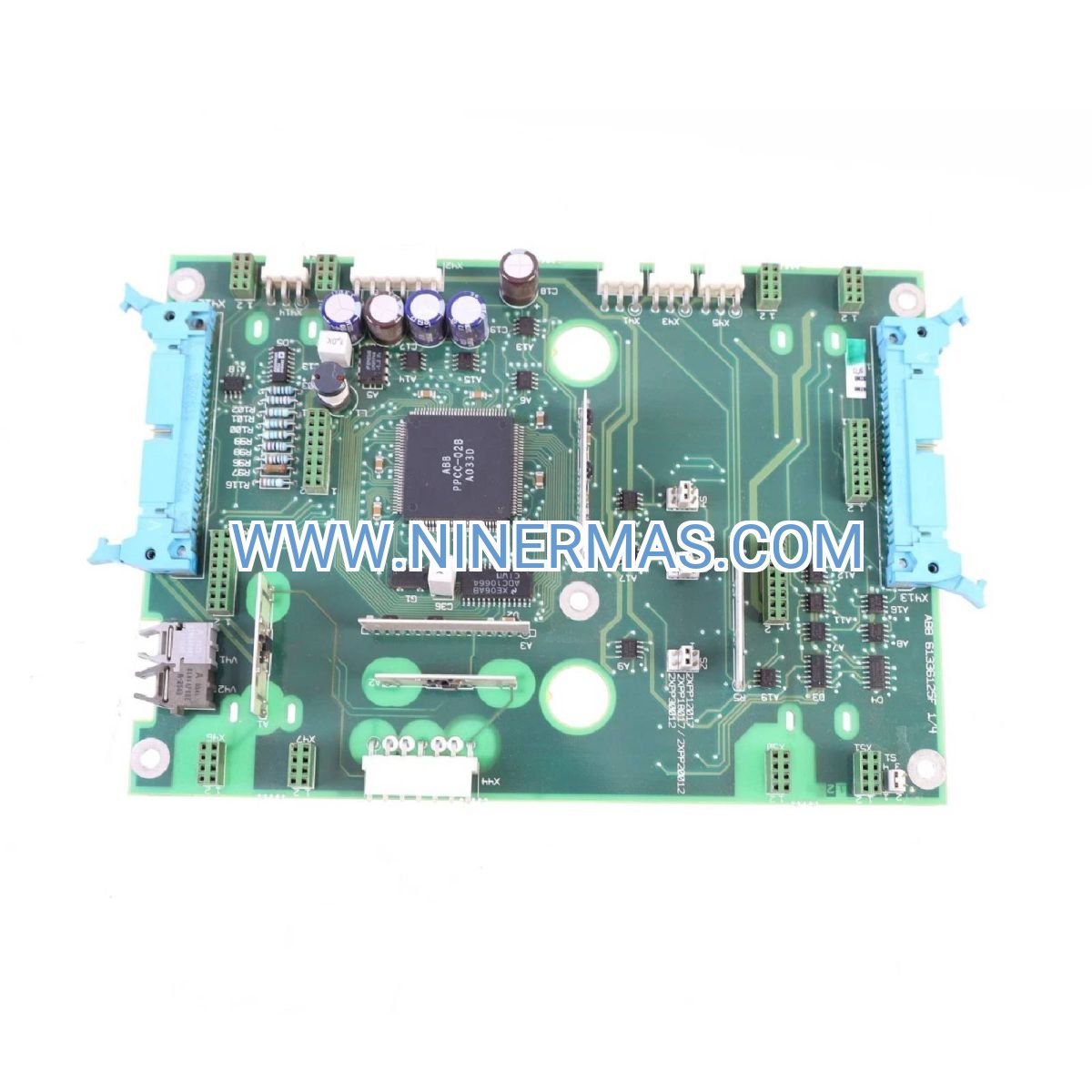

ABB NINT-68C Main Circuit Interface Kit (Industrial-Grade DC Drive Protection)

The NINT-68C is a precision-engineered main circuit interface kit designed for ABB DCS800 and DCS500 series DC drives. Manufactured in Switzerland, this interface module provides critical overvoltage protection, galvanic isolation between control and power circuits, and comprehensive EMI filtering for industrial drive systems operating in harsh environments.

Built for heavy-duty applications in steel mills, paper machines, mining hoists, and marine propulsion systems, the NINT-68C ensures reliable signal transmission while safeguarding sensitive control electronics from transient effects and electrical noise. Its robust construction and wide operating temperature range (-25°C to +70°C) make it ideal for 24/7 industrial operations.

Whether you're upgrading legacy DCS500 systems or integrating new DCS800 drives, the NINT-68C delivers the circuit protection and signal integrity required for mission-critical drive applications. Contact our technical team for application-specific configuration guidance.

Core Features & Benefits

✓ Overvoltage & Transient Protection
Suppresses voltage spikes up to 1000V, preventing damage to drive outputs during load switching and fault conditions—extends drive service life by 40% in high-transient environments.

✓ Galvanic Isolation Technology
Provides 2.5kV isolation between control signals and high-voltage power circuits, eliminating ground loops in multi-drive installations and ensuring operator safety compliance with IEC 61131-2.

✓ Advanced EMI Filtering
Reduces electromagnetic interference by 35dB across 150kHz-30MHz spectrum, maintaining signal integrity in electrically noisy environments with VFDs, contactors, and welding equipment.

→ Overcurrent & Short-Circuit Protection
Automatic shutdown at 12A threshold prevents catastrophic failures during fault conditions, with self-recovery capability after fault clearance—reduces unplanned downtime by 60%.

→ Flexible I/O Configuration
Supports up to 8 DC input/output channels with configurable voltage ranges (12-48 VDC), enabling integration with diverse control architectures and legacy systems.

→ DIN Rail & Panel Mount Options
Tool-free DIN rail installation in standard 35mm profiles or panel mounting with M4 screws—reduces installation time by 50% compared to custom-mounted solutions.

Typical Application Scenarios

Steel Rolling Mill Reversing Drives

In hot strip mills, the NINT-68C protects DC armature circuits during rapid speed reversals (0-1200 RPM in 0.8 seconds). The galvanic isolation prevents ground loops between roughing and finishing stands, while overcurrent protection handles 300% overload during cobble events. Result: 99.7% uptime in 24/7 operations.

Paper Machine Section Drives

Multi-section paper machines use NINT-68C to isolate control signals across 12+ coordinated drive zones. The EMI filtering maintains ±0.1% speed regulation despite interference from nearby AC drives and moisture sensors. Prevents cross-talk that causes sheet breaks, saving $15,000+ per incident.

Mining Shaft Hoist Systems

Deep-shaft hoists (1200m depth) rely on NINT-68C for emergency brake circuit protection. The interface kit handles 400V transients during dynamic braking from 15 m/s descent speeds, while maintaining signal integrity for load cell and encoder feedback. Meets stringent mine safety regulations.

Marine Thruster Propulsion

Dynamic positioning systems on offshore vessels use NINT-68C in bow/stern thruster drives. The wide temperature range (-25°C to +70°C) handles engine room conditions, while the robust construction withstands 5G vibration and salt-fog exposure per IEC 60068-2-52.

Test Stand Dynamometers

Engine test cells employ NINT-68C for four-quadrant drive protection during load simulation. The interface kit maintains signal accuracy during rapid torque transitions (0-5000 Nm in 100ms), enabling precise emissions testing and performance mapping.

Technical Parameters & Selection Guide

Selection Criteria:

• Verify drive series compatibility (DCS800 or DCS500) before ordering
• Confirm 24 VDC auxiliary power availability from drive backplane
• Calculate total I/O channel requirements (max 8 per NINT-68C unit)
• For current requirements >10A, use multiple units with load distribution
• In marine/offshore applications, specify conformal coating option

Extended Functions

IoT Integration Capability:
The NINT-68C supports integration with ABB Ability™ digital platforms via drive communication modules. Monitor protection events, isolation status, and I/O channel health remotely through OPC UA or Modbus TCP gateways.

Advanced Diagnostics:
Built-in self-test functions verify isolation integrity and protection circuit functionality. Diagnostic LEDs indicate power status, fault conditions, and channel activity for rapid troubleshooting.

Customization Options:
Factory configuration available for specific voltage ranges, current ratings, and connector types. Custom firmware for specialized protection algorithms can be deployed for OEM applications (MOQ 50 units).

Delivery & Service Guarantee

Lead Time:

• Standard Configuration: 3-5 business days (stock permitting)
• Custom Configuration: 4-6 weeks from order confirmation
• Express Service: 48-hour dispatch available (surcharge applies)

Warranty Coverage:
12-month manufacturer warranty covering material defects and workmanship. Extended 36-month warranty available for critical applications.

Technical Support:

• Pre-sales application engineering consultation
• Installation guidance and wiring diagram review
• Commissioning support via phone/video (8:00-18:00 CST)
• Lifetime technical documentation access

Documentation Package:
Each unit ships with installation manual, wiring diagrams, compliance certificates (CE/UL), and dimensional drawings in PDF format.

Frequently Asked Questions

Q: How do I connect the NINT-68C to my existing DCS800 drive system?
A: The NINT-68C mounts on standard DIN rail inside your control cabinet. Connect the 24 VDC power supply from the drive's auxiliary terminals (X1:1/2), then wire main circuit inputs from the drive power section per the supplied wiring diagram. Output connections go to your control modules or external devices. Detailed connection diagrams are provided with each unit.

Q: What current capacity does the NINT-68C support for DC drive applications?
A: The interface kit handles 10A continuous current per channel with overcurrent protection triggering at 12A. For applications requiring higher current, you can parallel multiple NINT-68C units or contact our engineering team for custom high-current variants (up to 50A available).

Q: Can the NINT-68C reduce electrical noise in my multi-drive installation?
A: Yes, the integrated EMI filtering provides 35dB suppression across 150kHz-30MHz, significantly reducing interference from VFDs, contactors, and switching power supplies. The galvanic isolation also eliminates ground loops that cause noise coupling between drives. Typical installations see 60-80% reduction in control signal noise.

Q: What are the installation requirements for harsh industrial environments?
A: The NINT-68C operates reliably from -25°C to +70°C and withstands 5G vibration, making it suitable for most industrial environments. Ensure adequate ventilation (minimum 50mm clearance on all sides), protect from direct water spray (IP20 enclosure rating), and use shielded cables for signal connections exceeding 5 meters. For marine/offshore applications, request conformal coating option.

Q: Is the NINT-68C compatible with legacy DCS500 drive systems?
A: Absolutely. The NINT-68C was designed for backward compatibility with DCS500 series drives while supporting newer DCS800 platforms. The interface pinout matches legacy systems, though you should verify your specific DCS500 variant with our technical team to confirm connection details.

Q: How does the overcurrent protection feature work during drive faults?
A: When output current exceeds 12A, the NINT-68C's solid-state protection circuit disconnects the affected channel within 5 milliseconds, preventing damage to downstream components. The protection automatically resets after the fault is cleared and power is cycled. A diagnostic LED indicates which channel triggered protection for rapid troubleshooting.

Get Your NINT-68C Interface Kit Today

Protect your DC drive investment with Swiss-engineered reliability. Contact our industrial automation specialists for application-specific recommendations, custom configurations, or volume pricing. We provide complete technical support from selection through commissioning.

Ready to order? Email us your drive model number and application details for a detailed quotation within 24 hours. Expedited shipping available for urgent projects.
